Full Description

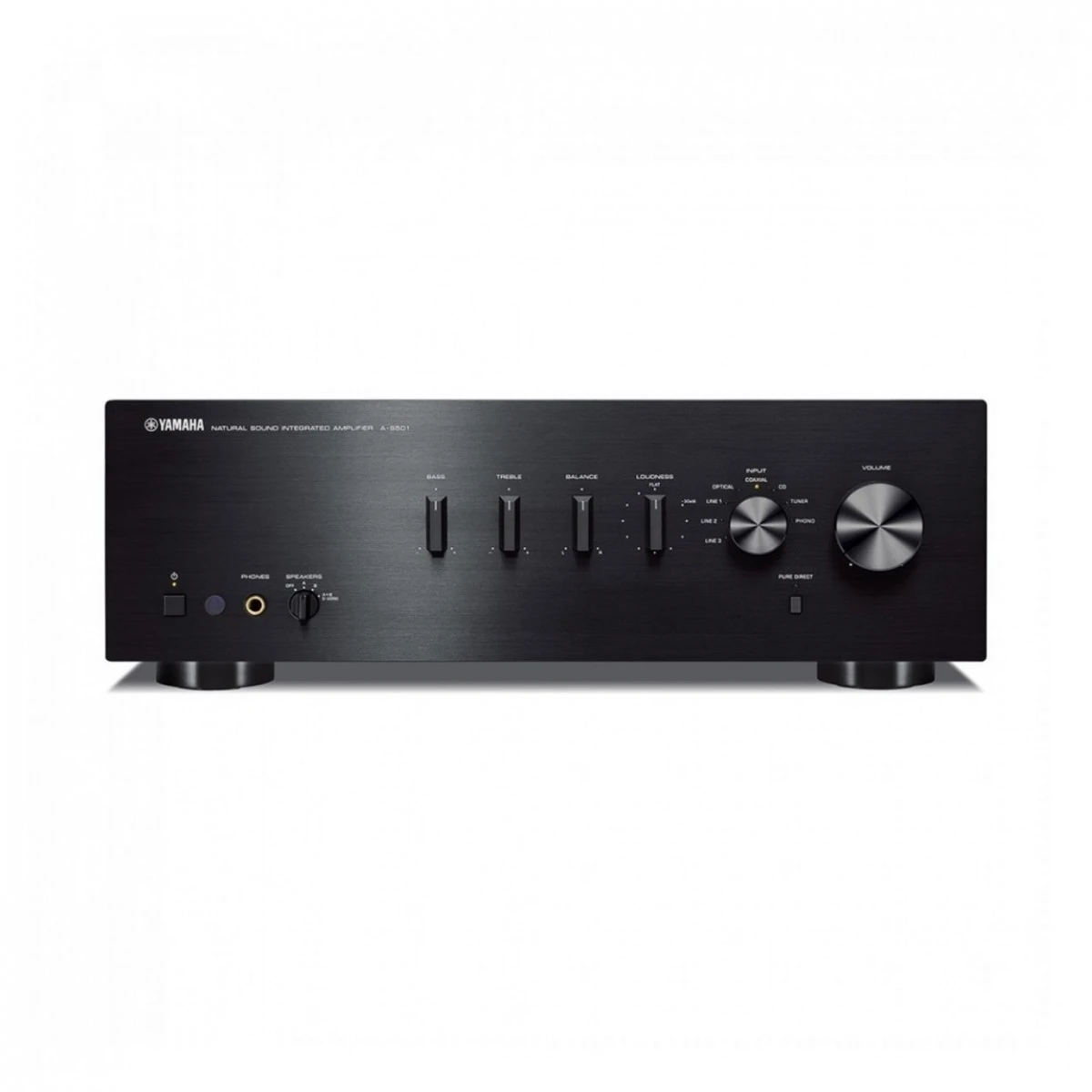

The Yamaha A-S501 Stereo Amplifier presents a step-up in audio quality, showcasing Yamaha’s over-a-century-long dedication to musical innovation. Through the integration of ToP-ART, along with quality internal components, this amp radiates precision and clarity. Features like Pure Direct Mode, the I/O Direct Symmetrical Design and ART Base also enhance signal efficiency by limiting the opportunity for interference to affect your listening experience.
With an RMS output of 85W per channel—in direct comparison to the A-S301’s 60W—the Yamaha A-S501 can effortlessly fill a room with music. It even features adjustable sound via Continuous Variable Loudness Control and a range of inputs for connecting both analogue and digital sources. With a sleek, intuitive front control panel, the A-S501 can blend into any contemporary living space. Trust in reliable performance.

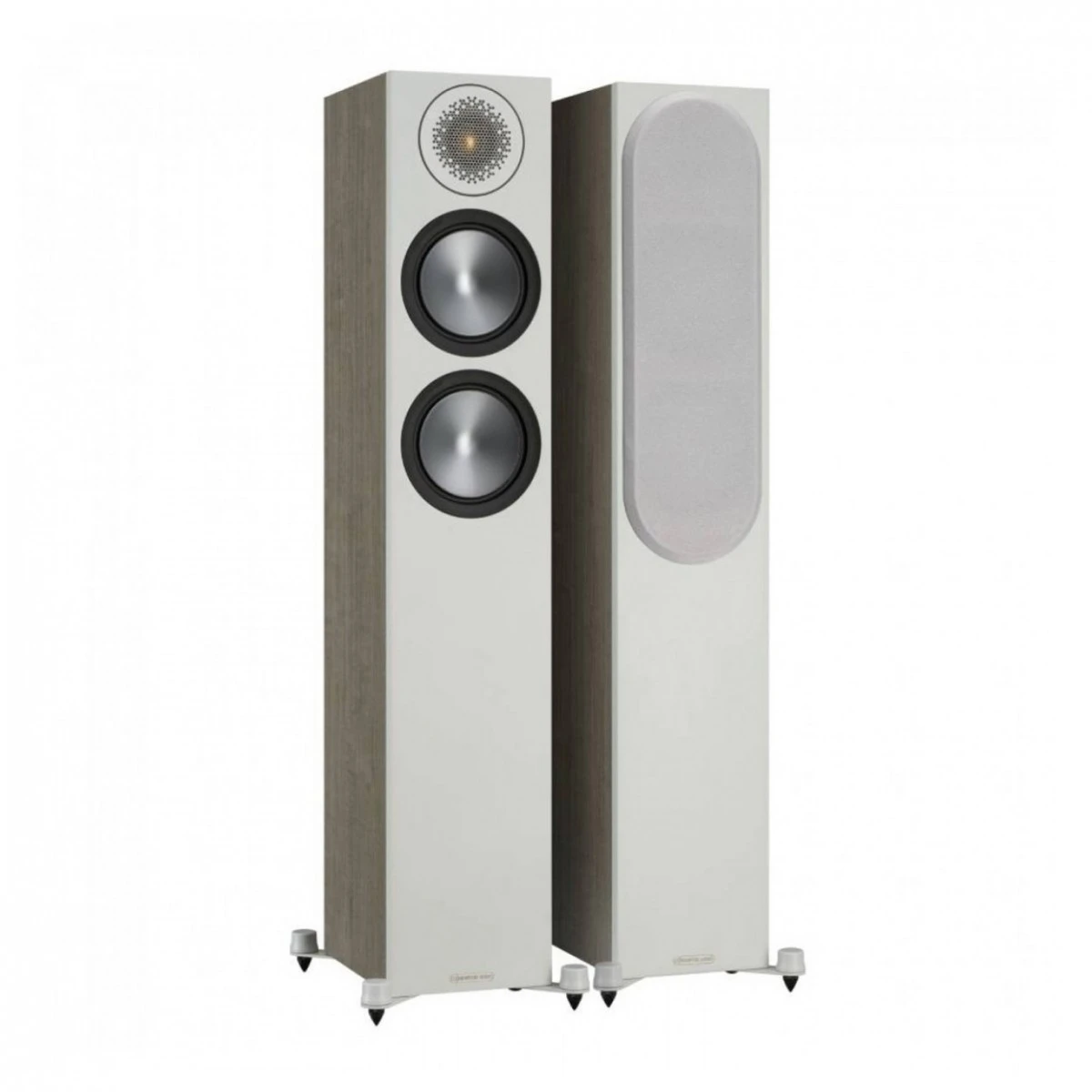

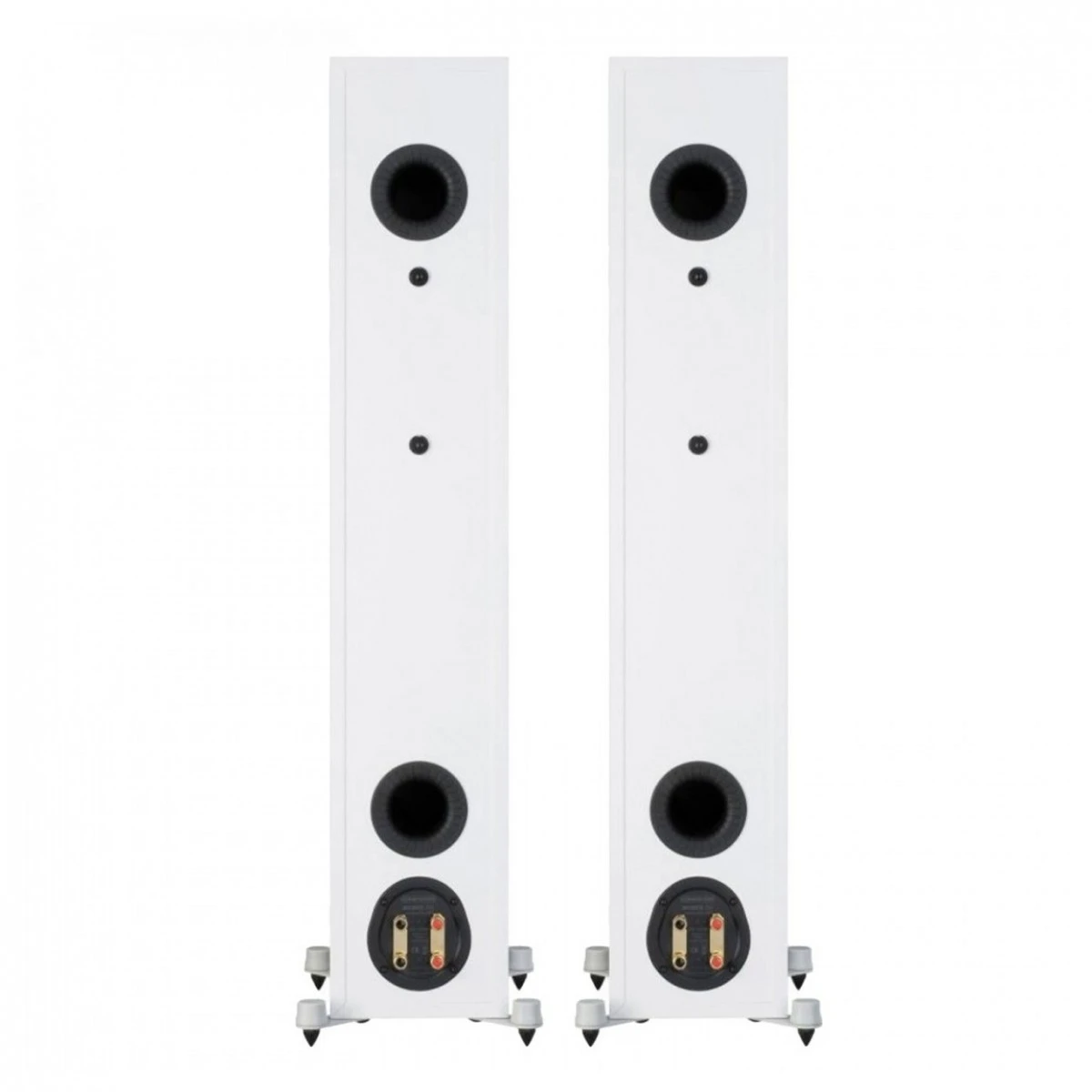

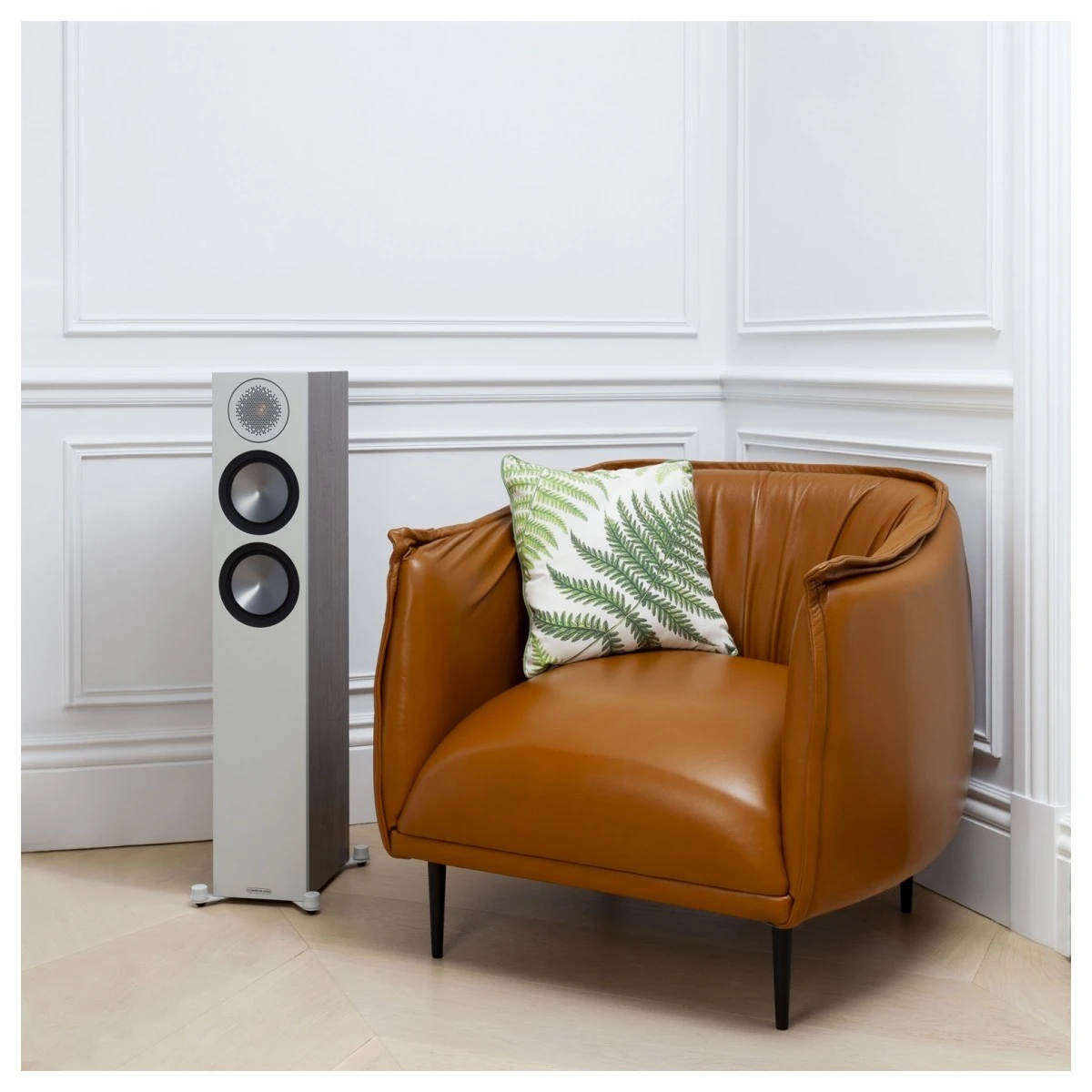

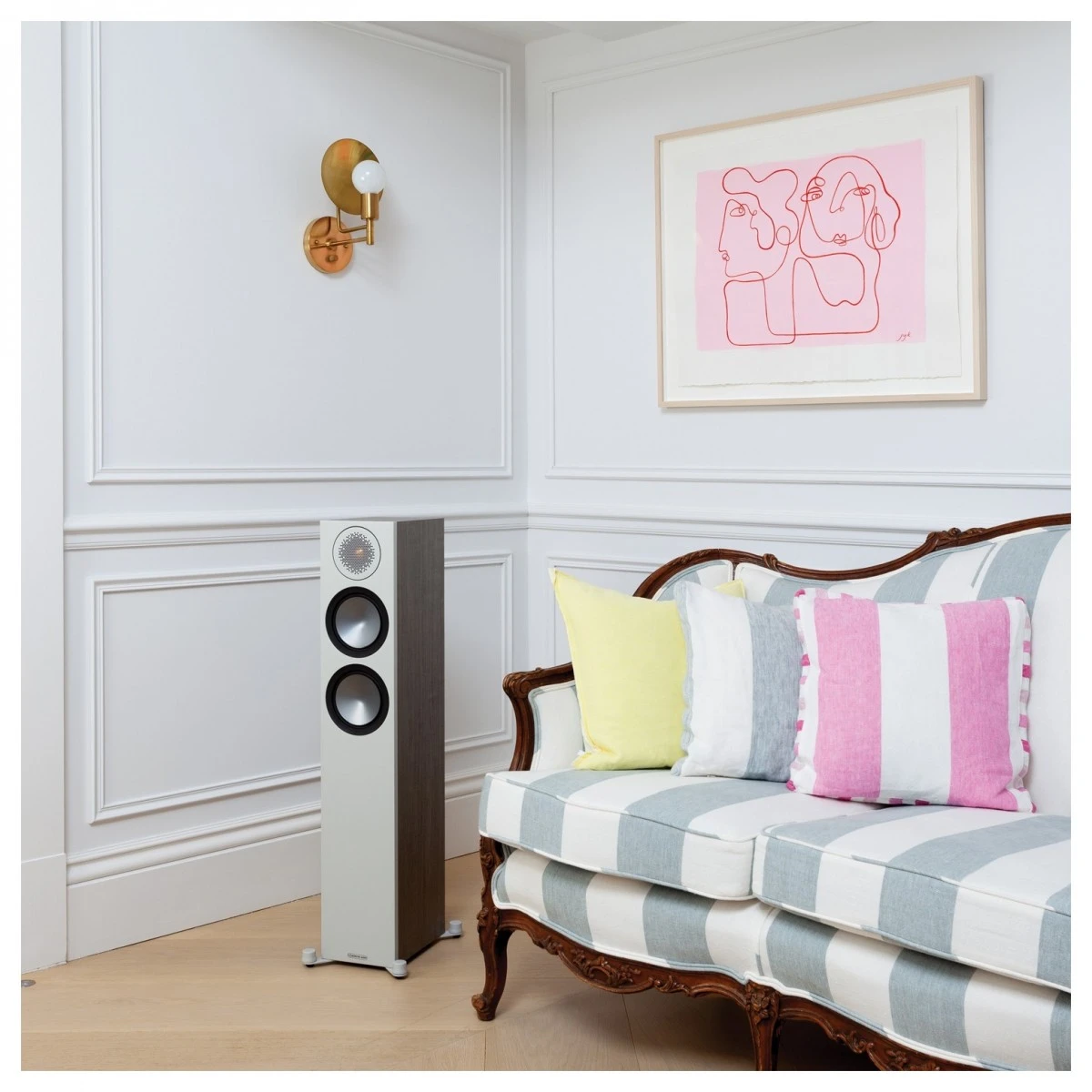

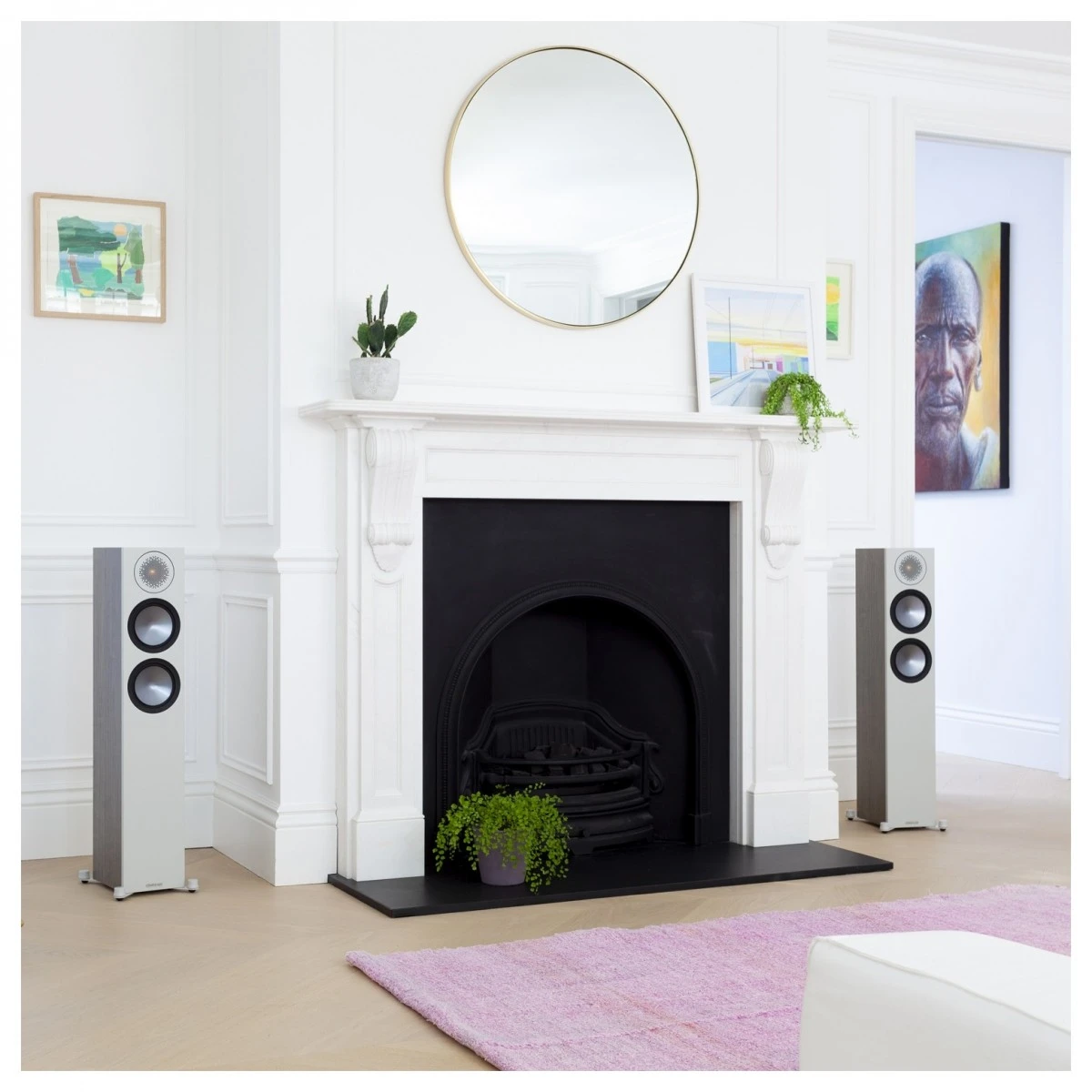

Accompanying this amplifier, the sixth generation Monitor Audio Bronze 200 Floorstanding Speakers boast cutting-edge sound-enhancing technology. Their C-CAM drive units are made of an ultra-light material, which boosts accuracy and harmony. Working together, the drivers deliver a full-range frequency with tight bass, all in a compact size. Standing less than a meter tall on solid outrigger feet, these medium tower speakers are ideal for smaller home cinemas or stereo systems that require bass. The dual HiVe II bass-reflex ports help provide extended low frequencies and smooth airflow from the cabinet, reducing distortion.

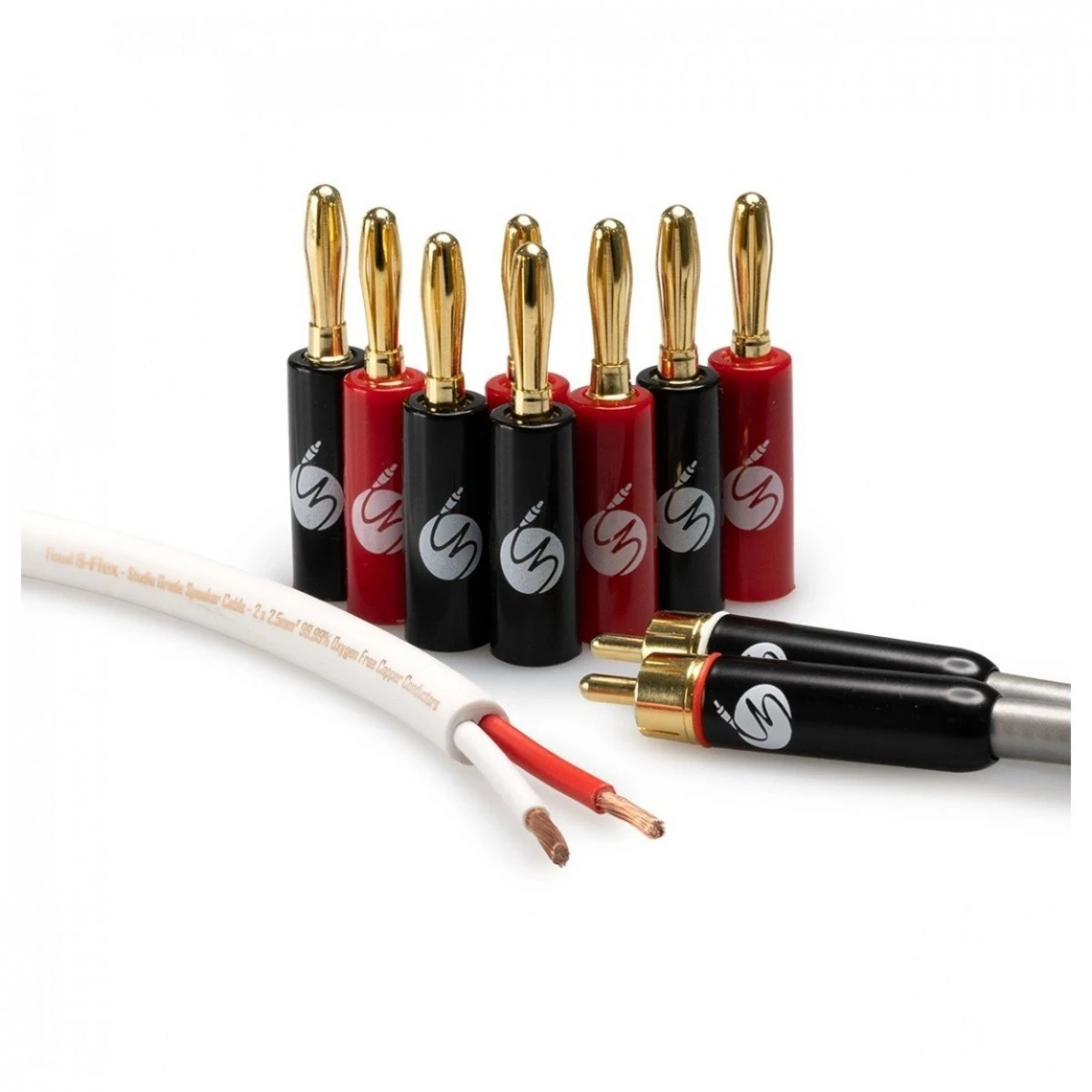

To ensure you can set up your new home audio system instantaneously, we’ve included the Fisual Premium Hi-Fi Cable Package. This includes a 10-metre length of speaker cable (enough to split and position your speakers up to five metres from the amp), a pack of easy-to-use screw-on banana plugs, and a stereo phono / RCA cable to connect at least one audio source of your choice, be it a CD player, tuner, or streamer. Order from AV.com and get everything you need for system setup in one neat package.
Please Note
The speaker cable in this bundle is provided as one 10 m length and comes unterminated. Banana plugs are included in the bundle, but are not provided attached and require some short preparation before use.
Package Includes
Yamaha A-S501 Stereo Amplifier Specifications
| Minimum RMS Output Power
(8 ohms, 20 Hz-20 kHz) |
85 W + 85 W (0.019 THD) |
|---|---|
| Maximum Power (4 ohms, 1kHz, 0.7 THD, for Europe) | 120 W + 120 W |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 130/150/185/220 W |
| Damping Factor | 240 |
| Frequency Response | 10 Hz-100 kHz +/-1.0 dB |
| Total Harmonic Distortion
(CD to Sp Out, 20 Hz-20 kHz) |
0.019 (50 W/8 ohms) |
| Signal-to-Noise Ratio (CD) | 99dB (input shorted, 200 mV) |

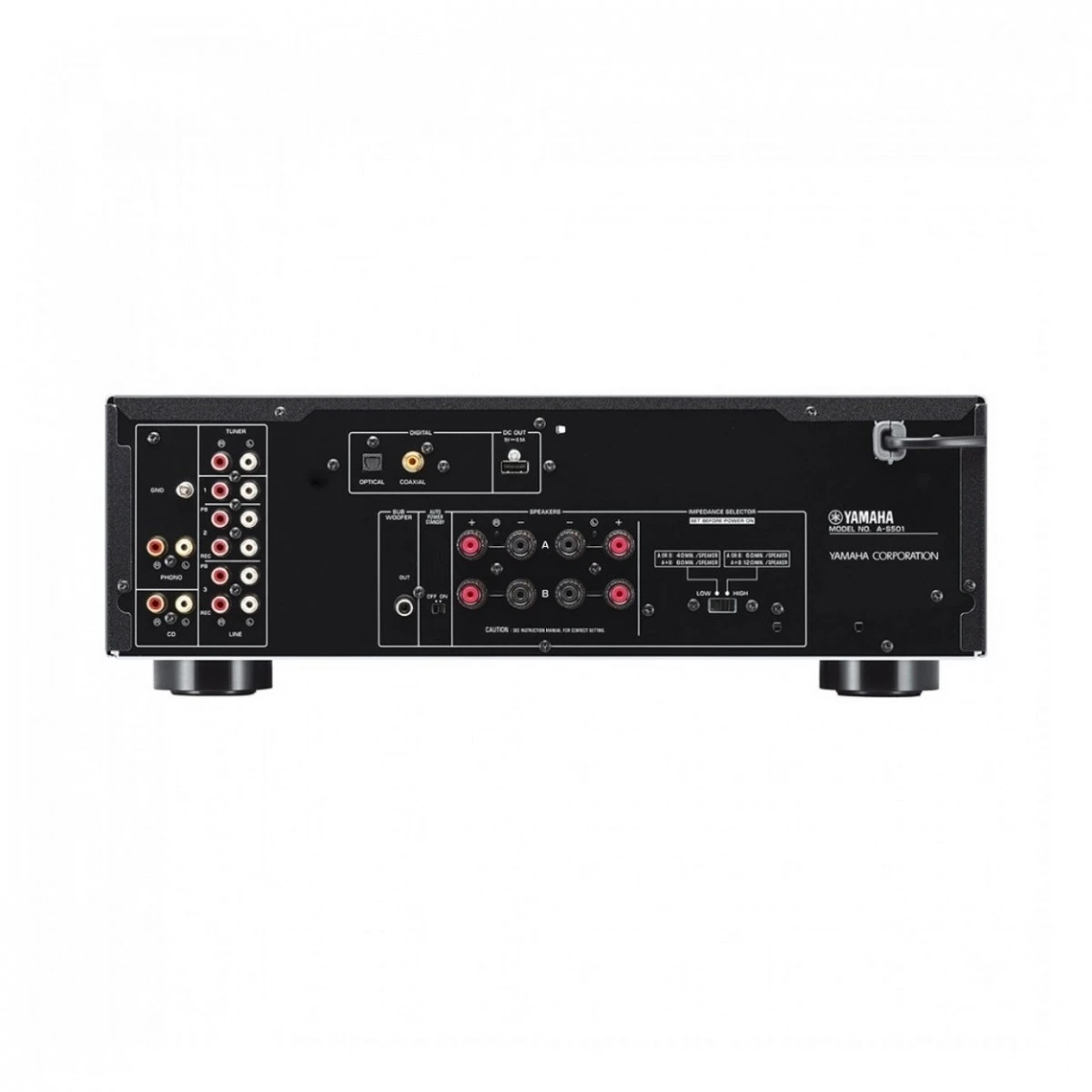

| Audio In / Out | 8 / 2 |
| Digital Input | Yes (optical / coaxial) |
| Subwoofer Out | Yes |
| DC out | Yes |
| Pure Direct | Yes |
| ToP-ART | Yes |
| Standby Power Consumption | 0.5W |
| Power Management
(Auto Power Standby) |
Yes |
| Dimensions (W x H x D) | 435 x 151 x 387 mm
17-1/8″ x 6″ x 15-1/4″ |
| Weight | 10.3 kg
22.7 lbs. |
Monitor Audio Bronze 200 Floorstanding Speakers Specifications
General
| External dimensions, incl. outrigger feet and spikes (W x H x D) | 229 x 909 x 304 mm |
|---|---|
| External dimensions, incl. grille and terminals (W x H x D) | 166 x 886 x 265 mm |
| Weight (per speaker) | 12.8kg |
| Finishes | Black, White, Walnut, Urban Grey |
Audio Features
| System format | 2.5-way |
|---|---|
| Frequency response (-6 dB) | 45 – 25,000 Hz (free field)
35 – 30,000 Hz (in room) |
| Sensitivity (2.83v @ 1m) | 88 dB |
| Nominal impedance | 8 ohms |
| Minimum impedance | 4.4 ohms |
| Maximum SPL | 112 dBA (pair) |
| Power handling (RMS) | 120 W |
| Recommended amplifier requirements | 40 – 120 W |
| Bass alignment | Bass reflex Dual HiVe II port system |
| Crossover frequency | 700 Hz
2,400 Hz |
| Drive unit complement | 2 x 5 1/2″ C-CAM midbass driver
1 x 25 mm C-CAM Gold Dome tweeter with UD Waveguide |
