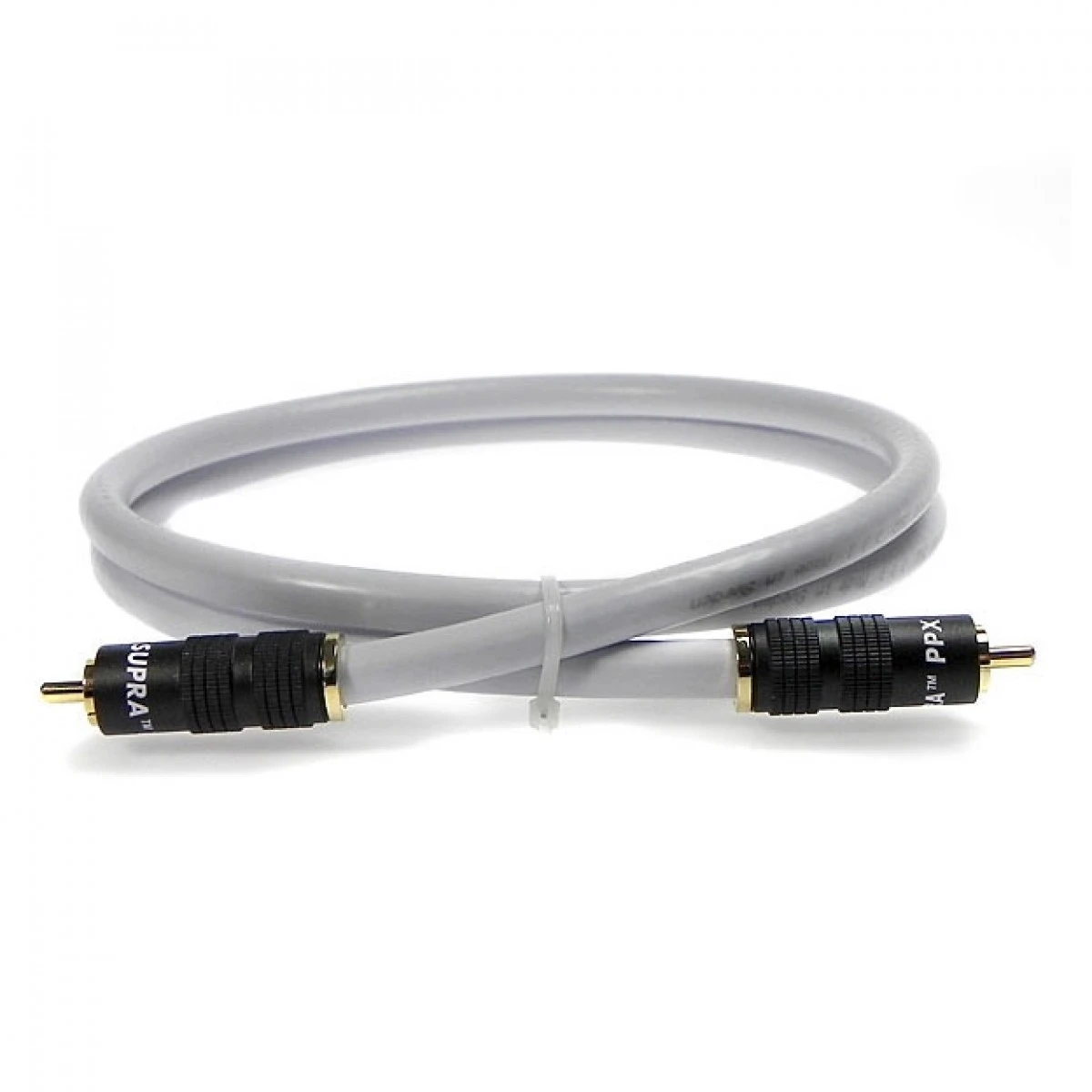

Supra Trico RCA Digital Coaxial Cable 2m

Full Description

The Trico is Supra’s best Digital/Video cable. Application examples include composite video such as, DVD to TV/projector and digital surround sound from DVD to AV amp or all other digital applications where true 75 Ohm impedance is critical. Supra Trico is an interconnect cable of very low capacitance, insulated with PE foam which produces only 58 pF/m and makes the cable’s propagation velocity as high as 78% of the speed of light.

The centre conductors are made of 7 x 0.36mm silver plated OFC copper. The silver plating of the conductor and screen enhances the cohesive properties of the cable, at high frequencies. Trico is double shielded with a braided inner screen of silver plated oxygen-free copper and an outer of bare OFC braid. The screens provide efficient noise protection.

The cable boats very low capacitance, only 58pF/metre, and insulated with PE foam, leading to a propagation velocity of 0.78 light speed. The silver plated signal carrying inner conductor enhances the high frequency properties of the cable, leading to an extremely low level of attenuation : 0.6 dB per 100 metres at 1.0 MHz and just 7.1 dB per 100 metres at 100 MHz.

• Double shielded with an inner braid of silver plated OFC and an outer braid of bare OFC
• The two shields together provide efficient noise protection from external sources
• True 75 ohm characteristic impedance (+/- 1.5 Ohm up to 100 MHz)
• Very low capacitance

Capacitance conductor / inner screen	58 pF/m
Characteristic impedance @ 1MHz	75 Ohm
Attenuation @ 1MHz	0.6 dB/100 m
Attenuation @ 100MHz	7.1 dB/100 m
