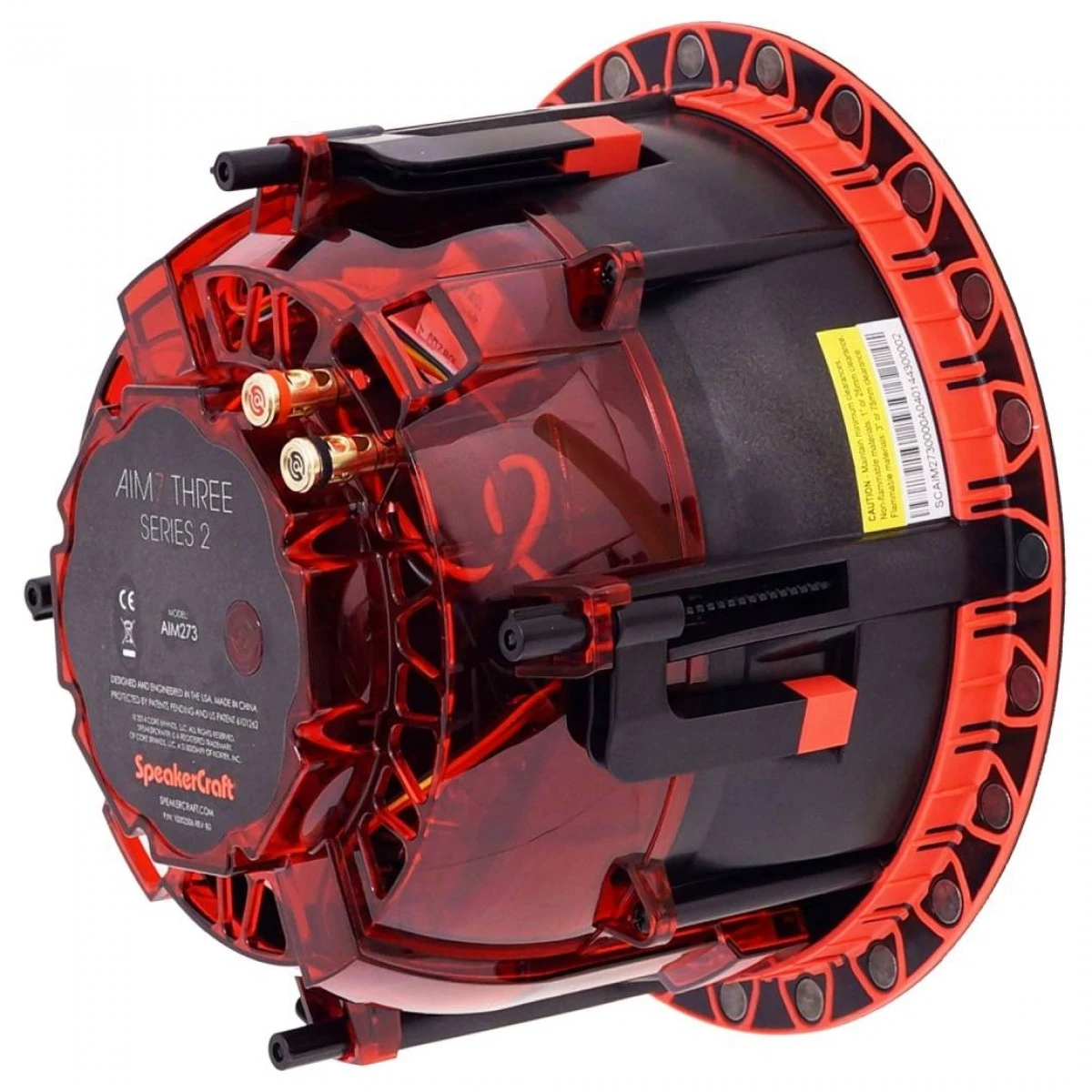

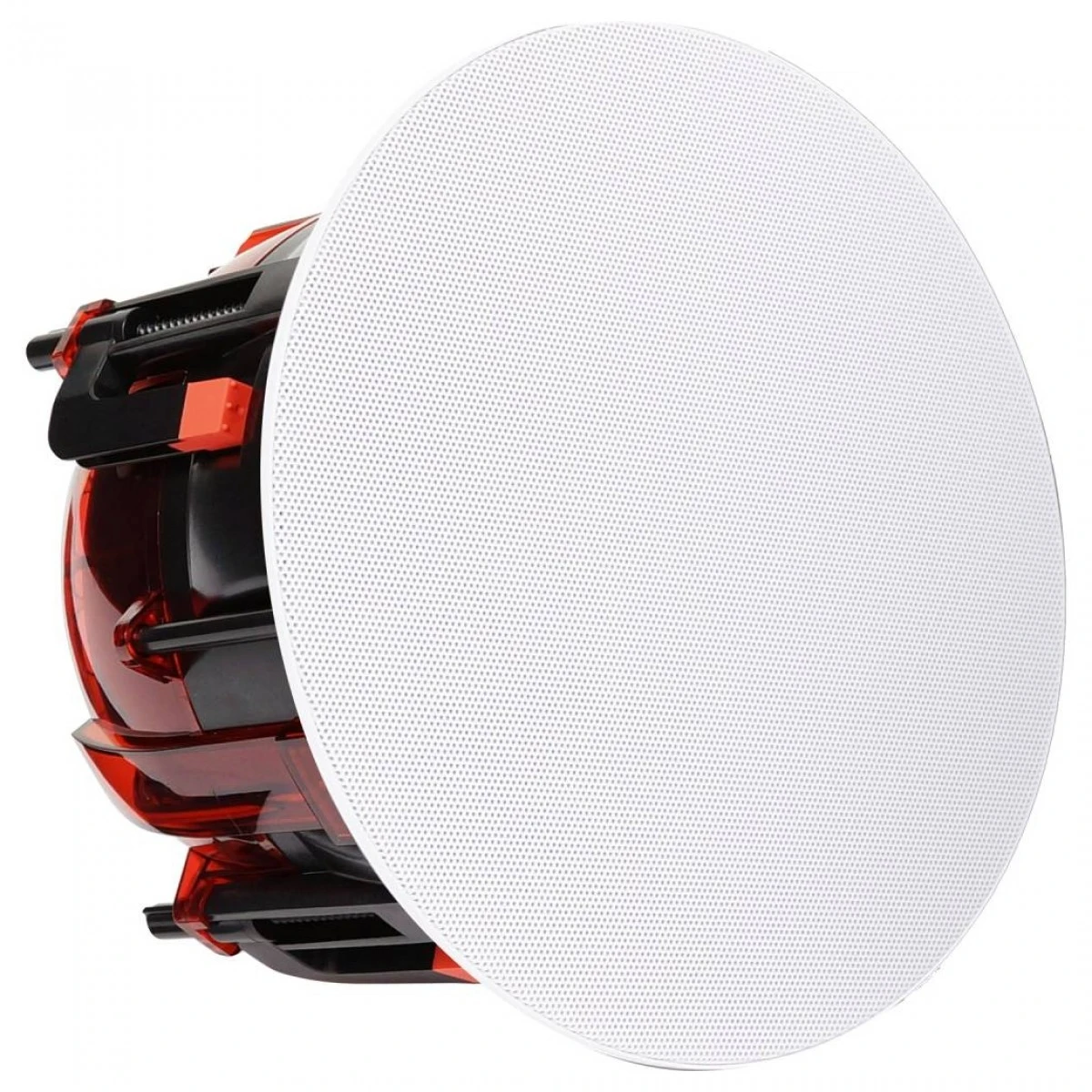

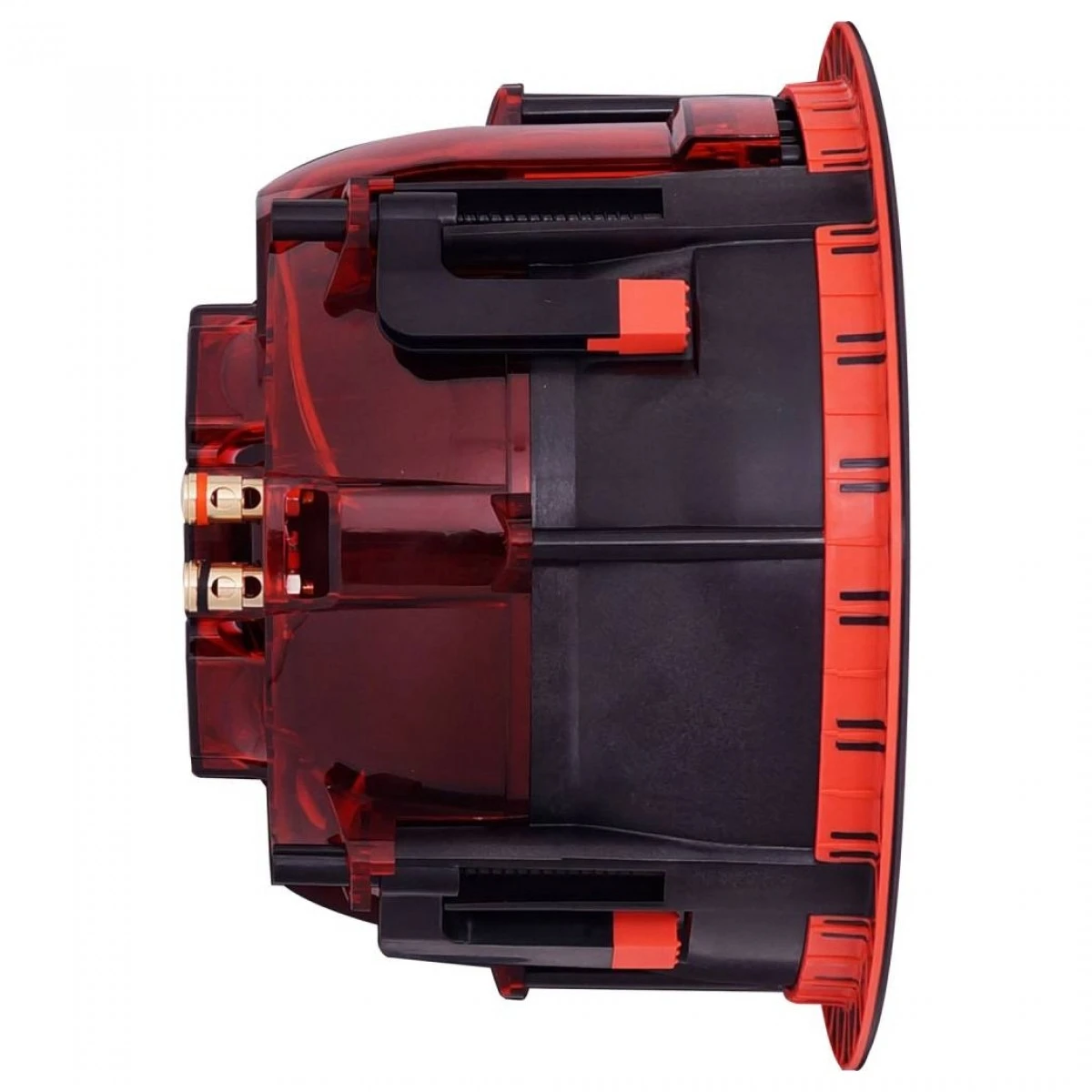

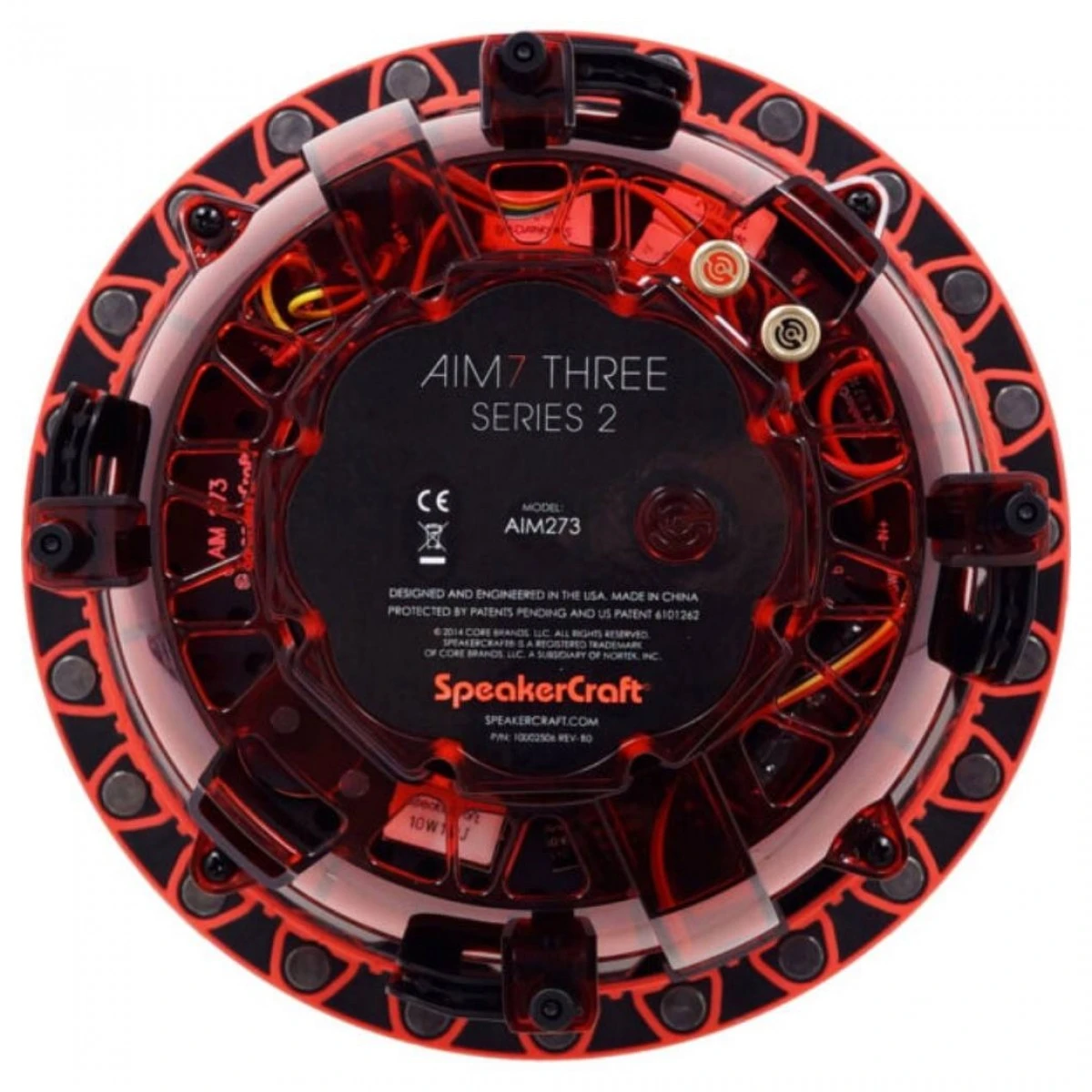

SpeakerCraft AIM7 THREE Series 2 In Ceiling Speaker (Single)

Full Description

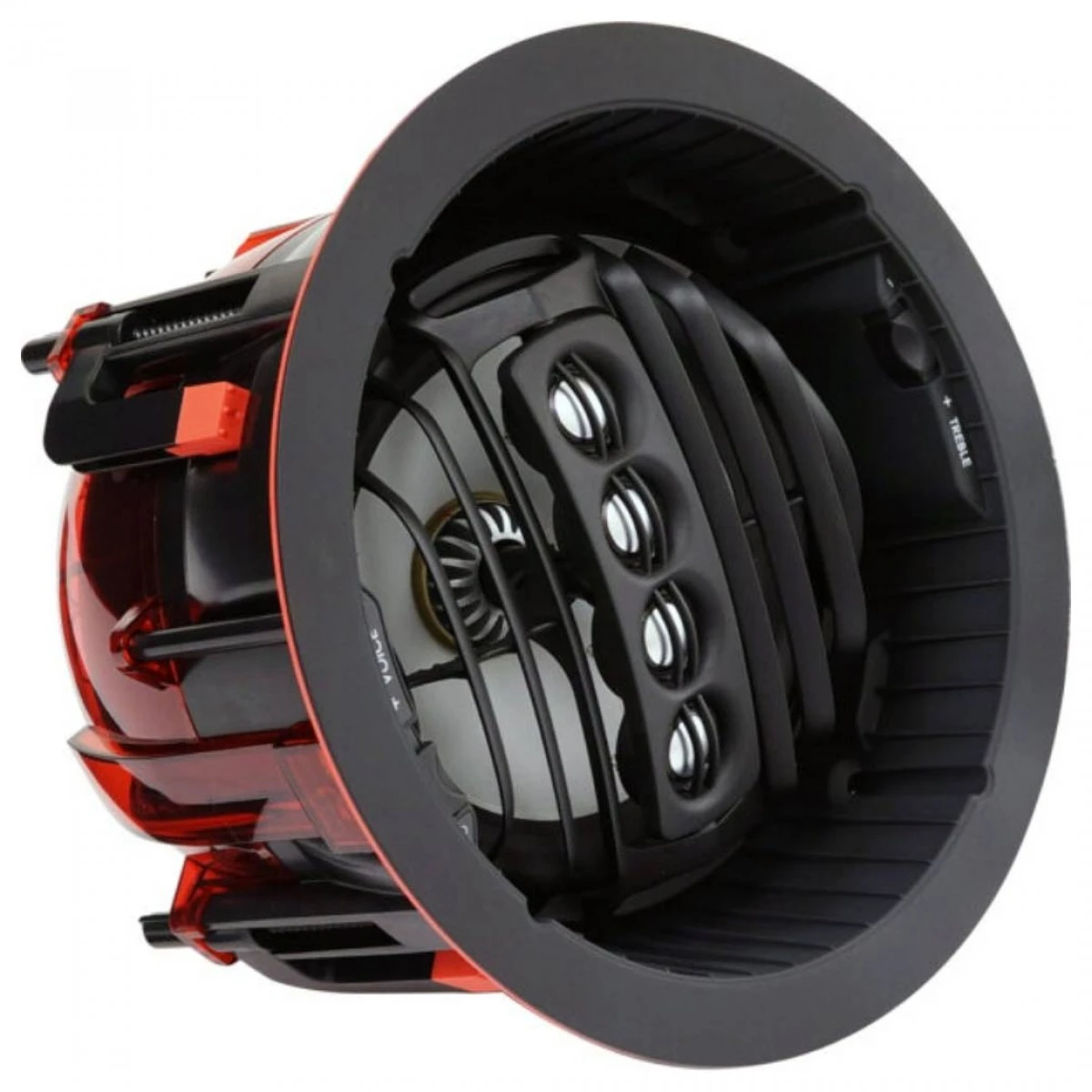

The SpeakerCraft AIM 7 THREE Series 2 speaker has a 15 degree pivoting 7” aluminum cone woofer, 15 degree pivoting & 359 degree rotational ARC tweeter array incorporating (4) – 5/8” aluminum dome tweeters.

• Uniform, aim-able high-frequency coverage.
• Lower crossover point through increased number of drivers gives increased sound pressure level at the critical mid-range frequencies resulting in a sweeter sweet spot.
• Smoother power response, higher power handling capability and less distortion than a single tweeter design.
• New speaker housing design allows for a +/-15 degree pivoting woofer, totaling 30 degrees of adjustment, plus Arc-Tweeter Array with +/- 15 degree toe-in/toe-out adjustment, and 359 degrees of rotational flexibility.
• Co-molded, lower density compounds minimize structural resonance in the surrounding wall/ceiling.
• Updated WavePlane design enhances high frequency dispersion.
• Acoustic Vortex Eliminators reduce sound turbulence.
• Increased stiffness of the curvilinear cone design enables the cone to deliver energy to the air more effectively for greater bass response.
• Butyl elastomer surround creates a more consistent sound with less disruption.
• Non-conductive Kapton formers, copper caps and extended poles reduce distortion.
• Improved power handling and sensitivity limits compression for louder and cleaner sound.
• Symmetrical & A-symmetrical Linkwitz-Riley crossover designs for highest sound quality.
• New Cone and Tweeter Materials

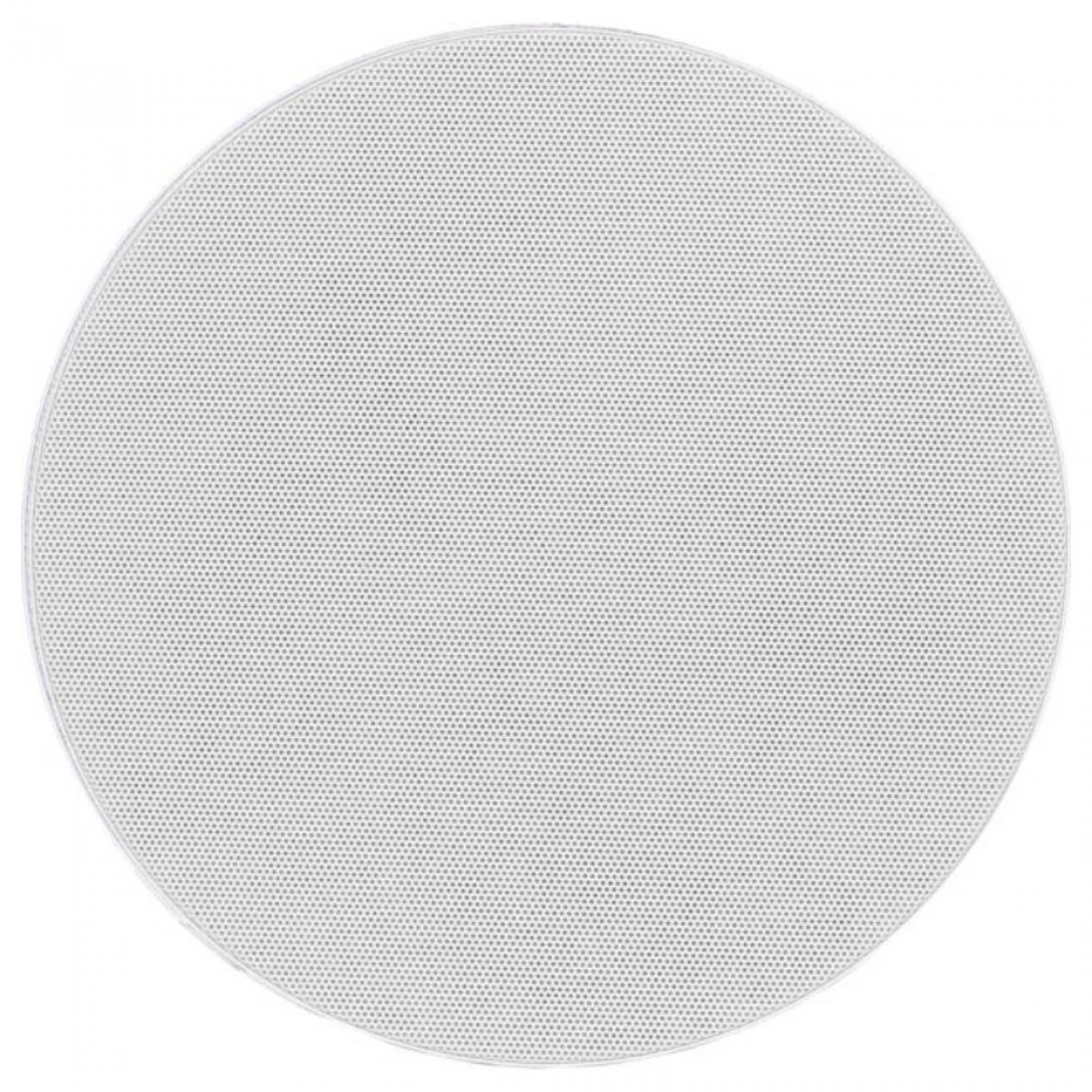

• Back mounted grille assembly magnets improve aesthetics and longevity of grille assembly.

Family	AIM Series 2
Woofer Size	7 (Inches)
Woofer Construction	Aluminum Pivoting Woofer
Tweeter	4 x 5/8″ Aluminum Pivoting Tweeter with 359° Rotational Adjustability
Frequency Response	37Hz-20kHz
Impedance	8 (Ohms)
Power Handling	150 (Watts)
Sensitivity	89 (dB)
Crossover	Symmetrical 2nd Order Butterworth
Timbre	Timbre-Matched to all THREE Level Speakers
Switches	Tweeter Level and Dialog
Dimensions	9-5/8″ [244 mm] Diameter x 5-1/2 [140 mm] Depth
Hole Cutout Dimensions	8-1/4″ [210 mm] Diameter
