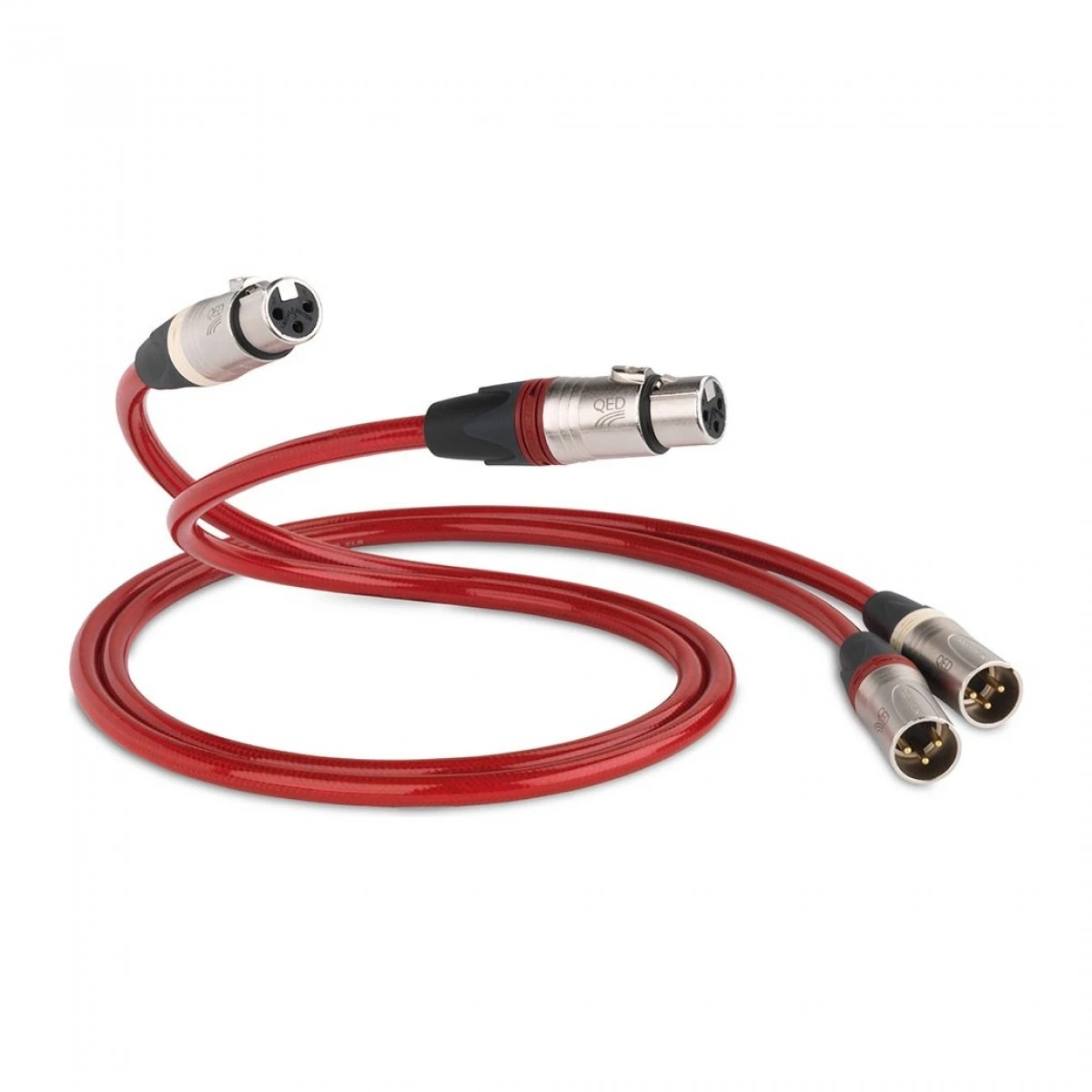

QED Reference XLR 40 W/ Neutrik XLR Plugs 0.6m

Original price was: $126.00.Current price is: $88.20.

SKU: YXYUY 67004 Categories: Audio Cables, XLR & DIN Cables

Buy with Confidence, Get Quality
SSL encryption, absolutely safe shopping
Protect Your Wallet with Safe Payments
7-Day Returns, 100% Quality

Description
Reviews (0)

Full Description

The QED Reference XLR 40 cables build on the award winning Audio 40 range of products. XLR 40 was designed primarily for low capacitance as this has been identified by QED as a major factor which leads to a high fidelity experience. Further steps have been taken to eliminate minute timing errors in the cable by the use of a special floating Zn/Mn ferrite jacket alongside use of QEDs unique Tri-Conductor technology reducing signal to ground capacitance to vanishingly low levels.

QED have joined forces with world renowned professional audio connector supplier Neutrik (UK) to bring you an innovative new XLR balanced interconnect cable with legendary build quality and reliability. Neutrik XX-14 Nickel Series XLR gold plated connectors are provided as standard with Reference XLR 40 cables. These connectors are rugged and reliable and are the connector of choice for audio professionals around the world.

Floating Ferrite Jacket

The unique floating ferrite jacket absorbs high frequency noise signal components outside the audio band. When measured using high frequency measurement equipment, Audio 40 products convey a comparably cleaner and tighter signal pattern when its special Zn/Mn ferrite jacket is present. This has a beneficial effect on audio signal micro-timing, reducing digital jitter and timing errors to an ultra low level.

Tri-Conductor Technology

This technology uses a third Silver plated 99.999% OFC conductor which is integrally twisted alongside the similarly constructed signal pair to carry the ground return currents. This reduces signal to ground capacitance to low levels affording the cable improved common mode rejection of mains hum pickup. This geometry is effective in pro Hi-Fi audio applications when connecting pre and power amps using balanced cables.

99.999% Silver Plated Oxygen Free Copper 24 AWG Tri-Conductors with foamed PE dielectric
QED Tri-Conductors provide a level of common mode rejection not found in ordinary “hot cold and screen” cables
Unique floating Zn/Mn impregnated ferrite jacket
99.999% OFC outer shield braid for 100% electrostatic screening
High performance gold plated Neutrik XLR connectors with low contact resistance and high signal integrity
Ultra Low Jitter
QED Lifetime Guarantee

Conductor Section	0.25 mm2
Parallel Capacitance	35 pF
Self Inductance	0.8 uH
Loop resistance	0.130 Ω /m
Dissipation Factor@10kHz	0.0001
Nominal Outside Diameter	8 mm
