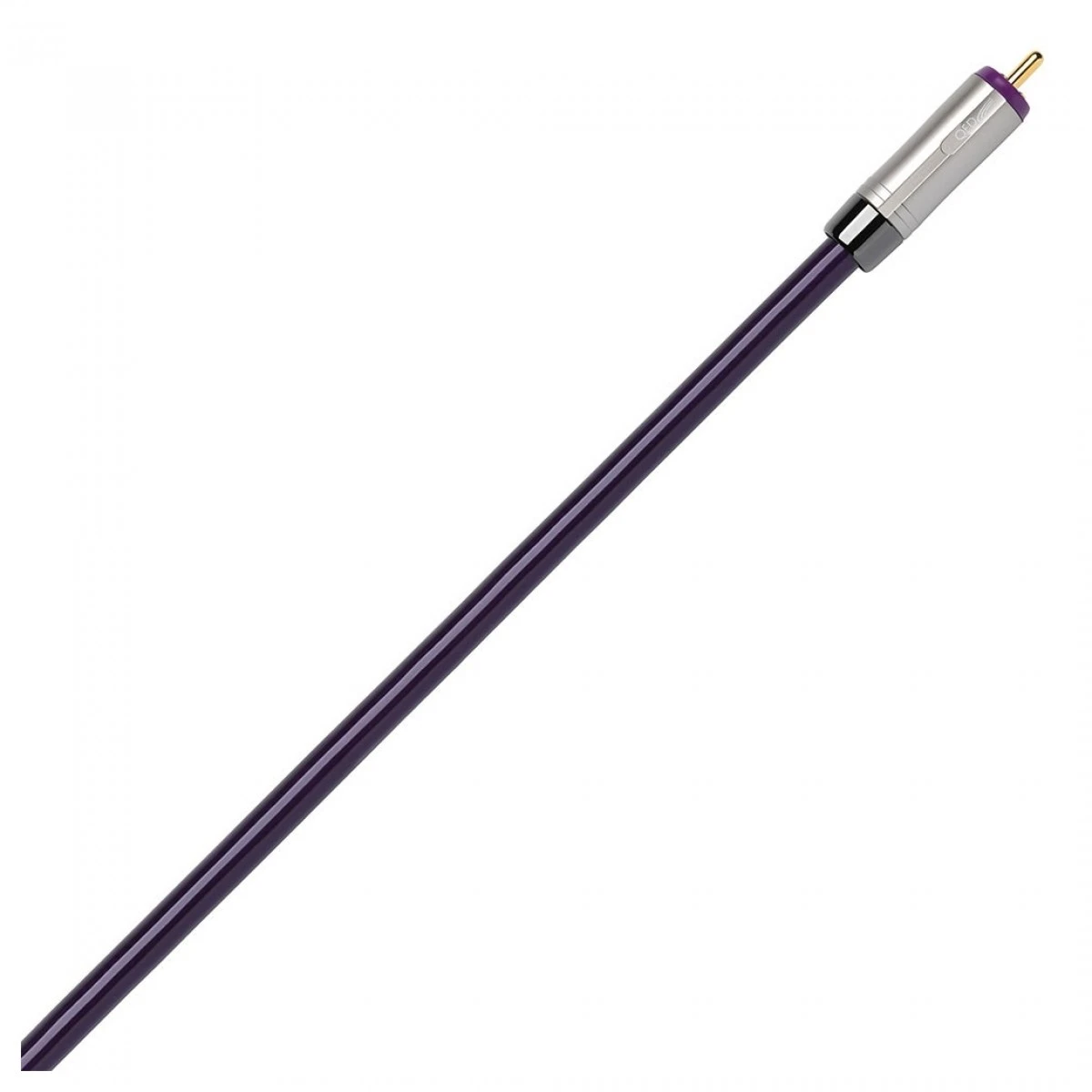

QED Reference Digital Audio 40 W/ Digiloc RCA Plugs 0.6m

Original price was: $79.90.Current price is: $55.93.

SKU: YXYUY 50999 Categories: Audio Cables, Coaxial Cables

Buy with Confidence, Get Quality
SSL encryption, absolutely safe shopping
Protect Your Wallet with Safe Payments
7-Day Returns, 100% Quality

Description
Reviews (0)

Full Description

QED Reference Digital Audio 40 is the new standard for digital coaxial S/PDIF signals, benefiting from over 40 years of award winning expertise. It utilises a carefully engineered geometry to achieve the precise characteristic impedance required for the maximum transfer of S/PDIF signals. Silver plated conductors deliver a low resistance path for high frequencies and QED Digiloc plugs more closely match the cable’s characteristic impedance, reducing return loss by up to 1dB when compared to conventional RCA plugs. This ensures optimal signal transfer and improved micro-timing of the audio signal.

A dual layer closely woven 99.999% OFC shield braid and aluminium mylar wrap with 100% coverage comprise a triple layer electromagnetic shield coaxially spaced around the central signal carrier within a foamed polyethylene dielectric. This ensures that interference signals induced by nearby high current noise sources do not contribute to higher signal jitter than would otherwise be the case. By the same token the shielding prevents unwanted voltage induced interference escaping the cable which might affect nearby analogue signal carriers.

True 75 Ohm Cordage

Through the use of factory controlled geometry and low permittivity foamed polyethylene dielectrics, Reference Digital Audio 40 maintains the correct characteristic impedance to match the transmission line between digital source and sink precisely. This makes for a very low jitter signal transfer which, listening tests have shown, leads to clearly audible sonic improvements.

Digiloc RCA Plugs

The traditional RCA phono connector is not impedance matched to the 75 Ohm transmission line. This causes measurable insertion loss and an increase in jitter due to signal reflections at the connector boundaries. The Digiloc RCA plugs are more closely impedance matched, measurements have shown reduced insertion loss by up to 1.2 dB compared to ordinary RCA plugs.
