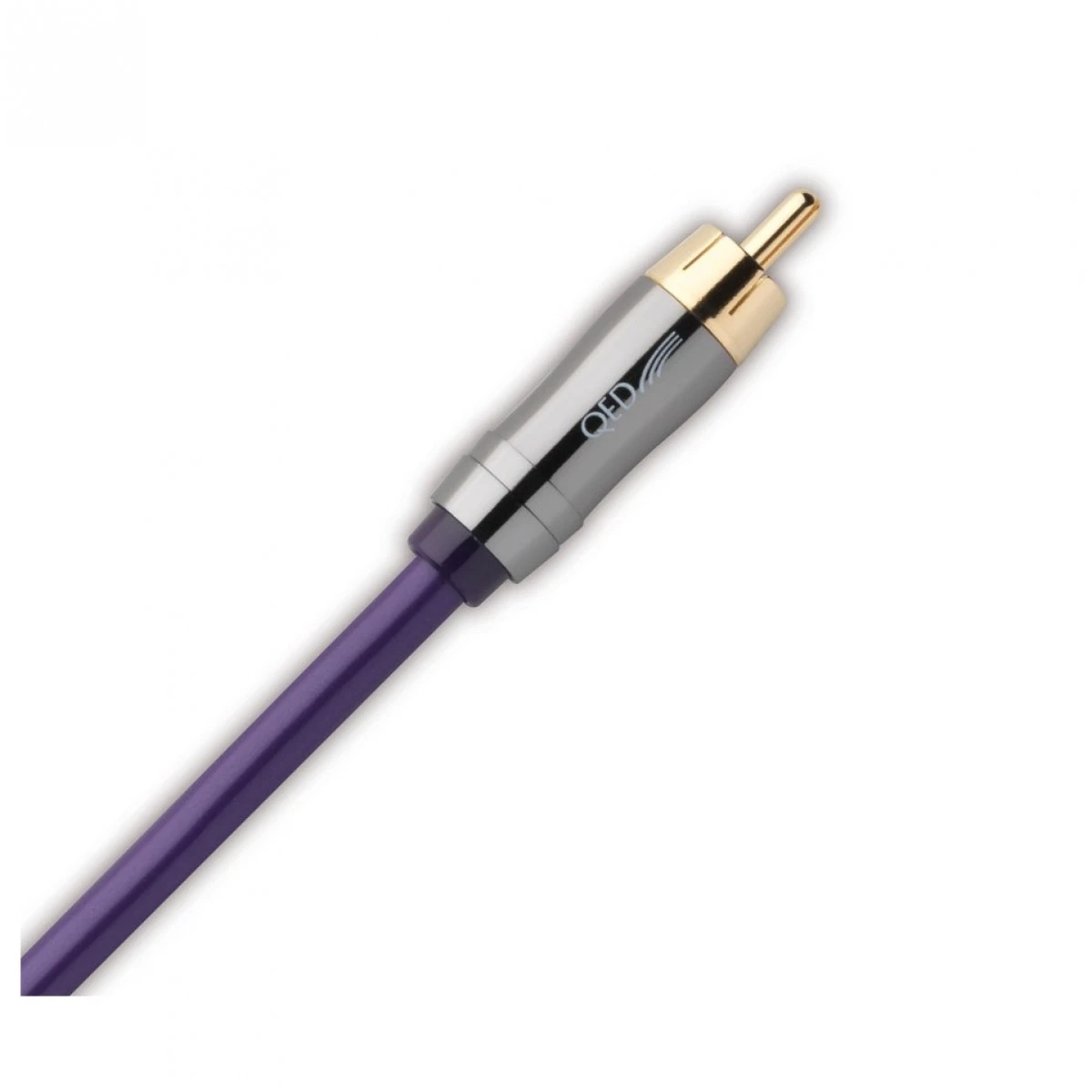

QED Performance Digital Coaxial Audio Cable 1m

Full Description

Performance delivers the clarity and realism you expect from a top-flight Co-ax interconnect at a budget price. That’s because it doesn’t cut corners. It gets it right. Optimum transmission line performance demands an impedance of exactly 75 ohms. And to achieve that requires precision – a cable built down to tolerances of 100th of a millimetre, not down to a price. A cable designed for the job.

Performance is exactly that – an accurate 75 ohm digital interconnect. Signal and data integrity is ensured by using a low loss LDPE dielectric and 99.999% Oxygen Free Copper (OFC) conductors. A PVC jacket absorbs mechanically induced vibration and a triple screen comprising aluminium Mylar foil and dual 99.999% OFC copper braids prevents electrostatic and electromagnetic interference. The zinc plated alloy phono plugs are ergonomically shaped and use gold-plated pins and connectors to minimise contact resistance and oxidisation.

Conductor Section	(mm2) 0.19
Conductor Material	99.999% OFC
Screening Material	Aluminium Mylar+Double 99.999% OFC Braid
Conductor Dielectric	Low Density Polyethylene
Parallel Capacitance (pF/m)	61.0
Characteristic Impedence (ohm)	75
Overall Size (mm)	6.2 Dia
Finish	Pearl Purple
