Monitor Audio CSS230 Super Slim In Ceiling Speaker (Single)

Full Description

The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50mm (2”) mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.

Between 2” stud frames or where pipework or cabling reduces mounting depth, the CSS230’s hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.

• Super-slim mounting depth 50mm (2”) designed to fit within 2” stud walls or where space is restricted

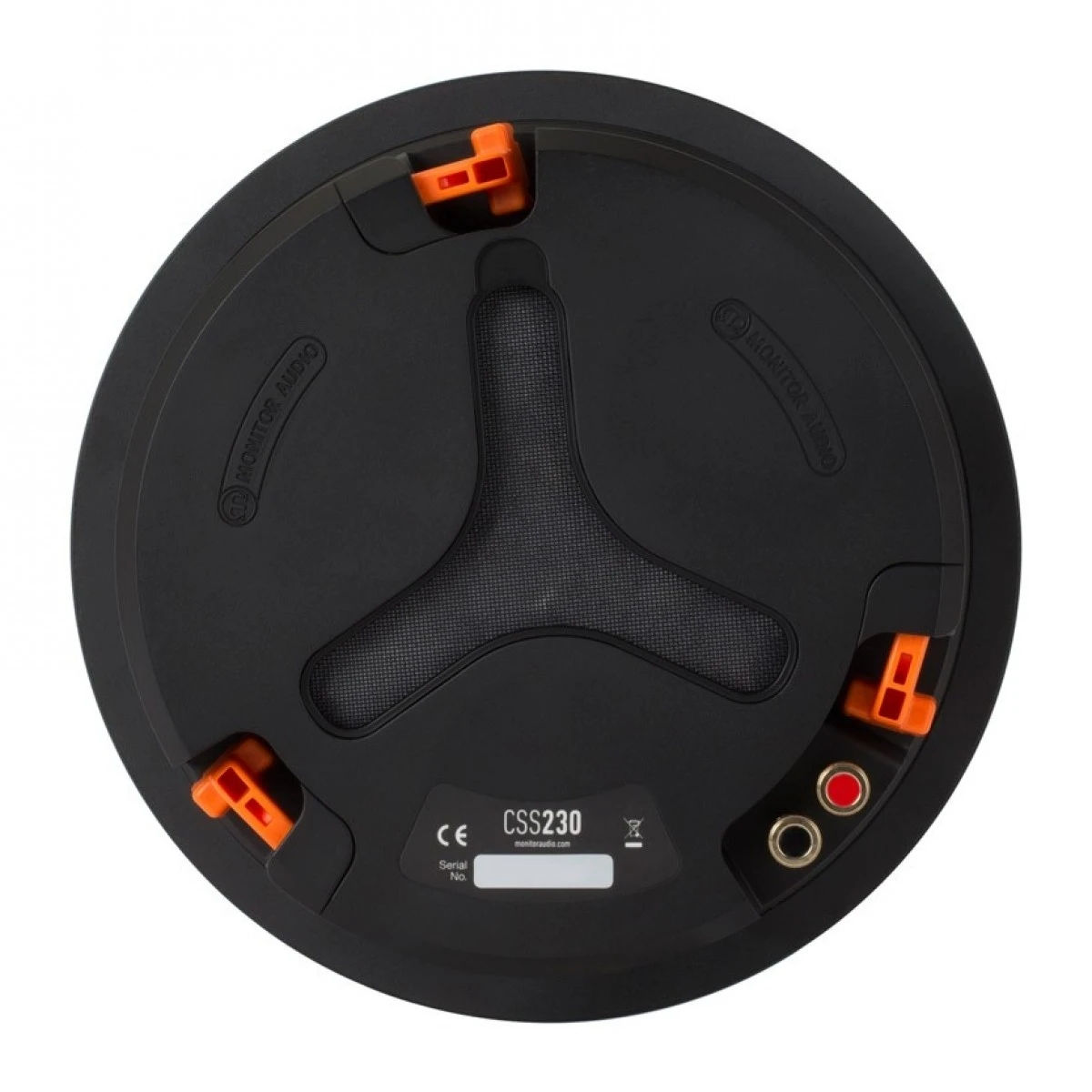

• Hybrid CP ‘Controlled Performance’ style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)

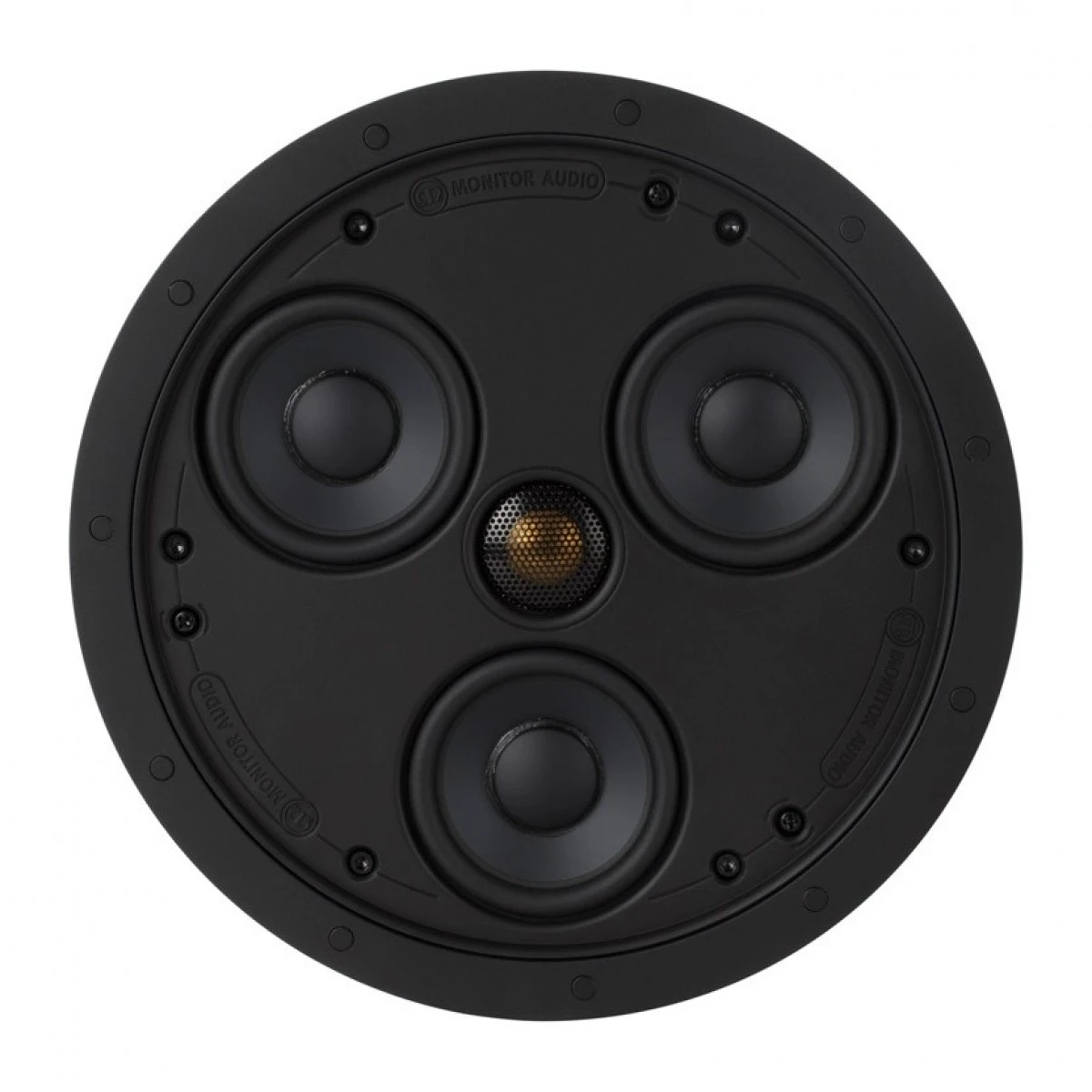

• Driver configuration of three 3” C-CAM bass/mid-range drivers in a radial array around a 19mm C-CAM gold dome tweeter (fixed position) and high quality crossover design offers Monitor Audio’s award-winning signature sound quality
• Gold plated sprung push terminals are reliable and easy to connect

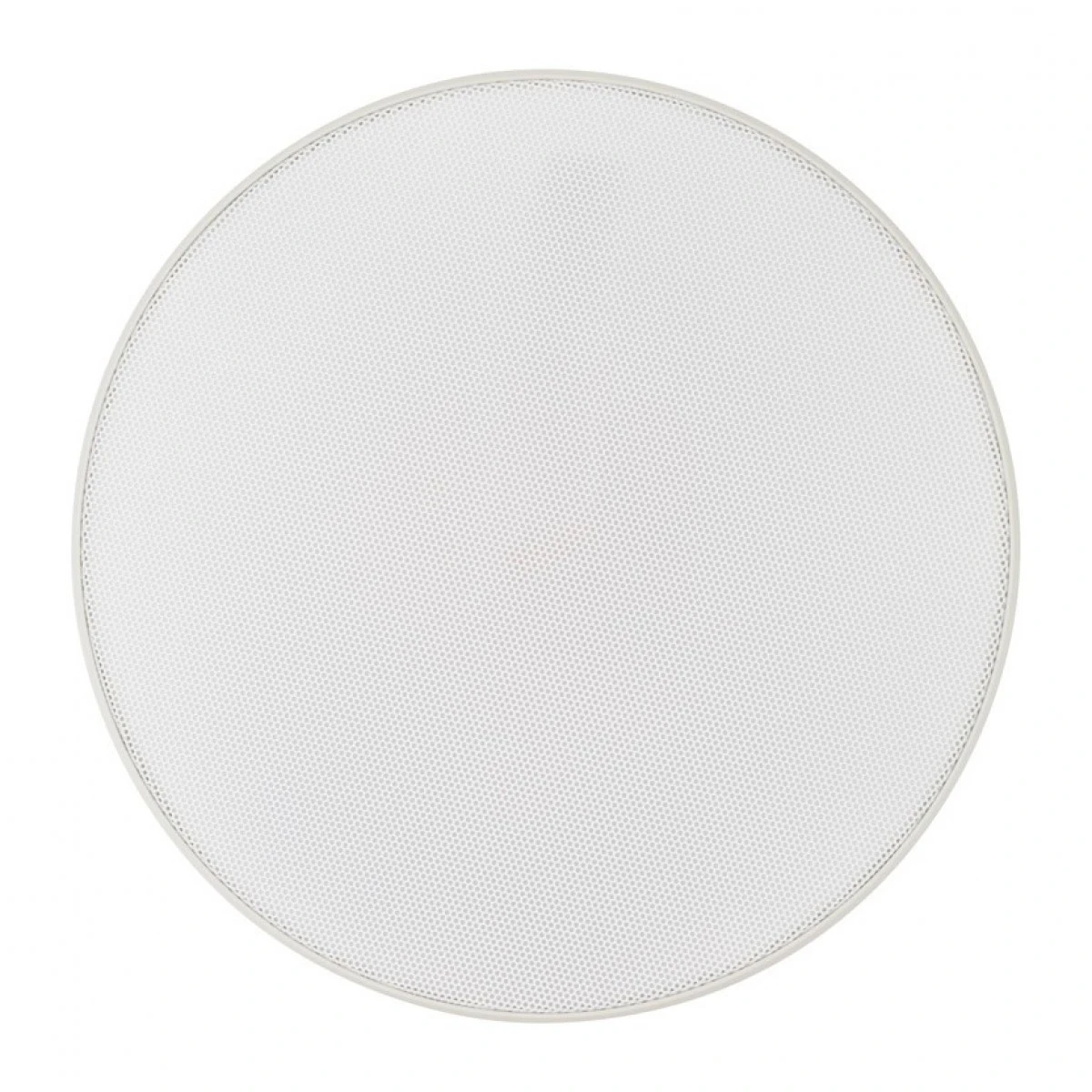

• Magnetically attached ‘Trim-less’ round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor
• Patented Tri-Grip dog leg fixings – Reliable, robust and quick to install
• Existing pre-construction bracket for easier system design and planning

Frequency Response (-6dB)	100Hz – 30KHz sealed ‘CP’ (85Hz – 30KHz open back)
Impedance (nominal)	8 Ohm
Sensitivity (1W @ 1M)	86dB
Maximum SPL	103.8dBA
Power Handling (RMS)	40 Watts – Full range (60 watts with crossover set to 100Hz @ 12dB/Octave)
Recommended Amp Requirements	10 – 60w
Drive Unit Complement	3 x 3″ C-CAM cone bass-mid drivers 1 x 19mm (3/4″) C-CAM Gold Dome tweeter
Crossover Recommendation – using an AVR	100Hz at a minimum of 12dB/Octave (24dB/Octave optimum)
Connection	Gold Plated Sprung push terminals – for bare wire connection up to 4mm(2)
Overall Diameter (including grille)	250mm (9 13/16″)
Overall Depth (including grille)	250mm (9 13/16″)
Cut Out Diameter	211mm (8 1/4″)
Mounting Depth	50mm (2″)
Fixing Type	3 position Tri-Grip dog leg fixings
Construction Materials	ABS (UL94 rated, RoHS2 Compliant) – Painted steel grille
Pre-Construction Bracket	CB6 (Purple)
