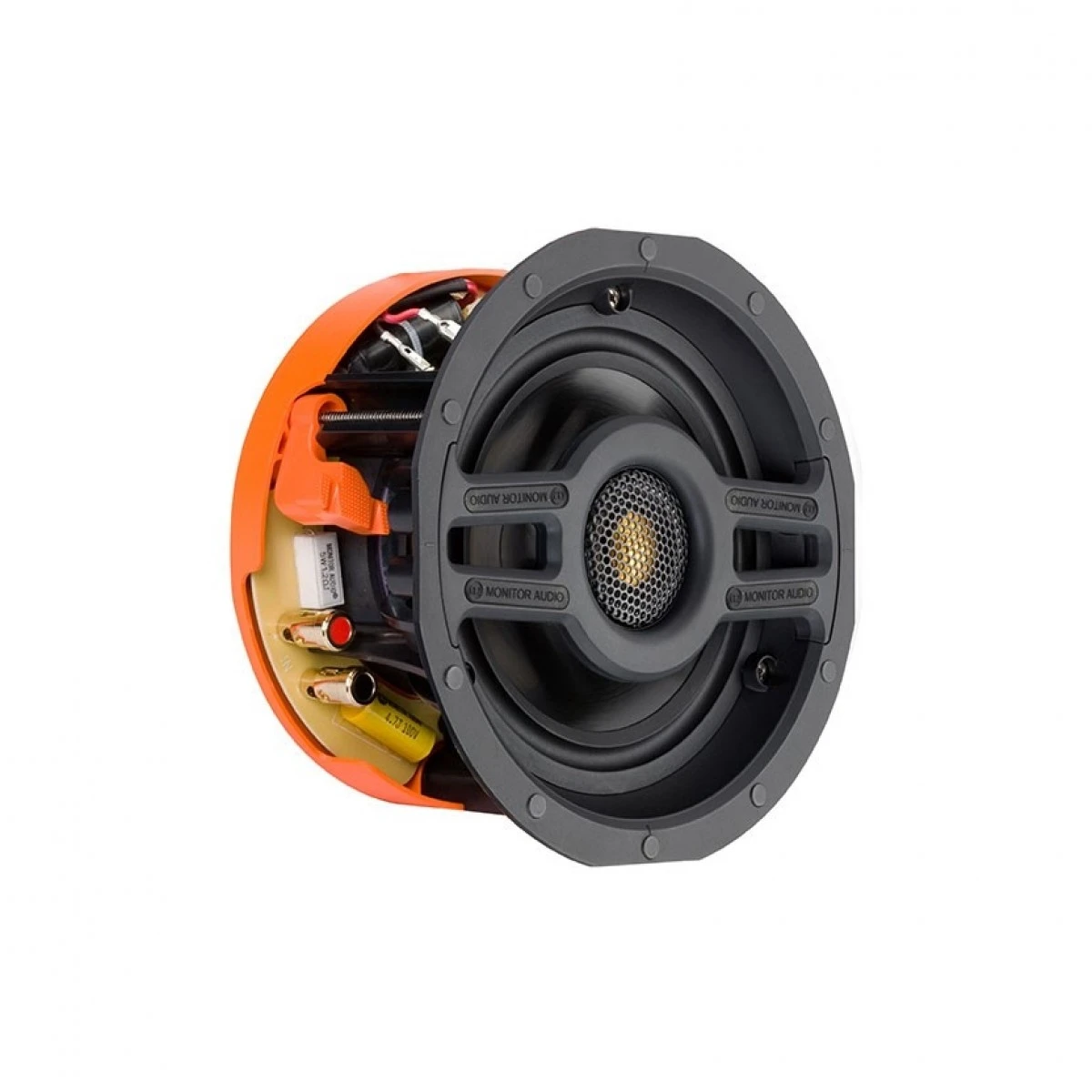

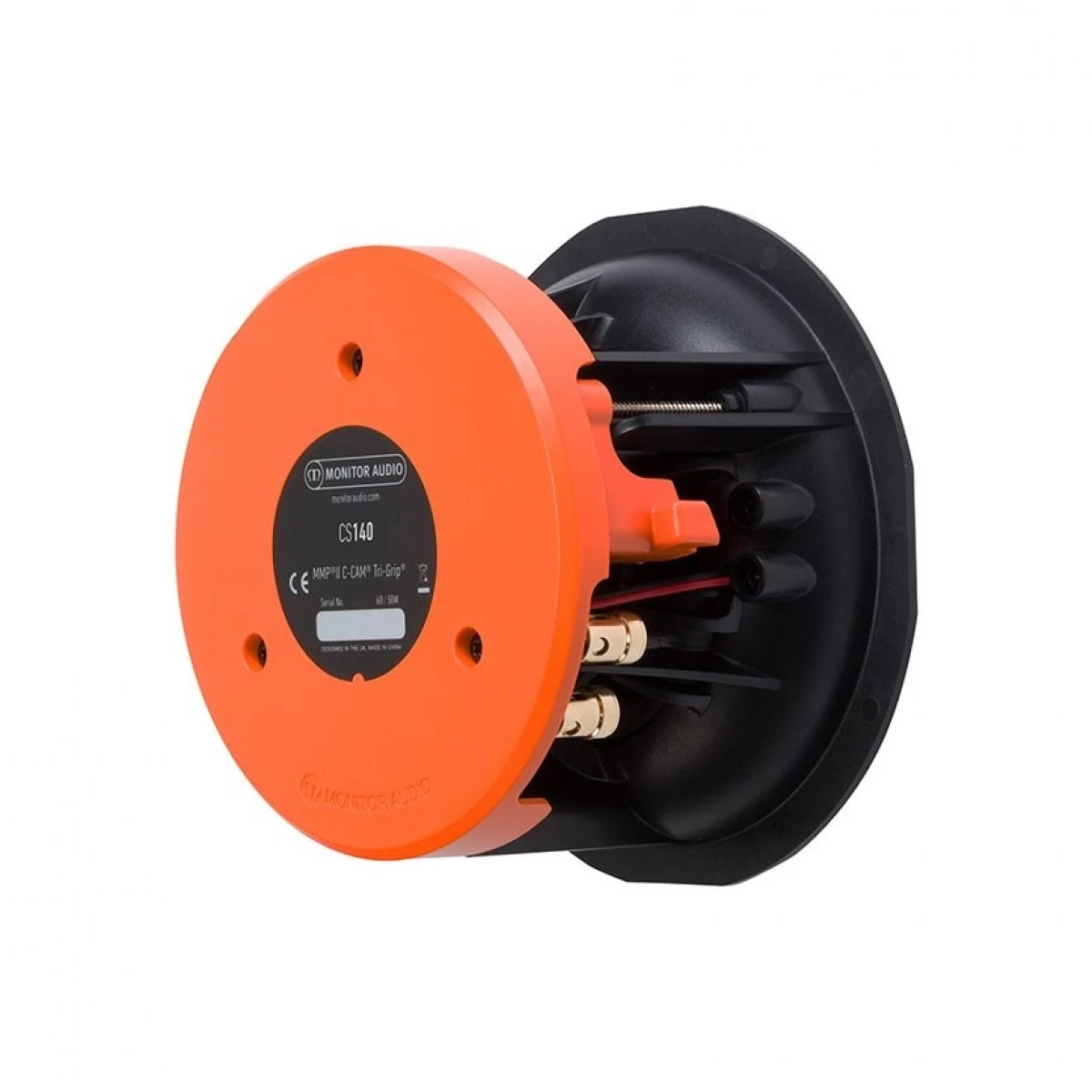

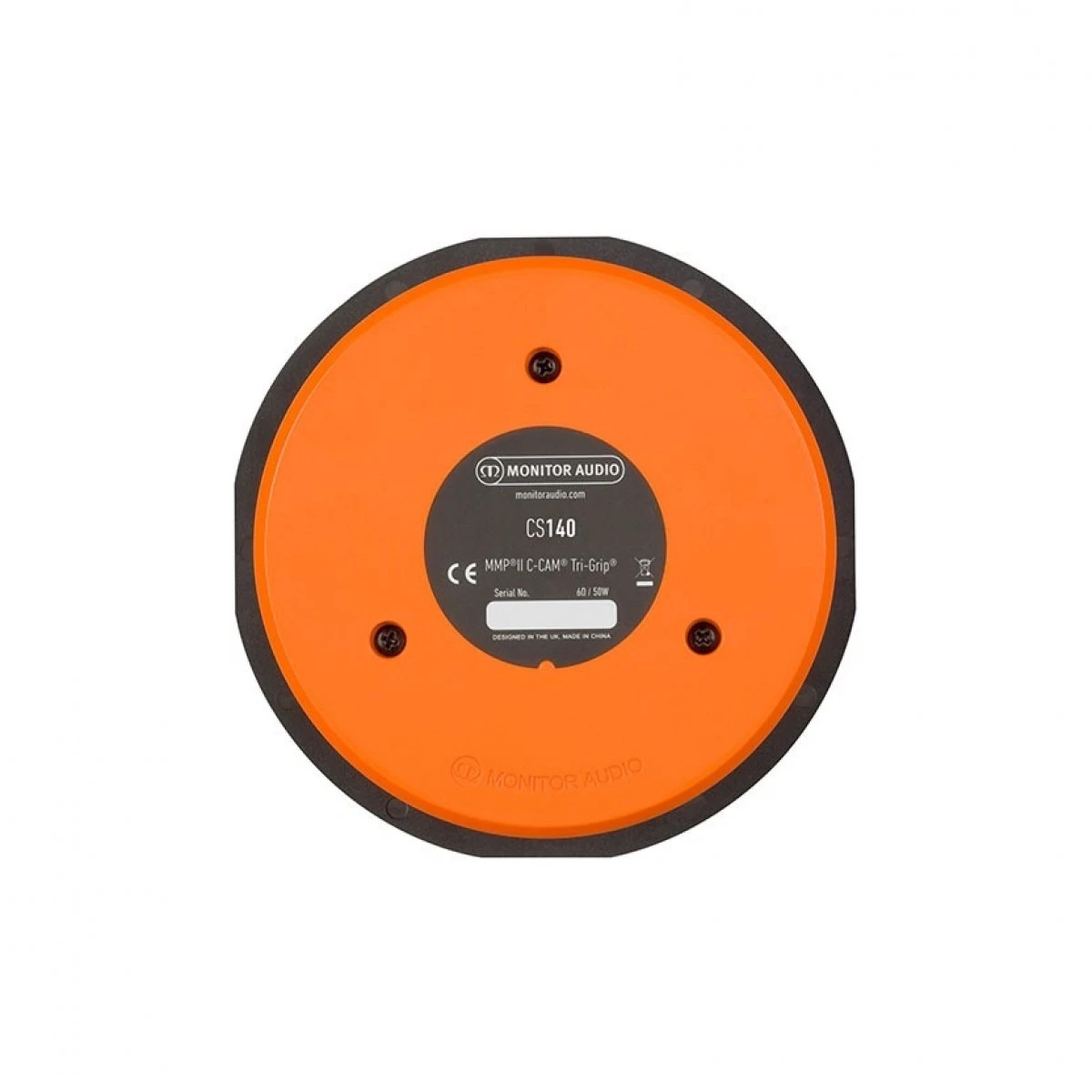

Monitor Audio CS140 In Ceiling Speaker (Single)

Full Description

The CS140 in-ceiling model features a proprietary 4-inch MMP II cone and a pivoting version of our acclaimed C-CAM Gold Dome tweeter. Engineered for excellent detail resolution and complete with either round or square grilles, the CS140 will deliver great sound with super-discreet aesthetics.

The acoustic systems of Monitor Audio’s trademark bass drivers and pivoting C-CAM gold dome tweeters have been optimised by FEA analysis to deliver high efficiency combined with a broad frequency range of demanding residential and commercial installations.

Wherever Monitor Audio’s speakers are installed, their innate versatility, ‘stealthy’ appearance and high performance will deliver great sound and easy, discreet, décor-friendly installation.

Frequency Response	75 Hz – 30 kHz
Nominal Impedance	6 ohms
Sensitivity (1W@1M)	85 dB
Maximum SPL (single unit in free space)	102.8 dBA
Power Handling (RMS)	50 W
Recommended Amp Requirements	10 – 50 W
Drive Unit Complement	1 x 4” MMP II cone bass driver 1 x 1” (25 mm) C-CAM pivoting Gold Dome tweeter
Acoustic Configuration	2-way
Overall Size	Round: 180.2 mm (7 1/8”) Square: 176.7 x 176.7 mm (6 15/16 x 6 15/16”)
Mounting Depth	98.6 mm (3 7/8”)
Cut-Out Hole Diameter	149 mm (5 7/8”)
Fixing Type	3 position Tri-Grip dog fixings
Cable Connection	Gold plated ‘push’ type terminals
Grille Attachment	Magnetic
Construction Material	Mineral filled ABS, RoHS compliant
Weight	1.18 kg (2.6 lb)
Pre-Construction Bracket	CB4 (Pink)
