Monitor Audio C380-FX In Ceiling Speaker (Single)

Full Description

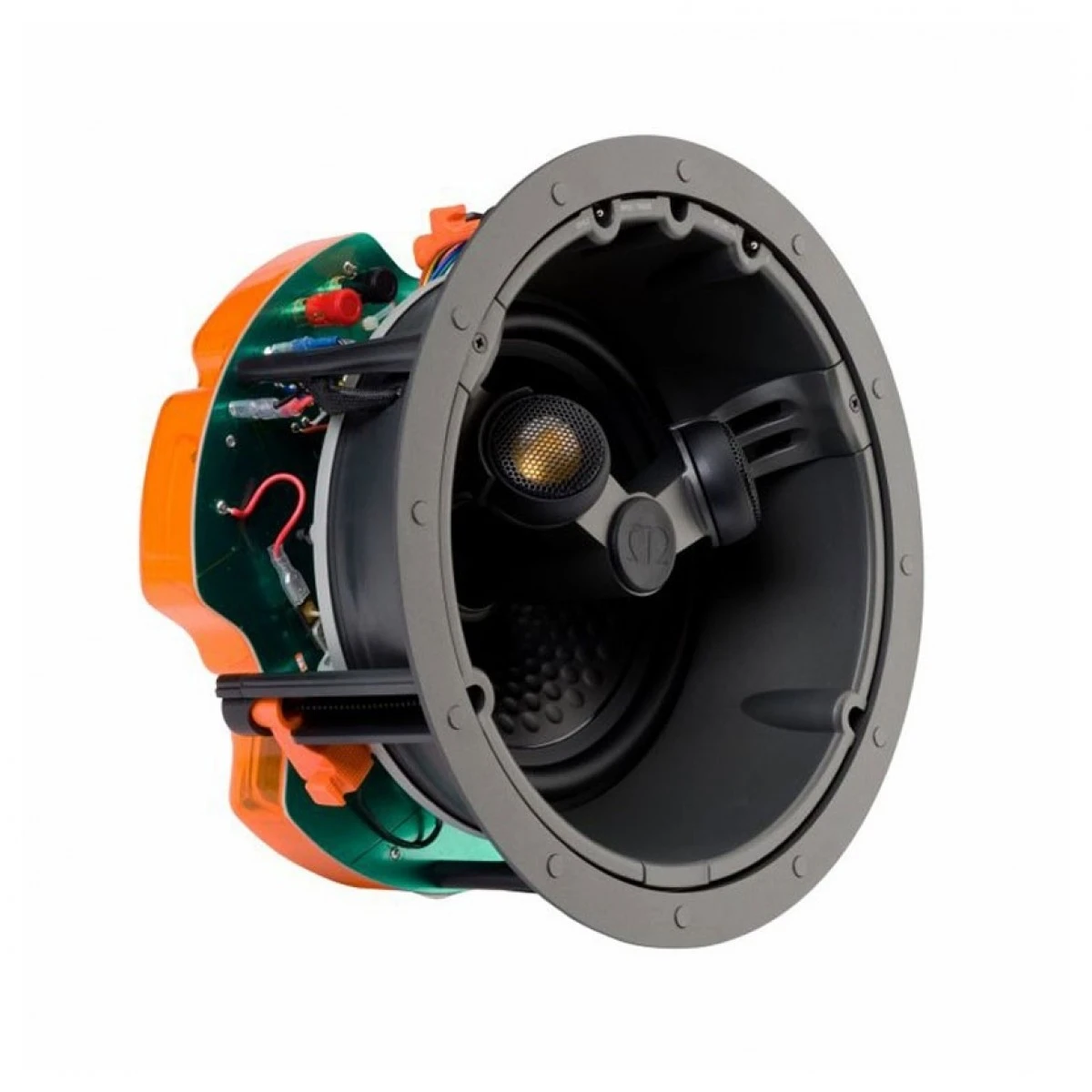

The C380-FX features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound. Incorporates an 8-inch C-CAM RST bass driver 8-inch C-CAM bass driver and dual 1-inch C-CAM gold dome tweeters mounted at a precise fixed-angle for optimised performance.

The acoustic systems of Monitor Audio’s trademark bass drivers and pivoting C-CAM gold dome tweeters have been optimised by FEA analysis to deliver high efficiency combined with a broad frequency range of demanding residential and commercial installations.

Wherever Monitor Audio’s speakers are installed, their innate versatility, ‘stealthy’ appearance and high performance will deliver great sound and easy, discreet, décor-friendly installation.

Frequency Response	45 Hz – 30 kHz
Nominal Impedance	6 ohms
Sensitivity (1W@1M)	90 dB
Maximum SPL (single unit in free space)	111.6 dBA
Power Handling (RMS)	120 W
Recommended Amp Requirements	30 – 120 W
Drive Unit Complement	1 x 8” C-CAM cone bass driver 2 x 1” C-CAM fixed angle Gold Dome tweeters
Adjustment Controls	HF Level Switch (+3 dB / 0 dB / -3 dB) Bipole / Dipole Switch with Additional 12v Trigger Switching
Overall Diameter: (including grille)	285 mm (11 1/4″)
Overall Depth: (including grille)	160 mm (6 5/16″)
Mounting Depth	156 mm (6 1/8″)
Cut-Out Hole Diameter	247 mm (9 3/4″)
Fixing Type	3 position Tri-Grip dog fixings
Construction Material	Mineral filled ABS, RoHS compliant
Weight	3.2 kg (7 lb)
Pre-Construction Bracket	CB8 (Green)
