Full Description
| Frequency Response | 60 Hz – 25 kHz |
|---|---|
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 88.5 dB |
| Maximum SPL (single unit in free space) | 107.4 dBA |
| Power Handling (RMS) | 65 W |
| Recommended Amp Requirements | 20 – 65 W |
| Drive Unit Complement | 1 x 6 1/2” MMP II cone bass driver
1 x 1” C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) |
| Overall Diameter: (including grille) | 250 mm (9 13/16″) |
| Overall Depth: (including grille) | 118 mm (4 5/8″) |
| Mounting Depth | 211 mm (8 1/4″) |
| Cut-Out Hole Diameter | 211 mm (8 1/4″) |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Cable Connection | Gold plated ‘push’ type terminals |

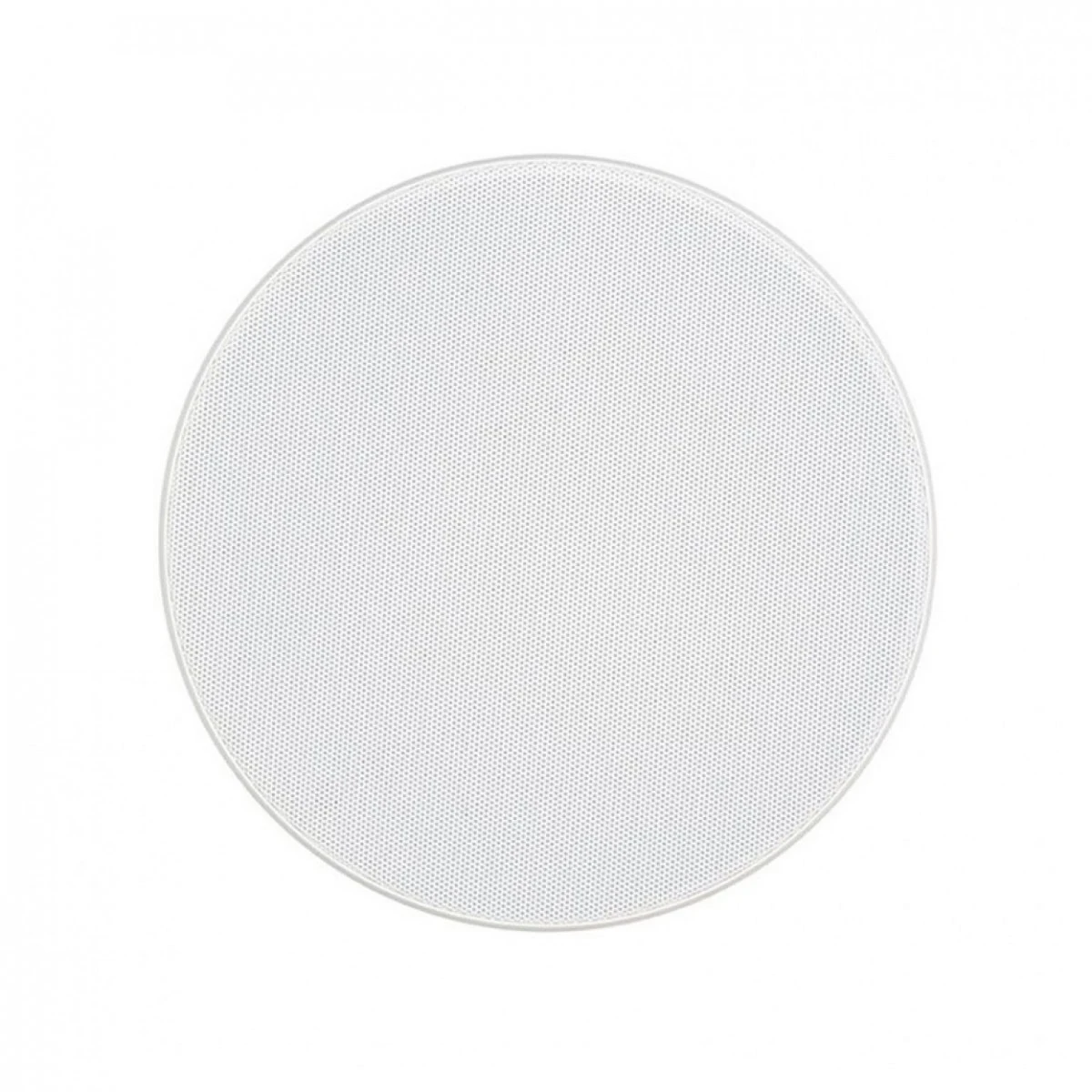

| Grille Attachment | Magnetic |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 1.92 kg (4 lb 4 oz) |
| Pre-Construction Bracket | CB6 (Purple) |
