Name: Monitor Audio AWC280-T2 Stereo All Weather Speaker (Single)
SKU: YXYUY 2088
Availability: InStock

Full Description

Not only are the four new AWC models equipped with the excellence of over four decades of award-winning speaker engineering, their stealthy flush-fitting design includes a heightened level of water, dust, corrosion, UV and temperature protection, providing custom installations with long-term reliability in the most challenging conditions.

The AWC Series joins Monitor Audio’s established ‘Climate’ range of weather-proof cabinet speakers to extend the choice of robust all-weather options available from Monitor Audio’s wide architectural speaker line-up, adding super-discreet, weather-proof high performance to a growing list of reliable outcomes.

High Performance C-CAM bass and high frequency drivers

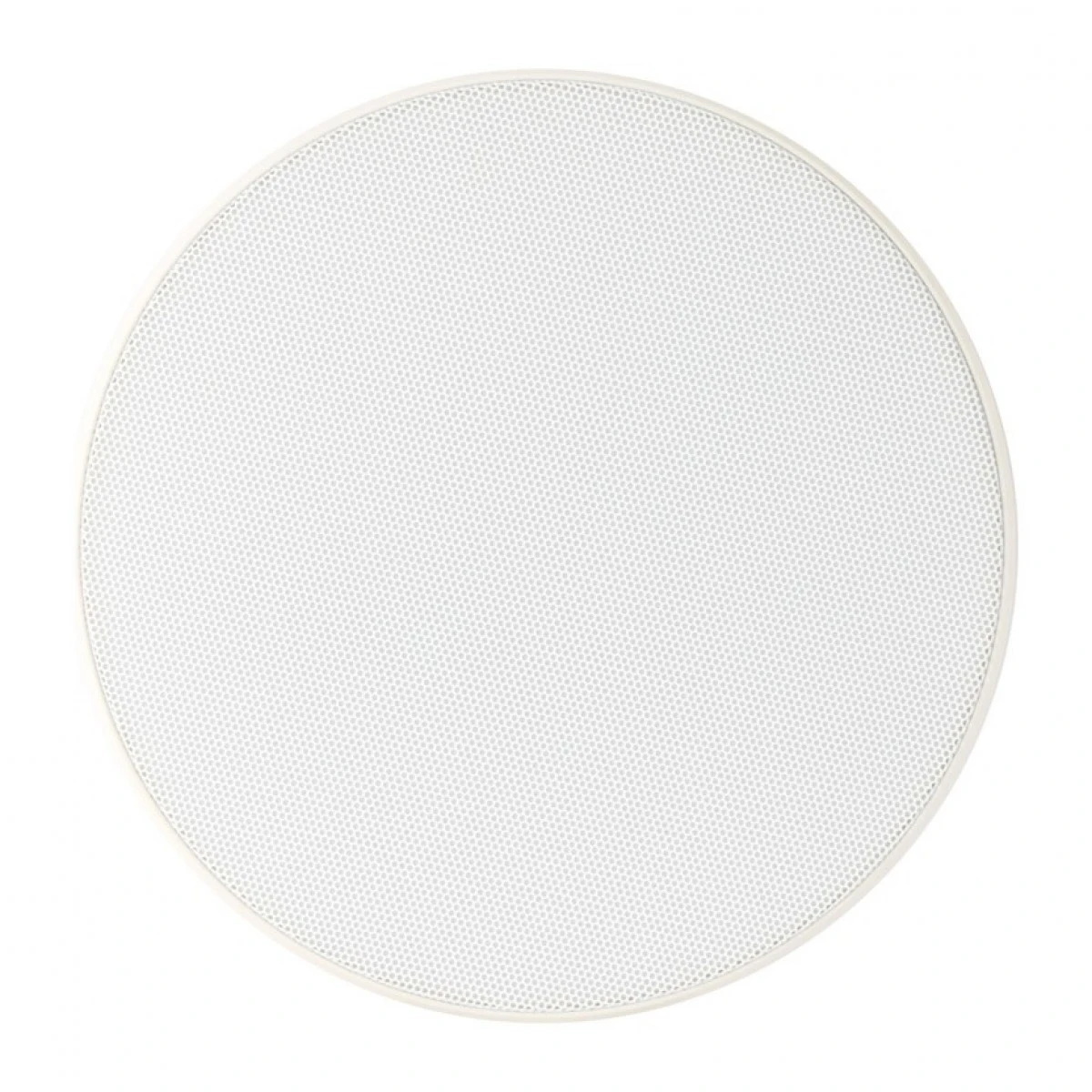

Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
Gold plated push terminals with silicon cover
Stainless fixing screws with Silicone covers
Tweeter level attenuation (internal) – set prior to installation
Applications: pool rooms, bathrooms, marine deck, universal outdoor installation

Gold Dome C-CAM

The gold dome tweeter is formed from a ceramic-coated aluminium/magnesium alloy, gold anodised to a specific thickness for ideal stiffness and damping characteristics. Its new profile and surround geometry have been developed using advanced modelling tools, to provide the optimum qualities for accurate sound reproduction.

C-CAM Bass Drivers

Refined over many years by Monitor Audio, Ceramic-Coated Aluminium/Magnesium is used as a driver cone material for all our speaker designs from the mid-market models up. C-CAM bass drivers are able to resist the bending distortion imposed by sudden and extreme bass excursions to reproduce very clean, deep and dynamic bass frequencies.

Tri-Grip Fixings

This model models feature a unique Tri-Grip fixing design. This 3-position ‘dog’ style fixing provides a greater contact surface area than other types, whilst saving installation time. The Tri-Grip fixings are made from a tough re-enforced polymer, giving a secure fixing without the risk of over-tightening.

Frequency Response	60 Hz-30 KHz
Sensitivity (1W@1m)	88dB (both channels driven)
Impedance (nominal)	8 + 8 Ohms
Maximum S.P.L	105.8 dBA
Power Handling (RMS)	60 Watts
Amplifier Requirements (RMS)	20-60 Watts
Drivers	6.5″ C-CAM cone bass driver 2 x 1″ C-CAM” gold dome tweeters (fixed angle)
Adjustment Controls	HF Level Switch (+3dB / 0dB / -3dB) – Adjustable at the point of installation
Connection	2 x (2 pairs) Gold plated push style terminal
Overall Diameter – including grille	250 mm (9 13/16 inch)
Overall Depth – including grille	93.5 mm (3 1/2 inch)
Cut Out Diameter	211 mm (8 1/4 inch)
Mounting Depth	88 mm (3 1/2 inch)
Fixing Type	3 position Tri-Grip dog leg fixings
Primary Construction Material	Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Grille	SS430 Stainless Steel
Magnets	Samarium Cobalt
Pre-Construction Bracket	CB6 (Purple)
Operating temperature Range	-34° to 79° C -29° to 174° F
Weight	2.04kg (4lb 8oz)
