Full Description

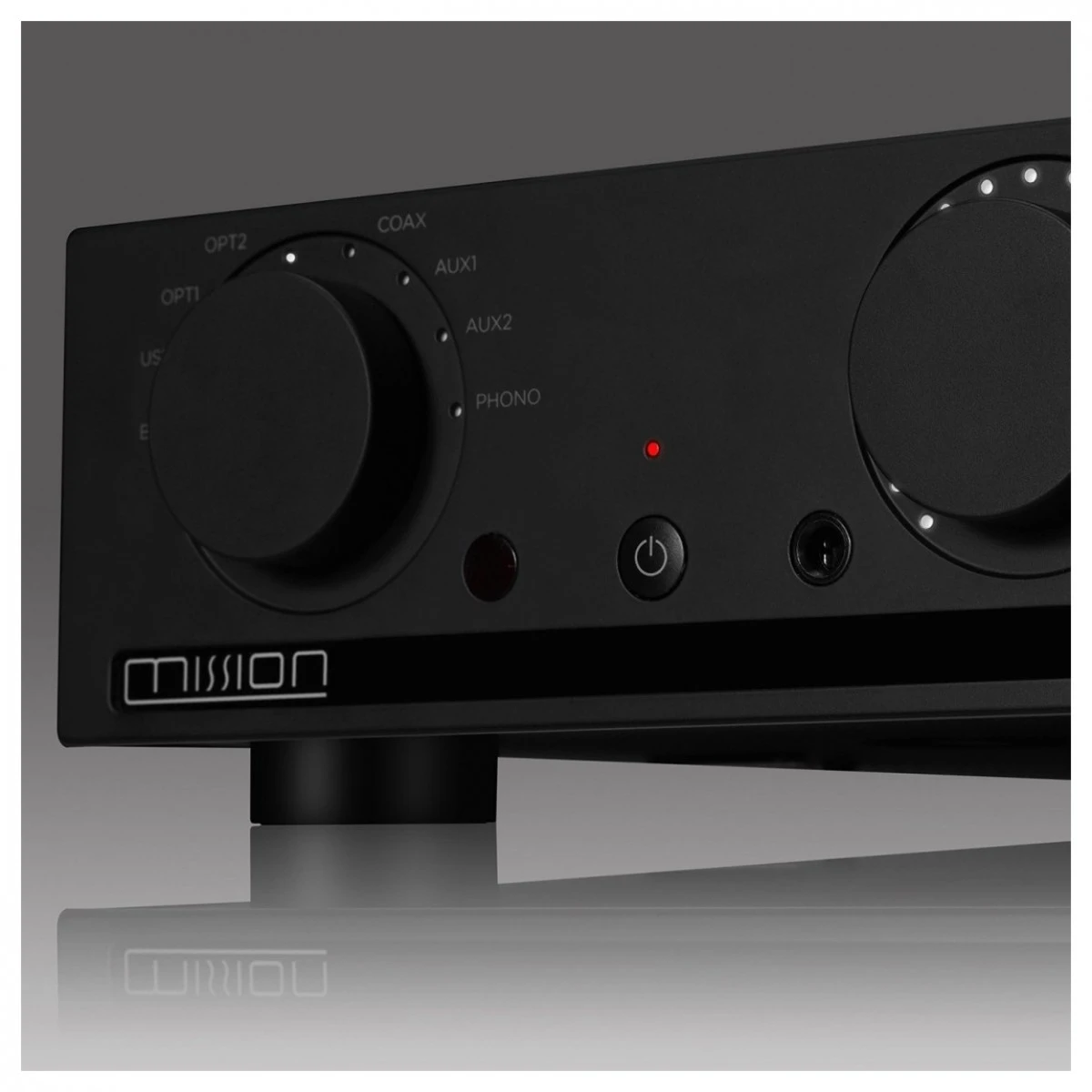

The Mission 778x Integrated Amplifier offers diverse connectivity options, including digital coaxial and optical inputs, three RCA inputs, and a moving magnet phono input for turntables. As well as physical connections, it supports Bluetooth streaming in aptX and AAC codecs. The 778x features a Class-AB power amplifier design with a 200VA toroidal transformer for strong sound output. It also includes a preamp section and a hi-res onboard DAC with an ES9018K2M chipset, offering a sampling rate of up to 384kHz (PCM) and DSD256.

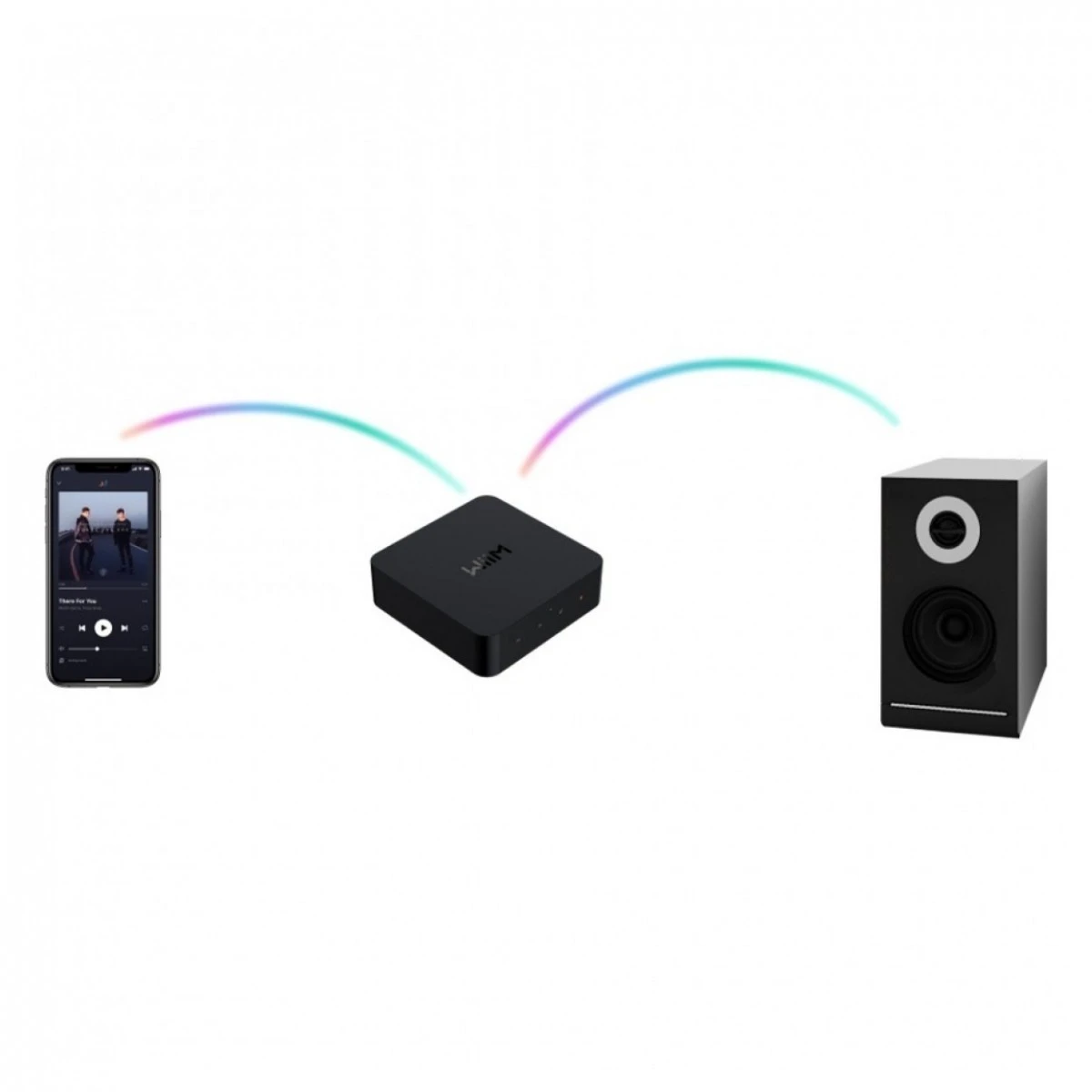

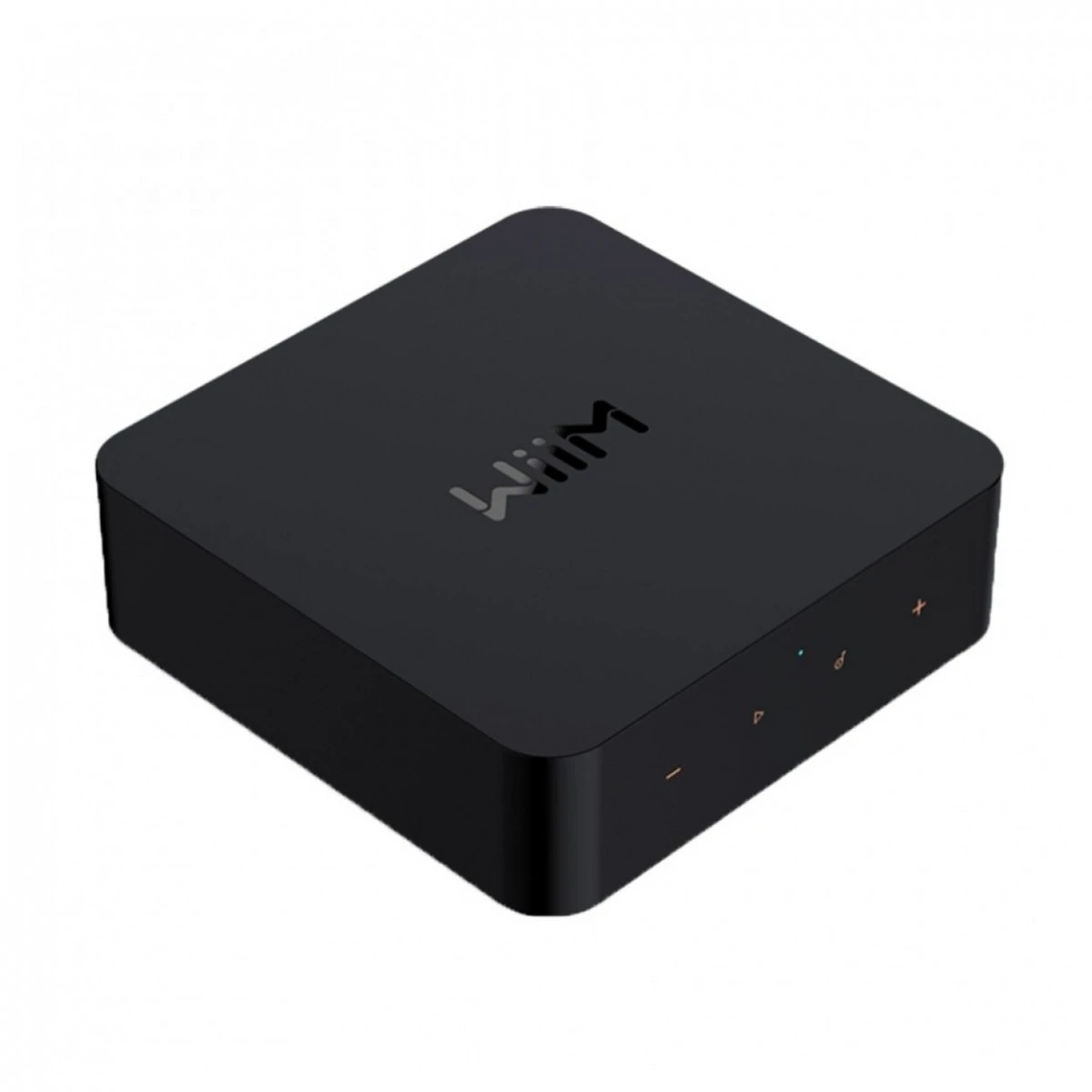

To expand the capabilities of your new HiFi system, we’ve packaged the WiiM Pro Audiophile Grade Multi-Room Music Streamer. This is one of the most comprehensive high-performance streaming devices available and adds smart and wireless connection potential to the amplifier, including Chromecast, AirPlay 2, multiroom, and voice assistant support. It also enables streaming from NAS and local files, meaning you can tap into a huge music collection. Enjoy gapless playback and further customisation with a range of EQ presets.

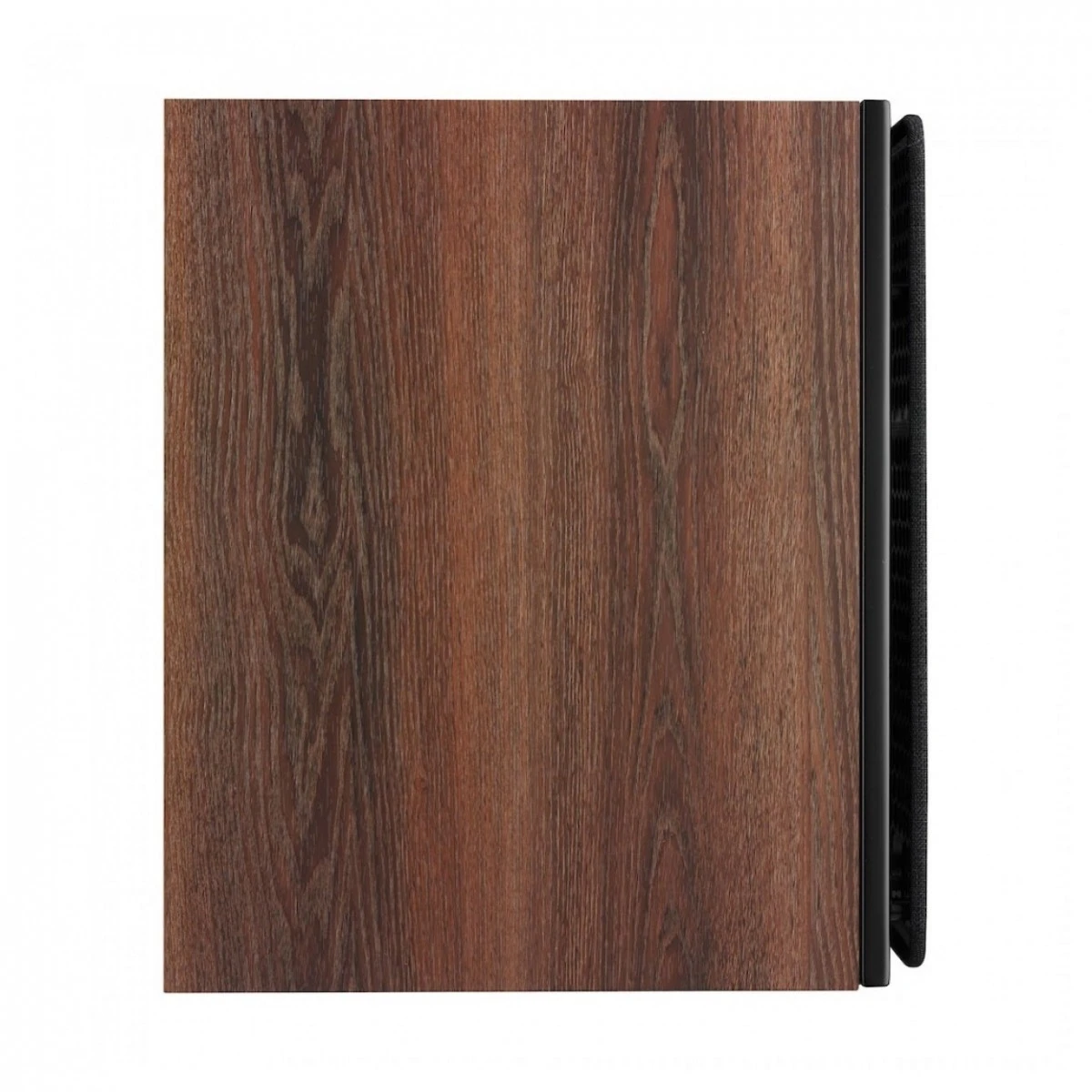

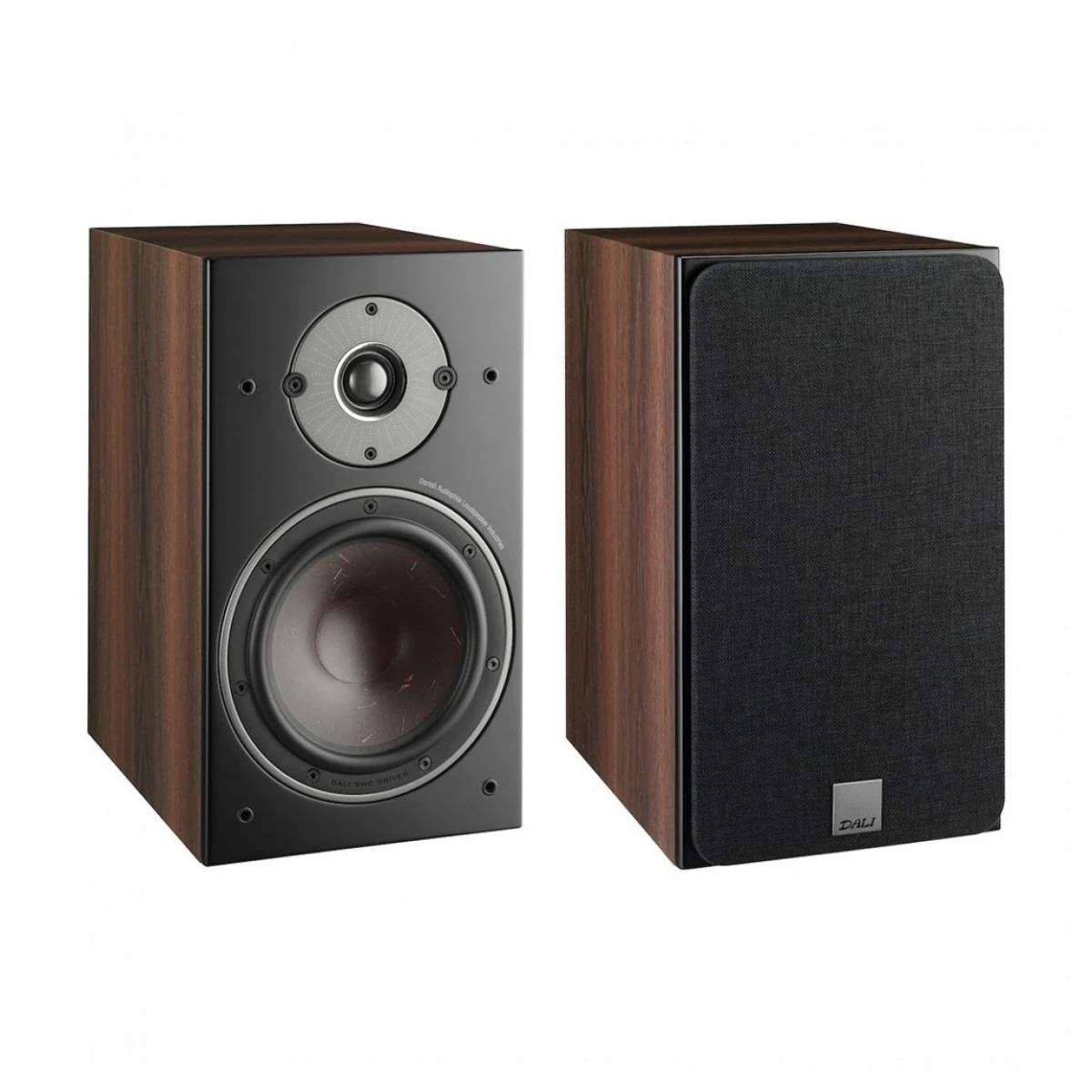

The Dali OBERON 3 Bookshelf Speaker is a game-changer in the world of entry-level loudspeakers. It is the first of its kind to incorporate DALI’s patented SMC technology, which significantly reduces non-linear magnetic distortion. This means that you can now experience your favourite music in a whole new way, with unparalleled clarity and detail. Featuring oversized tweeters and wide-dispersion wood-fibre woofers, the Dali OBERON 3 delivers a truly remarkable audio experience.
For your convenience, we’ve also included the Fisual Premium Hi-Fi Cable Package. This includes a 10-metre length of speaker cable (enough to split and position your speakers up to five metres from the amp), a pack of easy-to-use screw-on banana plugs, and a stereo phono / RCA cable to connect the WiiM Streamer or one audio source of your choice, be it a CD player, tuner, or turntable. Order from AV.com and get everything you need for system setup in one neat package.
Please Note
The speaker cable in this bundle is provided as one 10 m length and comes unterminated. Banana plugs are included in the bundle, but are not provided attached and require some short preparation before use.
Package Includes
Mission 778x Integrated Amplifier Specifications
Model
| Model | 778X |
|---|---|
| General Description | Digital-to-Analogue Converter
Stereo Amplifier |
| Design Philosophy and Core Technology | Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
ESS Sabre32 ES9018K2M Reference Chip
Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256)
Bluetooth 5.0 (aptX / AAC) Support
Dedicated High-performance, Low-noise MM Phono Stage
Headphone AMP With High-speed Output Signal Transition
USB Upgrade Support
Large Tractile Controls With LED Level Indicators |
| Inputs | 1 x Coaxial
2 x Toslink Optical
1 x PC USB
1 x Bluetooth (aptX/AAC)
2 x AUX
1 x RCA (Phono MM) |
| Outputs | 1 x Coaxial
1 x Toslink Optical
1 x RCA (PRE Out) |
| Sampling Frequency | Optical / Coaxial: 44.1kHz-192kHz;
PC USB 44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256 |
Preamplifier Section
| Gain (max.) | +0dB (Line)
+47dB (Phono MM) |
|---|---|
| Input Sensitivity | 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB) |
| Input Impedance | 10K (AUX); 47K//100pF (Phono MM) |
| Total Harmonic Distortion (THD) | 110dB (A-weighted) |
DAC
| D to A Converter | ESS Sabre32 ES9018K2M |
|---|---|
| Resolution | 32-bit |
| Max. Sampling Frequency | Optical/Coaxial: 192kHz;
USB: PCM 384kHz / 11.2896MHz (DSD256) |
| Total Harmonic Distortion (THD) | |
| Output level (0dBFS, 1KHz) | 2.1Vrms |
Power Amplifier Section
| Gain | +31dB |
|---|---|
| Rated Power Output | 2 x 45W (@8ohms)
2 x 65W (@ 4 ohms) |
| Frequency Response (ref. 1kHz) | 20Hz-20KHz (± 0.5dB) |
| Total Harmonic Distortion (THD) | 108dB (ref. 45W, A-weighted) |
| Crosstalk @1K | >80dB (ref.1W) |
| Standby Power Consumption |
Headphone Amplifier
| Total Harmonic Distortion (THD) | |
|---|---|
| Output Impedance | 4.7 ohms |
| Load impedance | 20-600 ohms |
General
| Dimensions (mm) (W x H x D) | 236 x 98 x 380.6 mm |
|---|---|
| Carton Size (mm) ( W X H X D) | 450 x 392 x 175 mm |
| Net Weight | 6.3kg |
| Available colours | Black / Silver |
| Power requirements (depending on region) | 220-240V, 50/60Hz; 100-120V, 50/60Hz |
WiiM Pro Audiophile Grade Multi-Room Music Streamer Specifications
Dimensions and weight
| Dimensions | 140 x 140 x 42 mm |
|---|---|
| Weight | 330g |
Line out
| Line in to Line out | Power Output=2Vrms
THD+N Ratio=0.009
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB |
|---|---|
| BT in to Line out | Power Output=2Vrms
THD+N Ratio=0.009
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB |
SPDIF
| Line in to Line out | Power Output=2Vrms
THD+N Ratio=0.009
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB |
|---|---|
| BT in to Line out | Power Output=2Vrms
THD+N Ratio=0.009
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB |
Compatibility
| Ethernet | Yes |
|---|---|
| Chromecast Audio | Yes |
| Group with Nest speakers and display | Yes |
| Group with Echo speakers and display | Yes |
| Alexa Multiroom with UHD | Yes |
| Group with HomePods | Yes |
| Works with | Alexa
Siri |
| Group with WiiM or LinkPlay devices | Yes |
| AirPlay 2 | Yes |
| DLNA | Yes |
| Spotify Connect | Yes |
| TIDAL Connect | Yes |
| Gapless Playback | Yes |
| 10-band Graphics EQ | Yes |
| LinkPlay Music Streaming Platform | Yes |
Other
| CPU | Quadcore A53 |
|---|---|
| DRAM | 512 MB |
| Flash | 512 MB |
| Audio input port | Line-in
SPDIF in |
| Audio output port | Line-out
SPDIF out
Coaxial out |
| Wi – Fi | IEEE 802.11 b/g/n/ac dual-band Wi-Fi, Ethernet (100M? |
| Bluetooth | Bluetooth 5.0, SBC and AAC codec, BT receiver and transmitter |
| Audio Codec | MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG |
| Line in | 1Vrms |
| Power Supply | 5V,1.5A |
| LED | Three colour status LED: Red, Green and White. |
| Button | Capacitive touch: Play/Pause, Volume+, Volume-, 1x preset |
DALI OBERON 3 Bookshelf Speakers Specifications
Dimensions
| Dimensions with base (H x W x D) | 350 x 200 x 315 mm |
|---|---|
| Weight | 6.3 kg |
Setting Up
| Connection input | Single wire |
|---|---|
| Recommended placement | Shelf or stand |
| Recommended distance from wall | 5 – 50 cm |
General
| Frequency range (+/-3 dB) | 47 – 26,000 Hz |
|---|---|
| Sensitivity (2,83 V/1 m) | 87 dB |
| Nominal impedance | 6 ohms |
| Maximum SPL | 108 dB |
| Recommended amplifier power | 25 – 150 Watts |
| Crossover frequency | 2,400 Hz |
| Crossover principle | 2-way |
| High-frequency driver, quantity | 1 x 29 mm |
| High-frequency driver, diaphragm type | Soft textile dome |
| Low-frequency driver, quantity | 1 X 7″ |
| Low-frequency driver, diaphragm type | Wood fibre cone |
| Enclosure type | Bass reflex |
| Bass reflex tuning frequency | 49 Hz |
