Full Description
The Mission 778x Integrated Amplifier offers diverse connectivity options, including digital coaxial and optical inputs, three RCA inputs, and a moving magnet phono input for turntables. As well as physical connections, it supports Bluetooth streaming in aptX and AAC codecs. The 778x features a Class-AB power amplifier design with a 200VA toroidal transformer for strong sound output. It also includes a preamp section and a hi-res onboard DAC with an ES9018K2M chipset, offering a sampling rate of up to 384kHz (PCM) and DSD256.

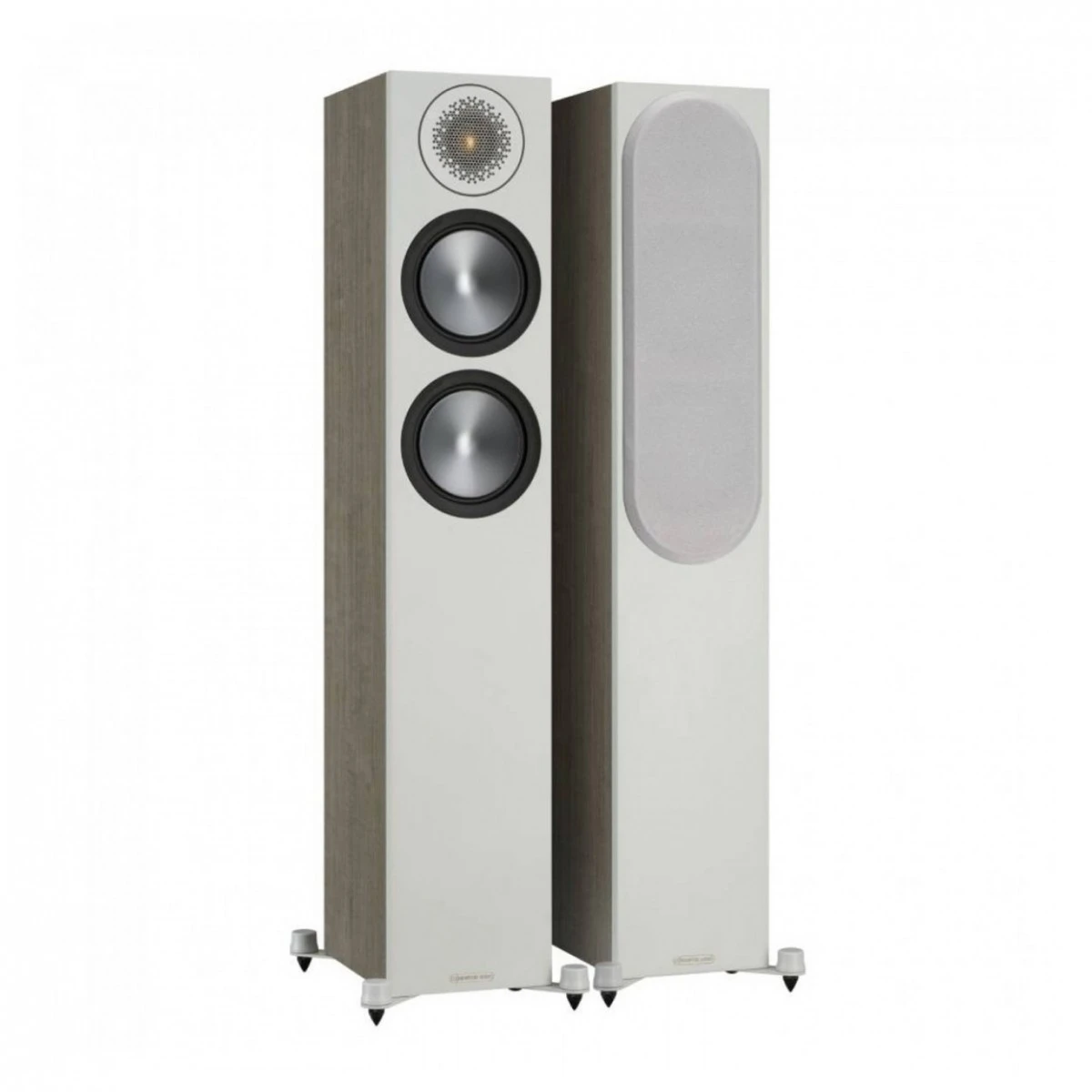

Accompanying this amplifier, the sixth generation Monitor Audio Bronze 200 Floorstanding Speakers boast cutting-edge sound-enhancing technology. Their C-CAM drive units are made of an ultra-light material, which boosts accuracy and harmony. Working together, the drivers deliver a full-range frequency with tight bass, all in a compact size. Standing less than a meter tall on solid outrigger feet, these medium tower speakers are ideal for smaller home cinemas or stereo systems that require bass. The dual HiVe II bass-reflex ports help provide extended low frequencies and smooth airflow from the cabinet, reducing distortion.
To ensure you can set up your new home audio system instantaneously, we’ve included the Fisual Premium Hi-Fi Cable Package. This includes a 10-metre length of speaker cable (enough to split and position your speakers up to five metres from the amp), a pack of easy-to-use screw-on banana plugs, and a stereo phono / RCA cable to connect at least one audio source of your choice, be it a CD player, tuner, or streamer. Order from AV.com and get everything you need for system setup in one neat package.
Please Note
The speaker cable in this bundle is provided as one 10 m length and comes unterminated. Banana plugs are included in the bundle, but are not provided attached and require some short preparation before use.
Package Includes
Mission 778x Integrated Amplifier Specifications
Model
| Model | 778X |
|---|---|
| General Description | Digital-to-Analogue Converter
Stereo Amplifier |
| Design Philosophy and Core Technology | Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
ESS Sabre32 ES9018K2M Reference Chip
Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256)
Bluetooth 5.0 (aptX / AAC) Support
Dedicated High-performance, Low-noise MM Phono Stage
Headphone AMP With High-speed Output Signal Transition
USB Upgrade Support
Large Tractile Controls With LED Level Indicators |

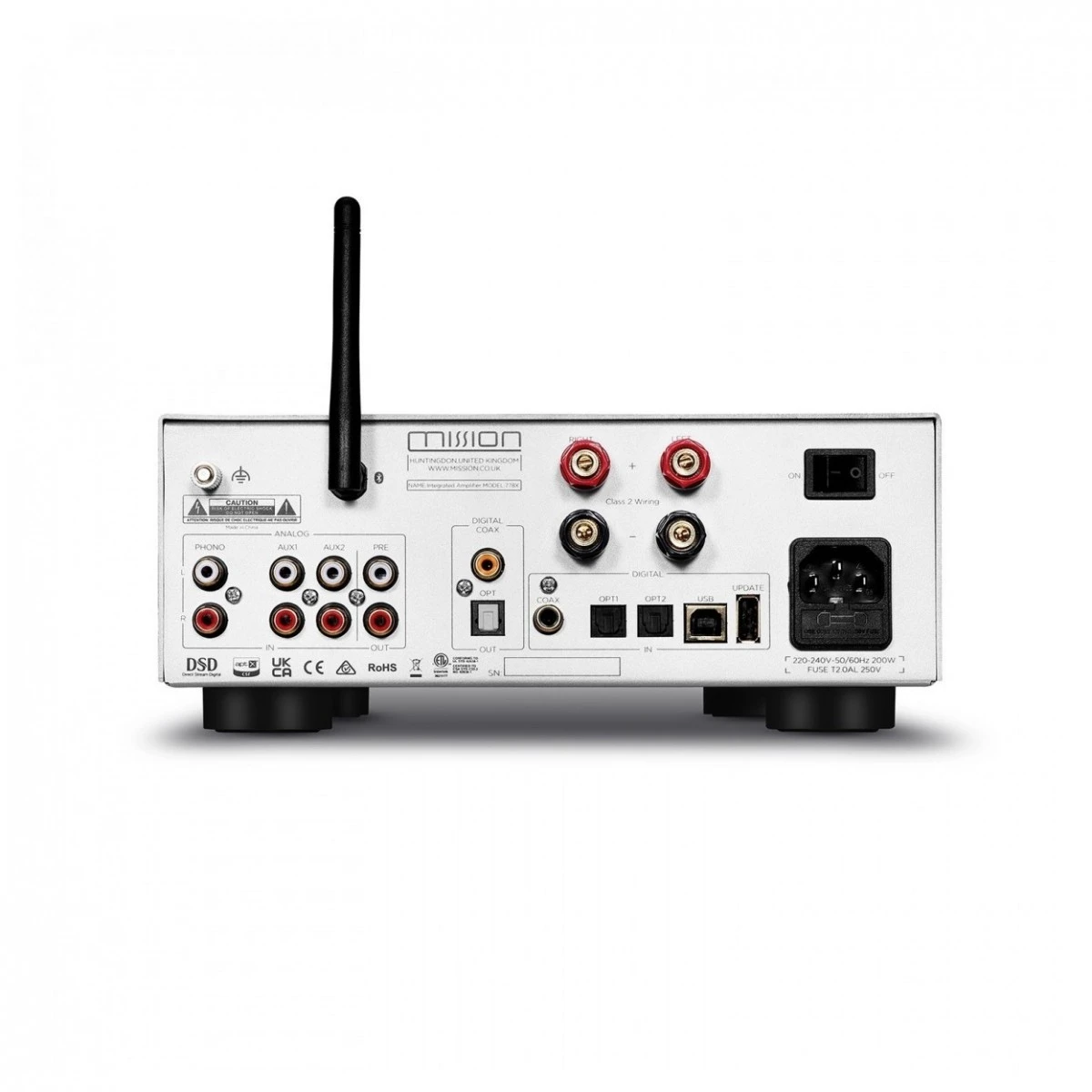

| Inputs | 1 x Coaxial
2 x Toslink Optical
1 x PC USB
1 x Bluetooth (aptX/AAC)
2 x AUX
1 x RCA (Phono MM) |
| Outputs | 1 x Coaxial
1 x Toslink Optical
1 x RCA (PRE Out) |
| Sampling Frequency | Optical / Coaxial: 44.1kHz-192kHz;
PC USB 44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256 |
Preamplifier Section
| Gain (max.) | +0dB (Line)
+47dB (Phono MM) |
|---|---|
| Input Sensitivity | 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB) |
| Input Impedance | 10K (AUX); 47K//100pF (Phono MM) |
| Total Harmonic Distortion (THD) | 110dB (A-weighted) |
DAC
| D to A Converter | ESS Sabre32 ES9018K2M |
|---|---|
| Resolution | 32-bit |
| Max. Sampling Frequency | Optical/Coaxial: 192kHz;
USB: PCM 384kHz / 11.2896MHz (DSD256) |
| Total Harmonic Distortion (THD) | |
| Output level (0dBFS, 1KHz) | 2.1Vrms |
Power Amplifier Section
| Gain | +31dB |
|---|---|
| Rated Power Output | 2 x 45W (@8ohms)
2 x 65W (@ 4 ohms) |
| Frequency Response (ref. 1kHz) | 20Hz-20KHz (± 0.5dB) |
| Total Harmonic Distortion (THD) | 108dB (ref. 45W, A-weighted) |
| Crosstalk @1K | >80dB (ref.1W) |
| Standby Power Consumption |
Headphone Amplifier
| Total Harmonic Distortion (THD) | |
|---|---|
| Output Impedance | 4.7 ohms |
| Load impedance | 20-600 ohms |
General
| Dimensions (mm) (W x H x D) | 236 x 98 x 380.6 mm |
|---|---|
| Carton Size (mm) ( W X H X D) | 450 x 392 x 175 mm |
| Net Weight | 6.3kg |
| Available colours | Black / Silver |
| Power requirements (depending on region) | 220-240V, 50/60Hz; 100-120V, 50/60Hz |
Monitor Audio Bronze 200 Floorstanding Speakers Specifications
General
| External dimensions, incl. outrigger feet and spikes (W x H x D) | 229 x 909 x 304 mm |
|---|---|
| External dimensions, incl. grille and terminals (W x H x D) | 166 x 886 x 265 mm |
| Weight (per speaker) | 12.8kg |
| Finishes | Black, White, Walnut, Urban Grey |
Audio Features
| System format | 2.5-way |
|---|---|
| Frequency response (-6 dB) | 45 – 25,000 Hz (free field)
35 – 30,000 Hz (in room) |
| Sensitivity (2.83v @ 1m) | 88 dB |
| Nominal impedance | 8 ohms |
| Minimum impedance | 4.4 ohms |
| Maximum SPL | 112 dBA (pair) |
| Power handling (RMS) | 120 W |
| Recommended amplifier requirements | 40 – 120 W |

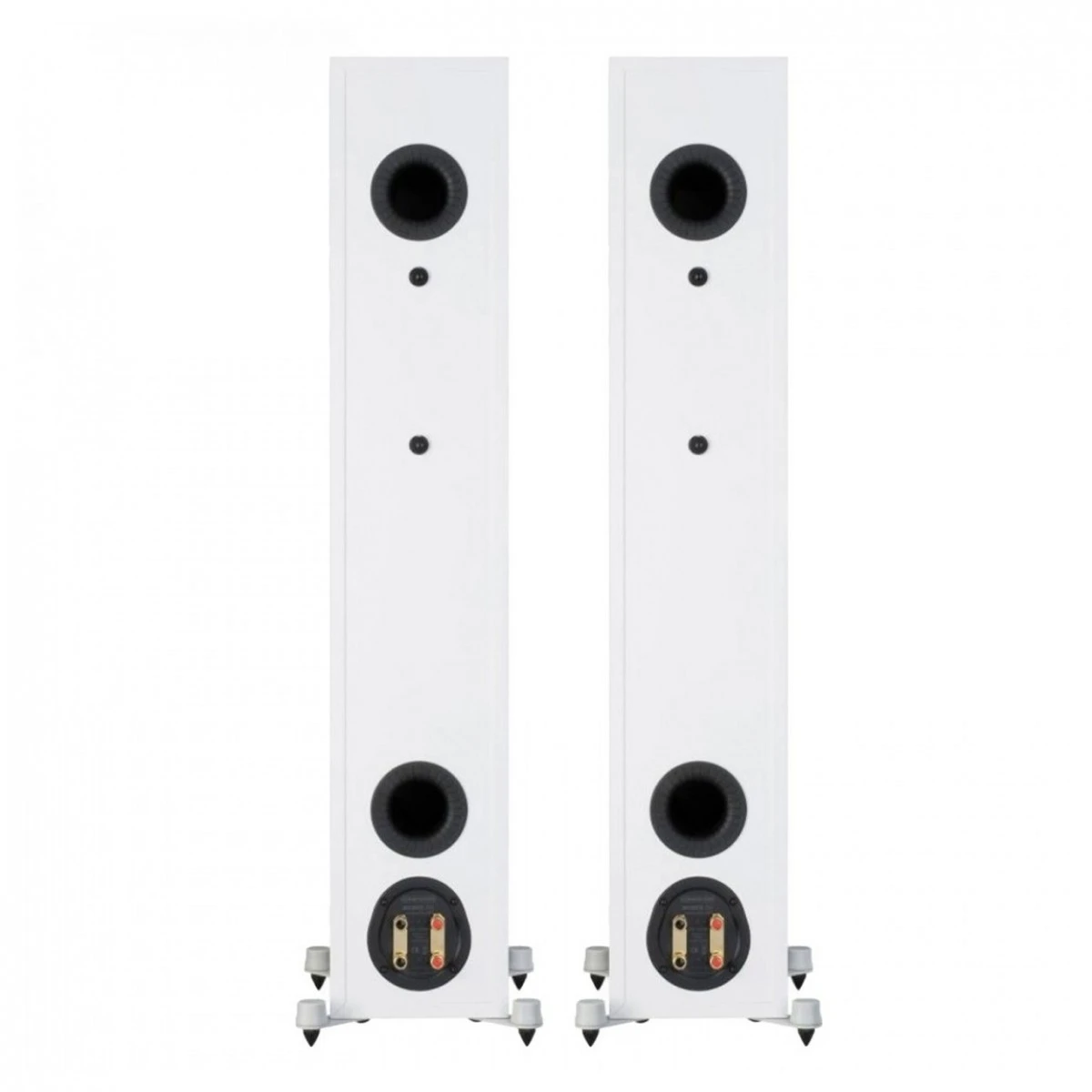

| Bass alignment | Bass reflex Dual HiVe II port system |
| Crossover frequency | 700 Hz
2,400 Hz |
| Drive unit complement | 2 x 5 1/2″ C-CAM midbass driver
1 x 25 mm C-CAM Gold Dome tweeter with UD Waveguide |
