Mission 778x Integrated Amplifier With QX-2 MKII Speakers, White

Original price was: $367.00.Current price is: $97.99.

SKU: YXYUY 49560 Category: HiFi Systems

Buy with Confidence, Get Quality
SSL encryption, absolutely safe shopping
Protect Your Wallet with Safe Payments
7-Day Returns, 100% Quality

Description
Reviews (0)

Full Description

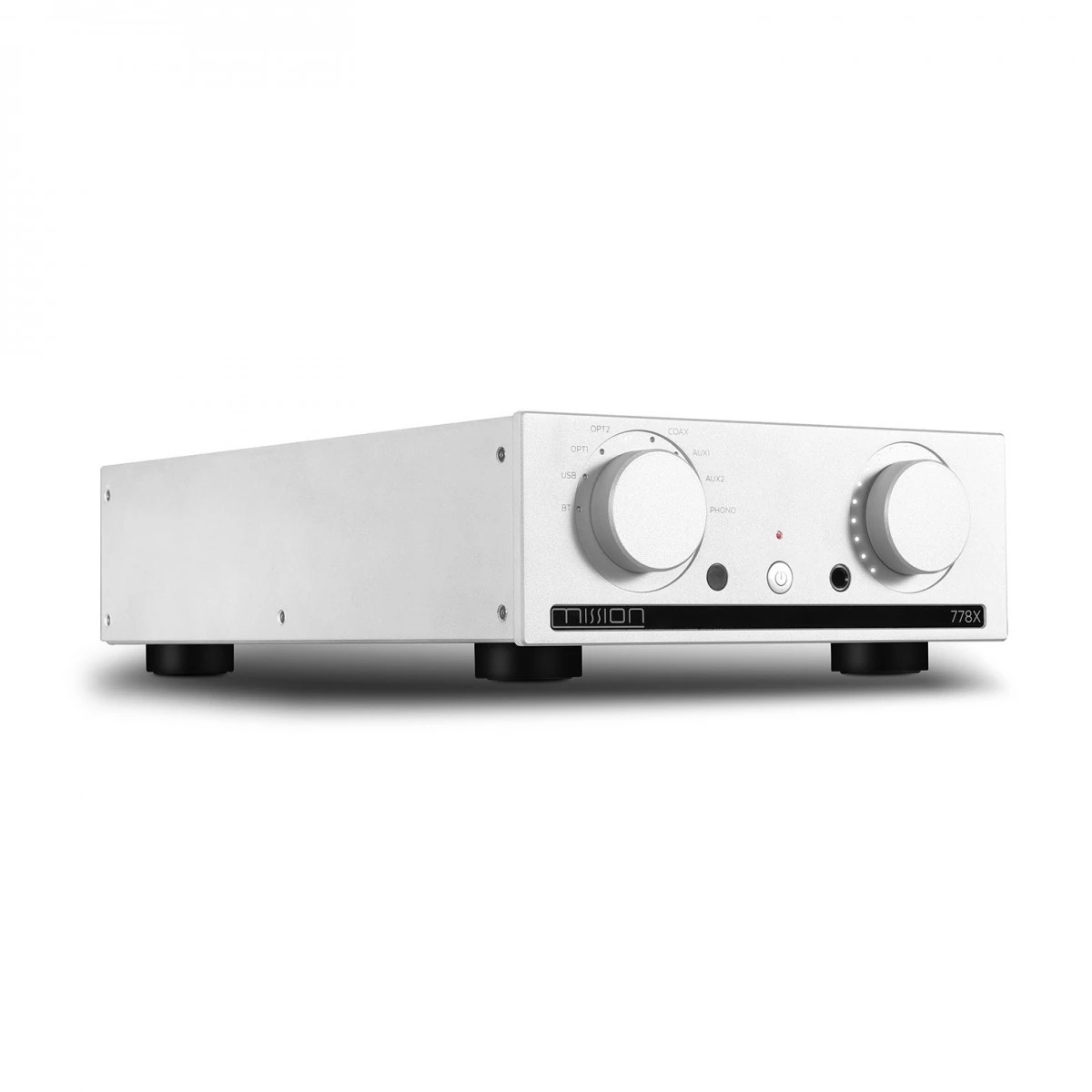

Mission 778x Integrated Amplifier with Bluetooth, Silver

Integrated Amplifier

The Mission 778x offers a Class-AB design so you can enjoy effective sound quality with low distortion levels. The 778x provides a low-noise 200VA toroidal transformer and a 2x15000uF reservoir capacity so you can enjoy a two-channel power output of up to 65W each. The preamp section immerses you in the sound with its low THD rating and a frequency response of 20Hz-20kHz, so all your favourite music genres are catered for. The 778x is even harnessed with a high-quality headphone amplifier that generates high-speed output signal transition so you can enjoy amazing audio quality.

High Performing DAC and Inputs

Connect all of your digital devices thanks to the USB, Coaxial, and dual Optical inputs, with up to three RCA inputs enabling excellent pairing with your analogue devices such as your turntable. The 778x provides Bluetooth 5.0, so you can stream all your favourite playlists on Spotify and Apple Music, straight from your smart devices. The built-in DAC gifts you with immersive audio thanks to the ES9018K2M chipset, the 32-bit HyperStream architecture and Time Domain Jitter Eliminator. Experience a sampling rate of up to 384kHz (PCM) and DSD256.

Great Design

The reliable, compact design allows for easy storage within any HiFi cabinet and also adds a voguish vibe to your home decor. The 778x provides two sturdy rotary controls so you can manage the volume as well as select the input sources. The white LED lights will also notify you what settings are currently selected.

Key Features

Class-AB design ensures Mission’s signature sound quality
A two-channel power output of up to 65W each transmits robust audio signals
Preamplifier allows for low distortion and a dynamic sound
The headphone amplifier provides high-speed output signal transition
The USB, Coaxial, and Optical inputs ensure direct connectivity to digital devices
The three available RCA inputs allow you to connect to analogue audio sources
Bluetooth 5.0 lets you wirelessly connect to your smart devices with aptX and AAC codecs
High-quality DAC generates immersive, high-speed digital to analogue sounds
The brilliant design ensures versatile positioning and ample control over your audio

What’s in the box?

The Mission 778x Integrated Amplifier
1 x Power Cord
1 x Remote Control
1 x Bluetooth antenna
User Manuals

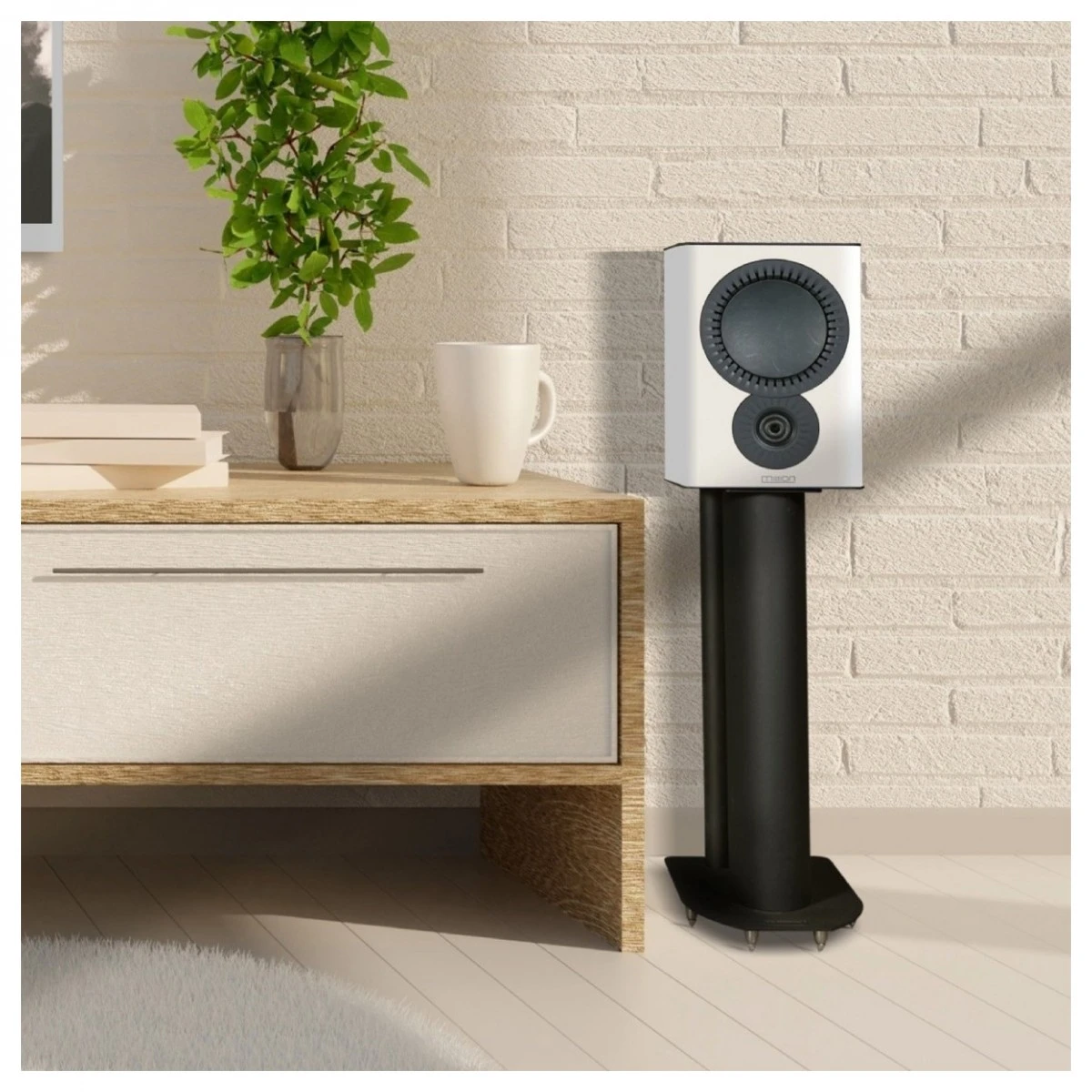

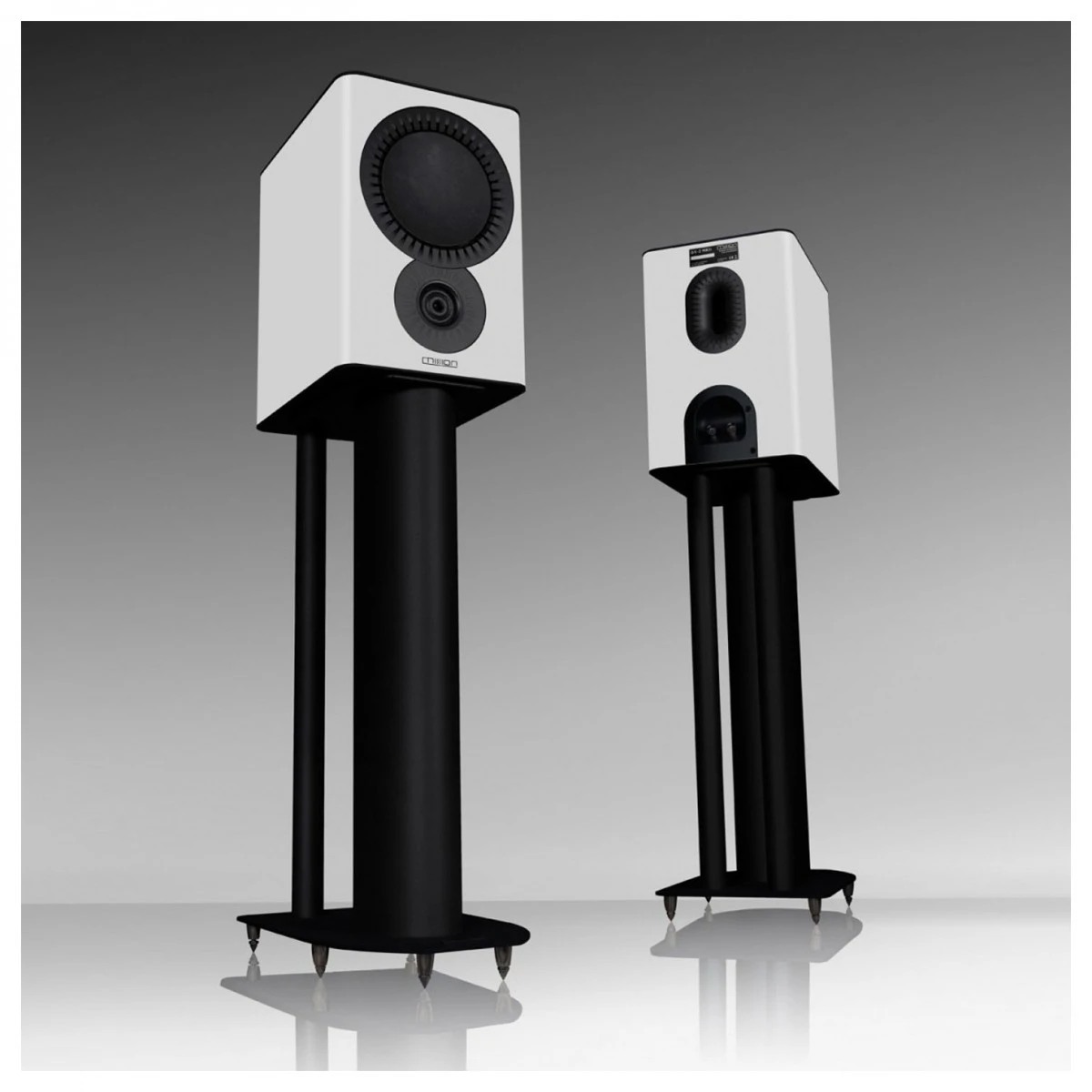

Mission QX-2 MkII Bookshelf Speakers (Pair), White

The QX Range

Since its initial launch in 2017, the QX series has undergone an engineering makeover. Now, Mission presents the second generation of QX which comprises six passive speakers; all a step above the entry-level LX series. Consequently, the QX MkII speaker range is an ideal mid-range option for those with a slightly higher budget and looking for extra technical specs.

Design

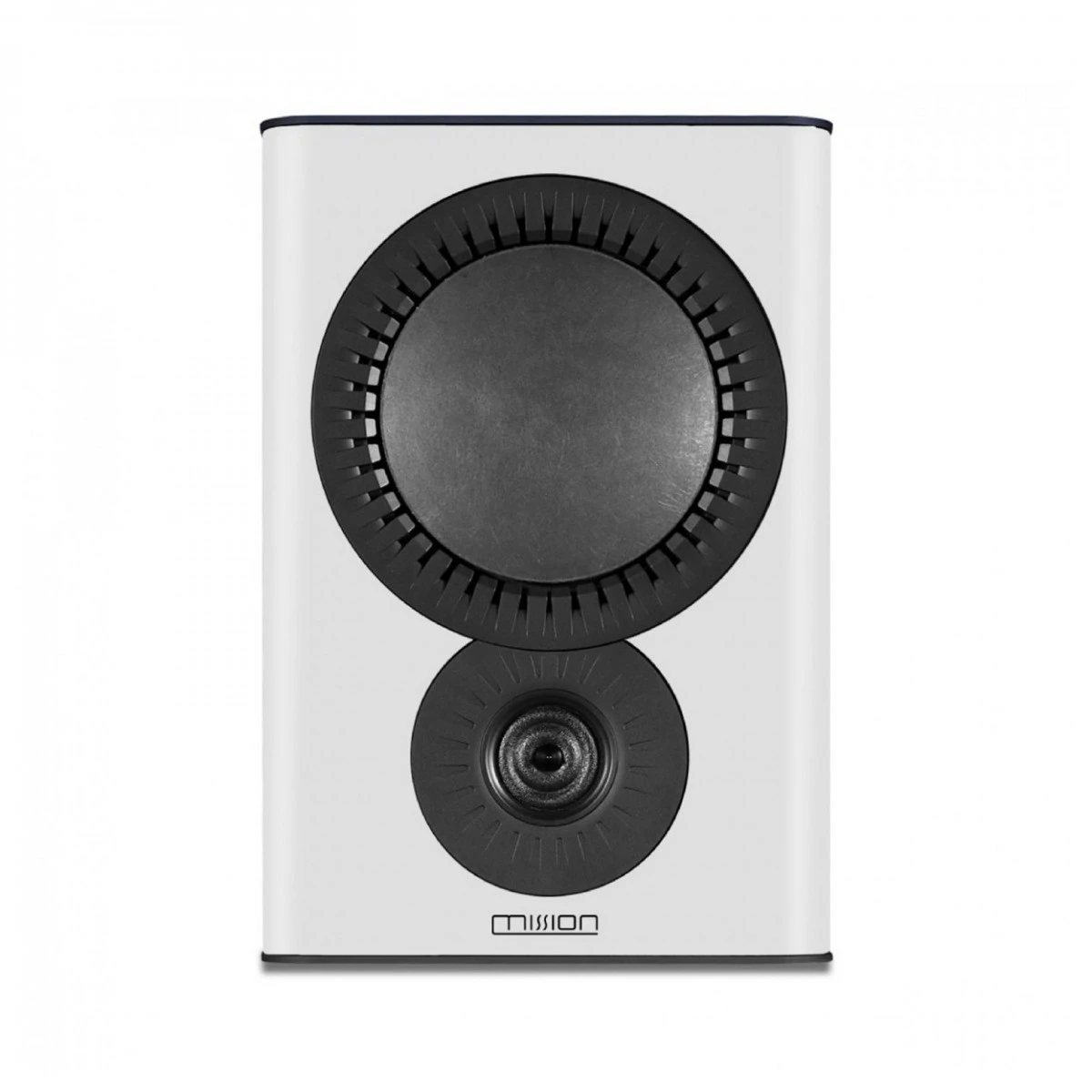

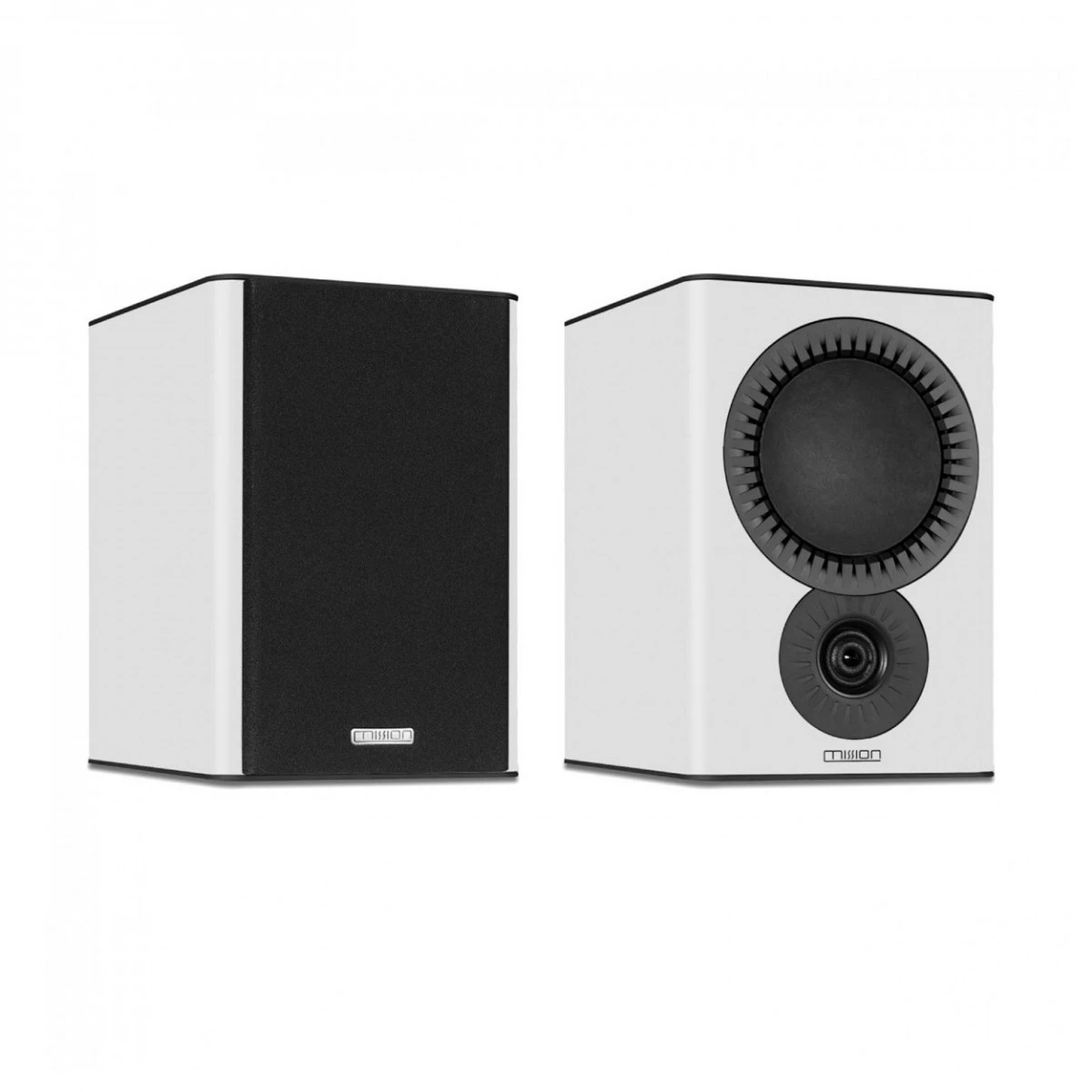

Externally, the QX-2 MkII bookshelf speakers retain much of their predecessor’s design characteristics. Their cabinets feature similar detailing with smooth corners and a comb tooth texture around both driver units. However, the MkII speakers are now available in a choice of black, white, or traditional walnut finishes for greater styling versatility. In addition, enhancements have been made to cabinet rigidity, ultimately reducing any unwanted resonance.

Tweeter

Mission has opted for a new ring dome tweeter after expressing concerns that traditional domed diaphragm tweeters facilitate the inherent flaw known as cavitation. To avoid cavitation, Mission’s QX MkII ring dome tweeter attaches its voice coil partway down the textile dome. This reduces distortive effects for more impressive delivery of high frequencies – in excess of 20 kHz!

Mid-bass Driver

Mission brings an upgraded DiaDrive mid-bass driver to the QX-1 MkII bookshelf speakers where a seamless diaphragm is driven by a sub-cone and connected voice coil for controlled and efficient mid-low frequency handling. Further improvements include ventilation for reduced resonance and a strong ferrite magnet for the controlled direction of the magnetic field.

Sound with Teeth

The comb-tooth detailing around the QX-1 MKII’s driver units is not merely for show; these serrations have been intricately optimised to minimise airflow interference and smooth frequency response. Indentations like these have also been incorporated into the rear reflex ports of speakers in the MKII series.

Inverted Driver Geometry

Mission has positioned their drivers using inverted driver geometry, meaning the mid-bass driver is placed above the ring dome tweeter to assist with time alignment. This is a feature which Mission has trademarked since the 1980s. It is ultimately a calculated decision which helps the high and low ends of music reach your ears in a beautiful blend.

Key Features

Two-way Bass Reflex design enables immersive listening
165mm bass driver creates amazing low frequencies
38mm treble driver generates stunning sounds
DiaDrive mid-bass driver offers precise audio that will get the most out of your music
Inverted driver geometry improves your listening experience
Compact design will fit in your home with ease

Package includes

Mission 778x Integrated Amplifier with Bluetooth, Silver Specifications

Model

Model	778X
General Description	Digital-to-Analogue Converter Stereo Amplifier
Design Philosophy and Core Technology	Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms) ESS Sabre32 ES9018K2M Reference Chip Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) Bluetooth 5.0 (aptX / AAC) Support Dedicated High-performance, Low-noise MM Phono Stage Headphone AMP With High-speed Output Signal Transition USB Upgrade Support Large Tractile Controls With LED Level Indicators

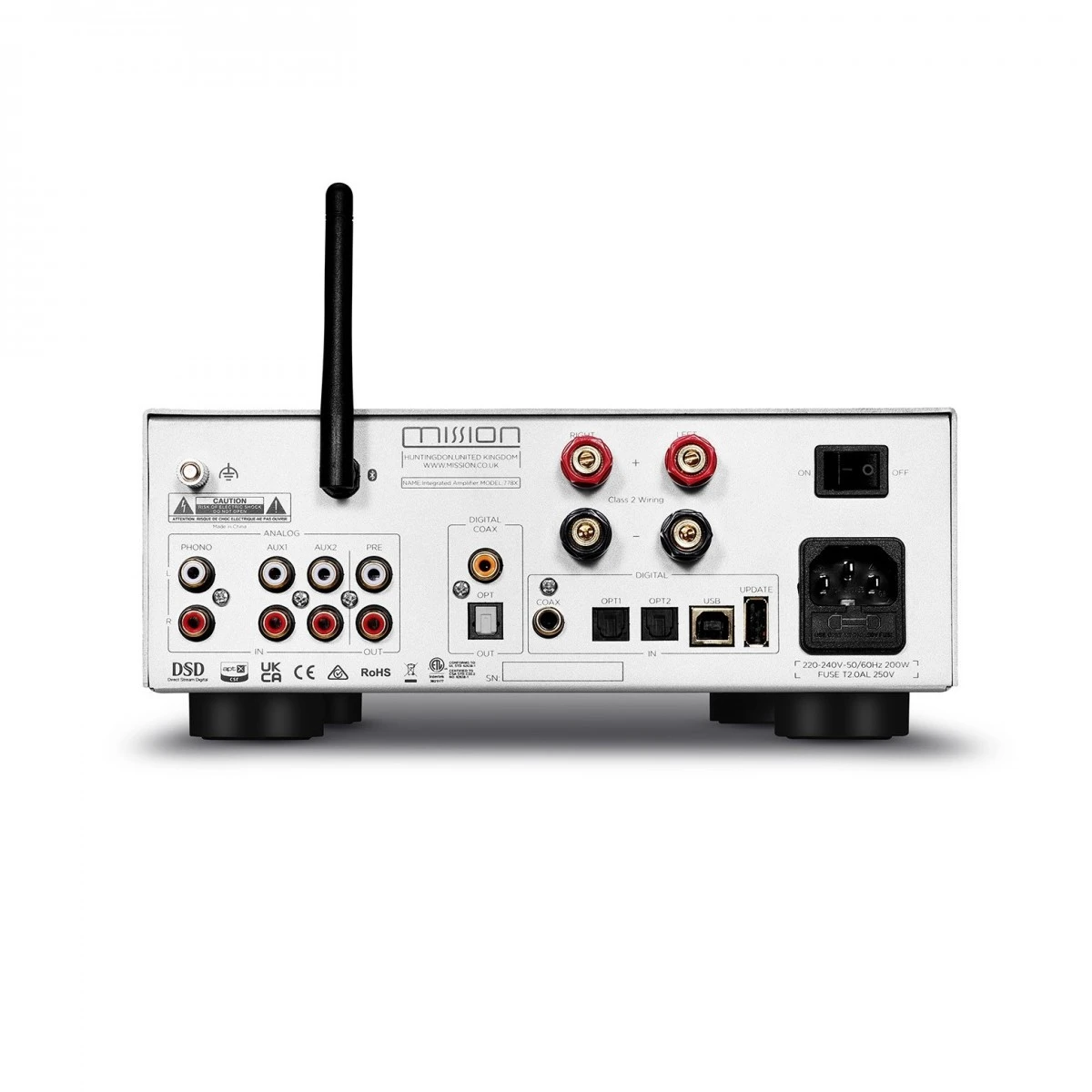

Inputs	1 x Coaxial 2 x Toslink Optical 1 x PC USB 1 x Bluetooth (aptX/AAC) 2 x AUX 1 x RCA (Phono MM)
Outputs	1 x Coaxial 1 x Toslink Optical 1 x RCA (PRE Out)
Sampling Frequency	Optical / Coaxial: 44.1kHz-192kHz; PC USB 44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256

Preamplifier Section

Gain (max.)	+0dB (Line) +47dB (Phono MM)
Input Sensitivity	540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
Input Impedance	10K (AUX); 47K//100pF (Phono MM)
Total Harmonic Distortion (THD)	110dB (A-weighted)

DAC

D to A Converter	ESS Sabre32 ES9018K2M
Resolution	32-bit
Max. Sampling Frequency	Optical/Coaxial: 192kHz; USB: PCM 384kHz / 11.2896MHz (DSD256)
Total Harmonic Distortion (THD)
Output level (0dBFS, 1KHz)	2.1Vrms

Power Amplifier Section

Gain	+31dB
Rated Power Output	2x45W(@8ohms) 2 x 65W (@ 4 ohms)
Frequency Response (ref. 1kHz)	20Hz-20KHz (± 0.5dB)
Total Harmonic Distortion (THD)	108dB (ref. 45W, A-weighted)
Crosstalk @1K	>80dB (ref.1W)
Standby Power Consumption

Headphone Amplifier

Total Harmonic Distortion (THD)
Output Impedance	4.7 ohms
Load impedance	20-600 ohms

General

Dimensions (mm) (W x H x D)	236x98x380.6
Carton Size (mm) ( W X H X D)	450x392x175
Net Weight	6.3kg
Finish	Silver
Power requirements (depending on region)	220-240V 50/60Hz; 100-120V 50/60Hz

Mission QX-2 MkII Bookshelf Speakers (Pair), White Specifications

General

General Description	2-way Bookshelf Speaker
Enclosure Type	Bass Re?ex
Transducer Complement	2-way
Bass Driver	165mm Long Fiber Composite Cone
Treble Driver	38mm Textile Ring Dome
AV Shield	No
Sensitivity (2.0V @ 1m)	88dB
Recommended Ampli?er Power	25-120W
Peak SPL	95dB
Nominal Impedance	4 ? (compatible 8?)
Minimum Impedance	3.6?
Frequency Response (+/-3dB)	44Hz 24kHz
Bass Extension (-6dB)	38Hz
Crossover Frequency	2.2kHz
Cabinet Volume (in litres)	13.5L
Height (on plinth)	320mm
Width	220mm
Depth (with terminals)	(300+10)mm
Carton Size	570 x 395 x 420mm
Net Weight	8.5kg
Gross Weight	19.0kg
