Full Description

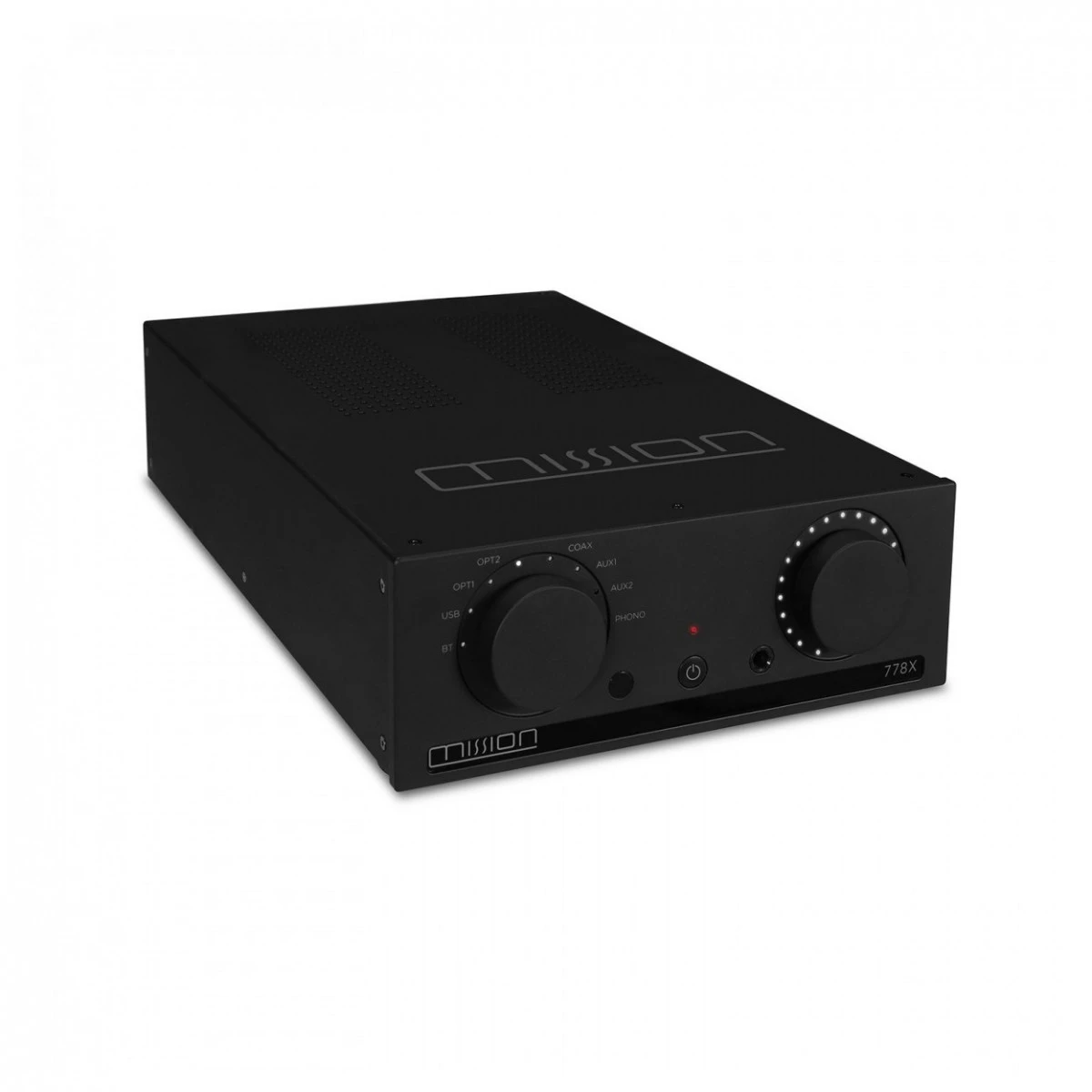

The Mission 778x Integrated Amplifier offers diverse connectivity options, including digital coaxial and optical inputs, three RCA inputs, and a moving magnet phono input for turntables. As well as physical connections, it supports Bluetooth streaming in aptX and AAC codecs. The 778x features a Class-AB power amplifier design with a 200VA toroidal transformer for strong sound output. It also includes a preamp section and a hi-res onboard DAC with an ES9018K2M chipset, offering a sampling rate of up to 384kHz (PCM) and DSD256.

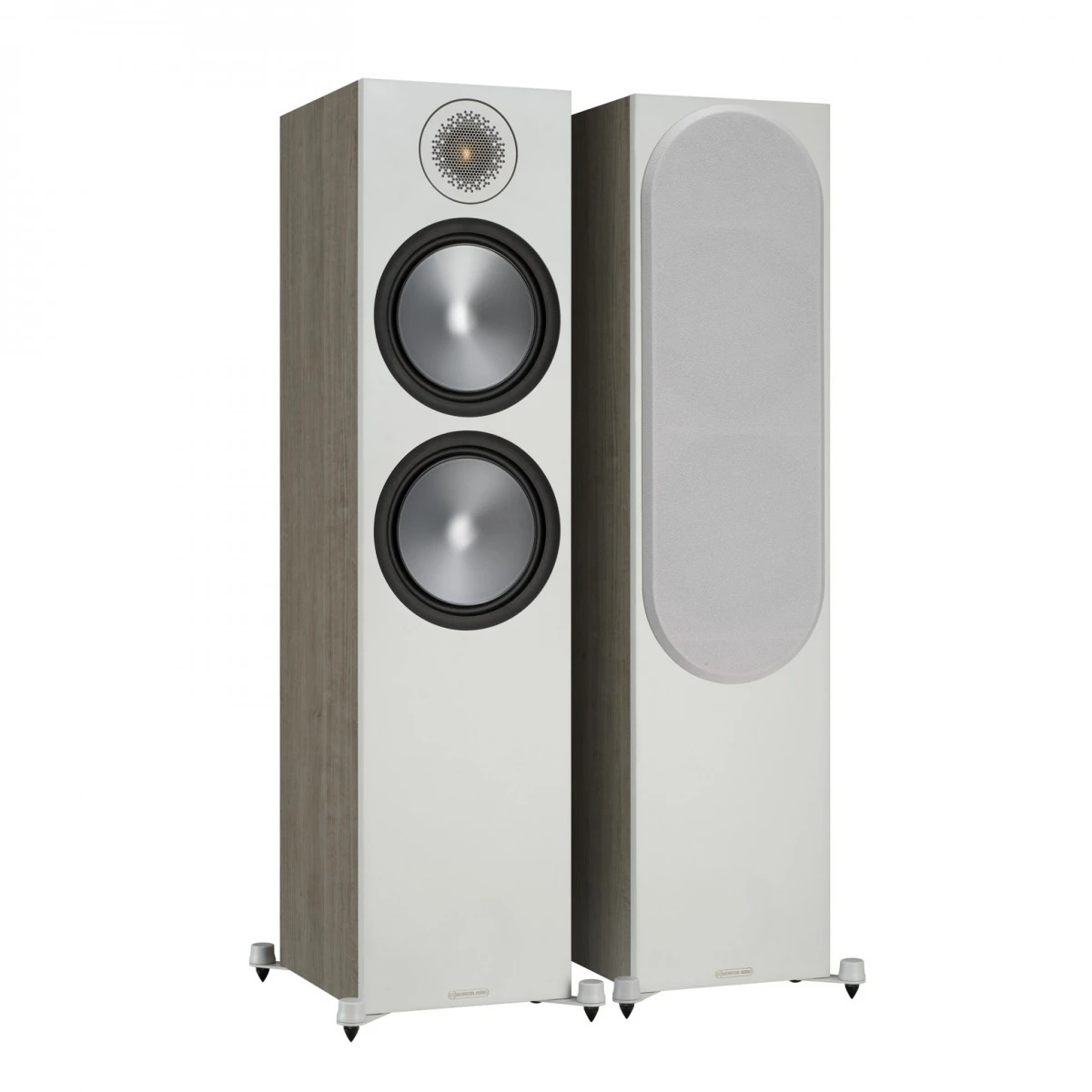

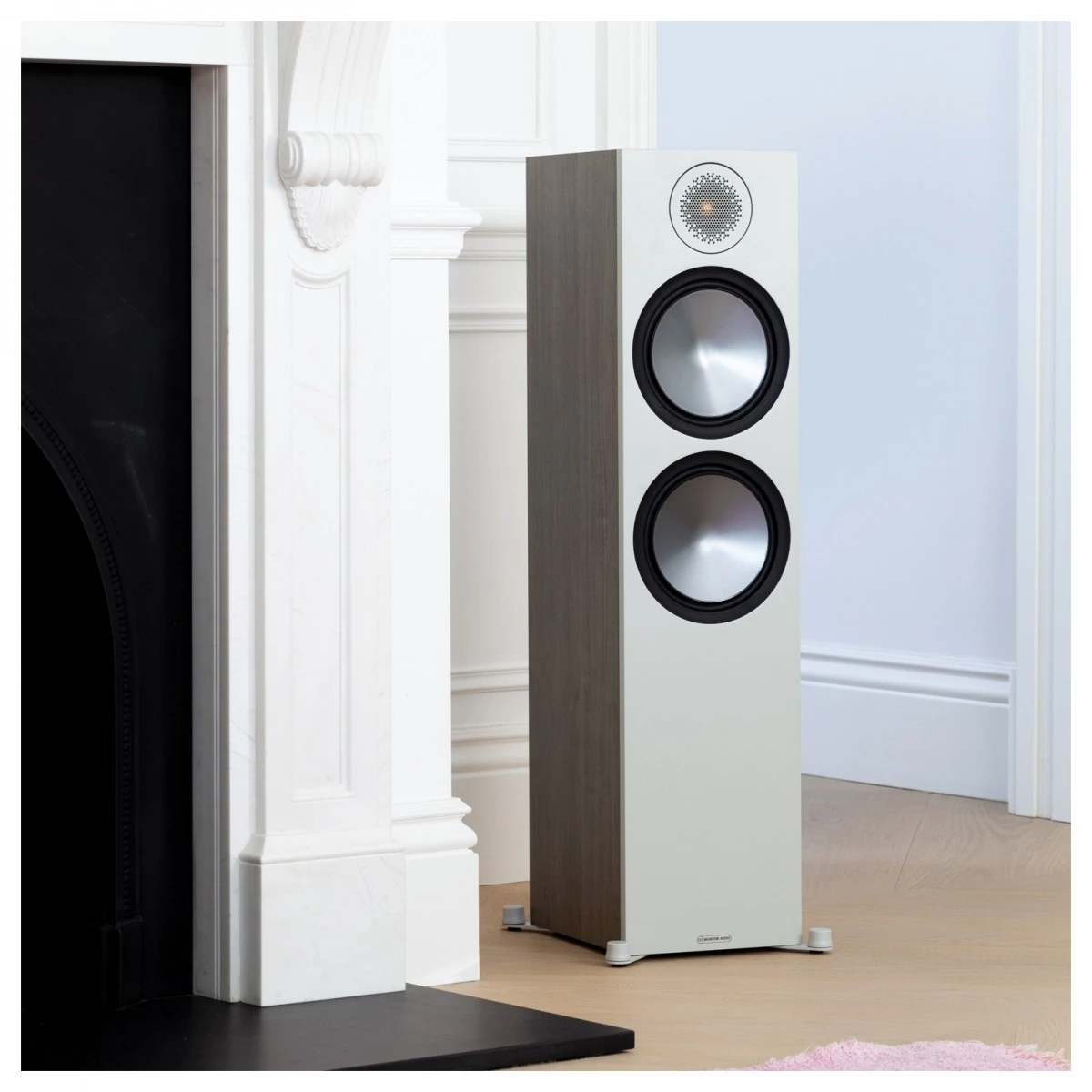

Accompanying this amplifier, the Monitor Audio Bronze 500 Floorstanding Speakers offer premium audio features that elevate your music. Ceramic-Coated Aluminium Magnesium (C-CAM) drive units are utilised throughout the speakers, from their large eight-inch midbass drivers to the 25mm gold dome tweeter. This strong and ultra-lightweight material is key to the speakers’ sensitivity and responsiveness, along with the performance-enhancing HiVe II bass-reflex rear ports which allow air to move smoothly from the cabinet. A matching magnetic grille is also supplied with each speaker, along with an outrigger feet kit and a choice between floor spikes and rubber pads for stability wherever they’re placed.
To ensure you can set up your new home audio system instantaneously, we’ve included the Fisual Premium Hi-Fi Cable Package. This includes a 10-metre length of speaker cable (enough to split and position your speakers up to five metres from the amp), a pack of easy-to-use screw-on banana plugs, and a stereo phono / RCA cable to connect at least one audio source of your choice, be it a CD player, tuner, or streamer. Order from AV.com and get everything you need for system setup in one neat package.
Please Note
The speaker cable in this bundle is provided as one 10 m length and comes unterminated. Banana plugs are included in the bundle, but are not provided attached and require some short preparation before use.
Package Includes
Mission 778x Integrated Amplifier Specifications
Model
| Model | 778X |
|---|---|
| General Description | Digital-to-Analogue Converter
Stereo Amplifier |
| Design Philosophy and Core Technology | Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
ESS Sabre32 ES9018K2M Reference Chip
Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256)
Bluetooth 5.0 (aptX / AAC) Support
Dedicated High-performance, Low-noise MM Phono Stage
Headphone AMP With High-speed Output Signal Transition
USB Upgrade Support
Large Tractile Controls With LED Level Indicators |

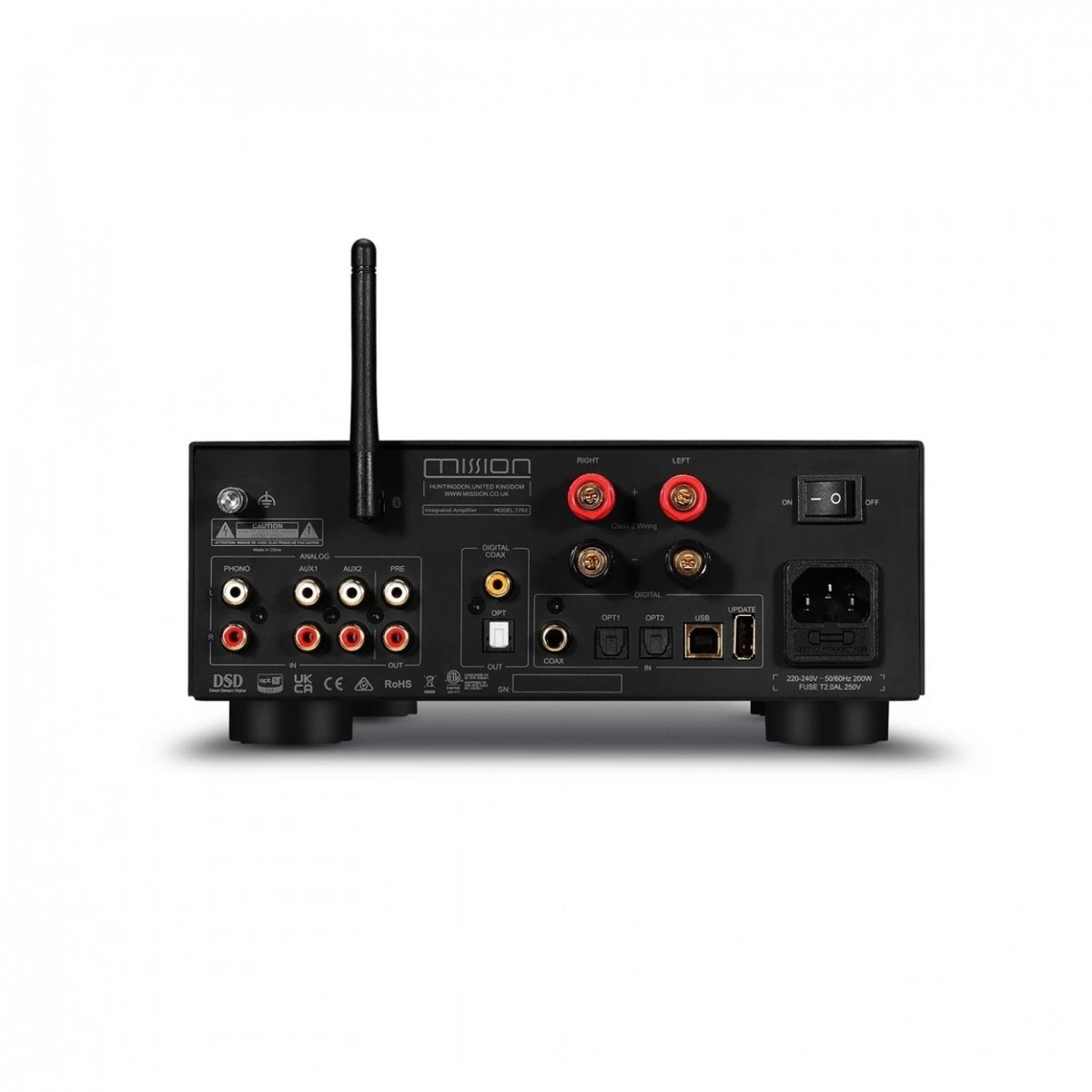

| Inputs | 1 x Coaxial
2 x Toslink Optical
1 x PC USB
1 x Bluetooth (aptX/AAC)
2 x AUX
1 x RCA (Phono MM) |
| Outputs | 1 x Coaxial
1 x Toslink Optical
1 x RCA (PRE Out) |
| Sampling Frequency | Optical / Coaxial: 44.1kHz-192kHz;
PC USB 44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256 |
Preamplifier Section
| Gain (max.) | +0dB (Line)
+47dB (Phono MM) |
|---|---|
| Input Sensitivity | 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB) |
| Input Impedance | 10K (AUX); 47K//100pF (Phono MM) |
| Total Harmonic Distortion (THD) | 110dB (A-weighted) |
DAC
| D to A Converter | ESS Sabre32 ES9018K2M |
|---|---|
| Resolution | 32-bit |
| Max. Sampling Frequency | Optical/Coaxial: 192kHz;
USB: PCM 384kHz / 11.2896MHz (DSD256) |
| Total Harmonic Distortion (THD) | |
| Output level (0dBFS, 1KHz) | 2.1Vrms |
Power Amplifier Section
| Gain | +31dB |
|---|---|
| Rated Power Output | 2 x 45W (@8ohms)
2 x 65W (@ 4 ohms) |
| Frequency Response (ref. 1kHz) | 20Hz-20KHz (± 0.5dB) |
| Total Harmonic Distortion (THD) | 108dB (ref. 45W, A-weighted) |
| Crosstalk @1K | >80dB (ref.1W) |
| Standby Power Consumption |
Headphone Amplifier
| Total Harmonic Distortion (THD) | |
|---|---|
| Output Impedance | 4.7 ohms |
| Load impedance | 20-600 ohms |
General
| Dimensions (mm) (W x H x D) | 236 x 98 x 380.6 mm |
|---|---|
| Carton Size (mm) ( W X H X D) | 450 x 392 x 175 mm |
| Net Weight | 6.3kg |
| Available colours | Black / Silver |
| Power requirements (depending on region) | 220-240V, 50/60Hz; 100-120V, 50/60Hz |
Monitor Audio Bronze 500 Floorstanding Speakers (Pair), Urban Grey
General
| External dimensions, incl. outrigger feet and spikes (W x H x D) | 294 x 974 x 364 mm |
|---|---|
| External dimensions, incl. grille and terminals (W x H x D) | 231 x 951 x 325 mm |
| Weight (per speaker) | 18kg |
| Finishes | Black, White, Walnut, Urban Grey |
Audio Features
| System format | 2.5 Way |
|---|---|
| Frequency response (-6 dB) | 41 – 25,000 Hz (Free field)
32 – 30,000 Hz (In room) |
| Sensitivity (2.83v @ 1m) | 90 dB |
| Nominal impedance | 8 Ohms |
| Minimum impedance | 4.1 Ohms |
| Maximum SPL | 116 dBA (pair) |
| Power handling (RMS) | 200 W |
| Recommended amplifier requirements | 60 – 200 W |
| Bass alignment | Bass Reflex (Dual HiVe II Port System) |
| Crossover frequency | 550 Hz
2,700 Hz |
| Drive unit complement | 2 x 8″ C-CAM midbass driver
1 x 25 mm C-CAM Gold Dome tweeter with UD Waveguide |
