Full Description
Features
- Built-in phono EQ restores frequencies to their intended positions
- High-quality digital-to-analogue converter (AK4490) processes digital signals at speed
- Two 45W channels with an efficient power transformer and power reserve
- Range of inputs including five analogue, one coaxial, and two digital optical inputs
- Digital filter modes for optical and coaxial inputs
- No memory distortion even with powerful bass thanks to advanced thermal compensation
- A fixed low pass cut-off frequency of 150Hz with an external subwoofer allows you to enjoy deeper bass
- Fully shielded DAC unit with copper screws and rigid feet providing true-to-performance sound
Free Gift!
Get the for free with every purchase of this amplifier! Connect to your speakers and HiFi equipment or record players straight away and get engrossed in a world of great sound.
Marantz PM6007 Specifications
Dimensions
| Maximum dimensions (W x D x H) | 440 x 370 x 105 mm |
|---|---|
| Packaged Dimensions (W x D x H) | 517 x 189 x 468 mm |
| Weight | 7.6 kg |
| Packaged weight | 9.7 kg |
General
| Channels | 2 |
|---|---|
| Current feedback technology | Yes |
| Phono EQ | Standard |
| Sample rate digital ln | 192 kHz / 24-bit |
| DAC chip | AK4490 |
| HDAM version | SA3, SA2 |
| Power transformer | Toroidal |
| High grade audio components | Yes |
| Customised components | Yes |
| Aluminium extrusion heat sink | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
Power
| Power output (8/4 Ohm RMS) | 45 W / 60 W |
|---|---|
| Frequency response | 10 Hz – 70 kHz |
| Total harmonic distortion | 0.08 |
| Damping factor | 100 |
| Input sensitivity: MM | 2.2 mV / 47 kOhm |
| Input sensitivity: MC | No |
| Signal-to-noise ratio: MM/MC | 83dB / No |
| Input sensitivity: high level | 200 mV / 20 kOhm |
| Input sensitivity: balanced high level | No |
| Signal-to-noise ratio: high level | 102dB (2V input) |
| Input sensitivity: power amp direct IN | No |
| Signal-to-noise ratio: power amp direct IN | No |
| Power consumption | 155 W |
| Standby consumption | 0.3 W |
| Auto power off | Yes |

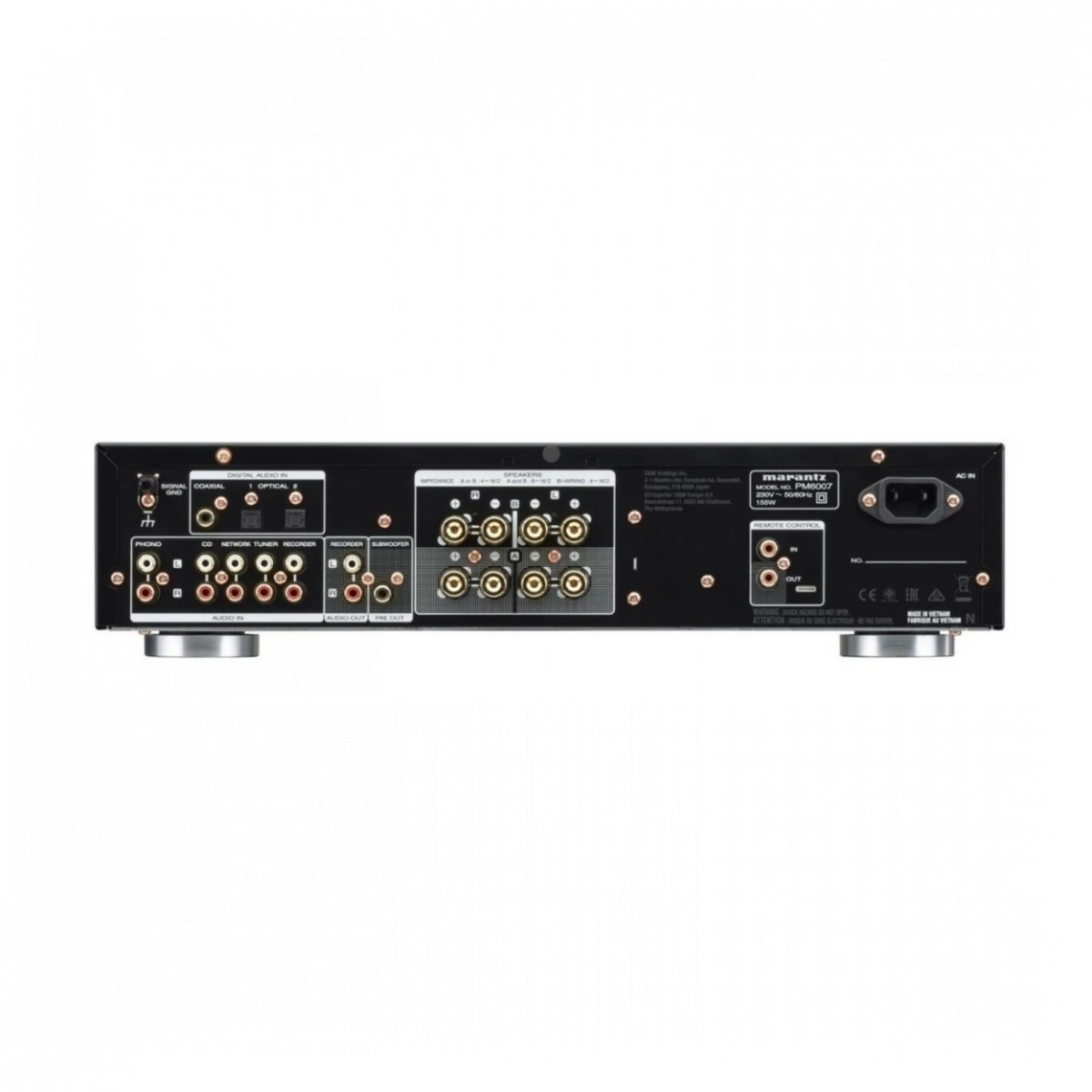

Inputs/outputs
| Audio inputs | 5 |
|---|---|
| Digital in | 2 optical, 1 coaxial |
| Phono input | MM |
| Audio outputs | 1 |
| Pre-out | Subwoofer |
| Gold plated cinch | Yes |
| Speaker A / B | Yes |
| Speaker terminals | Metal (gold) screw |
| Number of terminals | 4 |
| D-bus | Yes |
| Headphone out | Yes |
Other
| Marantz Musical Digital Filtering | Yes |
|---|---|
| Linear drive power supply | Yes |
| Linear volume control | Yes |
| Shottky diodes | Yes |
| System block shielding | None |
| Source direct | Yes |

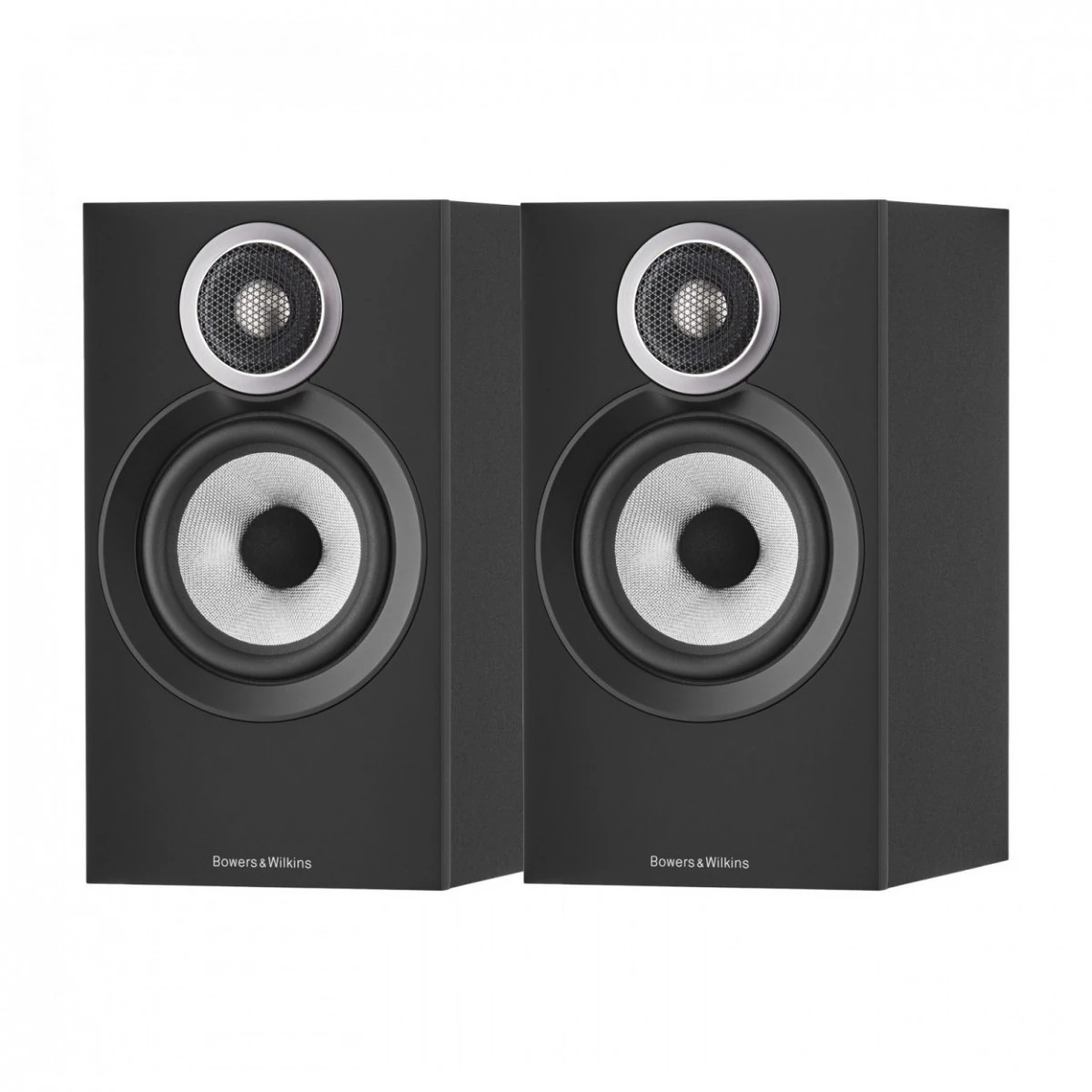

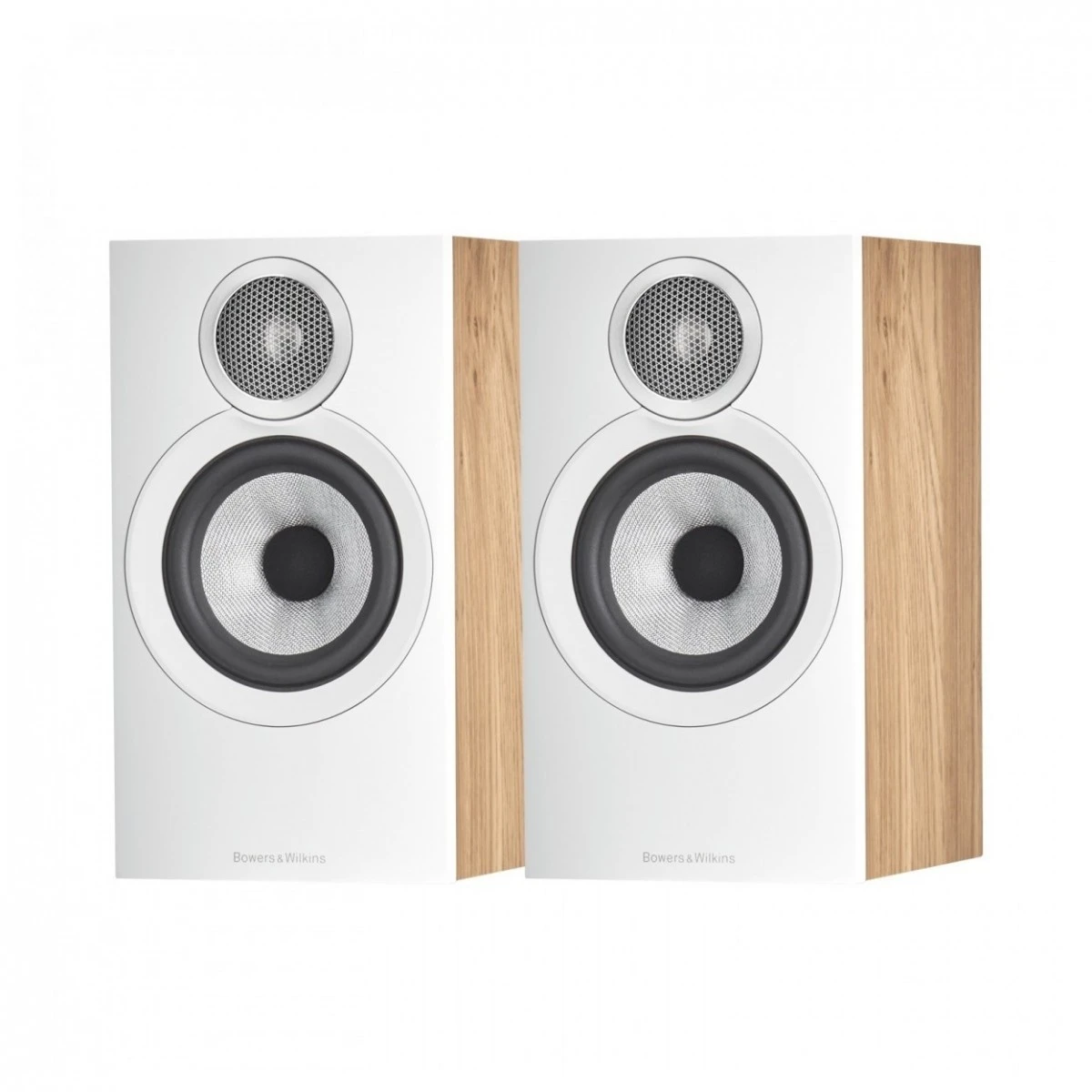

Bowers & Wilkins 607 S3 Specifications
General
| Technical features | Decoupled Double Dome Titanium tweeter
Continuum™ cone bass/midrange
Flowport™ |
|---|---|
| Description | 2-way vented-box system |
| Drive units | 1x 25mm Titanium Dome high-frequency
1x 130mm (5 in) Continuum cone bass/midrange |
| Frequency range | -6dB 40Hz – 33kHz |
| Frequency response (+/-3dB from reference axis) | 52Hz – 28kHz ±3dB |
| Sensitivity (on axis at 2.83Vrms at 1m) | 84dB |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis)
<1 100Hz – 22kHz
|
| Nominal impedance | 8Ω (minimum 3.0Ω) |
| Recommended amplifier power | 30W – 100W into 8Ω on unclipped programme |
| Max. recommended cable impedance | 0.1Ω |
| Dimensions | Height: 300 mm (11.8 in) cabinet only
Width: 165 mm (6.5 in) cabinet only
Depth: 207 mm (8.2 in) cabinet only, 235 mm (9.3 in) including grille and terminals |
| Net weight | 4.65kg |
| Finishes | Cabinet: Black, White, Oak
Grille: Black (Black), Grey (White and Oak) |
