Marantz PM6007 Amp, Black & 9.1 Speakers, Carbon Hi-Fi Package

Key Features

• Gold-plated bi-wireable binding posts offer versatile connection options with optimal signal integrity
• Twin front-reflex bass ports provide an impactful low end that fills your room with rich full tones
• 25mm (one-inch) textile tweeters provide great, high frequencies
• 130mm (five-inch) Kevlar bass/midrange driver offers responsive low frequencies
• Black speaker grilles are on hand to protect drivers from damage and dirt
• 50 – 24,000 Hz frequency response enables a varied sound
• 20 – 100 W power handling makes matching with amplifiers accessible

What’s in the box?

• The Wharfedale Diamond 9.1 Bookshelf Speakers (Pair)
• Speaker grilles
• Owner’s manual

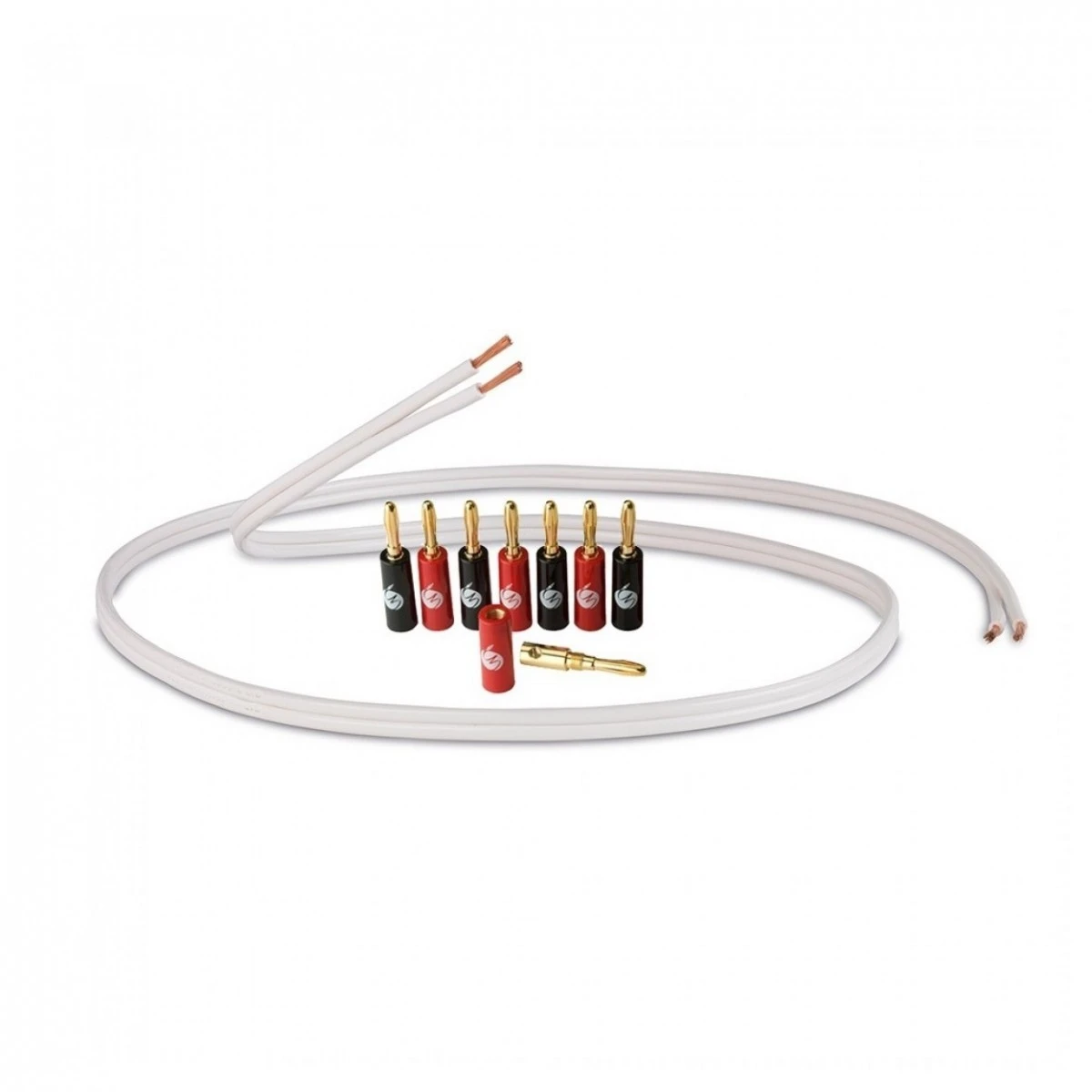

Fisual / QED Hi-Fi Cable Pack

This Cable Pack provides a discreet yet high-quality solution for simply connecting a pair of passive speakers to an amplifier. Included there is: four metres of slimline QED 79 Strand Speaker cable, White and an eight-pack of gold-plated Fisual Easy Fix Banana Plugs. Simply cut the speaker cable to your required lengths and attach the banana plugs with ease via the twin-screw clamps. Having banana plugs fitted to speaker cables provides a hassle-free option if you ever need to move and adjust your HiFi or Home cinema system.

Package includes

Marantz PM6007 Integrated Amplifier Specifications

Features

Channels	2
Current Feedback Topology	Yes
Phono EQ	Standard
Sample Rate Digital In	192kHz / 24-bit
DAC Chip	AK4490
HDAM Version	SA3
Power Transformer	Toroidal
High Grade Audio Components	Yes
Customised Components	Yes
Symmetrical PCB Layout	No
Aluminium Extrusion Heat Shrink	Yes
Copper Plated Chassis	No
Balance / Bass / Treble / Loudness	Yes / Yes / Yes / No

Other

Marantz Musical Digital Filtering	Yes
Linear Drive Power Supply	Yes
Linear Volume Control	Yes
BI-AMP And Multichannel Option	No
Shottky Diodes	Yes
Source Direct	Yes
Power Amp Direct	No

Inputs / Outputs

Audio Inputs	5
Digital In	2 Optical 1 Coaxial
Phono Input	MM
Audio Outputs	1
Pre-Out	Subwoofer
Power Amp Direct IN	No
Gold Plated Cinch	Yes
Speaker A/B	Yes
Speaker Terminals	Metal (Gold) Screw
Number Of Terminals	4
D-Bus	Yes
Headphone Out	Yes

Power

Power Output (8 / 4 Ohms RMS)	45 W / 60 W
Frequency Response	10 Hz – 70 kHz
Total Harmonic Distortion	0.08
Damping Factor	100
Input Sensitivity: MM	2.2 mV / 47 kOhm
Signal To Noise Ratio: MM	83 dB
Input Sensitivity: High Level	200 mV / 20 kOhm
Signal To Noise Ratio: High Level	102 dB (2V Input)

General

Available Colours	Black / Silver-Gold
Metal Front Panel	Yes
Power Consumption	155 W
Standby Consumption	0.3 W
Auto Power Off	Yes
Detachable Power Cable	RC004MCD
System Remote Function	Yes
Dimensions (W x D x H)	440 x 370 x 105cm
Carton Dimensions (W x D x H)	517 x 468 x 189cm
Weight	7.8kg
Carton Weight (Incl. Product)	9.7 kg

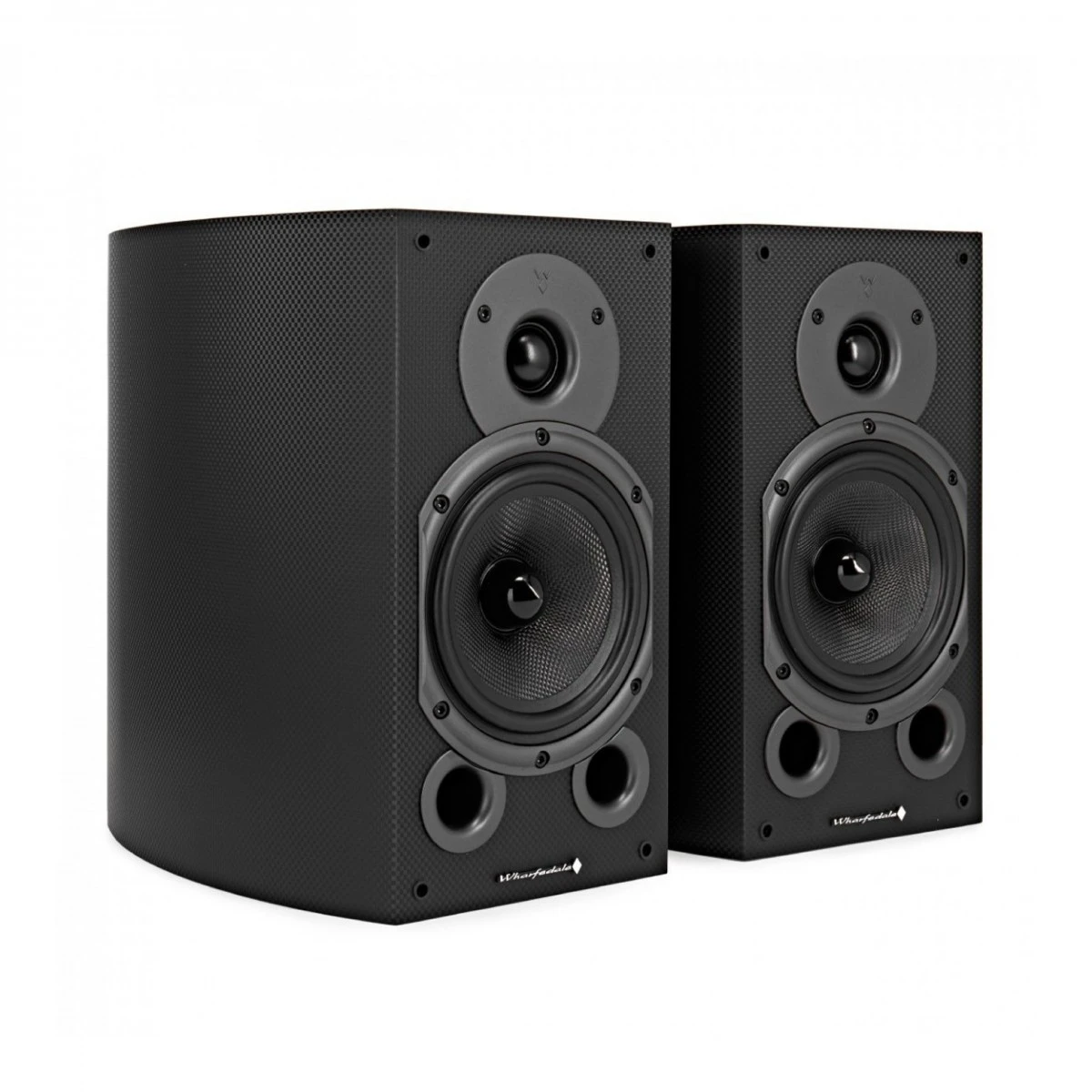

Wharfedale Diamond 9.1 Bookshelf Speakers Specifications

General

Crossover frequency (kHz)	2.3
Drivers	HF: 25mm textile tweeter LF: 130mm Kevlar bass/midrange cone
Frequency response (Hz)	50 – 24,000
Nominal impedance (ohms)	6 ohms
Power handling (watts)	20 – 100
Sensitivity (dB)	86
Weight (each)	5.5kg
W x H x D (mm)	194 x 296 x 278
Packaged Dimensions (mm)	W480mm x H390mm x D340mm

QED 79 Strand Speaker Cable Specifications

General
Wire Gauge [-

Jacket OD	4.00 mm
Cross-sectional area	2.50 mm2
Loop resistance	0.016 Ω/m
Capacitance	58 pF/m
Inductance	0.66 µH/m
Dissipation factor	0.0900
