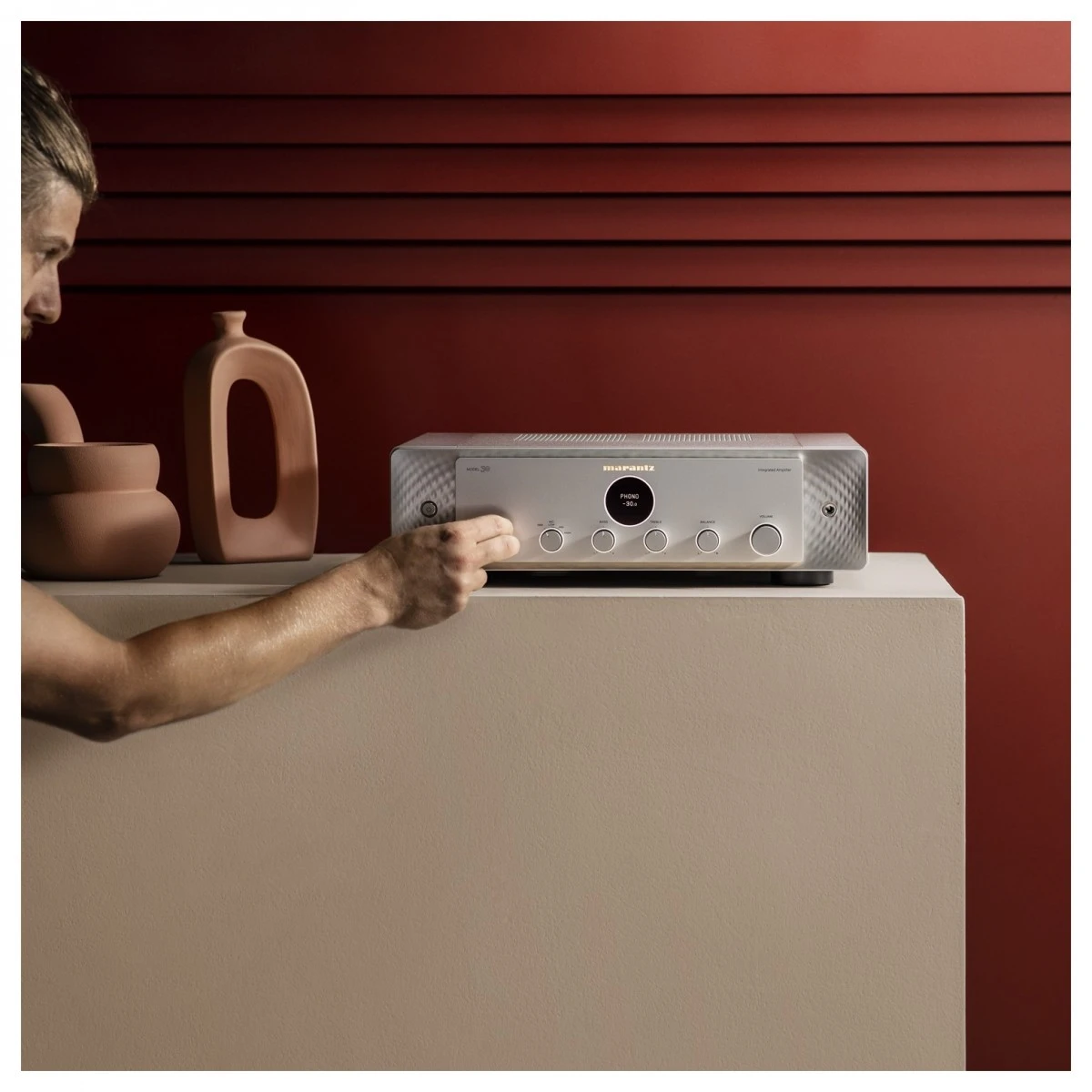

Marantz Model 30 Integrated Amplifier, Silver
Original price was: $377.00.$96.99Current price is: $96.99.
- Buy with Confidence, Get Quality
- SSL encryption, absolutely safe shopping
- Protect Your Wallet with Safe Payments
- 7-Day Returns, 100% Quality
Full Description
For a limited time trade-in and get 15% credit towards your new Marantz!
- In honour of their 70th Anniversary, Marantz invites you to trade in your amplifiers or AV receivers—from any brand—and receive a credit towards a new Marantz.
- This limited-time offer is only from September 15th through to November 24th.
Call us on 01706 878444 to discuss your trade in and/or arrange your in-store appointment
Heritage of Sound

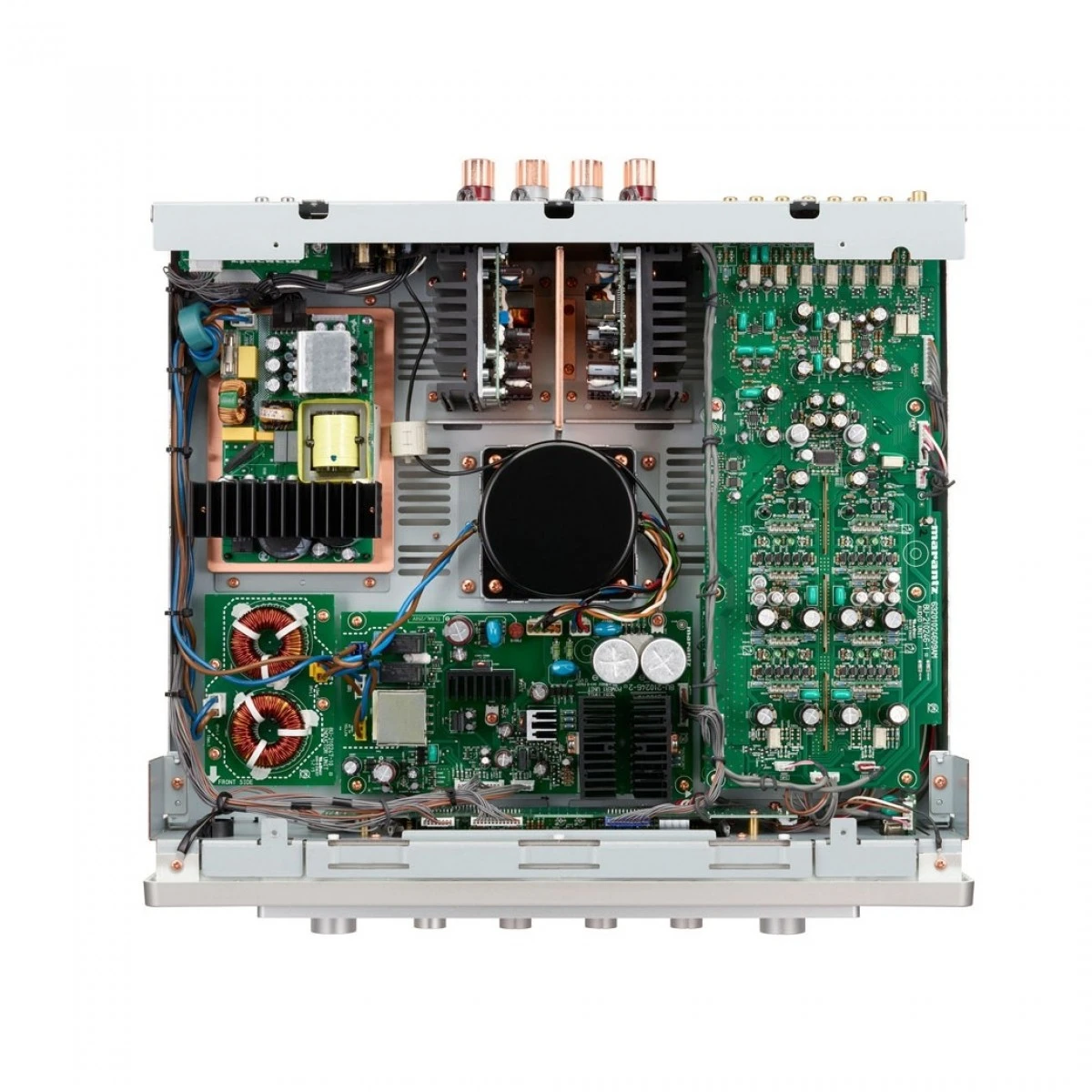

Built on industry knowledge accumulated since their founding in 1953, the Model 30 displays Marantz’s enduring passion for high-fidelity audio. This amplifier is one of their most meticulously tuned integrated models, with carefully selected, fully discrete components throughout. Marantz’s proprietary Hyper-Dynamic Amplifier Modules (HDAM) have been implemented so the Model 30 could be tuned to high-resolution, low-noise audiophile standards. The result is consistently purer reproduction, sensitivity, isolation, and reliability.
Analogue Prowess

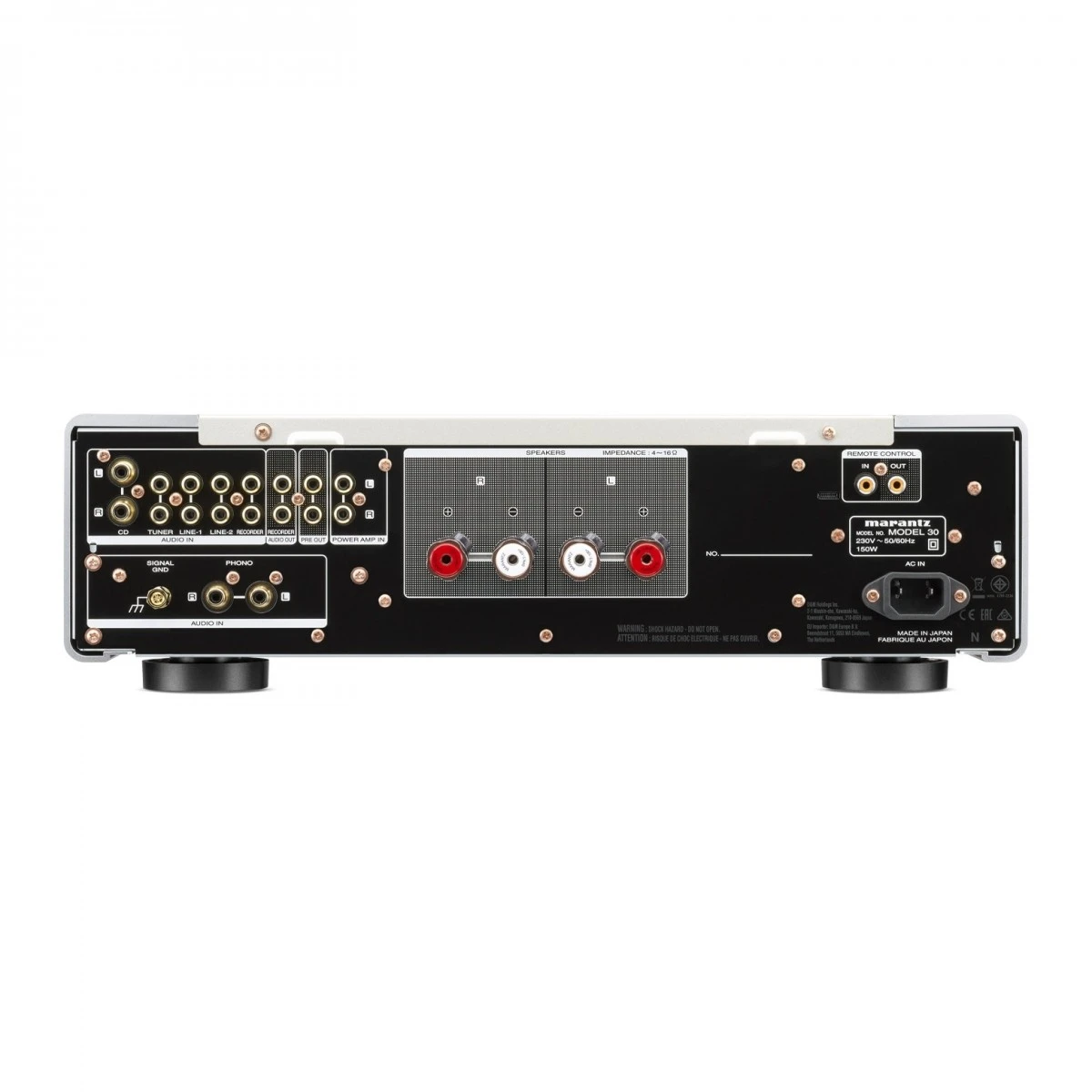

The use of discrete HDAM-SA3 circuit technology is just one of the ways that the Model 30 is superior to standard amplifiers on the market. By dedicating itself purely to analogue audio, it uses the additional space to shape circuit paths more efficiently as well as integrate improved isolation and power supplies. In addition to a CD input for its sister model, the Marantz SACD 30n Network CD Player, the Model 30 features two line inputs, a turntable, tuner and recorder connection, and pre-out and power amp-in options.
Powerful Amplifier
At the heart of the Marantz Model 30 lies a Class-D amplifier which is capable of driving 100W per channel at eight-ohms or 200W at four-ohms. With the power amp-in connection, you also have the option to connect a pre-amplifier and use the Model 30 exclusively for its dynamic power capabilities, perfect for experimenting with system configuration. As well as speakers, you will also find a dedicated headphone output on the front panel of the amplifier, letting you connect headphones with a range of sensitivities.
MM / MC Phono Stage
A champion of analogue audio, Marantz know that vinyl playback is sensitive to even minute faults. The Model 30 purposefully uses efficient circuit paths and two-stage amplification, combining HDAM and JFET (junction gate field effect transistors), to maintain signal purity and reduce crosstalk between sections. This phono stage is compatible with both MM and MC cartridges and features high (390Ω), medium (100Ω), and low (33Ω) MC impedance selection.
Pre-amplifier Purity
Marantz pride themselves on the Model 30’s responsiveness and use an oversized toroidal transformer, encased by a double-shielded steel shell, which is dedicated specifically to providing clean power to the pre-amp section of this amplifier. Unaffected by the demands of the power-amp section, the Model 30 more reliably delivers accurate playback. With the option to connect an external power amp via pre-out, play your music the way you like it.
Design Longevity

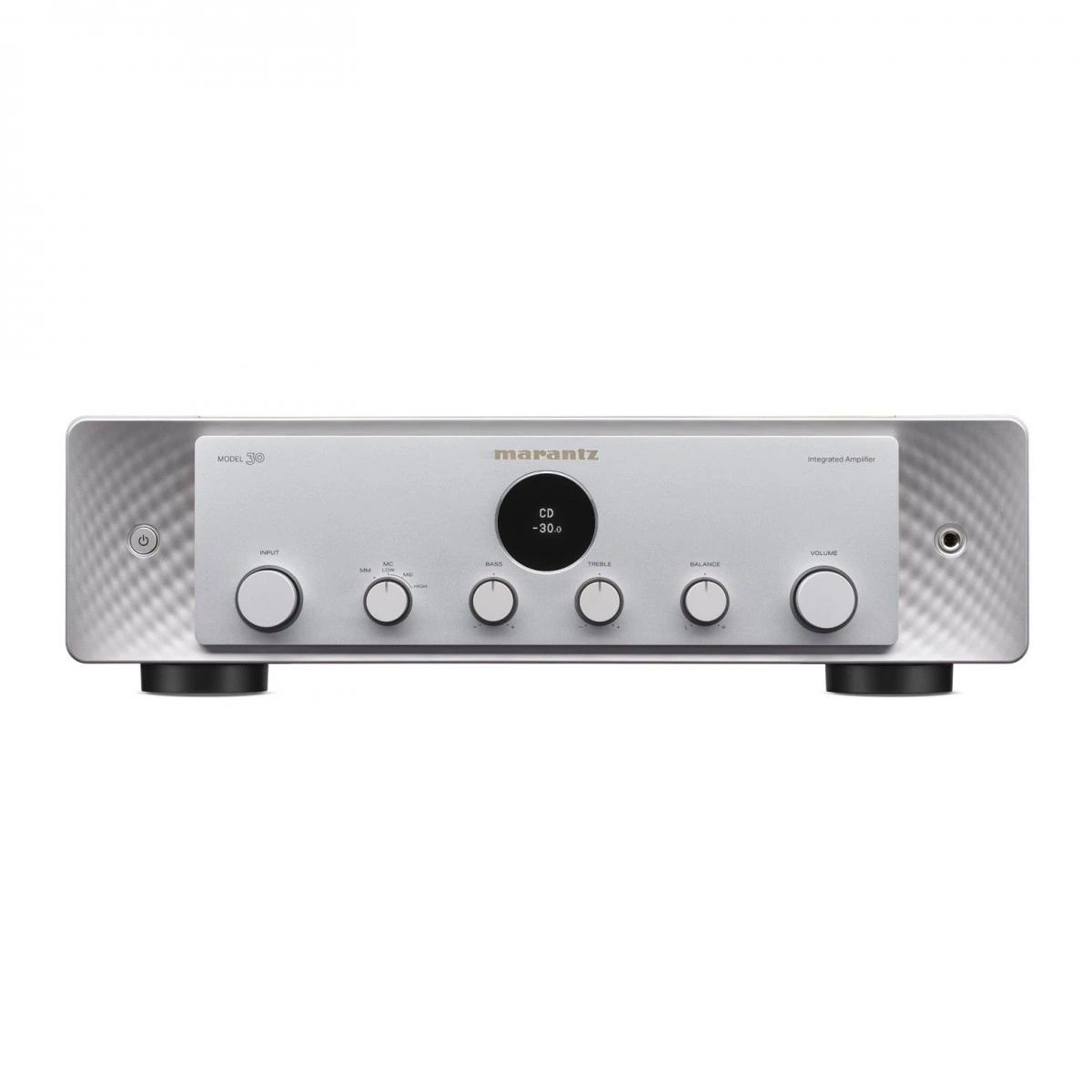

The Model 30 Integrated Amplifier is proudly Marantz, featuring the signature porthole display present in many of their modern amplifiers, bridging the gap between cutting-edge and vintage. The chassis construction is durable, non-magnetic, and crowned by a steel top cover, ensuring that vibrations are entirely minimised. Specially machined brass input terminals are available for CD and phono, as well as nickel-plated speaker terminals.
Key Features
- Finely tuned, fully discrete HDAM-SA3 technology
- Power output of 100W per channel into eight-ohm and 200W into four-ohm
- Includes headphone output compatible with a range of headphone sensitivities
- The switching amp design takes speaker feedback after the output filter, preventing distortion
- Two-stage amplification with independent power supplies for pre and power sections
- Receptive phono stage with Moving Magnet (MM) and Moving Cartridge (MC) compatibility
- Switchable sensitivity for MC input: Low (33Ω), Mid (100Ω), and High (390Ω)
- Strong, heavy chassis prevents electromagnetic interference and promotes durability
- Remote included, compatible with both the Model 30 and
What’s in the box?
- The Marantz Model 30 Integrated Amplifier
- Power cord

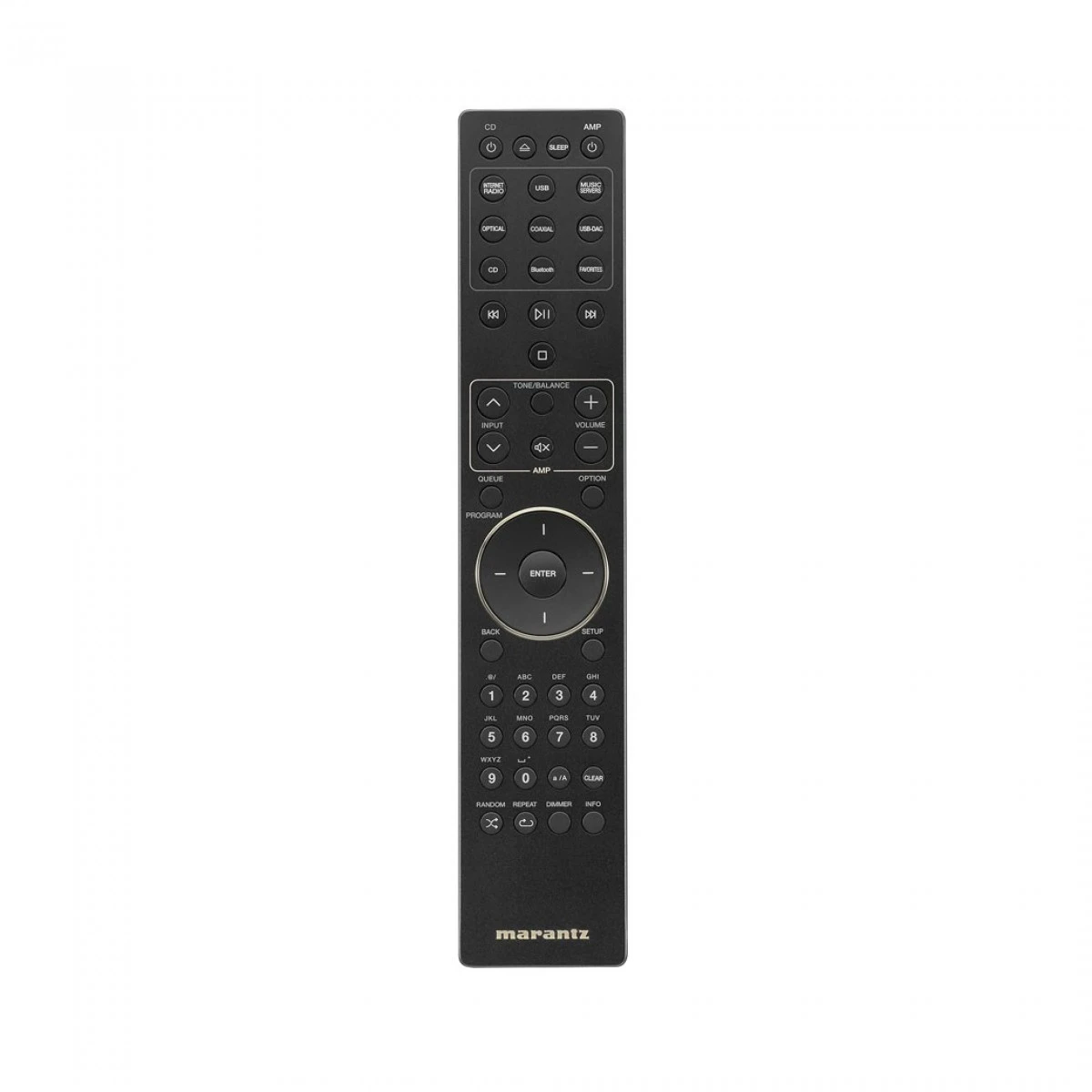

- Remote control (Model: RC002PMND, w/ 2 x AAA batteries)
- Quick start guide and information sheets
Specifications
Physical Aspects
| Product Dimensions (W x D x H) | 443 x 431 x 130 mm |
|---|---|
| Packaged Dimensions (W x D x H) | 534 x 522 x 255 mm |
| Product weight | 14.8 kg |
| Packaged weight | 17.6 kg |
Features
| Aluminium Extrusion Heat Sink | Yes (Separate) |
|---|---|
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
| Channels | 2 |
| Current Feedback Topology | Yes |
| Customised Components | Yes |
| HDAM Version | SA3, SA2 |
| High Grade Audio Components | Yes |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | No / No / Yes |
| Power Transformer: Toroidal / El | SMPS |
| Symmetric PCB Layout | Yes |
Inputs / Outputs
| Audio Inputs | 6 |
|---|---|
| Audio Outputs | 1 |
| D-Bus | Yes |
| Gold Plated Cinch | Yes |
| Headphone Out | Yes |
| Number of Terminals | 2 |
| Phono Input: MM / MC | Yes / Yes |
| Power Amp Direct IN | Yes |
| Pre-out / Main-in | Yes / No |
| Speaker Terminals | Marantz SPKT-100+ |
Others
| 5mm aluminium top plate | No |
|---|---|
| BI-AMP and Multichannel option | No |
| Double Layer Bottom Plate | Yes |
| Input buffer amp (all inputs / CD only) | No / No |
| Linear Drive Power Supply | Yes (pre-amplifier stage) |
| Linear volume control | Yes |
| Low noise LCD display | No |
| Low Noise OLED display | Yes |
| Marantz Musical Digital Filtering | No |
| Power Amp direct | No |
| Schottky diodes | Yes |
| Source Direct | No |
| System block shielding: Copper / metal / none | Yes / No / No |
Specifications
| Damping Factor | 500 |
|---|---|
| Frequency Response | 5 Hz – 50kHz |
| Input Sensitivity: High level | 220 mV / 13 kohm |
| Input Sensitivity: MC | 250 |
| Input Sensitivity: MM | 2.3 mV / 39 kohm |
| Power Output (8 / 4 Ohm RMS) | 100 W / 200 W |
| Signal to Noise Ratio: High level | 107 dB(2V input/Rated output) |
| Signal to Noise Ratio: MM / MC | 88 / 75 dB |
| Total Harmonic Distortion | 0.005% |
General
| Power Consumption | 130 W |
|---|---|
| Standby Consumption | 0.2 W |
| System Remote Function | Yes |
| Remote Control | RC002PMND |
| Auto Power Off | Yes |
| Detachable Power Cable | Yes |
| Metal Front Panel | Yes |
| Available Colours | Black / Silver |
