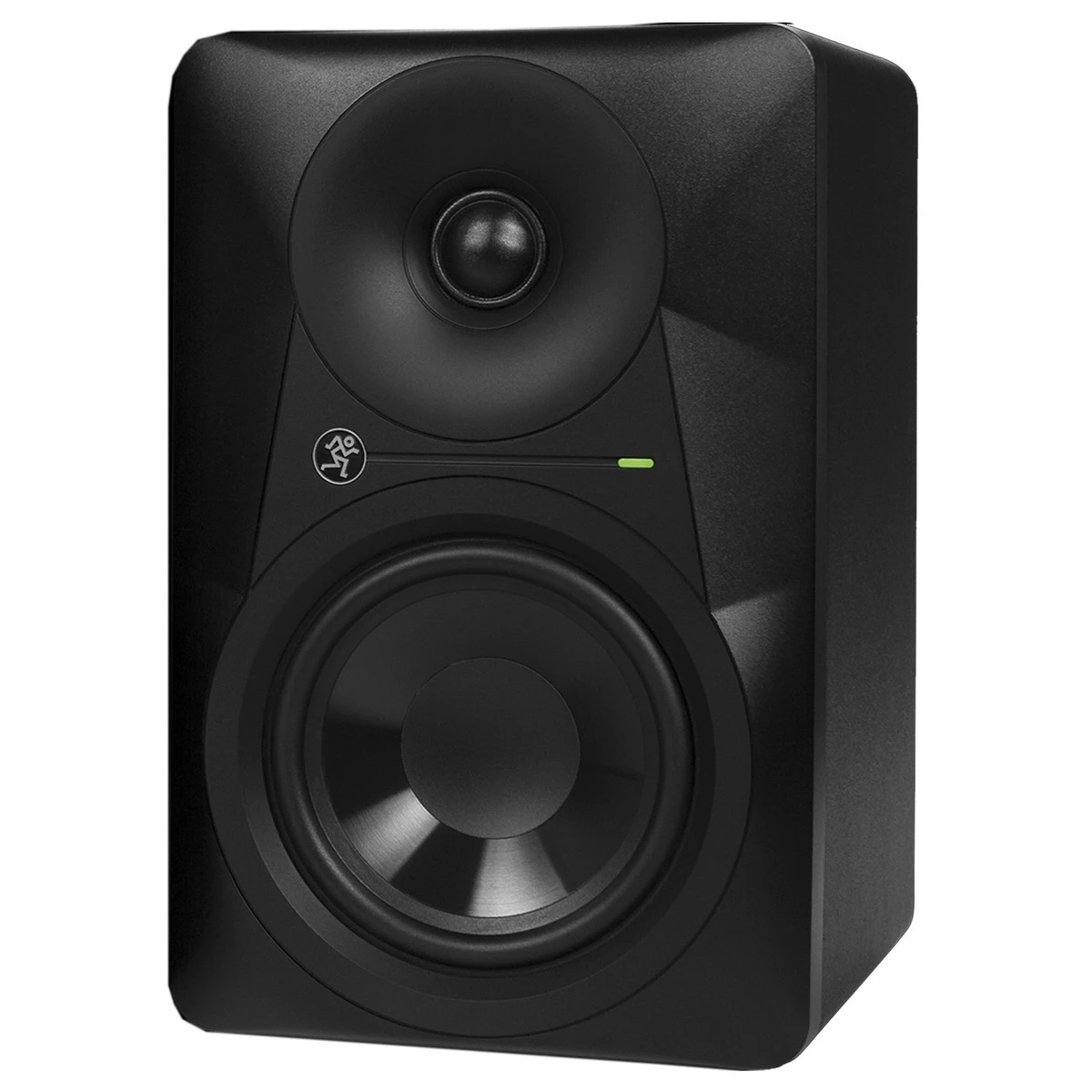

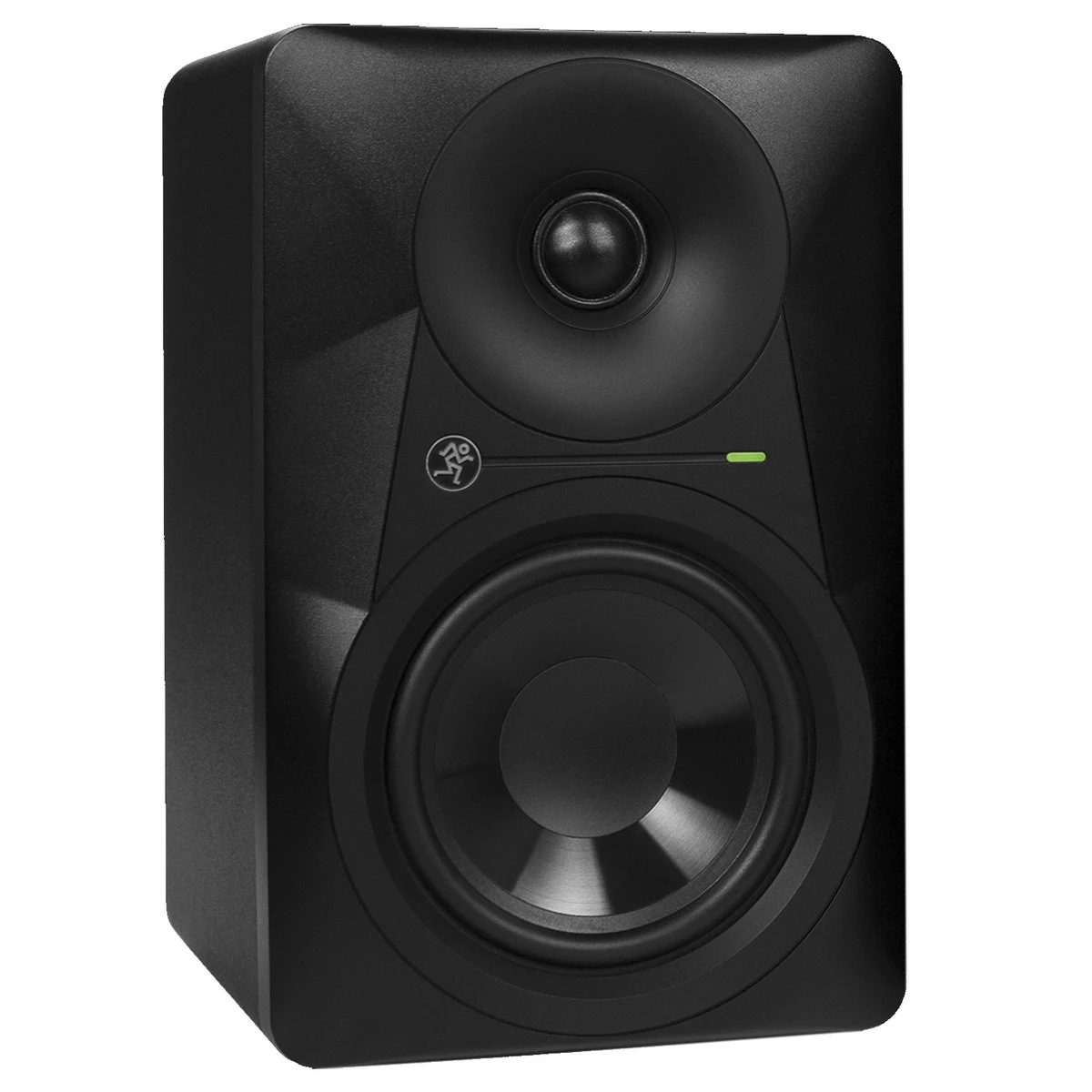

Mackie MR524 5” Powered Studio Monitor

Full Description

Logarithmic waveguide – wide dispersion and optimised stereo image

What sets the Mackie MR524 apart from standard studio monitors is Mackie’s custom logarithmic waveguide and ultra-flat frequency response, providing superior sound reproduction and optimised acoustic performance. The unique waveguide design provides ultra-wide dispersion which results in improved stereo imagining and a wider ‘sweet spot’, capturing every nuance of your source audio with extreme sonic precision. The accurate acoustic alignment ensures a balanced sound across the full frequency range, allowing you to make informed decisions when it comes to mixing and mastering.

Not only is the MR524 ideal for music production and audio engineering but it is also suited for a range of audio applications including podcasting, DJ’ing and multimedia work. Powered by an 50-watt Class A/B amplifier, the bi-amplified design provides all the power you need for exceptional audio fidelity. Comprised of a 1-inch silk dome tweeter and a 5.25-inch polypropylene woofer, the MR524 delivers a detailed high-end for vocal clarity and a powerful low-end.

Adjustable acoustic space filters and attenuation

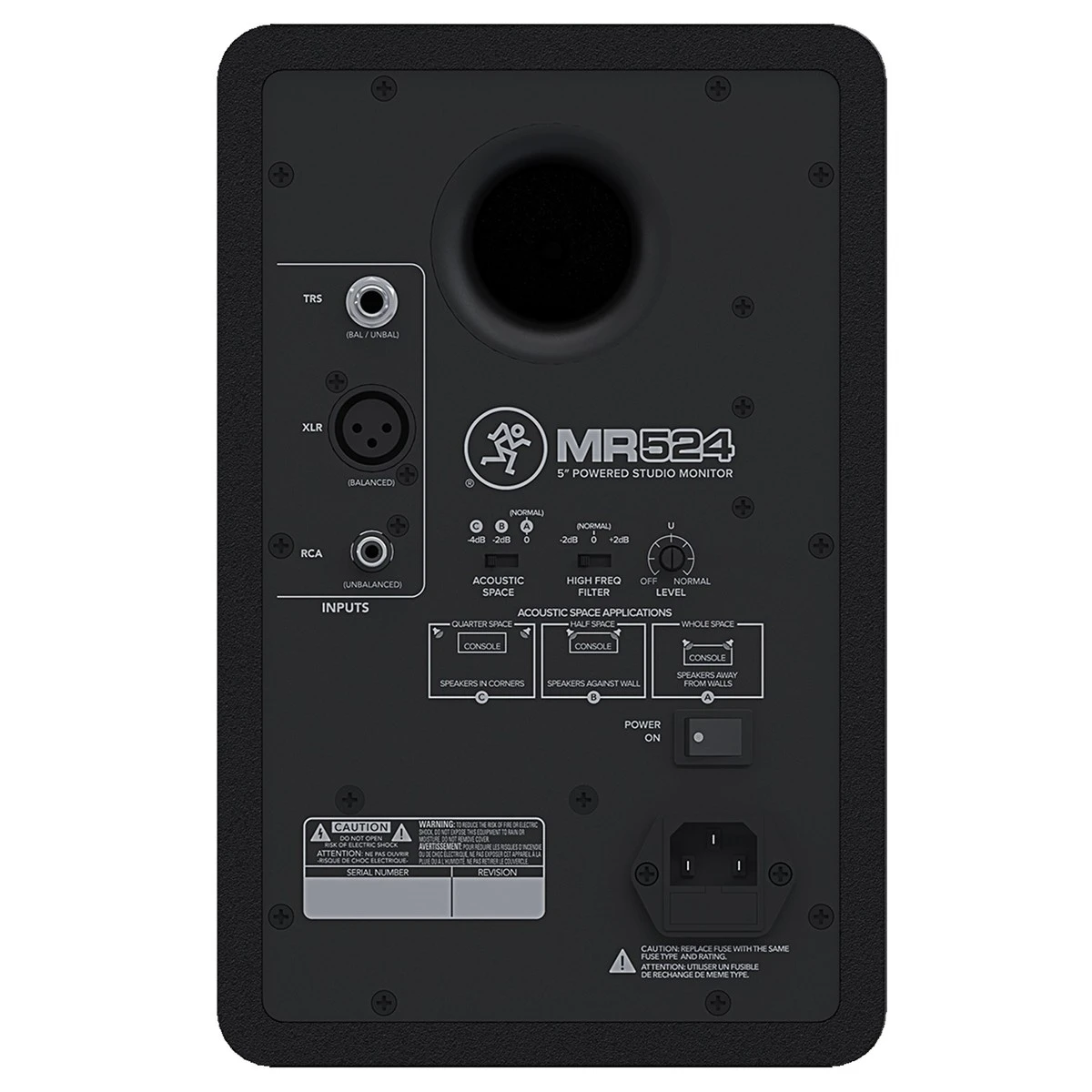

Another innovative feature of the MR524 is the adjustable acoustic plate filters, which are designed to maintain a flat frequency response in different workspaces. The rear panel features a three-position switch with handy annotated diagrams, allowing you to select which setting you require designed on your speaker placement. It also features a built-in high-frequency filter which allows you to boost/cut the tweeter to optimise your high-end response depending on your listening position. The rear panel also features a bass-reflex port for added low-end power as well as TRS, XLR and RCA connections.

Features

• Designed for superior mix translation & accuracy
• Logarithmic waveguide design
• Ultra-wide dispersion
• Precise acoustic alignment
• 1-inch silk dome tweeter
• 5.25-inch polypropylene woofer
• 50-watts bi-amplified Class A/B amplification
• Adjustable acoustic space filters
• HF filter with boost or cut
• Professional MDF cabinet design
• Custom designed internal bracing
• Flexible inputs
• Sound-tightening acoustic absorption material

Specifications

• Frequency Response (-3 dB): 57Hz – 20kHz
• Frequency Response (-10 dB): 45Hz – 20kHz
• Maximum SPL Peak: 102 dB SPL @ 1m
• Maximum SPL Per Pair: 108 dB SPL @ 1m
• Low Frequency Transducer: 5.25” Polypropylene Woofer
• High Frequency Transducer: 1” Neodymium Magnet Driven Silk Dome Tweeter
• Low Frequency Power: 30W RMS, 60W Peak, 4Ω Load
• High Frequency Power: 20W RMS, 40W Peak, 6Ω Load
• Type: Monolithic IC, Class AB With DMOS Power Stage
• Crossover Type: 24 dB/Octave
• Crossover Frequency: 2kHz
• Sensitivity: +4 dBu at 300Hz For Full Output
• Input Impedance: 20kΩ Balanced Bridging, 10kΩ Unbalanced
• High Frequency Equalisation: ±2 dB @ 3kHz and Above
• Inputs: 1 x TRS Balanced/Unbalanced, 1 x XLR Balanced, 1 x RCA Unbalanced
• Power Requirements
  • 120V: 60Hz
  • 220V – 240V: 50/60Hz
  • 100V: 50/60Hz
• Power Consumption: 90W With Music, Loud Mix, 10W Idle
• Enclosure: 12 mm Thick MDF With 21 mm MDF Front Panel
• Damping: Adiabatic Batting
• Weight: 4.6 kg
• Dimensions
  • Height: 281 mm
  • Width: 180 mm
  • Depth: 221 mm
• Product Code: 2048400-03
