Lindy TosLink (Optical) & Coaxial To Phono Digital Audio Converter

Full Description

Features

• Use this to convert digital coaxial or optical signals to analog stereo audio
• Supports a sampling frequency up to 24 bit / 96kHz for uncompressed digital stereo signals
• Dual connectivity solution with both Digital Coaxial and Toslink inputs
• Compact design designed for easy use at home
• Ideal if you need to connect new devices to older audio amplifiers or systems

Specifications

Specifications

• Video Interface: –
• Interface Standard: –
• Supported Bandwidth: –
• Maximum Resolution: –
• HDCP Support: –
• Audio Interface: TosLink (Optical), Digital Coaxial
• Chipset: IA8416
• Supported Audio: LPCM 2.0
• Maximum Supported Audio Sample Rate: 24-bit / 96KHz
• Input Impedance: 75 Ohm
• Output Impedance: 75 Ohm
• Output Voltage: 0.7V
• Frequency Response: 10-20KHz
• Signal to Noise Ratio: 100db
• Special Features: –

Connectors

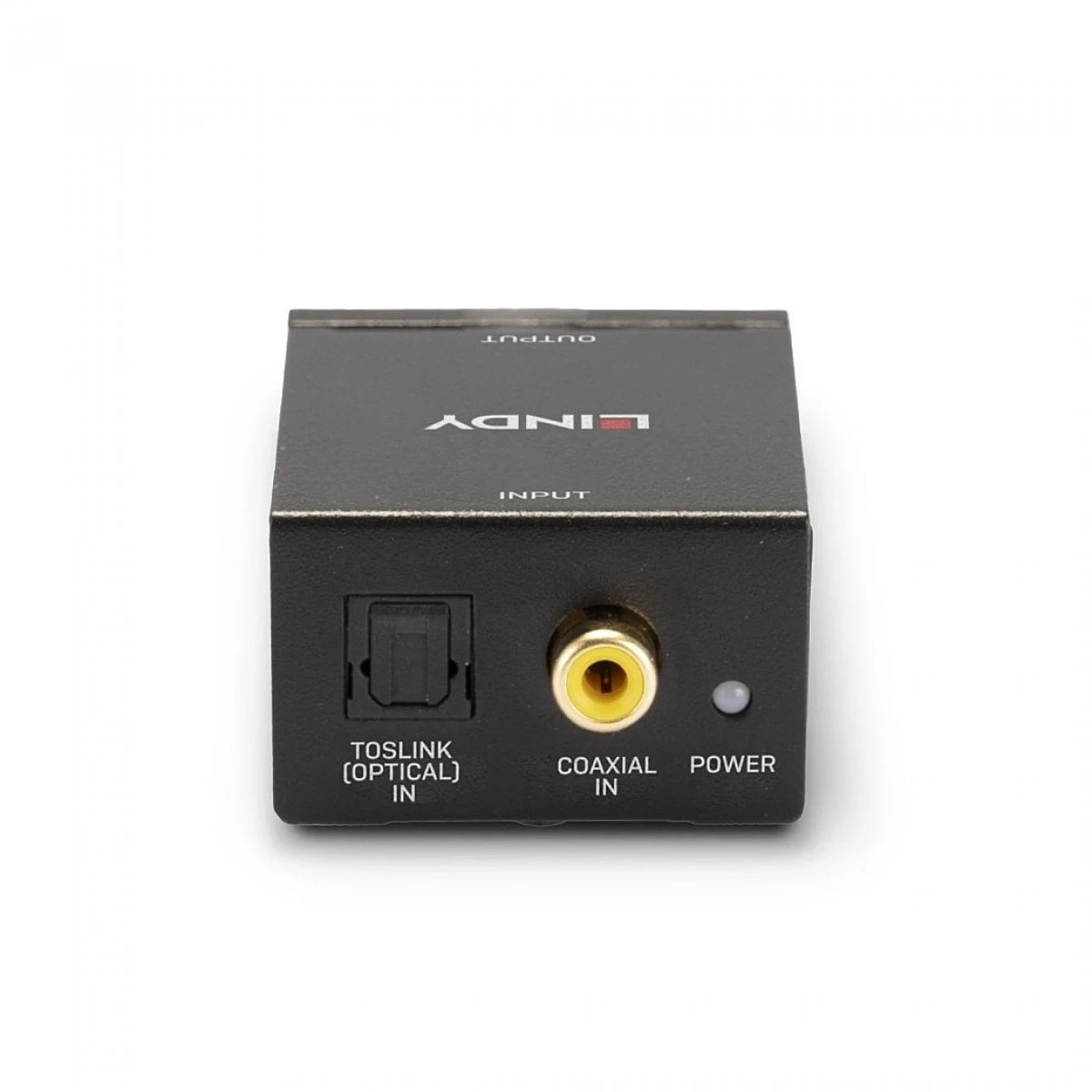

• Input: TosLink (Optical) (Female), Digital Coaxial (Female)

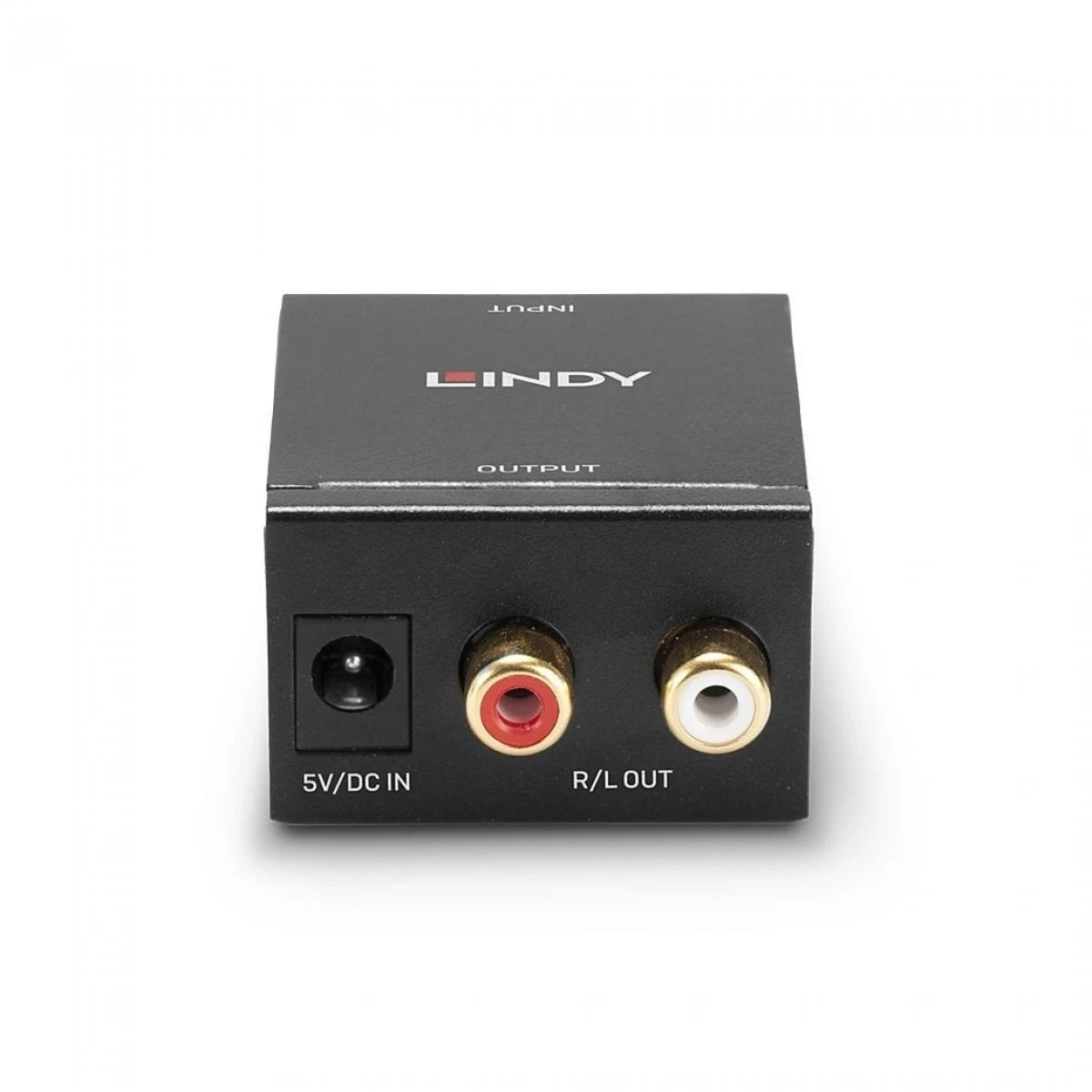

• Output: Phono (R/L) (Female)
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 51x26x41mm (2.01×1.02×1.61in)
• Housing Material: Plastic
• Net Weight: 0.078kg (0.17lb)
• Operating Temperature: 0°C – 70°C (32°F – 158°F)
• Storage Temperature: -10°C – 80°C (14°F – 176°F)
• Humidity: 10 – 80% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black
