Full Description
A Look Under the Hood

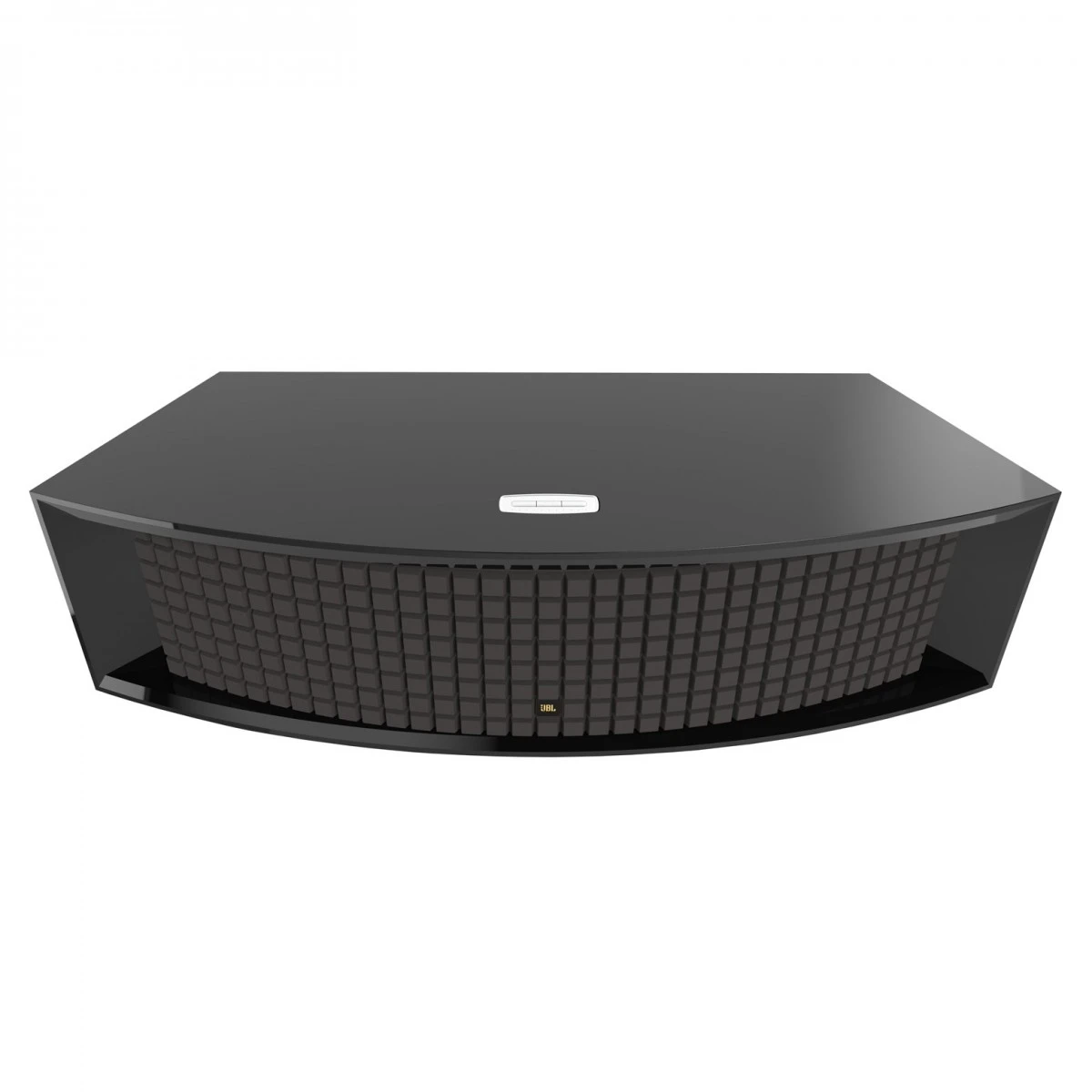

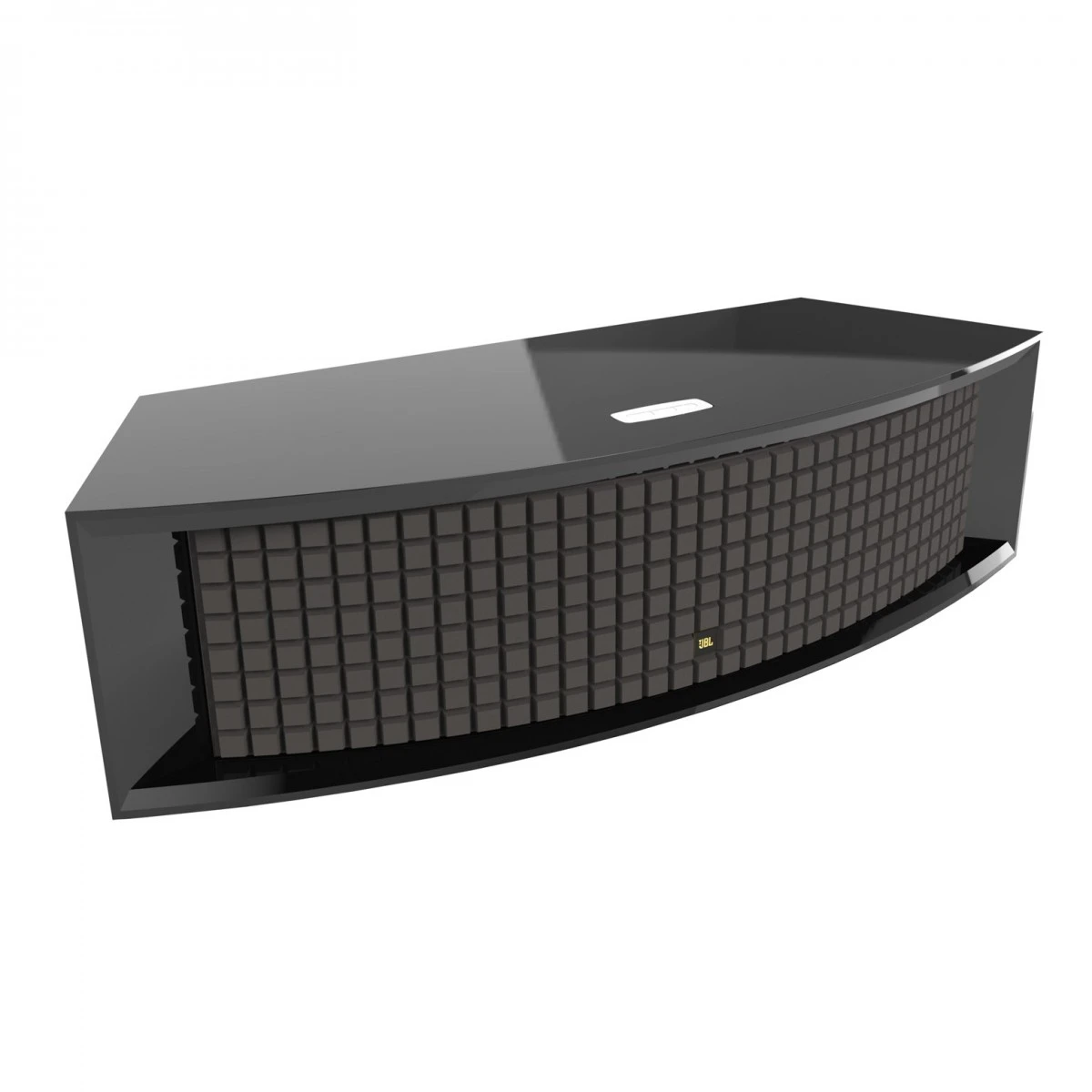

At first glance, the JBL L75MS has a large cabinet; removing the Quadrex grille reveals why. This music system is equipped with two 25mm aluminium tweeters, a pure pulp cone 100mm midrange driver and dual 133mm woofers, all fed by 350W RMS total amplifier power and, if that’s not enough, has a subwoofer RCA output. You can also tighten low-frequencies via the Bass Contour switch.
Hard-wired Connectivity
As well as a 3.5mm aux, the L75MS features HDMI ARC to connect and expand TV audio. This can also be improved by activating Sound Field Enhancement (SFX) for a more spacious experience. The L75MS also features a built-in Phono MM input, offering a direct connection for moving magnet turntables. Classic Series, contemporary technology—perfect for streamlined home audio.
Going Wireless
Don’t let cables tie you down. With network audio capabilities, the L75MS lets you connect via ethernet or Bluetooth, with Apple AirPlay 2 and Google Chromecast built-in. Stream from your favourite music services and control what’s playing all from your smart device. The integrated hi-res 32-bit/192kHz DAC ensures the quality of your music remains as close to the original as possible.
Key Features
- Music system with wireless and physical connectivity
- Limited edition black gloss finish with golden logo embellishment on front of Quadrex foam grille
- Five drivers in total, featuring two 25mm drivers, a 4-inch midrange driver and two 5.25-inch woofer
- Compatible with Google Chromecast, Apple AirPlay 2 and Bluetooth streaming
- The reverse of the unit features 3.5mm auxiliary, HDMI ARC, and Phone Preamp RCA (MM) inputs
- Sound Field Enhancement (SFX) option enhances ambient sound for a more room-filling effect
- The Bass Contour switch lets you compensate for placement in tight areas or close proximity to walls
What’s in the Box?
- The JBL L75MS integrated Music System
- 1 x Speaker grille

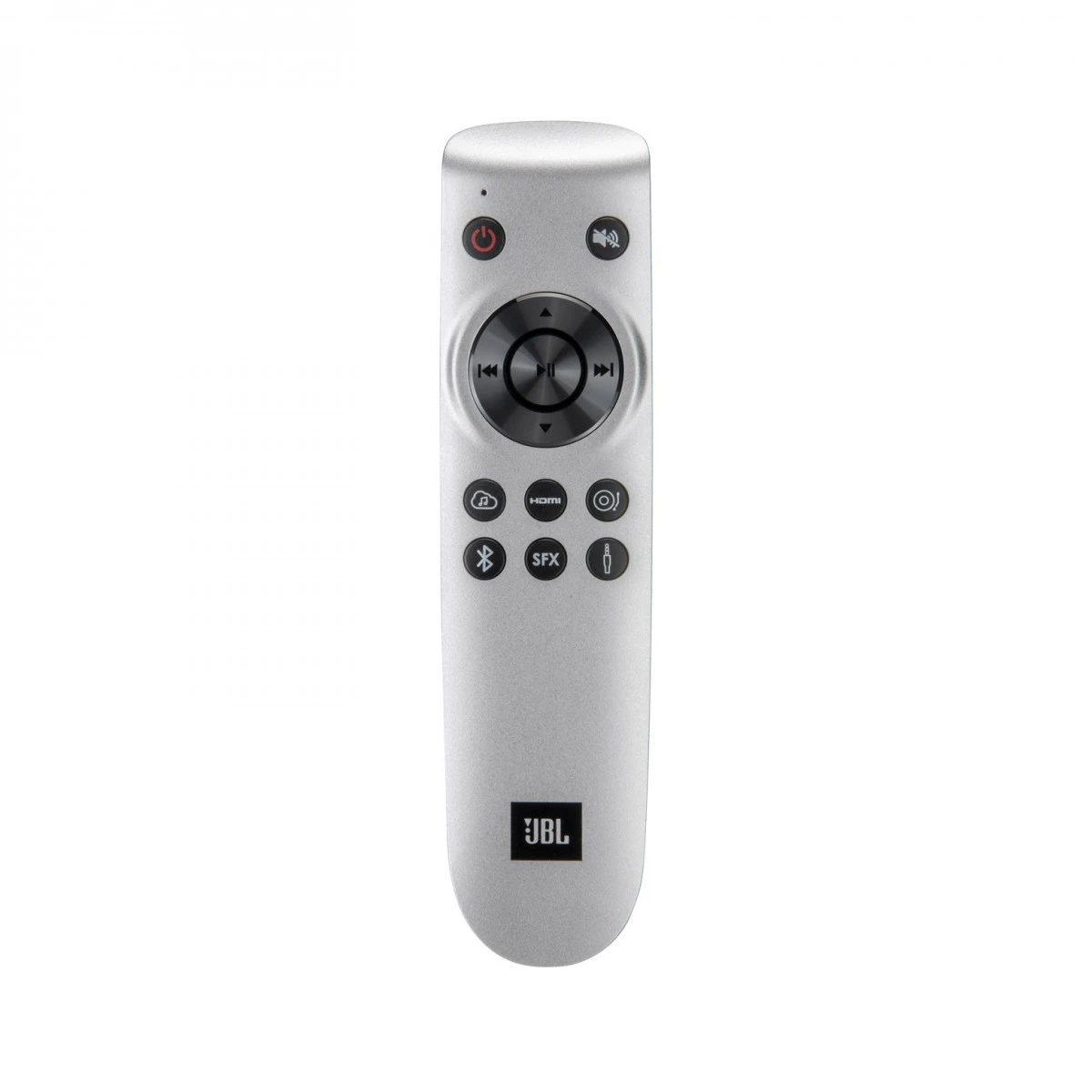

- 1 x RF remote
- 1 x Power cord
Specifications
Physical
| Dimensions w/ grille (W x D x H) | 790 x 287 x 216mm |
|---|---|
| Product weight | 15.9kg |
| Shipping weight | 20kg |
Audio & Connectivity
| Low frequency drivers | Dual 5.25″ (133mm) Pure Pulp cone woofers |
|---|---|
| Midrange driver | 4″ (100mm) Pure pulp cone midrange |
| High frequency drivers | Dual 1″ (25mm) Aluminium dome tweeters with waveguides |
| Amplifier power | 125W RMS per woofer
25W RMS per tweeter
50W RMS for center (350W RMS total) |
| Sound controls | Speaker placement compensation, selectable sound-field expander |
| Wireless inputs | WiFi streaming, Bluetooth 4.2 |
| Physical inputs | HDMI ARC, ethernet, phono (MM), 3.5mm AUX |
| Resolution | Up to 32-bit, 192kHz |
| Frequency response | 45Hz – 25kHz (-6dB) |
| Maximum SPL | 106dB @ 1m |
| Subwoofer output | 2V RMS with auto-sense/engage HPF |
General
| Type | Streaming tabletop loudspeaker system |
|---|---|
| Enclosure | Front-ported tabletop |
| Grille | Black foam Quadrex grille |
| Remote control type | BTLE |
