Full Description
Performance from low to high
High-resolution, natural-sounding audio across the frequency spectrum. The bass drivers, constructed from embossed paper cones and high-strength motors, allow for high-power, clean bass reproduction. Designed with a copper Faraday ring, the tweeters have increased sensitivity and reduced distortion.
Meticulously designed cabinet
Carefully designed to reduce diffraction, the rounded edges of the cabinet ensure that the speakers produce very low levels of distortion. The critically braced, thick MDF walls of the speaker reduce the level of self-noise, allowing you to hear every detail of what you are listening to.
High-quality crossover
To minimise any interactions between the bass driver magnet and the crossover, it sits it its own sealed plinth. Enjoy clean, crisp, high-resolution audio at all times.
Features
- High-resolution audio in a small, bookshelf speaker package
- Minimalist, Scandinavian design – clean design full of technical innovation
- 25mm vented tweeter with fabric dome – delivers crystal clear high frequencies
- 6.69” woofer with Thor’s hammer embossed paper cone – natural, life-like bass
- Seven-degree tilted cabinet – time-aligned acoustic centres of the drive units for the most accurate soundstage
- Rounded cabinet edges reduce diffraction causing less distortion
- Thick, critically braced cabinet walls reduce self-noise giving greater sound resolution
- High-quality crossover – housed separately from the speaker drivers to prevent interaction with their magnets and bring the truest sound
What’s in the box?
- Jamo S7-17B Studio 7 Bookshelf Speakers

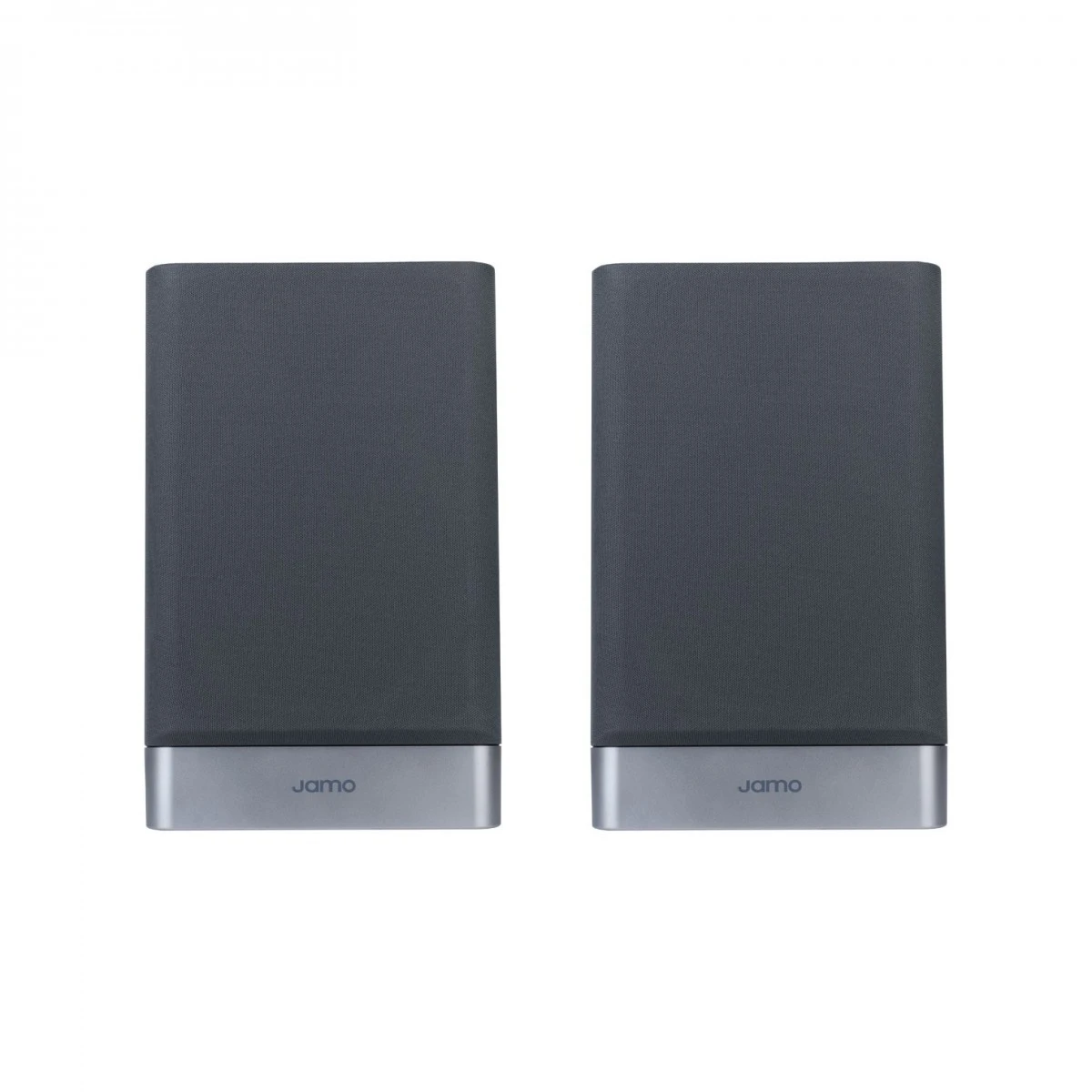

- Speaker grilles
- Rubber Feet
Audio
| Frequency Response (±3 dB) | 64 Hz – 25 kHz |
|---|---|
| Frequency Range in Bass Section (-6 dB) | 51 Hz – 30 kHz |
| Crossover Frequency | 1.53 kHz |
| Maximum Output (peak sound pressure level at 1 m) | 104.2 dB |
Power & Impedance
| Impedance | 4 ohms |
|---|
Connectivity

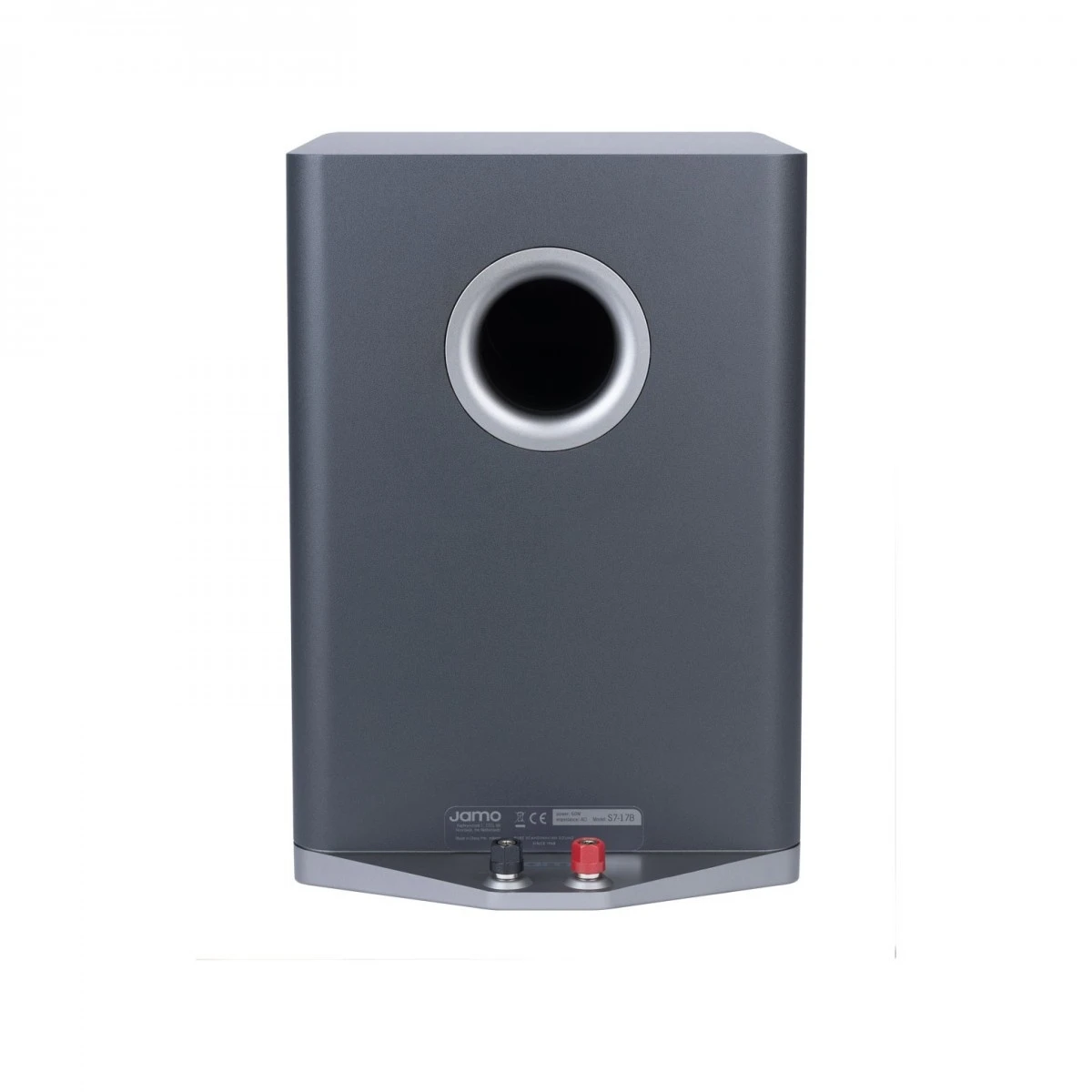

| Inputs | Single binding posts |
|---|
Dimensions
| Dimensions (unit) (H x W x D) (mm) | 365 x 230 x 380 |
|---|
Weight
| Weight (unit) (kg) | 8.37 |
|---|
Design
| Colour | Blue Fjord |
|---|---|
| Design Type | 2-Way Bass Reflex |
| High Frequency Driver | 1″/2.54 cm Vented tweeter with a fabric dome |
| Low Frequency Driver | Single 6.69″/17 cm woofer – Embossed paper cone with Thor’s hammer |
| Enclosure Material | MDF |
| Enclosure Type | Bass Reflex |
| Finish | Vinyl |
