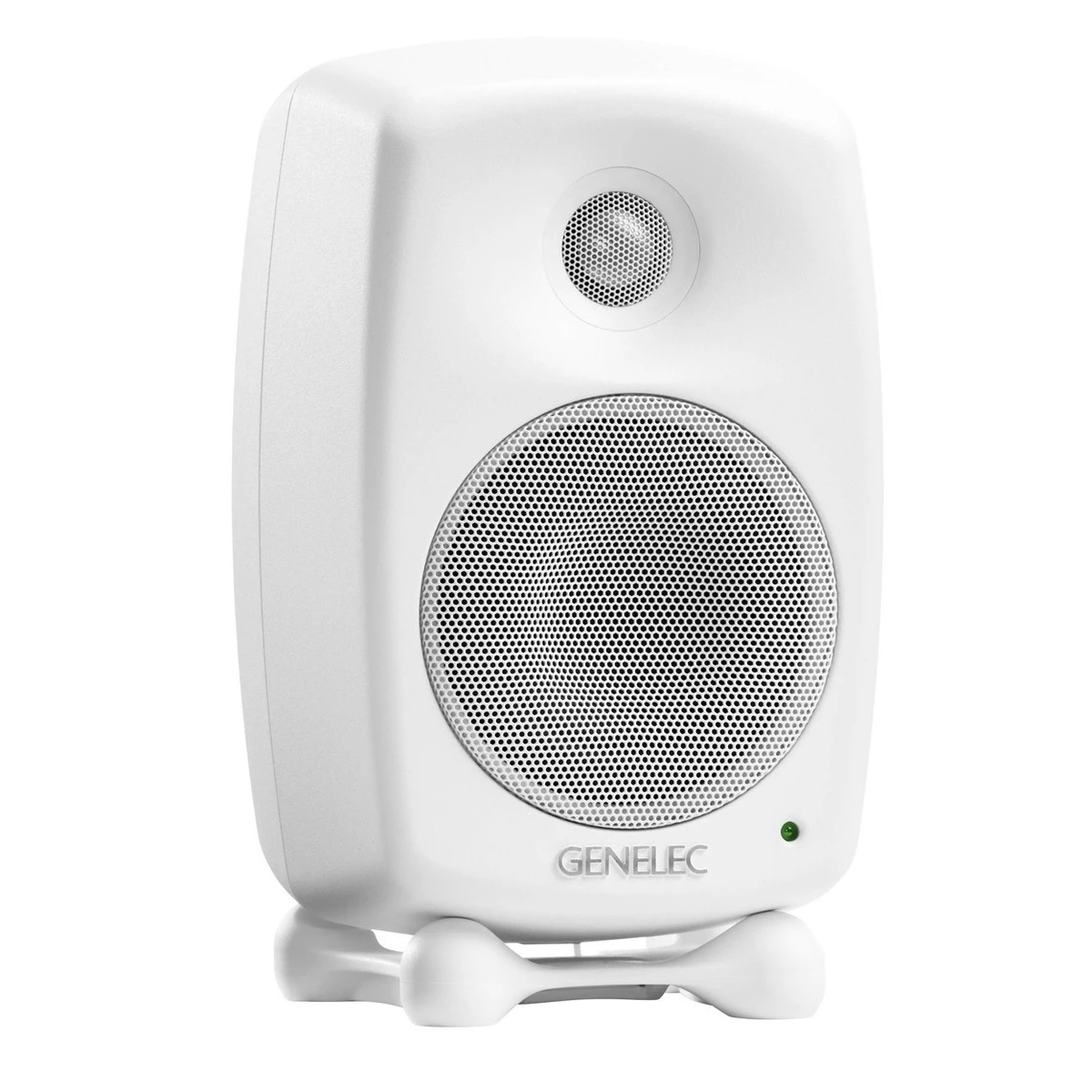

Genelec 8020D Compact 2-way Active Monitor (White)

Full Description

ISS circuitry

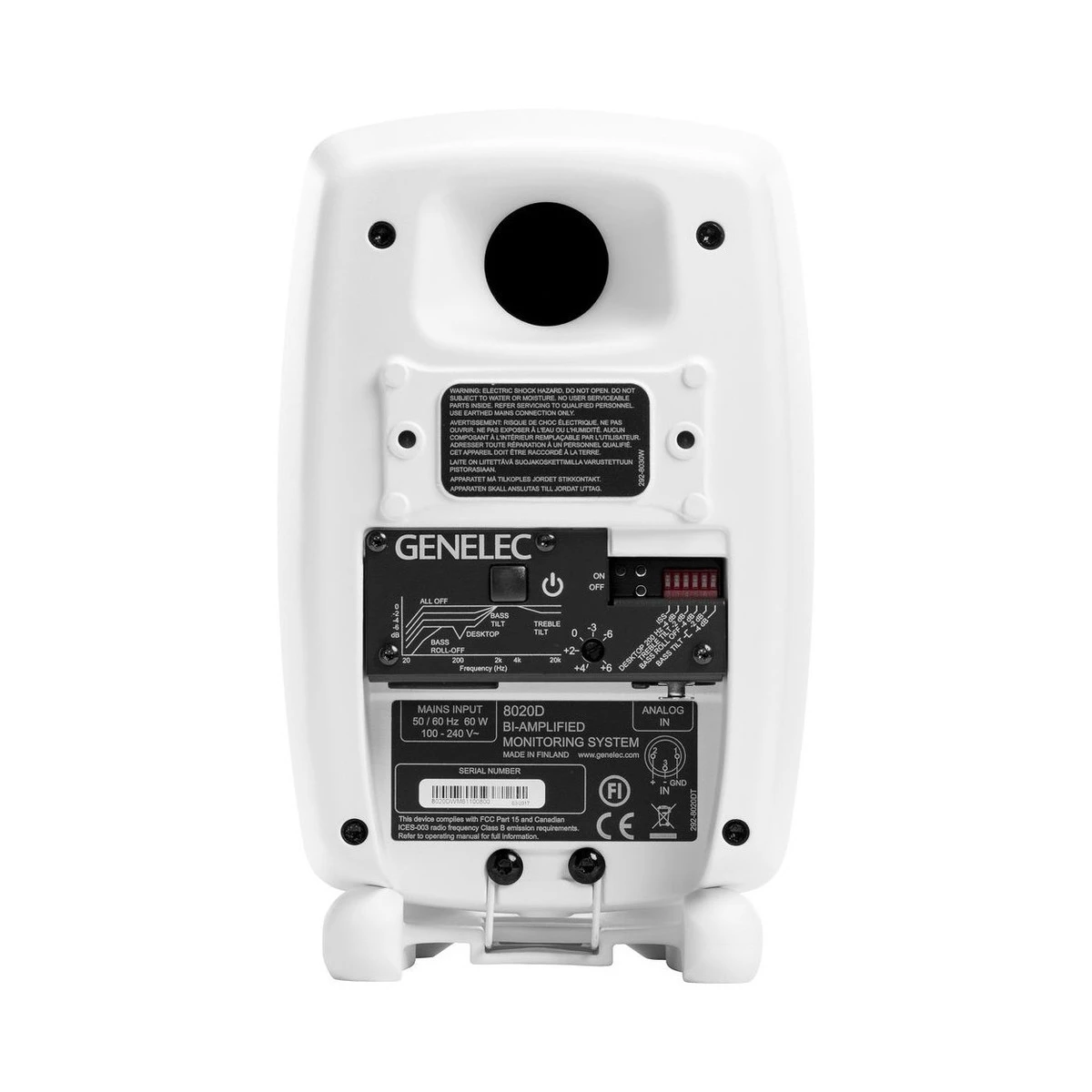

ISS (Intelligent Signal Sensing) Technology was developed by Genelec in early 2013, designed to track the signal input of the loudspeaker and detect if it is in use. If the ISS circuitry finds that the speaker is not in use for a certain period of time it will automatically switch to a low-power sleep state, consuming less than 0.5 watts. This is highly useful when it comes to studios and home studios as it minimises power usage while optimising performance value. The loudspeaker will immediately turn itself back on again once it detects an input signal, saving you power and money in the long run. If you wish to disable this feature you can simply turn on the ‘ISS Disable’ switch located on the rear panel of the monitor.

Bi-amplified design for breathtaking audio fidelity

The Genelec 8020D features two powered amplifiers for optimised performance value. The bi-amplified design ensures optimal audio performance and fidelity, by assigning each of the two frequency bands with their own individual amplifier. This helps to optimise the audio fidelity and performance, ensuring you hear every nuance of the audio as it was intended. The amplifiers are designed to power both the woofer and tweeter individually.

The 8020D also features an active crossover design allowing for a frequency response independent of any dynamic changes in the driver’s electrical characteristics or the drive level, with increased flexibility and precision to adjust and fine tune each output frequency response for the drivers used. Each driver has its own signal processing and power amplifier to isolate each driver from the drive signals handled by the drivers, reducing inter-modulation distortion and over driving problems.

You also have the ability to compensate for sensitivity variations between drivers, as well as for the frequency and phase response anomalies associated with a driver’s characteristics within the intended pass-band.

Advanced protection circuitry

The 8020D is ideal for critical audio production environments thanks to its ability to remain reliable and functional thanks to its protection circuitry. This circuitry design prevents driver failures by detecting signal levels, and automatically reducing the level should any sudden peaks or constant too-high levels arise.

This circuitry does not affect the sound quality in any way, but prevents inadequate input signals from causing damage. With improved system reliability, the 8020D enables you to maximise your system’s output sound level to get the best performance.

Features

• Powerful 4-inch studio monitor – perfect for mixing and mastering
• Directivity Control Waveguide (DCW™) technology
• Optimised amplifiers
• Protection circuitry
• Iso-Pod™ stand
• Minimum Diffraction Enclosure (MDE™) technology
• Room response compensation
• Versatile mounting capabilities

Specifications

• SPL: 100 dB
• Amplifier Power: 50 W Bass (Class D) + 50 W Treble (Class D)
• Frequency Response: 56 Hz – 25 kHz (“-6 dB”)
• Accuracy of Frequency Response: ± 2.5 dB (62 Hz – 20 kHz)
• Driver Dimensions: 105 mm Bass + 19 mm Treble (view in inches)
• Dimensions
  • Height: 242 mm
  • Width: 148 mm
  • Depth: 142 mm
• Weight: 3.2 kg / 7.1 lb
• Connections: 1 x XLR Analog Input
• Product Code: 8020DWM
