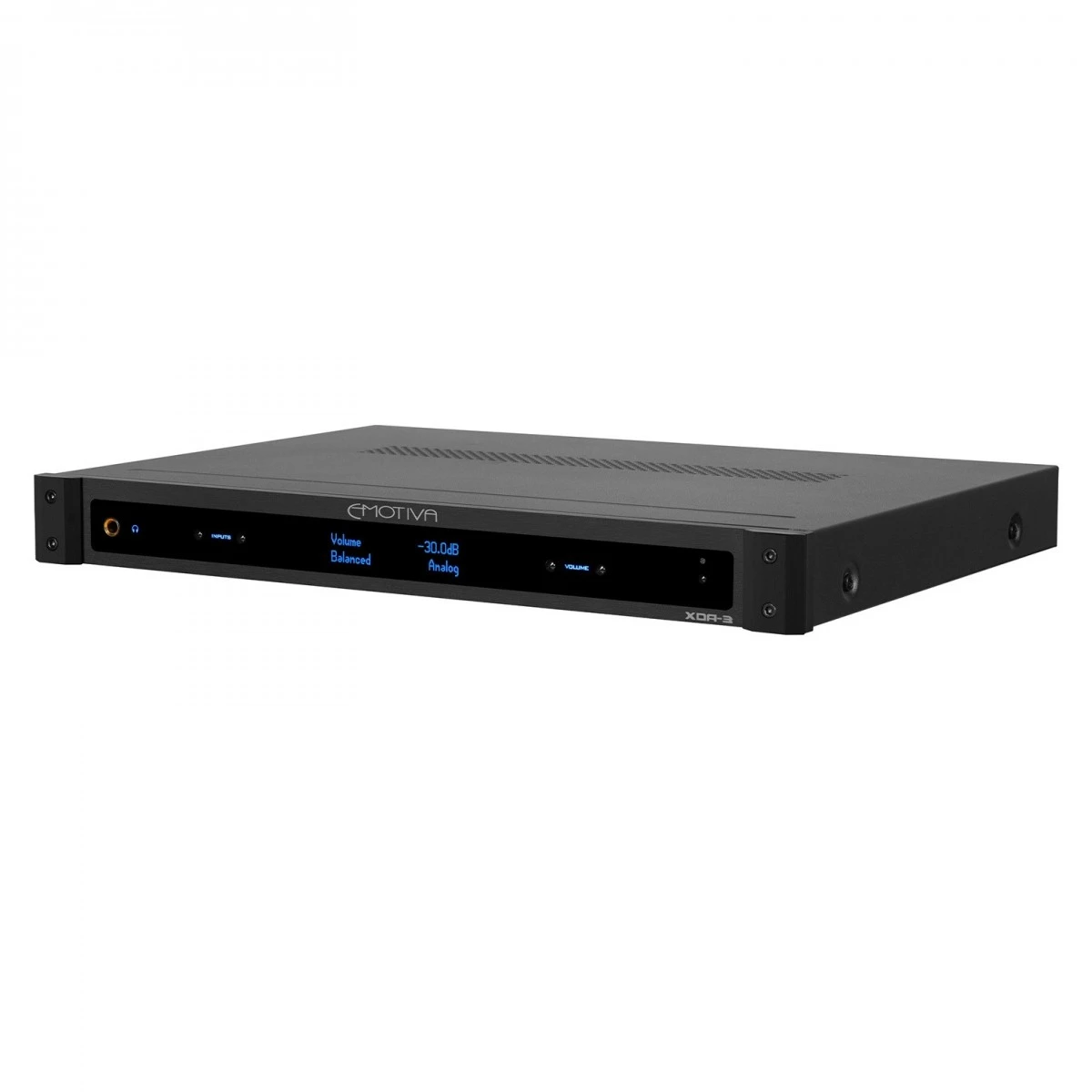

Emotiva XDA3 Reference DAC/Pre Amp

Name: Emotiva XDA3 Reference DAC/Pre Amp
SKU: YXYUY 70743
Availability: InStock

Original price was: $381.00.Current price is: $97.99.

SKU: YXYUY 70743 Categories: DACs, HiFi Separates

Full Description

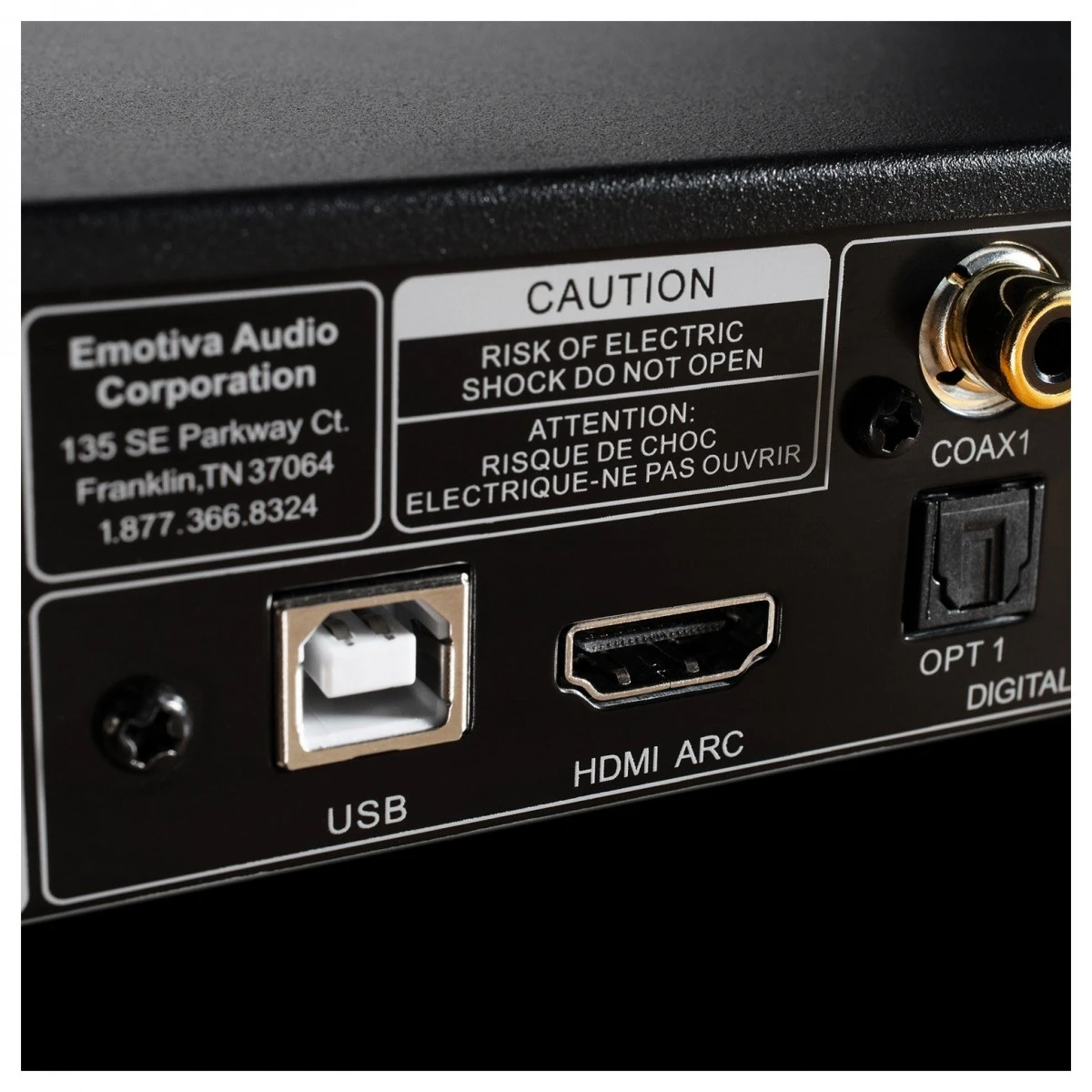

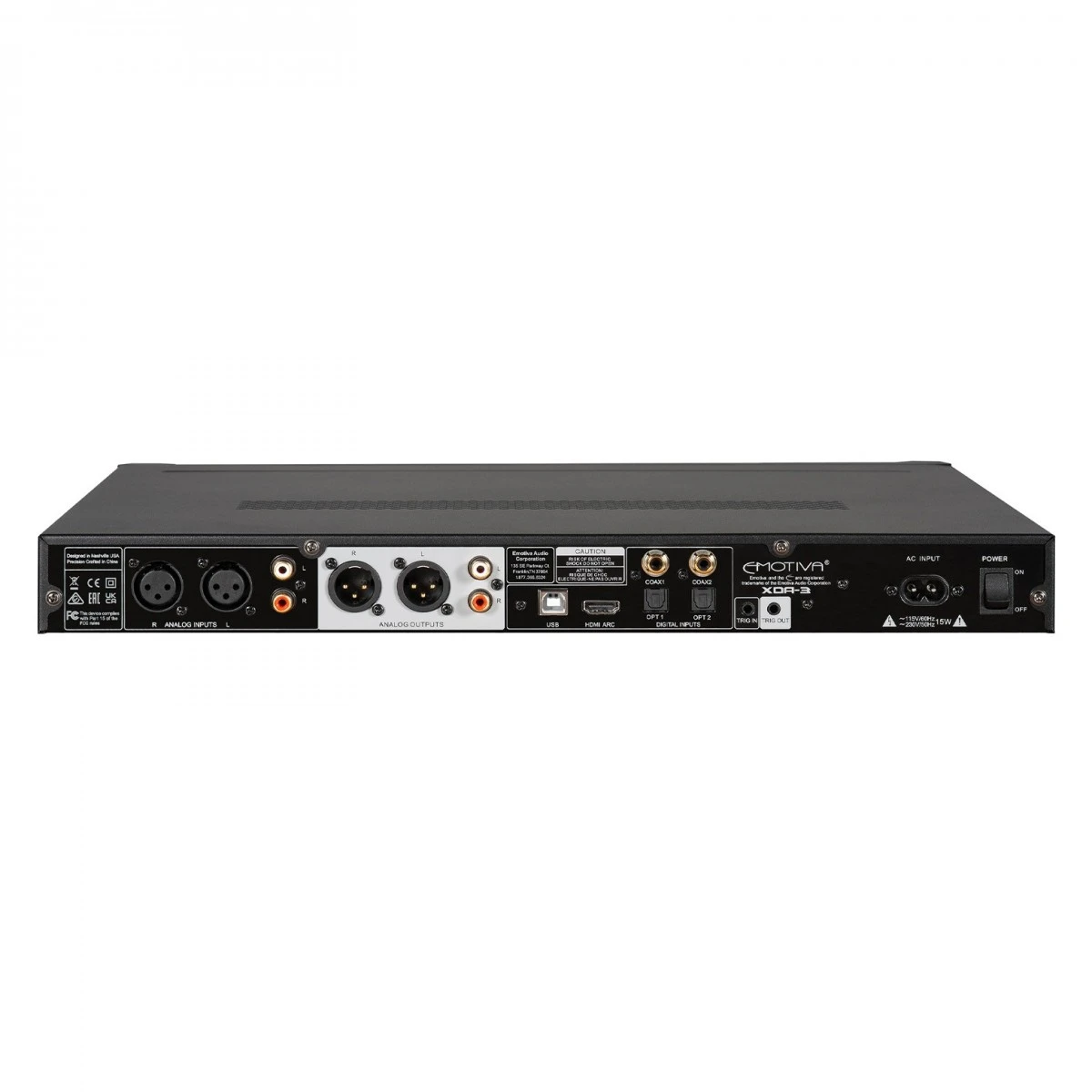

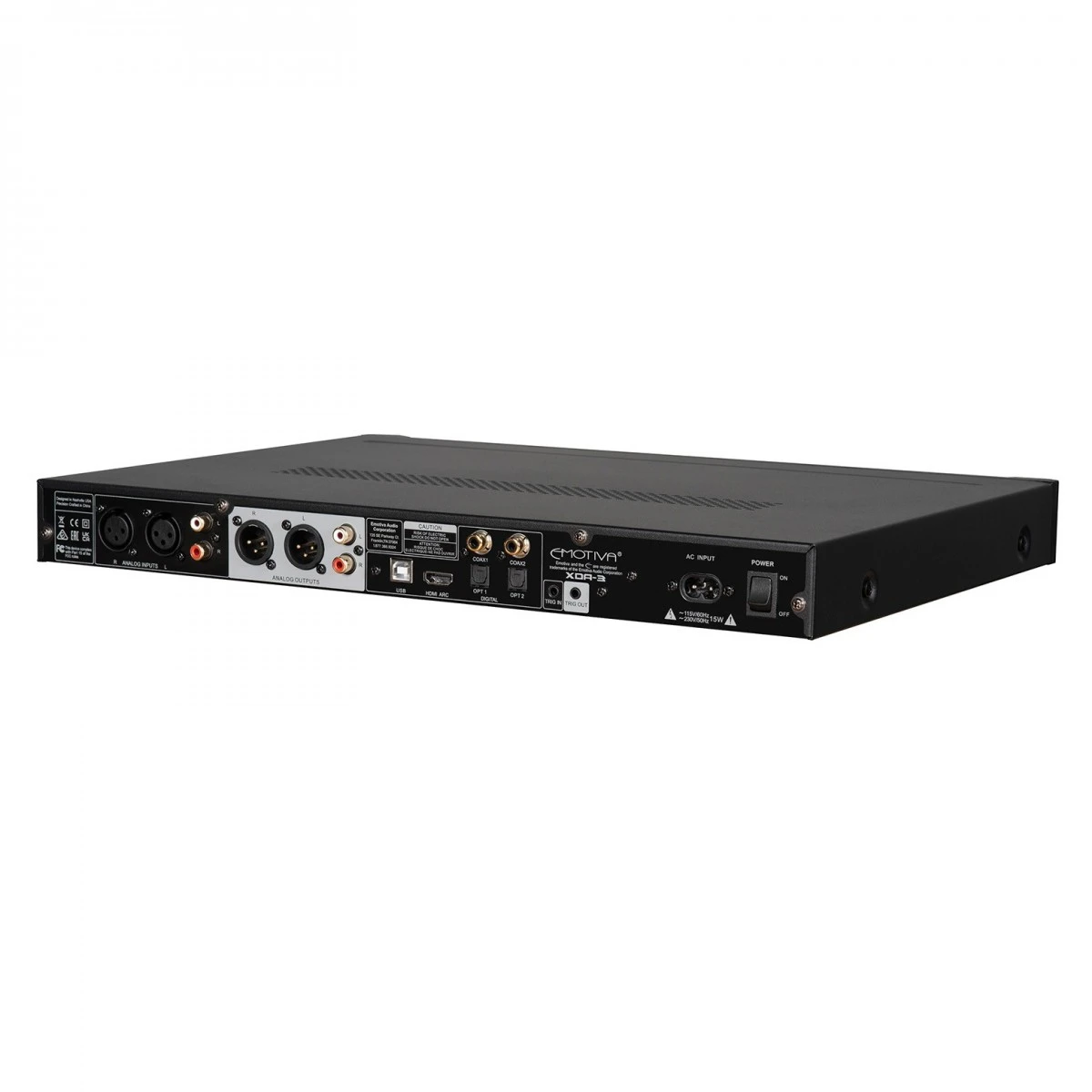

Input	2 x Coaxial S/PDIF digital audio inputs 2 x Toslink optical S/PDIF digital audio inputs 1 x HDMI-ARC digital audio input 1 x High performance USB digital audio input 1 pair of balanced XLR analogue audio input 1 pair of unbalanced RCA analogue audio input

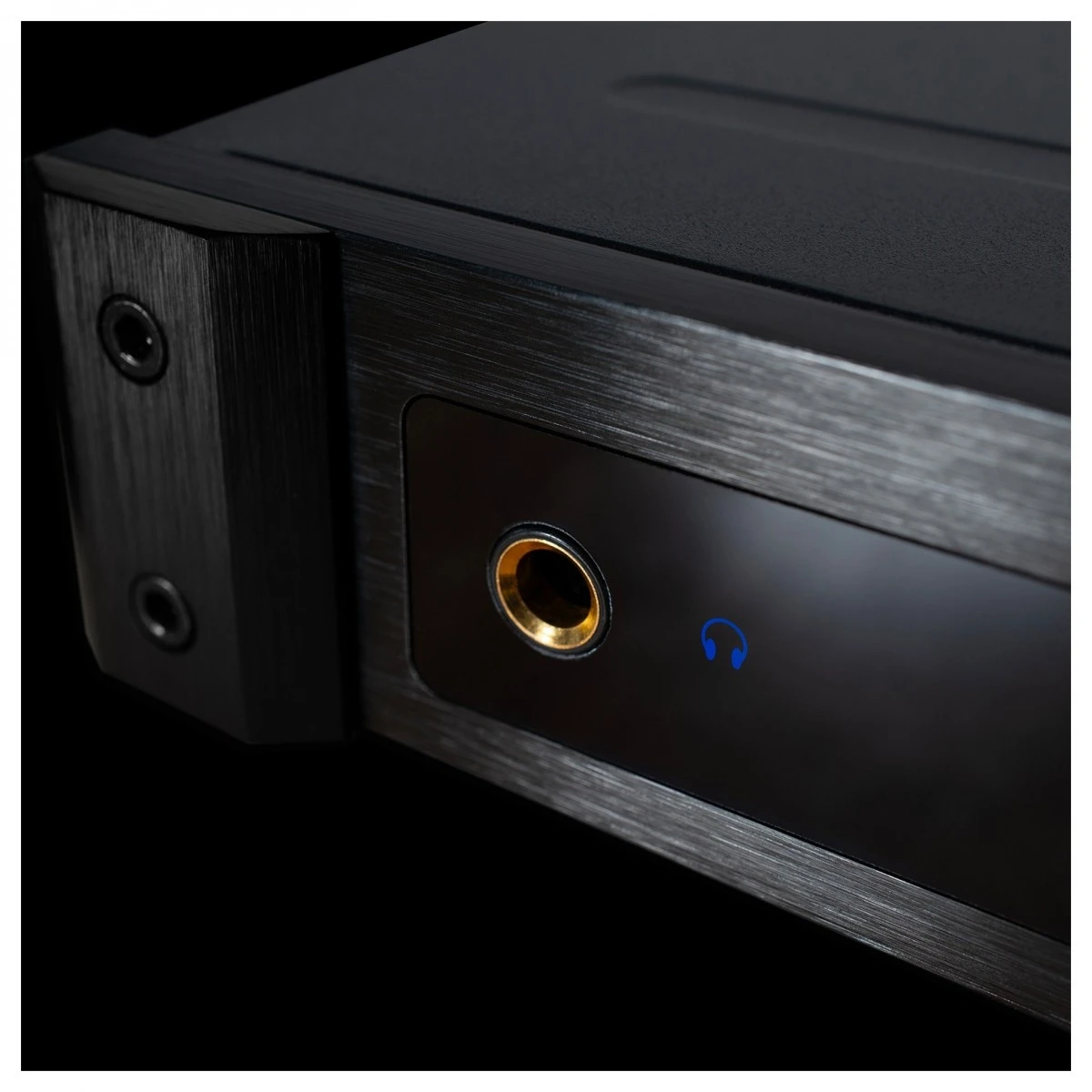

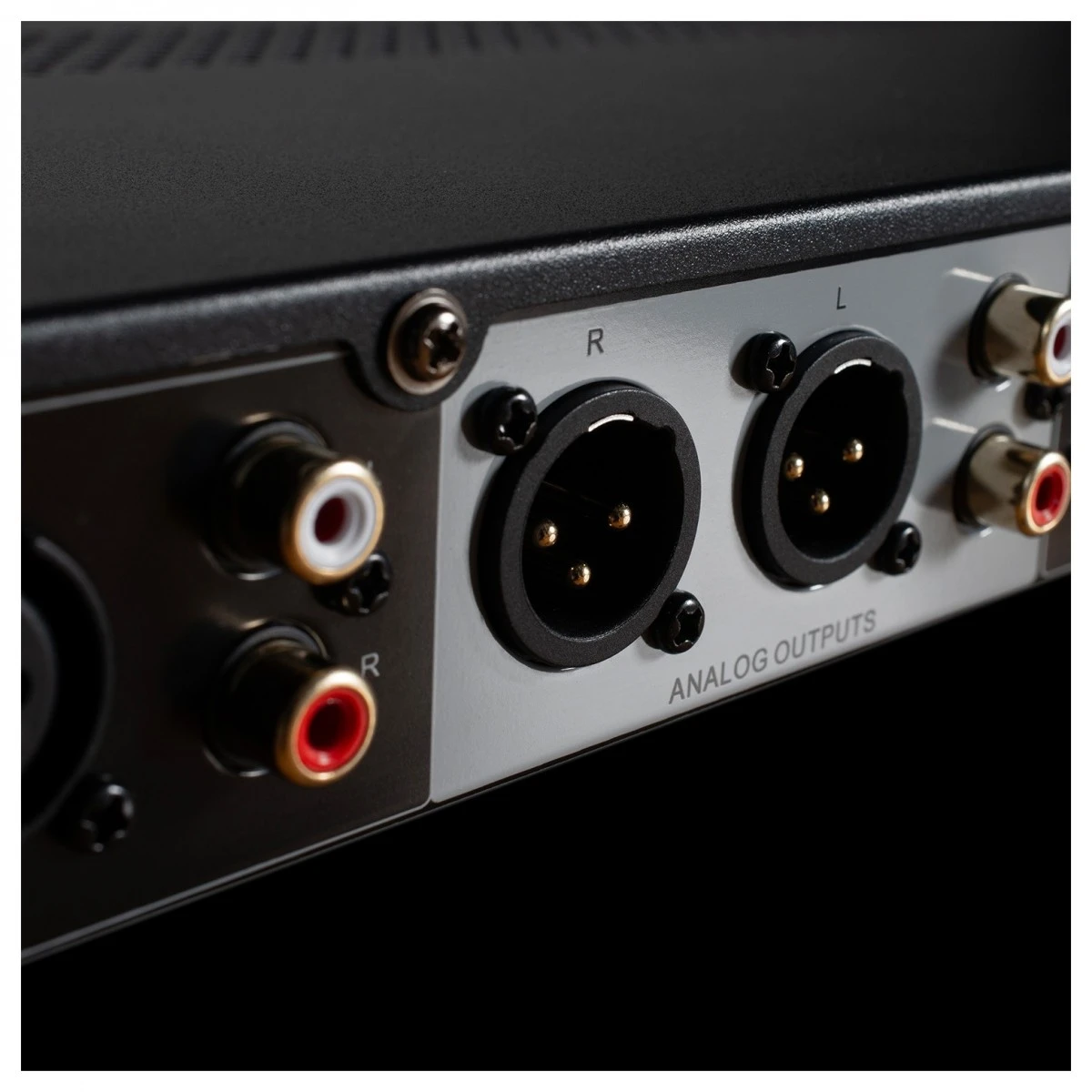

Outputs	1 pair main outputs (stereo; balanced / XLR), variable level 1 pair main outputs (stereo; unbalanced / RCA), variable level 1 x headphone output, 1/4” stereo, front panel
Trigger Input	input 5-12 V AC/DC
Trigger Output	output +12V DC

Stereo PCM digital audio via USB	up to 32/768k
Stereo DoP (DSD-over-PCM-over-USB) via USB	DoP64, DoP128, and DoP256
Native DSD (DoP) via USB	DSD64, DSD128, DSD256, and DSD512
Stereo digital audio via S/PDIF (optical and electrical)	all standard sample rates and bit depths up to 24/192k
Stereo digital audio via HDMI-ARC	sample rates and bit depths determined by source
Other	Analogue audio via one pair of stereo Balanced (XLR) Inputs and one pair of stereo Unbalanced (RCA) Inputs is supported

Digital to Analogue Conversion	ESS ES9038Q2M SABRE32 Reference DAC (32-bit Stereo DAC with Hyperstream® II DAC architecture and Time Domain Jitter Eliminator)
Headphone Amplifier	Texas Instruments TPA6120A2 (high-power, very high fidelity, current-feedback monolithic Class A/B headphone amplifier)
Volume Control	NJW1195A (digitally controlled analogue ladder network volume control)
Analogue Signal Path Active Electronics	OPA1656 (ultra-low-noise, low-distortion, FET-input, audio operational amplifiers)
USB Interface	Comtrue CT7601 32-bit 768 kHz USB Audio Bridge (supports PCM up to 32/768k; DoP up to DoP256; native-DSD up to DSD512)

Frequency Response	10 Hz to 55 kHz +0 /- 0.2 dB
Signal to Noise (S/N) Ratio	> 110 dB
Crosstalk
THD at 1 kHz
THD from 20 Hz to 20 kHz	110 dB
Crosstalk
THD at 16 bits
THD at 24 bits
IMD at 44.1k sample rate
IMD at 48 kHz and above sample rates

Dimensions (W x H x D)	17 x 2.25 x 13.5 inches (includes feet and connectors)
Weight	8-1/2 pounds (unboxed)
Rated Output	2.0 V RMS
Power Requirements	115 VAC or 230 VAC +/- 10 @ 50 / 60 Hz (automatically detected and switched)
User-Selectable Oversampling Filters (DAC)	Filter #1: Linear Phase Fast Roll-Off Filter #2: Linear Phase Slow Roll-Off Filter #3: Minimum Phase Fast Roll-Off Filter #4: Minimum Phase Slow Roll-Off Filter #5: Apodizing Fast Roll-Off Filter #6: Hybrid Fast Roll-Off Filter #7: Brick Wall
