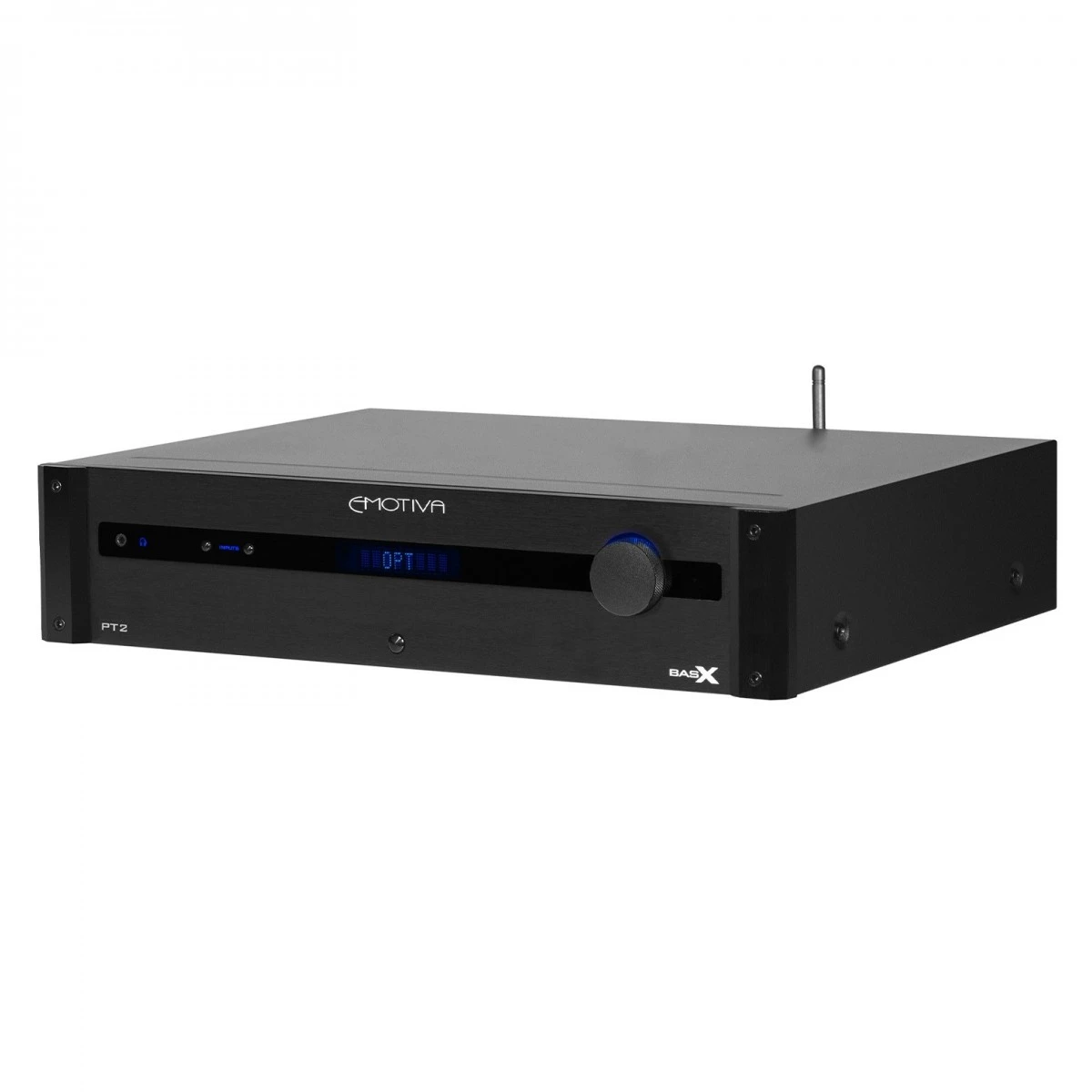

Emotiva BasX PT2 Stereo Preamp W/ DAC & Tuner

Emotiva BasX PT2 Stereo Preamp W/ DAC & Tuner - Image 2

Emotiva BasX PT2 Stereo Preamp W/ DAC & Tuner - Image 3

Emotiva BasX PT2 Stereo Preamp W/ DAC & Tuner - Image 4

Emotiva BasX PT2 Stereo Preamp W/ DAC & Tuner - Image 5

Emotiva BasX PT2 Stereo Preamp W/ DAC & Tuner - Image 6

Emotiva BasX PT2 Stereo Preamp W/ DAC & Tuner - Image 7

Emotiva BasX PT2 Stereo Preamp W/ DAC & Tuner - Image 8

Emotiva BasX PT2 Stereo Preamp W/ DAC & Tuner

Original price was: $365.00.Current price is: $97.99.

SKU: YXYUY 96880 Categories: DACs, HiFi Separates

Buy with Confidence, Get Quality
SSL encryption, absolutely safe shopping
Protect Your Wallet with Safe Payments
7-Day Returns, 100% Quality

Description
Reviews (0)

Full Description

What’s in the Box

Emotiva BasX PT2 Stereo Preamp w/ DAC & tuner
Power cable
FM antenna
Remote control (also compatible with the BasX TA2)

Specifications

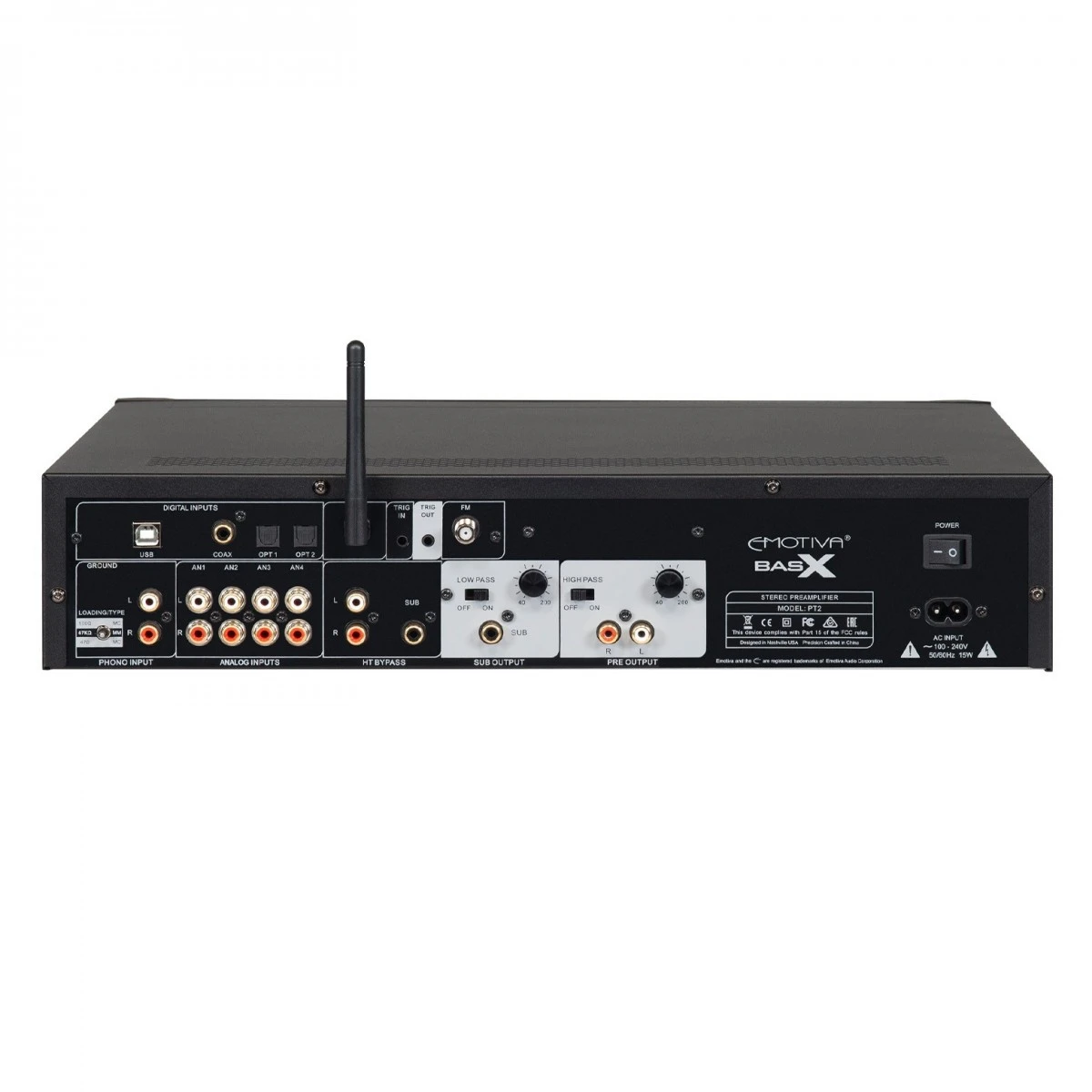

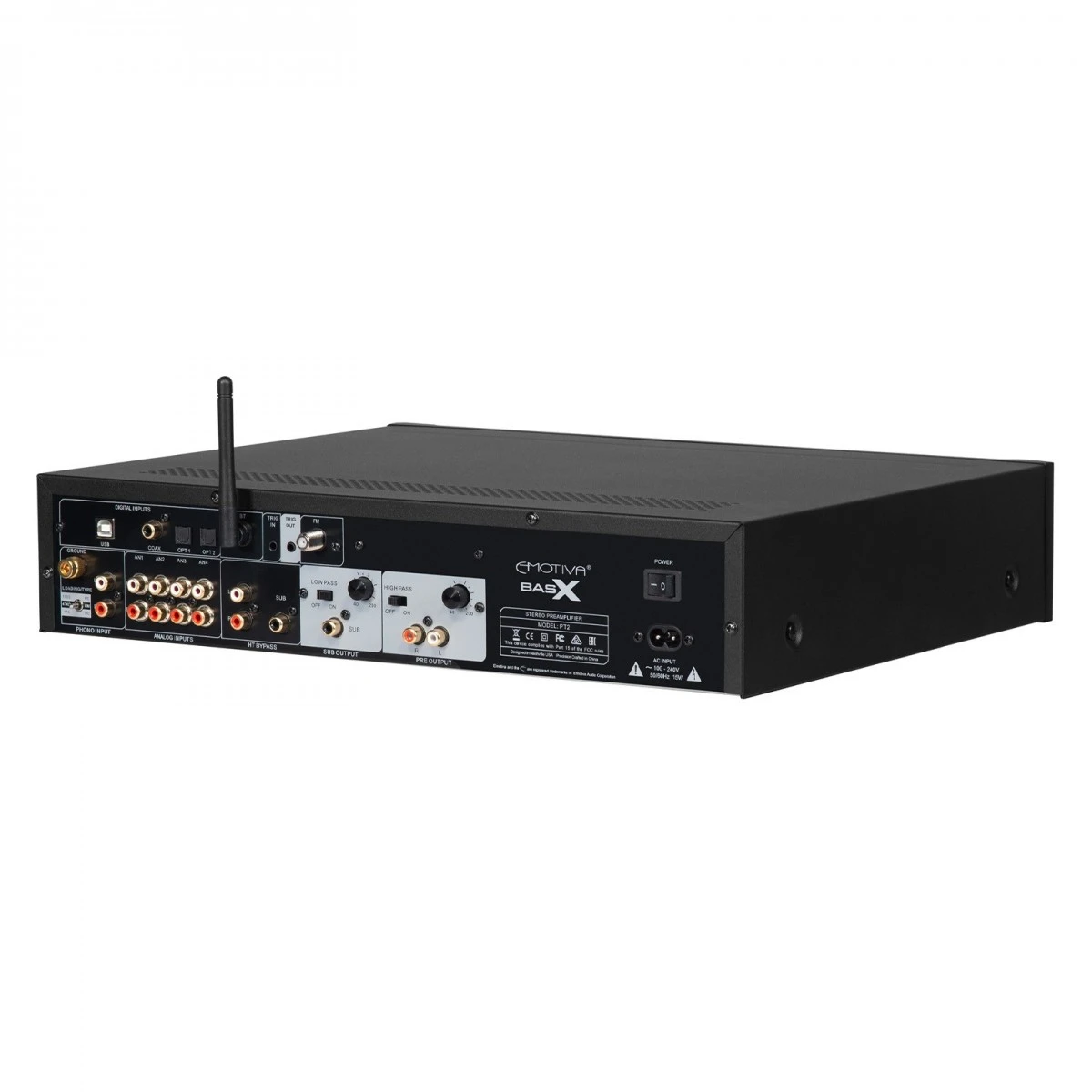

Inputs/Outputs

Analogue inputs

4 pairs stereo analogue line level inputs (Analogue 1 thru Analogue 4)

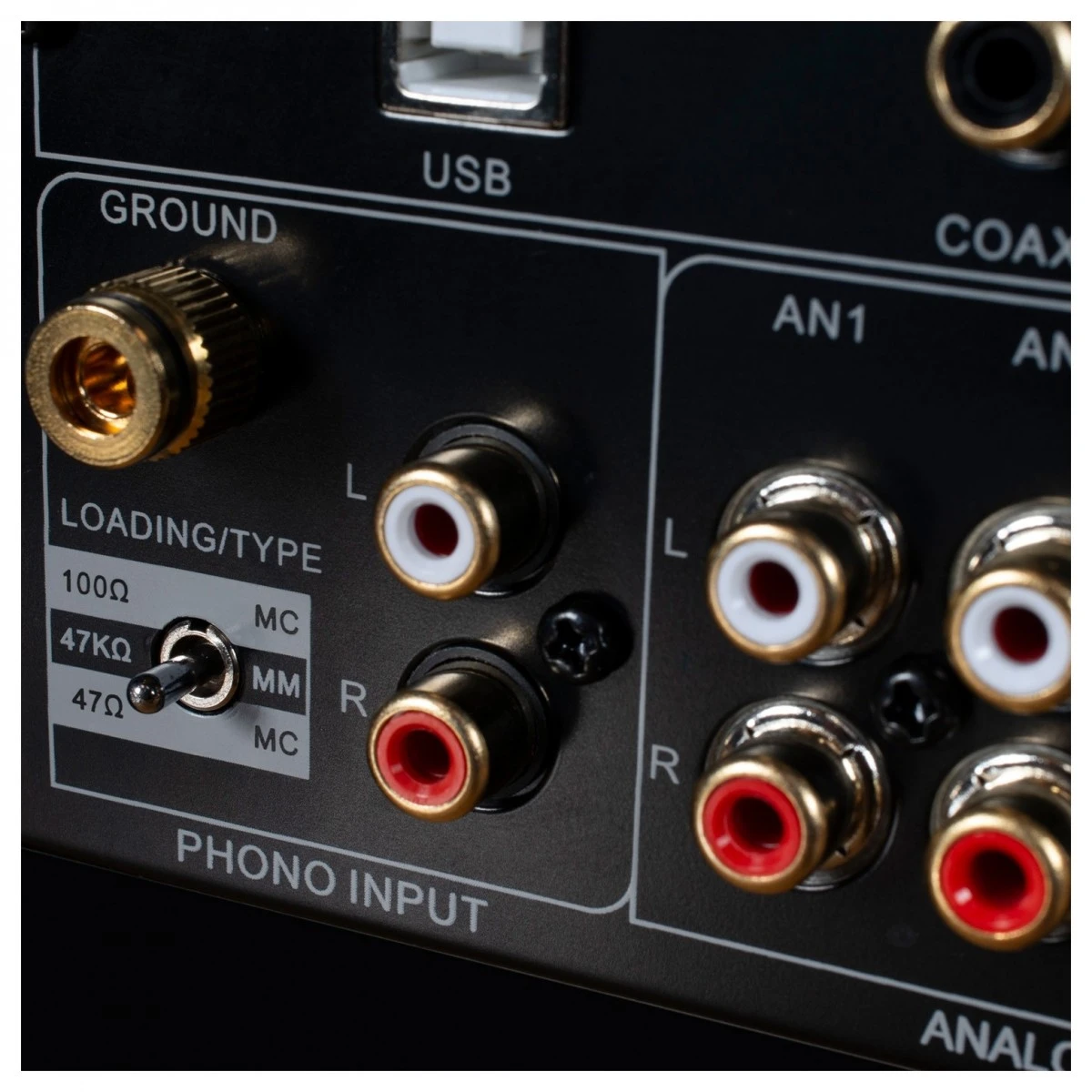

1 pair stereo phono inputs (switchable; moving magnet or moving coil)

1 set Home Theatre Bypass inputs (front main channels plus subwoofer)

Tuner FM (with external antenna input; 15 station presets)

Digital Inputs

1 digital coax (S/PDIF); 24/192k

2 digital optical (Toslink); 24/192k

1 digital USB (DAC input); 24/192k

1 Bluetooth receiver up to 96k (Bluetooth 5, with AptX, AptX HD, and AAC support, antenna included)

Preamp Outputs

1 pair line level main outputs (can be configured to be either Full Range or Bass Managed; Bass Managed has 12 dB/octave active analogue high-pass filter with cutoff configurable between 40 Hz and 200 Hz.)

1 summed subwoofer output (can be configured to be either Full Range or Bass Managed; Bass Managed has 12 dB/octave active analogue low-pass filter with cutoff configurable between 40 Hz and 200 Hz.)

1 high-performance stereo headphone output

Analogue Performance (line level)

Maximum output level	4 VRMS
Frequency response	5 Hz to 50 kHz +/- 0.04 dB
THD+noise
IMD	120 dB
Crosstalk

Analogue Performance (phono)

Frequency response (MM and MC)	20 Hz to 20 kHz; ref standard RIAA curve
THD+noise	58 dB (ref 0.5 mV; MC)
Gain (ref unity gain on main outputs at 1 kHz)	44 dB (MM); 55 dB (MC)
Load impedance	47 kOhms (moving magnet); 47 Ohms or 100 Ohms (moving coil)

Analogue Performance (headphone)

Power Output

8 Ohms: 23 mW / channel

33 Ohms: 90 mW / channel

47 Ohms: 127 mW / channel

150 Ohms: 145 mW / channel

300 Ohms: 114 mW / channel

600 Ohms: 75 mW / channel

Digital Performance

Frequency response	5 Hz to 20 kHz +/- 0.15 dB (44k sample rate). 5 Hz to 80 kHz +/- 0.25 dB (192k sample rate)
THD+noise
IMD	110 dB ref rated output

Trigger

Trigger input	accepts inputs between 5V and 12V AC or DC
Trigger output	12 VDC trigger output

Controls and Indicators

Power	rocker switch; rear panel.
Standby	one front panel pushbutton.
Two front panel pushbuttons	Input Select; menu operation.

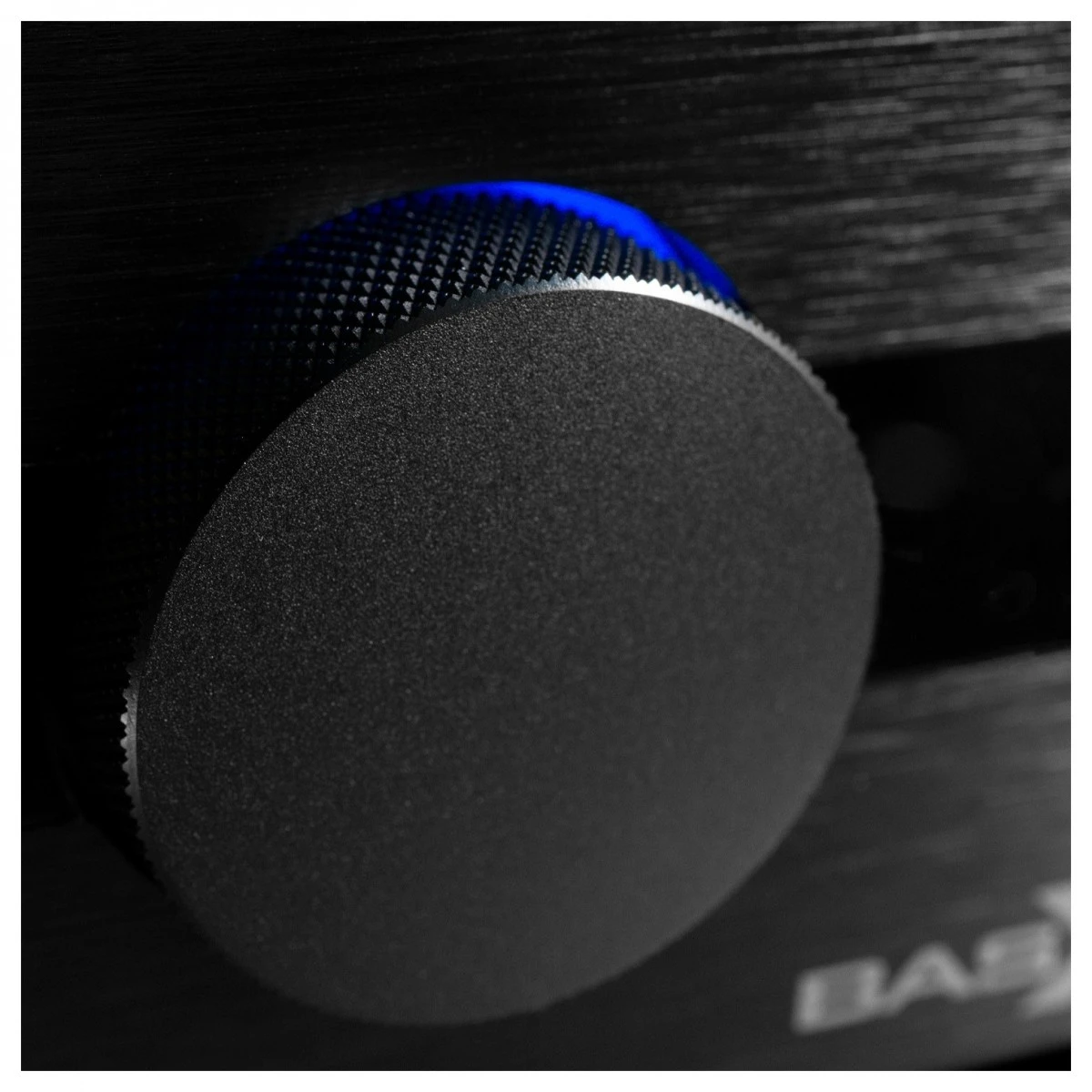

One front panel knob	Volume; Tuning; menu operation.
Display	high visibility blue alphanumeric VFD display (dimmable).

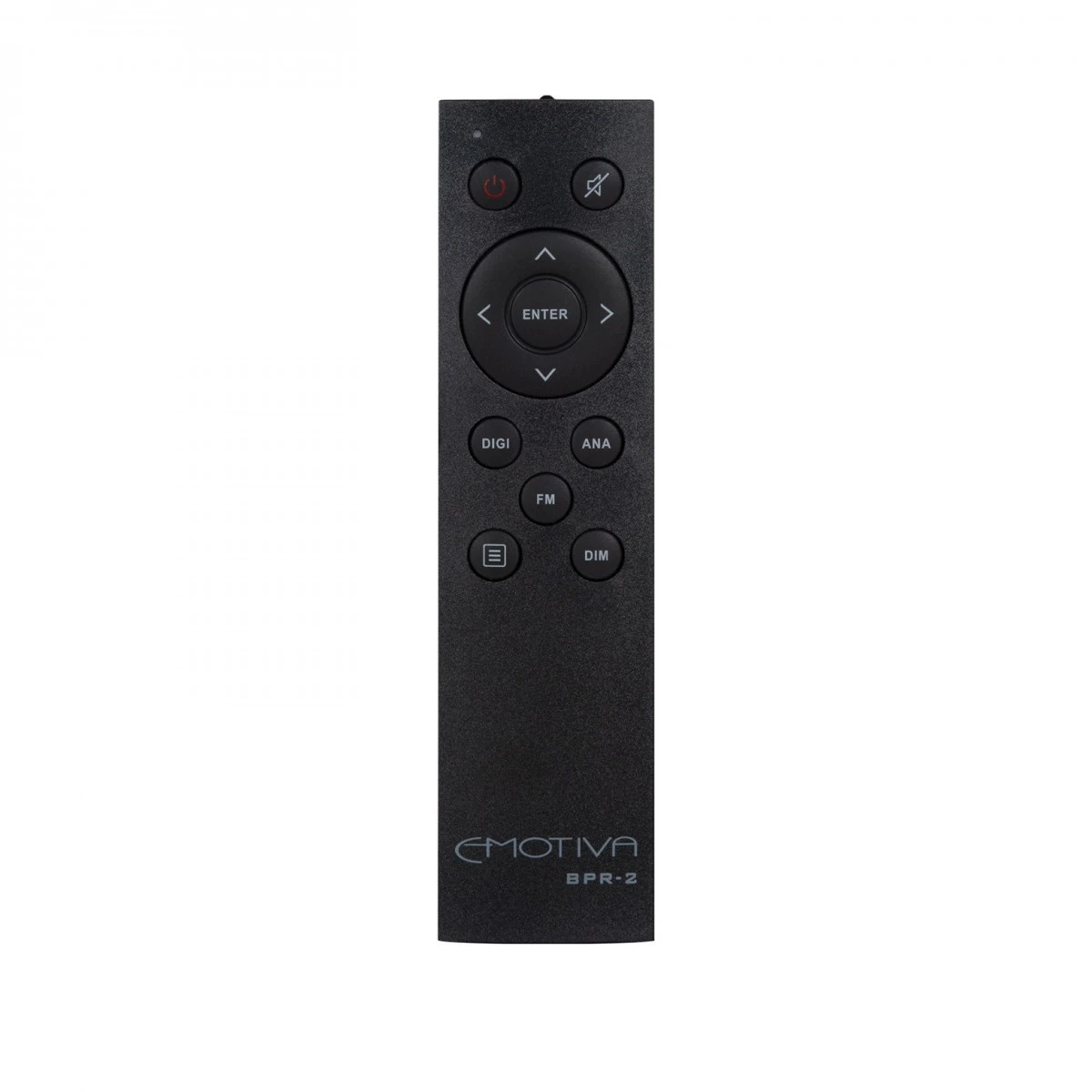

Remote Control	compact full-function infrared remote control (AAA batteries required).
LEDs	amber Standby LED; blue illuminated legends for Input buttons and Headphone output.
