“This chic and extremely compact subwoofer holds some enormous power reserves for its size. The SUB E-9 F stands out above the crowd with full volume and a rich bass response proving that it is possible to create an elegant and high-performance subwoofer without it costing a small fortune”
DALI’s most compact subwoofer, the E-9 F is still brimming with class despite it’s sprightly size. DALI have crammed in some fearsome power and used some pretty impressive components in order to produce a bass speaker that will provide balance and texture to movie scenes or add a little more richness to musical performance.
Danish loudspeaker leaders DALI have no cloak-and-dagger secrets to the virtual over-performance that the E-9 F subwoofer pulls; simply using the best components possible and keeping all control in their own manufacturing facility in Denmark is their core principle. A meaty 170 watt class-D amplifier is the primary driver, providing the bass cone with well controlled power that fills up rooms far larger than you think it should.

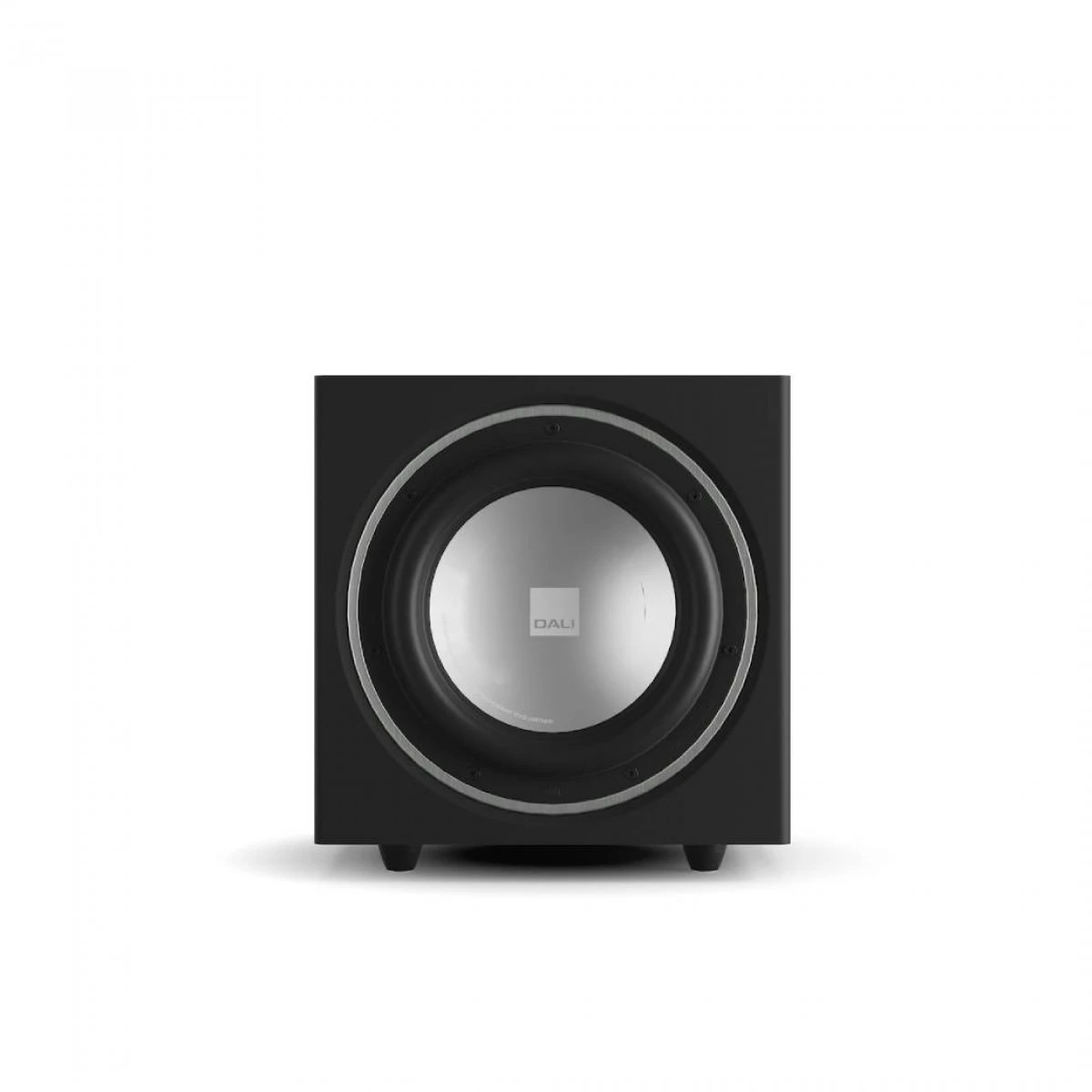

An aluminium 9-inch woofer unit is incredibly light but perfectly rigid allowing for a fast response without sounding flabby. This helps with soundtrack subtleties adding a textured bass response. Behind the cone, a large magnet and voice coil will provide long-lasting reliability and flawless bass response.

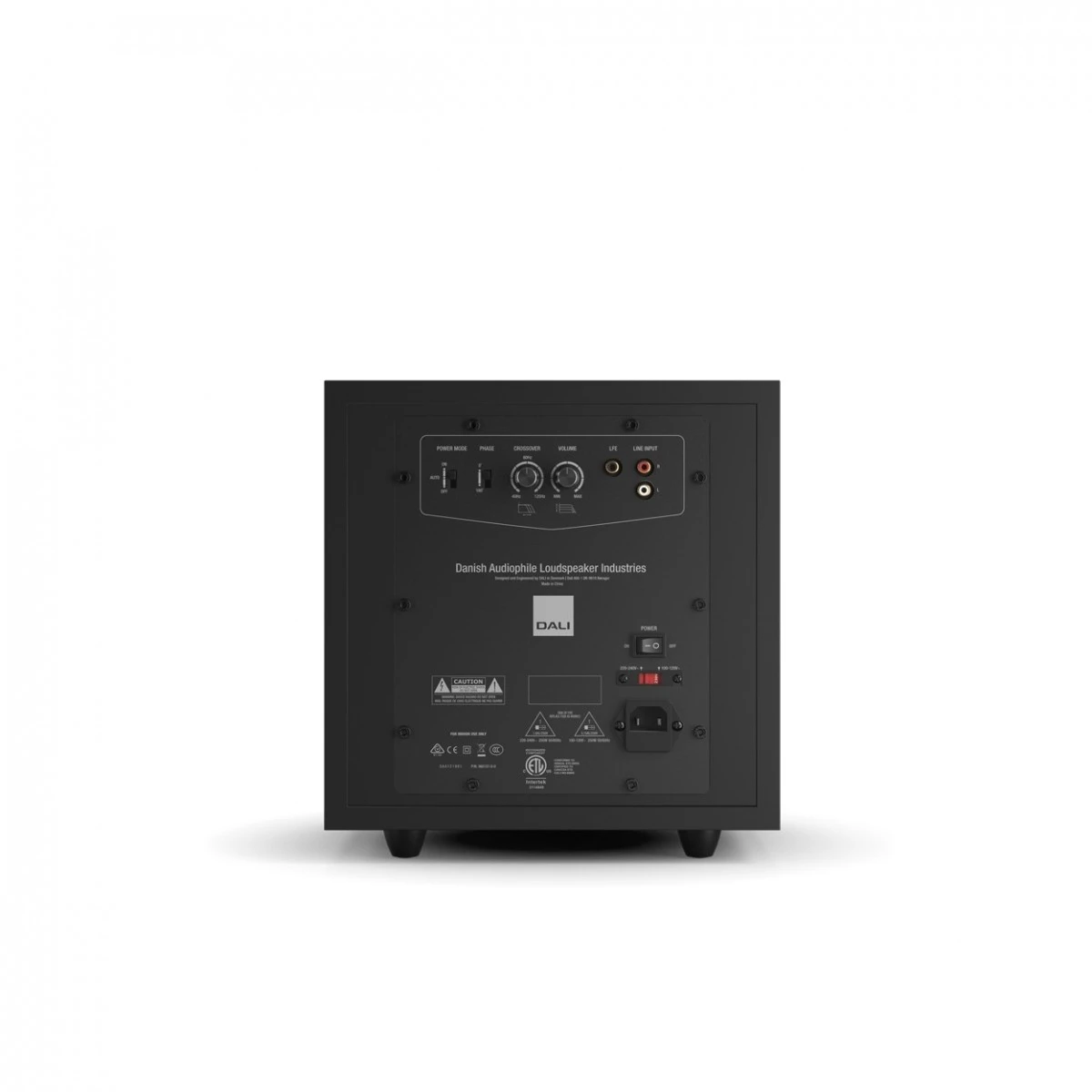

The back plate of the DALI SUB E-9 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. With the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.
DALI E-9 F Subwoofer Specs
| Frequency Range (+/-3 dB) [Hz] | 37 – 200 |
|---|---|
| Maximum SPL [dB] | 111 |
| Crossover Frequency [Hz] | 40 – 120 Hz |
| Low Frequency Driver | 1 x 9-inch long stroke Polymere Aluminimum |
| Enclosure Type | Bass Reflex |
| Bass Reflex Tuning Frequency [Hz] | 39.0 |
| Max. Amplifier Power Output [RMS watt] | 220 |
| Continous IEC Power Output [RMS watt] | 170 |
| Input Impedance [kOhm] | 25 |
| Connection input(s) | Mono line level (LFE)
Stereo line level (low pass filtered)
RCA |
| Recommended Placement | Floor in the corner or side |
| Recommended Distance From Wall | 10cm – 30cm |
| Functions | Crossover Frequency
Phase Switch
Standby (Auto Power) On/Off
Switch
Volume (Gain) |
| Maximum Power Consumption | 250w |
| Max. Dimensions (Incl. Base And Grille) | H307 x W288 x D311mm |
| Weight | 11.0kg |
| Grille Included | No |
