Behringer B1030A Truth Active Studio Monitor, Single

Full Description

Bi-Amplified Design

Offering 50 watts RMS (75 watts peak) power output through separately-powered transducers, the Behringer B1030A delivers high-resolution audio reproduction that really brings out the best in your music. Additionally, this design is combined with an active crossover which ensures exceptional signal integrity and reliable performance.

Gloriously-Wide “Sweet Spot”

The B1030A’s high frequency audio is produced via the high-resolution 1″ silk dome tweeter that is mounted within a proprietary wave guide. This innovative wave guide creates a broader listening zone which allows you to move around inside the stereo image to find the perfect spot in your mix for subtle instrument or effects placement opportunities.

Flexible and Convenient Placement

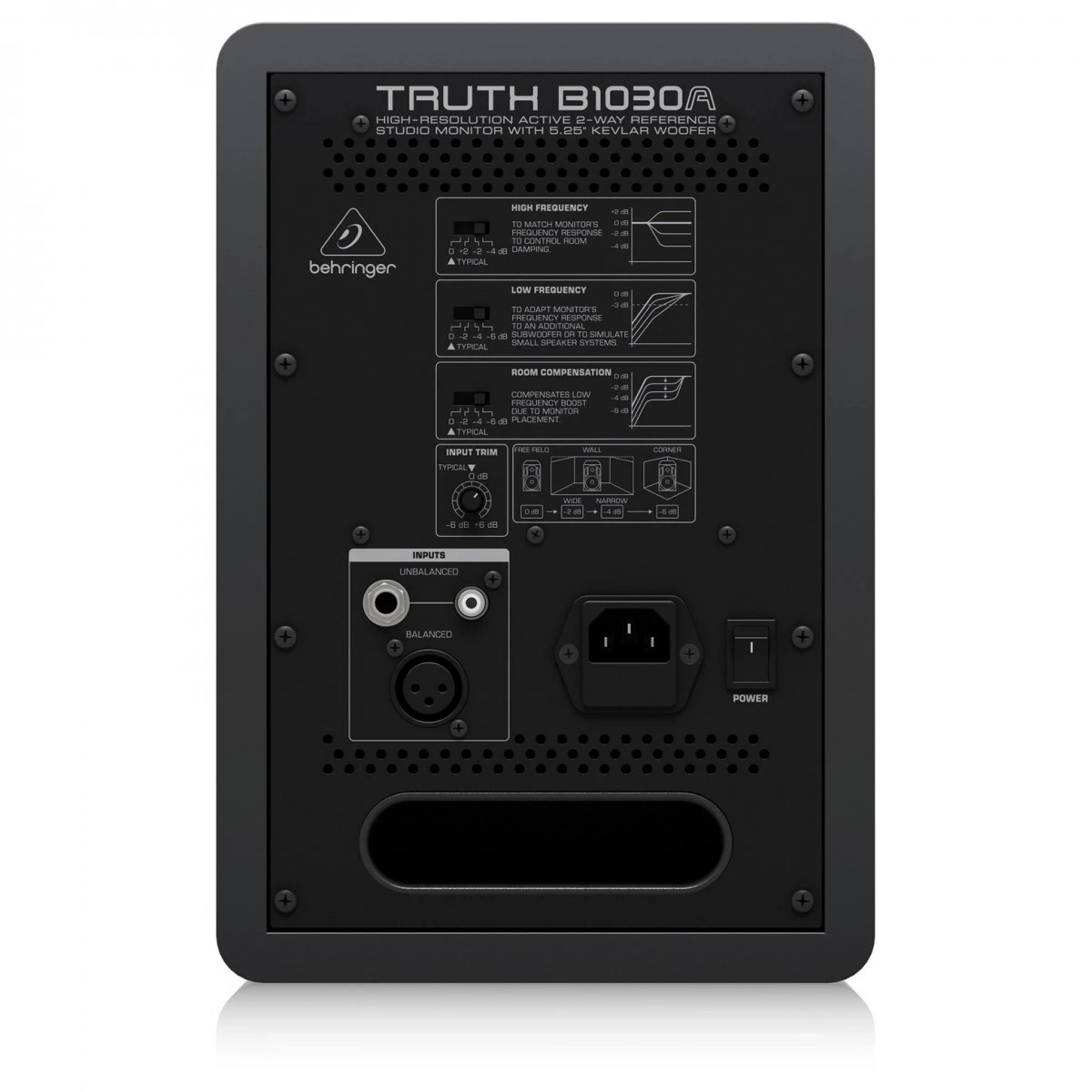

The ideal environment for mixing, mastering and playback is a room that is “flat”, neither too reflective (echoes) nor too absorptive (where sound is muffled). However, since no two rooms are acoustically the same, the Behringer B1030A monitor is equipped to function in a wide variety of studio environments. The rear panel features filter switches that allow you to adapt the performance specifically for your individual listening environment. The Behringer B1030A Truth can be custom-tailored to deliver honest bass responses with exceptionally accurate mids and highs.

Features

• Ultra-linear studio monitor with true active design
• Precision class-A/B amplifiers with active protection circuits: 50W for LF and 25 W for HF
• Ultra-high resolution 1” silk dome tweeter for ultimate sound reproduction
• Long-throw 5.25” woofer with deformation-resistant Kevlar cone for ultimate bass response
• Ultimate dispersion characteristics and extremely large ”sweet spot” owing to advanced wave guide technology
• High-precision crossover network with 4th order Linkwitz-Riley filters
• Adjustable to a wide range of acoustic conditions
• Separately controlled limiter for low and high frequency overload protection
• Magnetic shielding allows placement near computer monitors
• ”Planet Earth” power supply for maximum flexibility (100-240 V ), noise-free audio, superior transient response plus low power consumption for energy saving
• Servo-balanced inputs with XLR, 1/4″ and unbalanced RCA connectors
• Designed and engineered in Germany

Specifications

• System Type: Bi-Amplified Two-Way Active Monitor
• Low Frequency Driver: 5.25” Kevlar Cone Woofer
• High Frequency Driver: Ultra-High Resolution 1” Dome Tweeter
• Amplifier Type: Class-A/B
• Amplifier Output Power: 50W RMS / 75W Peak
  • Low Frequency: 35W RMS / 50W Peak @ 4Ω
  • High Frequency: 15W RMS / 25W Peak @ 4Ω
• Crossover: Active
• Crossover Frequency: 4.3kHz
• Frequency Response: 50Hz – 20kHz
• Sound Pressure Level: 110dB SPL Maximum @ 1m (Pair)
• Power Consumption: 100W
• Power Connector: Standard IEC
• Dimensions: 11.3” x 7.8” x 11” / 288mm x 198mm x 280mm (H x W x D)
• Weight: 12lbs / 5.5kg

Audio Inputs

• Connectors:
  • XLR, Balanced
  • 1/4” TRS, Balanced
  • RCA, Unbalanced
• Input Impedance: 10kΩ
• Input Trim: -6dB to +6dB
• Maximum Input Level: +22dB

Frequency Band Allocation

• Low Frequency:
  • 0dB @ 60Hz
  • -2dB @ 60Hz
  • -4dB @ 60Hz
  • -6dB @ 60Hz
• Room Correction:
  • 0dB @ 300Hz
  • -2dB @ 300Hz
  • -4dB @ 300Hz
  • -6dB @ 300Hz
• High Frequency:
  • +2dB @ 8kHz
  • 0dB @ 8kHz
  • -2dB @ 8kHz
  • -4dB @ 8kHz
