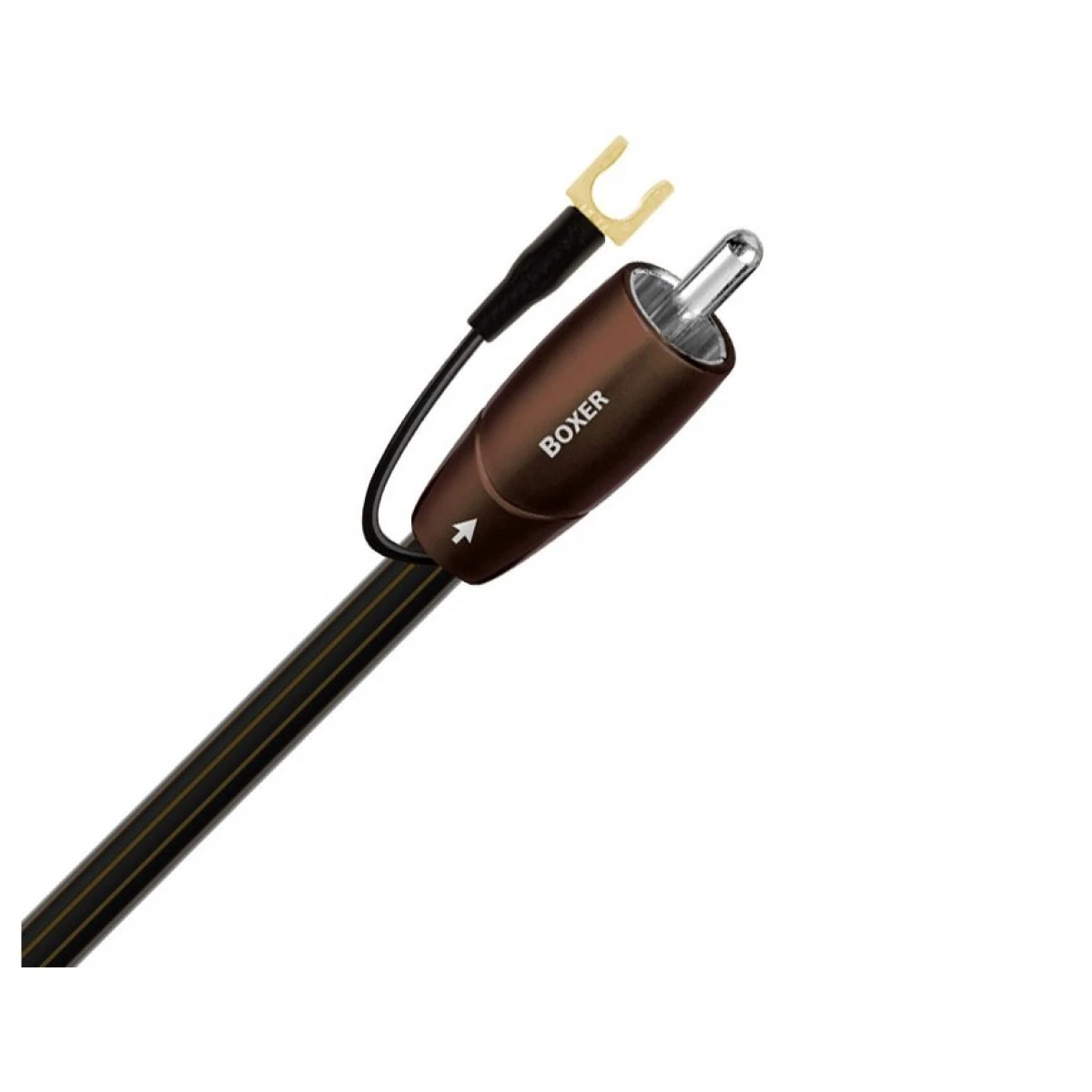

Name: AudioQuest Boxer Subwoofer Cable 16m (Single)
SKU: YXYUY 73869
Availability: InStock

Full Description

The Boxer subwoofer cable is designed with higher performance active bass speakers in mind but to be perfectly honest, most subwoofers would achieve a cleaner and tighter low-end sound when connected with this great interconnect. The story of Boxer extends further than random canine breeds and is actually inspired by AQ founder Bill Low’s own Boxer puppy!

Where lower models in the range start with a Solid Long Grain Copper (LGC) conductor, AQ have applied a much thicker layer of pure indulgent silver for Boxer which gives you all the hallmark sonic improvements but remaining very cost effective. LGC provides the central core to the cable, a technique that eliminates strand interaction (being more like a long core of solid copper). A smoother and clearer sound is achieved than regular standard-issue OFC cables and contains less oxides, less impurities and fewer grain boundaries (where the end of one meets the start of another). The outer jacket is made from installation rated (CL3/FT4) PVC which is great if you’re going to be running this cable behind walls, above ceilings or under floors.

Insulation is also improved by using the virtually energy-free PE Air-Tube technology. AQ have gone to great lengths with Boxer to ensure the musicality of the original source can shine through as it ought to. For the terminations AQ strongly believe in a ‘cold-weld’ connection to avoid distortion caused by differing materials used for soldering and a better choice of metals that isn’t dictated by machinery. The RCA plugs here are made from a purer ‘Red Copper’ which is again lavishly coated with silver.

Boxer also comes complete with a useful grounding lug, which will help to eliminate any subwoofer hum you may come across. Simply attach one spade lug to the metal chassis of the subwoofer’s amplifier block and the other spade to the chassis of the AV receiver or amplifier. Excellent attention to detail yet again from AudioQuest!

AudioQuest Boxer Features

Solid 1.25% Silver Conductors

Solid conductors eliminate strand-interaction distortion and reduce jitter. Solid silver-plated conductors are excellent for very high-frequency applications. These signals, being such a high frequency, travel almost exclusively on the surface of the conductor. As the surface is made of high-purity silver, the performance is very close to that of a solid silver cable, but priced much closer to solid copper cable. This is an incredibly cost effective way of manufacturing very high-quality subwoofer cables like Boxer.

Solid Core Conductors

Strand interaction is the single greatest cause of distortion in cable, and one of the easiest to avoid. Whenever current crosses the oxidized contact between bare strands, the signal will be altered. In addition, the magnetic fields of the various strands are constantly interacting, causing confusion (smearing) and causing the contact pressure between strands to be constantly modulated. AudioQuest’s solid core conductors are the complete solution to this problem.

AudioQuest Carbon-Based Noise-Dissipation System

Noise, in the form of RF energy, is the mortal enemy of good sound. Our environment is more contaminated with RF than ever before due to the huge proliferation of RF radiating devices like computers and mobile phones. Traditionally, RF energy is routed to ground through the use of a ‘shield” consisting of either a braided metal or foil. This ‘draining’ of RF to ground causes a modulation of the ground plane, which in turn causes a form of signal modulation. 100% shield coverage is easy. Preventing captured RF Interference from modulating the equipment’s ground reference requires AQ’s Noise-Dissipation System. Metal and Carbon-Loaded synthetics prevent most RFI from reaching the equipment’s ground plane..

Cold-Welded Silver Over Red Copper System

This plug design enables a perfect heat-free connection between cable and plug. The connection between the plug and conductors is made using AQ’s Cold-Welded System, which provides a superior connection that ensures that the structural integrity of the conductor is kept completely intact. The Cold-Welded System refers to a combination of high pressure at the point of contact and the use of copper- or silver-impregnated paste. (Boxer’s silver conductors get silver paste.)

Polyethylene Air-Tube Insulation

Any solid material adjacent to a conductor is actually part of an imperfect circuit. Wire insulation and circuit board materials all absorb energy (loss). Some of this energy is stored and then released as distortion. All of Boxer’s conductors use PE Air-Tube Insulation because air absorbs next to no energy, and Polyethylene is low-loss and has a benign distortion profile. PE Air-Tube Insulation causes much less of the out-of-focus effect common to other materials.

Cable Specifications

Conductor	Solid 1.25% Silver Conductors
Dielectric	Polyethylene Air-Tube Insulation
Jacket	PVC (Install Rated)
Plug Type	Silver-Plated ‘Red Copper’ RCA Male (x2)
Shielding	Carbon-Based NDS
Type	Subwoofer Interconnect
