Full Description

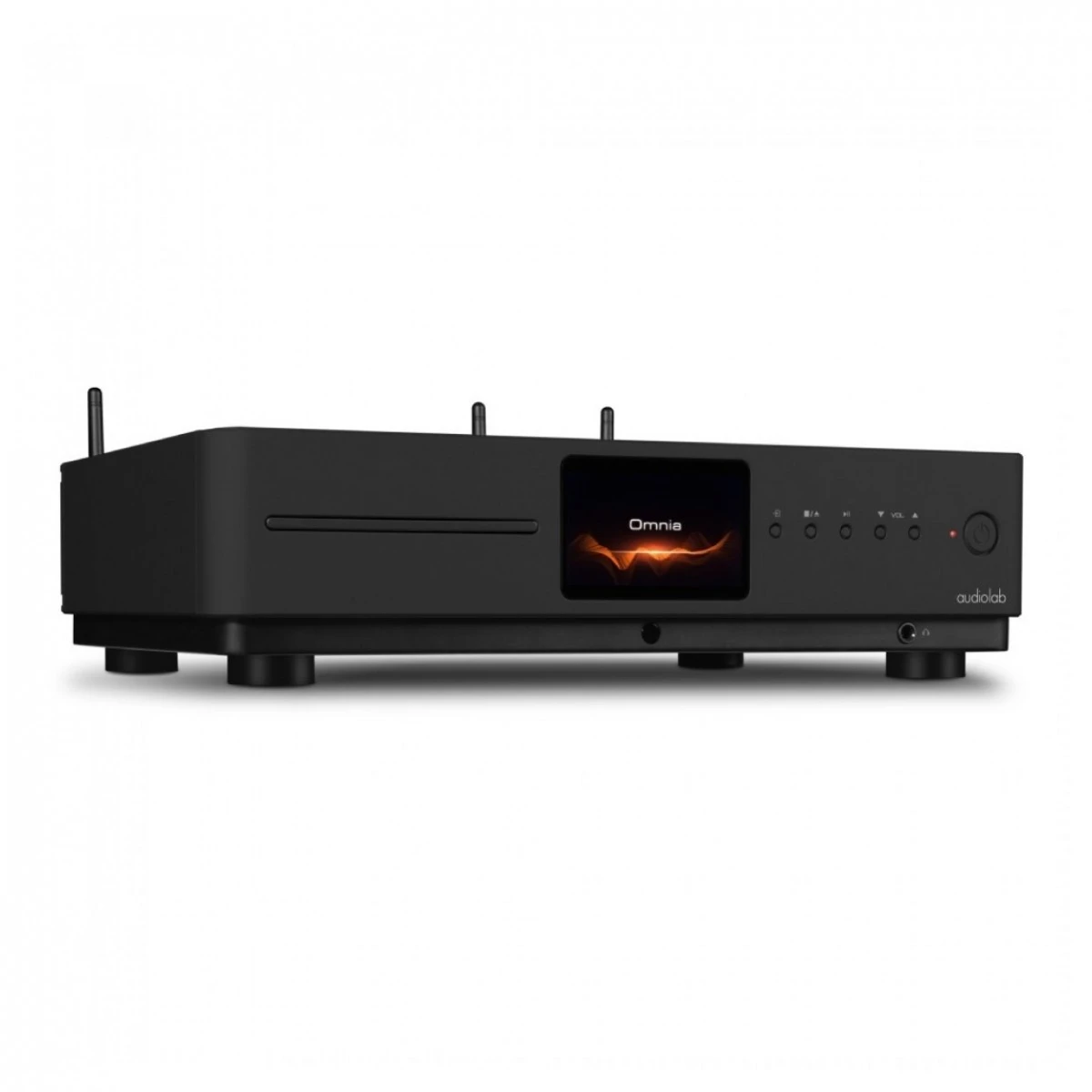

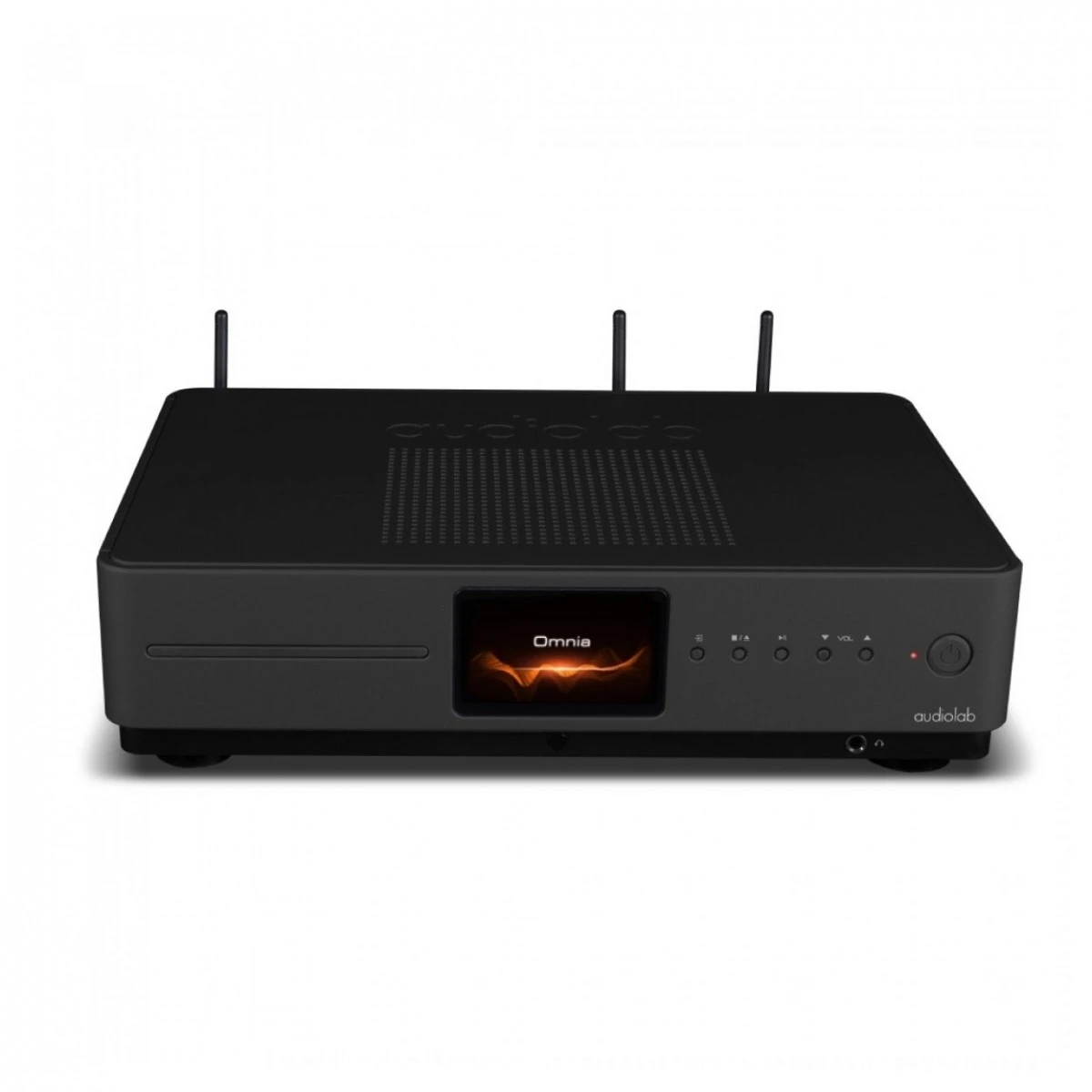

The Audiolab Omnia All-in-One System transcends the traditional HiFi streaming amplifier by incorporating a full host of home audio features, including everything from CD, wireless streaming, internet radio, as well as having an inbuilt ES9038Q2M 32-bit DAC, MM phono stage, headphone amplifier and pre-amp with a wide range of digital and analogue inputs. The Omnia maintains the timeless spirit of music and entertainment, embracing both classic and contemporary formats. This is an attractive but discreet all-in-one HiFi system, offering the perfect balance for living rooms and listening rooms alike.

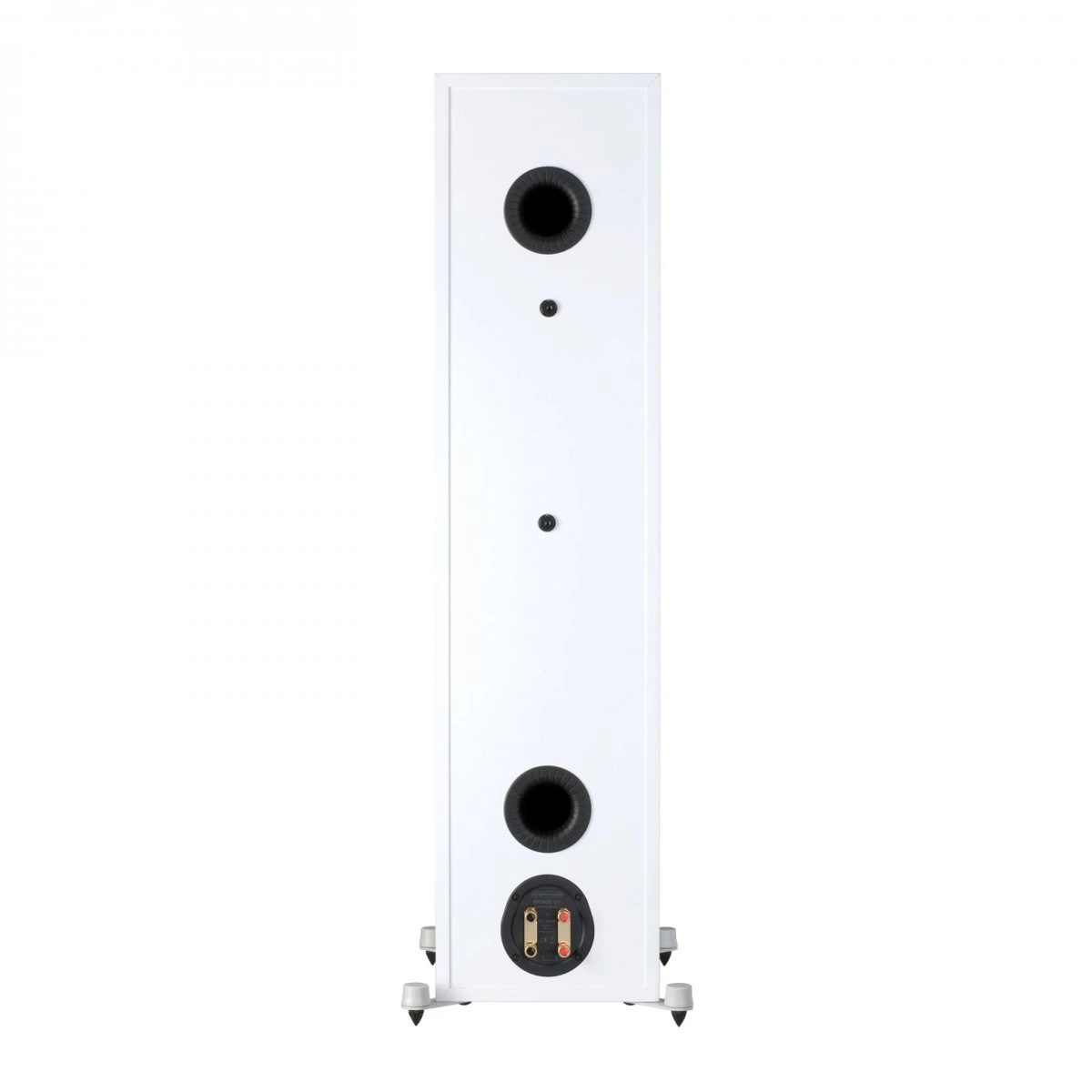

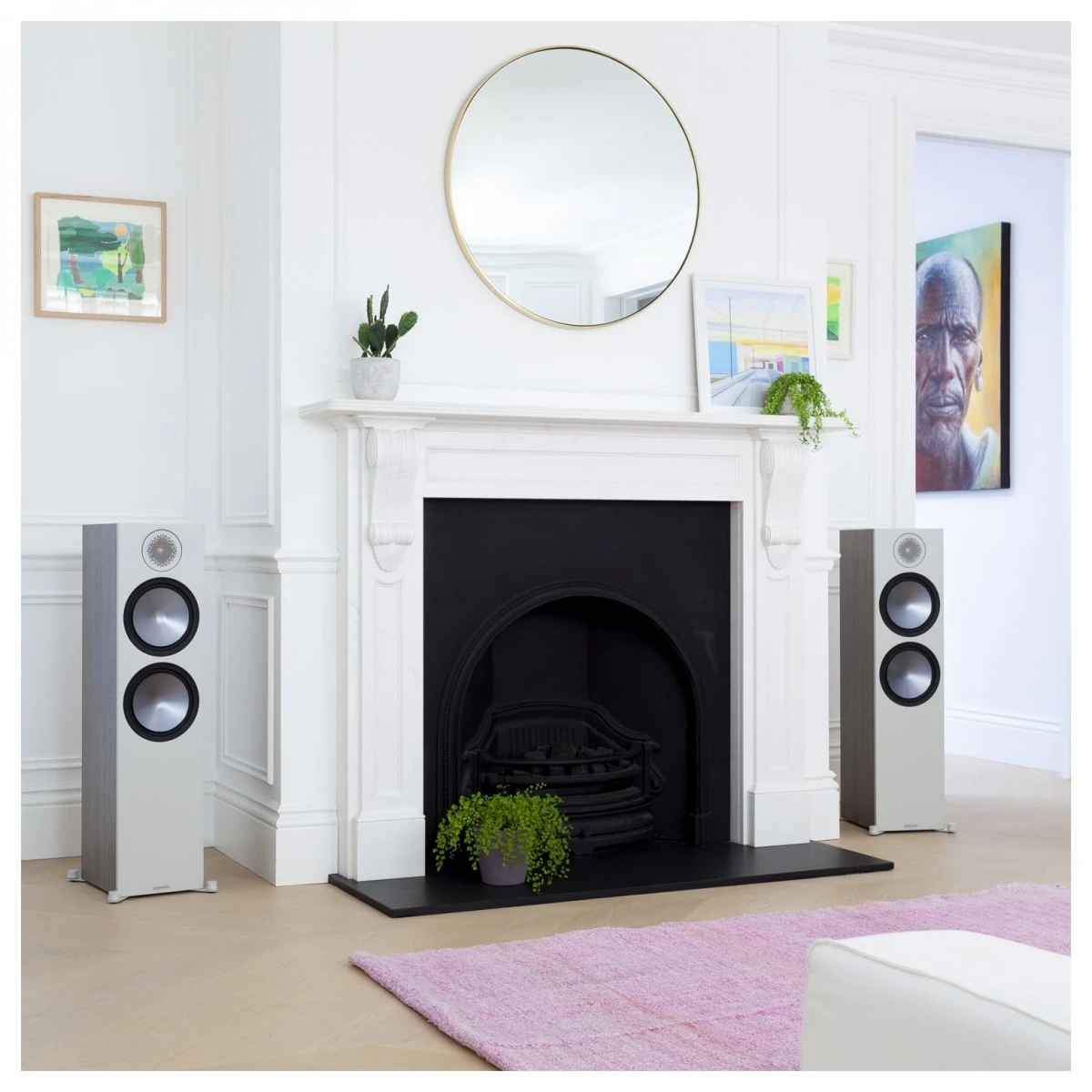

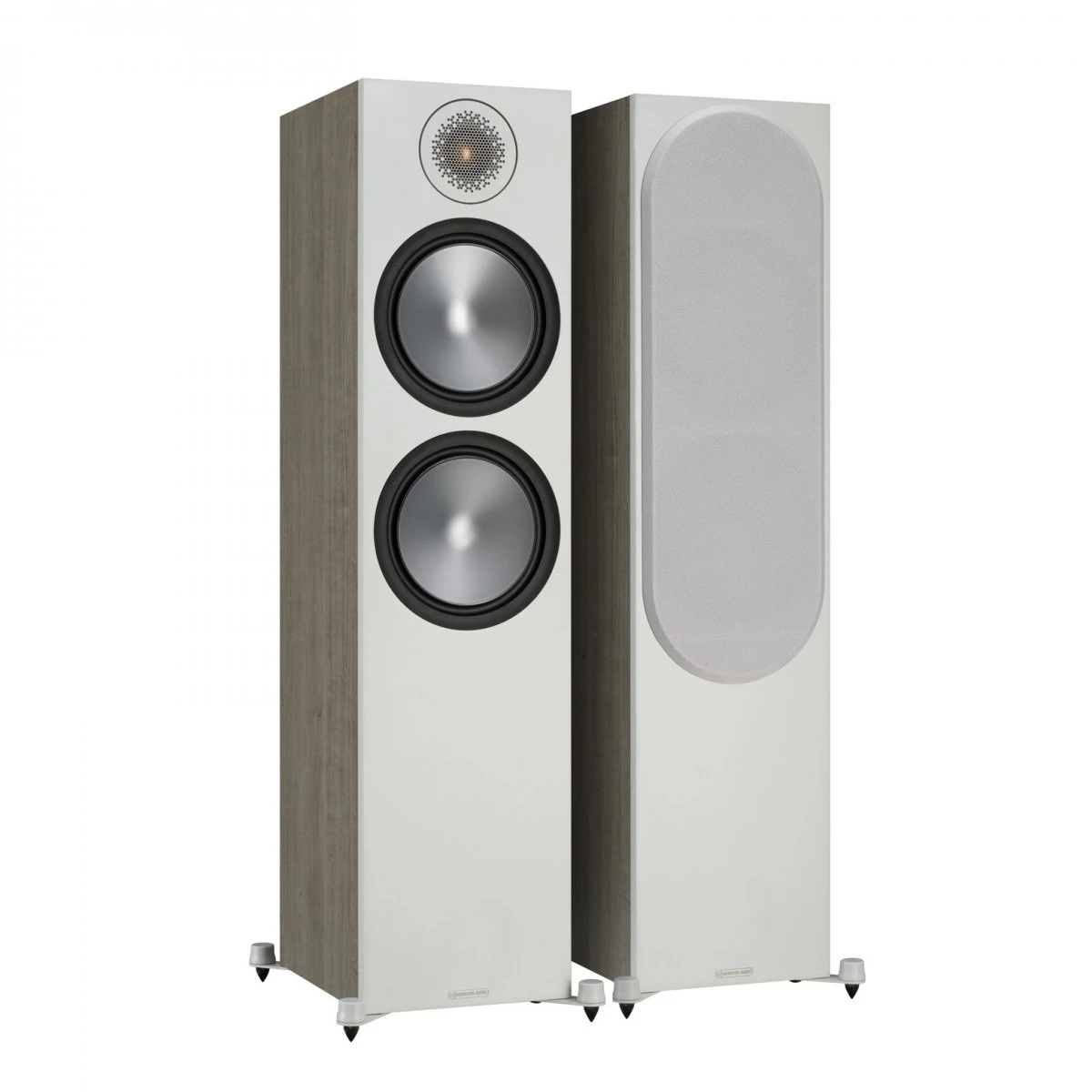

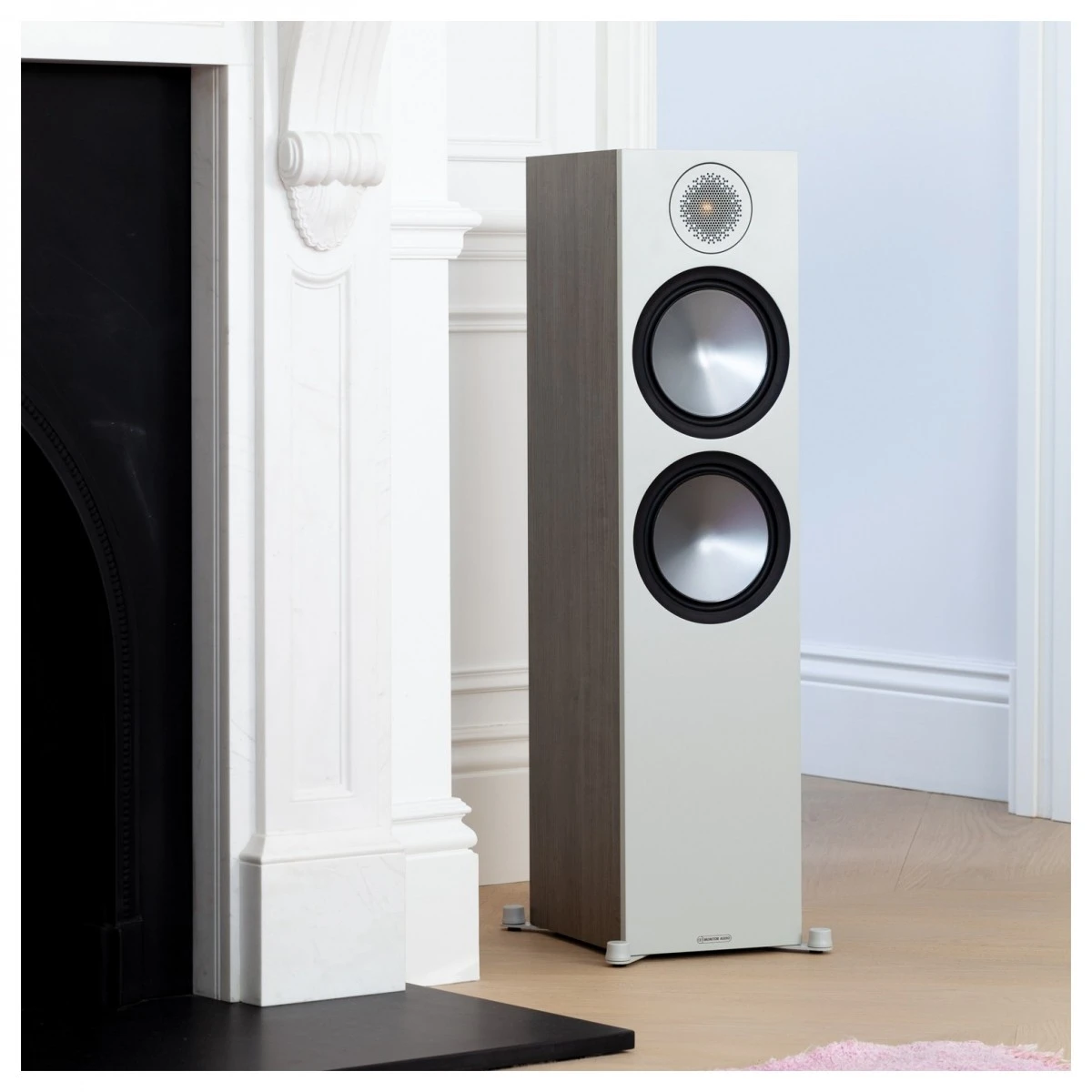

Accompanying this streaming amplifier, the Monitor Audio Bronze 500 Floorstanding Speakers offer premium audio features that elevate your music. Ceramic-Coated Aluminium Magnesium (C-CAM) drive units are utilised throughout the speakers, from their large eight-inch midbass drivers to the 25mm gold dome tweeter. This strong and ultra-lightweight material is key to the speakers’ sensitivity and responsiveness, along with the performance-enhancing HiVe II bass-reflex rear ports which allow air to move smoothly from the cabinet. A matching magnetic grille is also supplied with each speaker, along with an outrigger feet kit and a choice between floor spikes and rubber pads for stability wherever they’re placed.
To ensure you can set up your new home audio system instantaneously, we’ve included the Fisual Premium Hi-Fi Cable Package. This includes a 10-metre length of speaker cable (enough to split and position your speakers up to five metres from the amp), a pack of easy-to-use screw-on banana plugs, and a stereo phono / RCA cable to connect at least one more audio source of your choice. Order from AV.com and get everything you need for system setup in one neat package.
Please Note
The speaker cable in this bundle is provided as one 10 m length and comes unterminated. Banana plugs are included in the bundle, but are not provided attached and require some short preparation before use.
Package Includes
Audiolab Omnia All-in-One System Specifications
Connections
| Inputs | 3 x Analogue
1 x Phono (MM)
1 x Power Amplifier
2 x SPDIF (Coax)
2 x SPDIF (Optical)
1 x DTS Play-Fi Streaming
1xPC USB (USB B)
1xUSB HDD (USB A)
1 x Bluetooth (aptX/aptX LL)
1 x 12V Trigger |
|---|---|
| Outputs | 1 x PRE Amplifier
1 x Stereo Speaker
1 x Headphone
1 x 12V Trigger |
| Sampling Frequency | Optical / Coaxial: 44.1kHz —192kHz
PC USB: 44.1kHz – 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 |
Preamplifier Section
| Gain | +8dB (Line)
+47dB (Phono MM) |
|---|---|
| Input Sensitivity | 720mV (Line, Volume = 0dB)
3.1mV (Phone MM, Volume=0dB) |
| Input Impedance | 10K (Line)
47K // 100pF (Phono MM) |
| Total Harmonic Distortion (THD) | 110dB (Line, A-Weighted)
> 76dB (Phono MM, A-Weighted) |
DAC
| D to A Converter | ES9038Q2M |
|---|---|
| Total Harmonic Distortion (THD) | |
| Output Level (0dBFS, 1KHz) | 2.1Vrms |
| Max. Sampling Frequency | Optical, Coaxial: 192KHz
Ethernet, Wi-Fi: 192KHz
USB A48kHz |
| Signal-to-Noise Ratio (S/N) | > 114dB (A-Weighted) |
Power Amplifier Section
| Gain | +29dB |
|---|---|
| Rated Power Output | 2 x 50W (8 ohm, THD < 1 )
2 x 75W (4 ohm, THD |
| Frequency Response | 20Hz – 20 kHz (+/-0.3dB) |
| Total Harmonic Distortion (THD) | 110dB (A-Weighted) |
| Max. Output Current | 9A |
Headphone Amplifier
| Total Harmonic Distortion (THD) | |
|---|---|
| Output Impedance | 10 Ohm |
| Load Impedance | 20-600 Ohm |
General
| Standby Power Consumption | |
|---|---|
| Net Weight | 9.1kg |
| Gross Weight | 11kg |
| Dimensions (mm) (W x H x D) | 440 x156 x 327 |
| Carton Size (mm) (W x H x D) | 540 x 412 x 210 |
| Standard Accessories | Power Cord, Remote Control, User Manual, Antennas, etc. |
Monitor Audio Bronze 500 Floorstanding Speakers (Pair), Urban Grey
General
| External dimensions, incl. outrigger feet and spikes (W x H x D) | 294 x 974 x 364 mm |
|---|---|
| External dimensions, incl. grille and terminals (W x H x D) | 231 x 951 x 325 mm |
| Weight (per speaker) | 18kg |
| Finishes | Black, White, Walnut, Urban Grey |
Audio Features
| System format | 2.5 Way |
|---|---|
| Frequency response (-6 dB) | 41 – 25,000 Hz (Free field)
32 – 30,000 Hz (In room) |
| Sensitivity (2.83v @ 1m) | 90 dB |
| Nominal impedance | 8 Ohms |
| Minimum impedance | 4.1 Ohms |
| Maximum SPL | 116 dBA (pair) |
| Power handling (RMS) | 200 W |
| Recommended amplifier requirements | 60 – 200 W |
| Bass alignment | Bass Reflex (Dual HiVe II Port System) |
| Crossover frequency | 550 Hz
2,700 Hz |
| Drive unit complement | 2 x 8″ C-CAM midbass driver
1 x 25 mm C-CAM Gold Dome tweeter with UD Waveguide |
