Full Description
Audiolab 7000A Integrated Stereo Amplifier, Black
Class AB Power
The 7000A has a discrete Class AB power amp stage which delivers 70W per channel into eight ohms, and a maximum current delivery of 9A amps for difficult loads. Superior linearity and excellent thermal stability are ensured with the output stage of the discrete power amp circuits using a CFB topology. The amp stays in firm control of the music with excellent dynamic range, helped by the 250VA toroidal transformer and the 4x15000uF reservoir capacity.
Multiple Sources
Cover all bases with high quality for all: For CD players and line-level sources, you have dual analogue inputs; for digital sources, dual Coaxial and SPDIF inputs; and for wireless audio playback and smart devices, you have a Bluetooth aptX receiver. Plus, the HDMI Audio Return Channel (ARC) connection allows you to seamlessly enhance your TV audio, with a direct-to-PC connection via USB as well, for all your home entertainment.
Cutting-edge DAC
The 7000A’s ESS ES9038Q2M chip finetunes the introduction of low-loss digital audio files into your home audio system. It utilises both 32-bit HyperStream architecture and Time Domain Jitter Eliminator from ESS Technology. Plus, it has ultra-low noise and a high dynamic range thanks to a post-DAC filter based on class A topology and its proprietary DC-coupled high-gain electronic amp.
Super Streaming
The 7000A offers full decoding for MQA, a hi-res streaming technology with a completely limited loss of detail. This means that the 7000A completes the ‘three unfold’ decoding process internally, instead of a final unfold in a final MQA ‘renderer’, resulting in superior sounding, studio-quality audio streaming from services such as Tidal.
Integrated Phono Solution
Connecting a turntable setup with a moving magnet cartridge? The 7000A comes with an enhanced, integrated phono stage, with RIAA equalisation and an improved low-noise MM phono circuit. The same can be said for this amp’s dedicated headphone output, which has current-feedback circuitry, gain bandwidth and a high slew rate, ensuring detailed and engaging performance.
Interface and Graphics
The 7000A includes an improved display and GUI, so you can more easily visualise your settings. It can be set to show a VU meter in either analogue or digital form. Furthermore, the GUI also has settings for the digital phase lock loop of the D/C converter.
Key Features
- Two-channel 70W (8 ohms) (or 110W (4 ohms)) Class AB amplifiers produce a powerful sound
- ES9038Q2M 32-bit DAC provides optimal sound quality for digital formats
- Built-in certified hardware MQA full decoder supports hi-res, studio-quality audio
- Bluetooth 5.0 (aptX / aptX LL) support enables wireless streaming
- Low noise moving magnet phono stage lets you seamlessly connect your turntable
- Dedicated current-feedback headphone amp magnifies the sound for private listening sessions
- 20Hz-20kHz frequency response ensures dynamic sound capabilities that will cater to all music genres
- Numerous inputs and outputs for both analogue and digital audio means you can unify your devices into one home sound system
- 2.8″ (480x640mm) full-view IPS LCD display keeps you visually informed on the volume levels and amplifier functionality

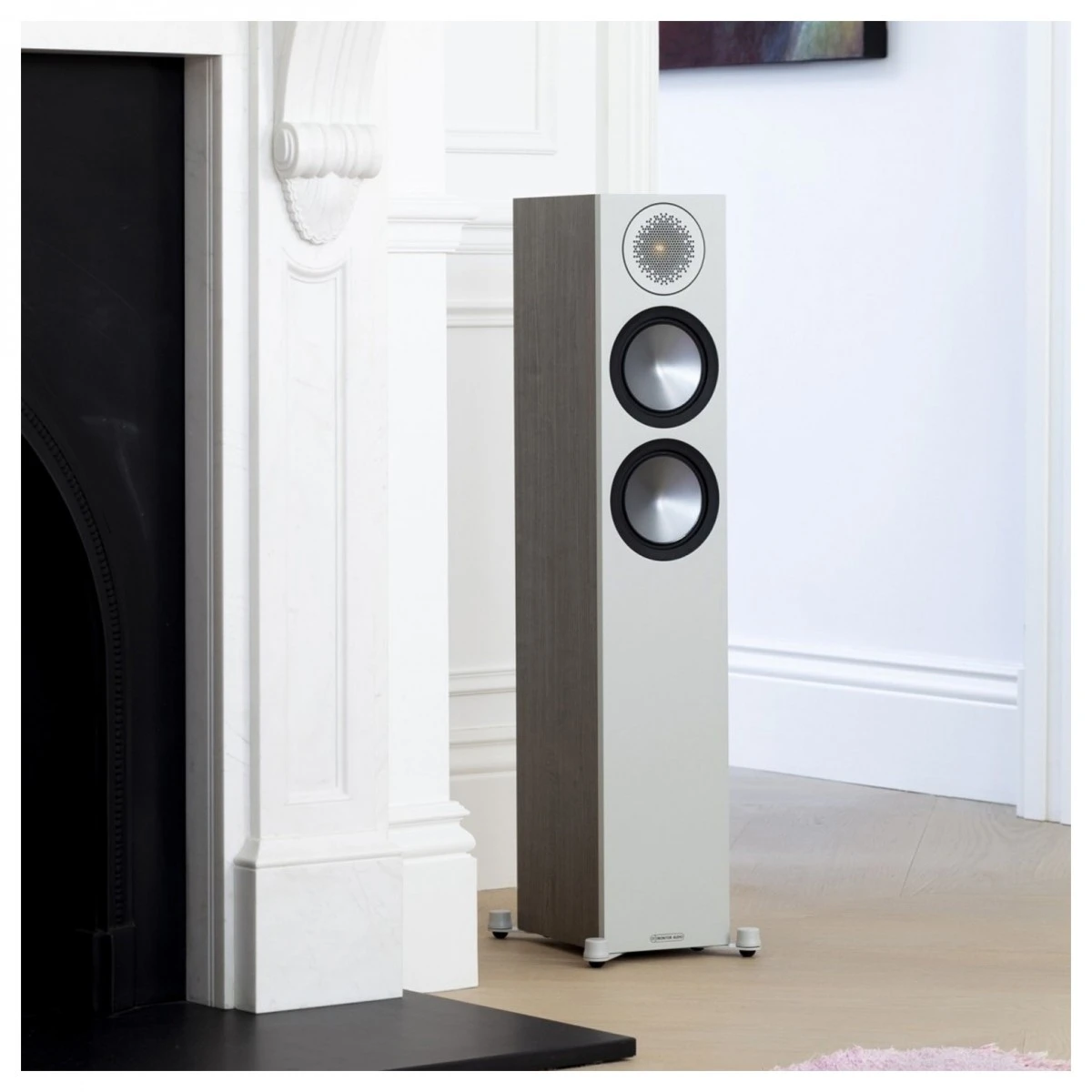

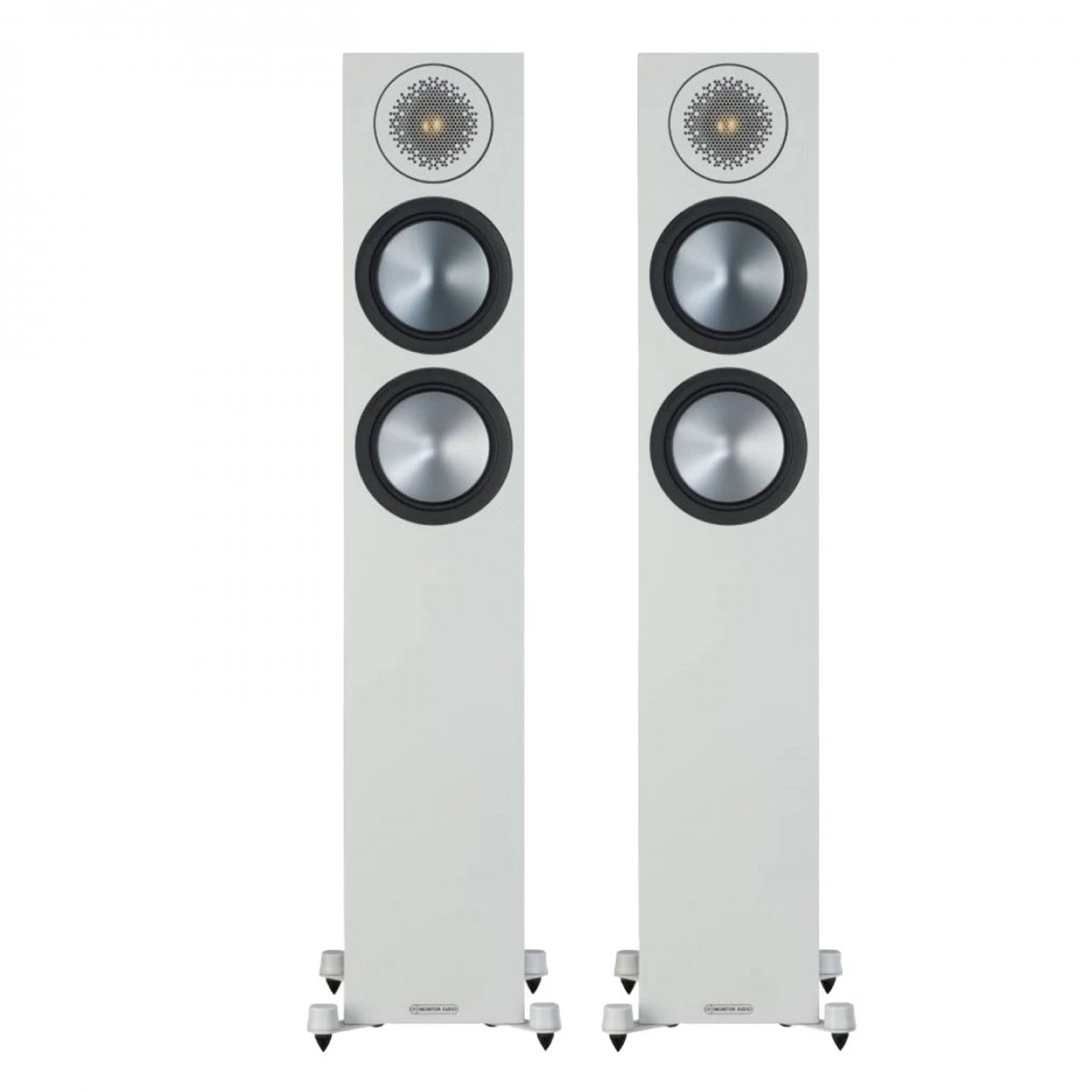

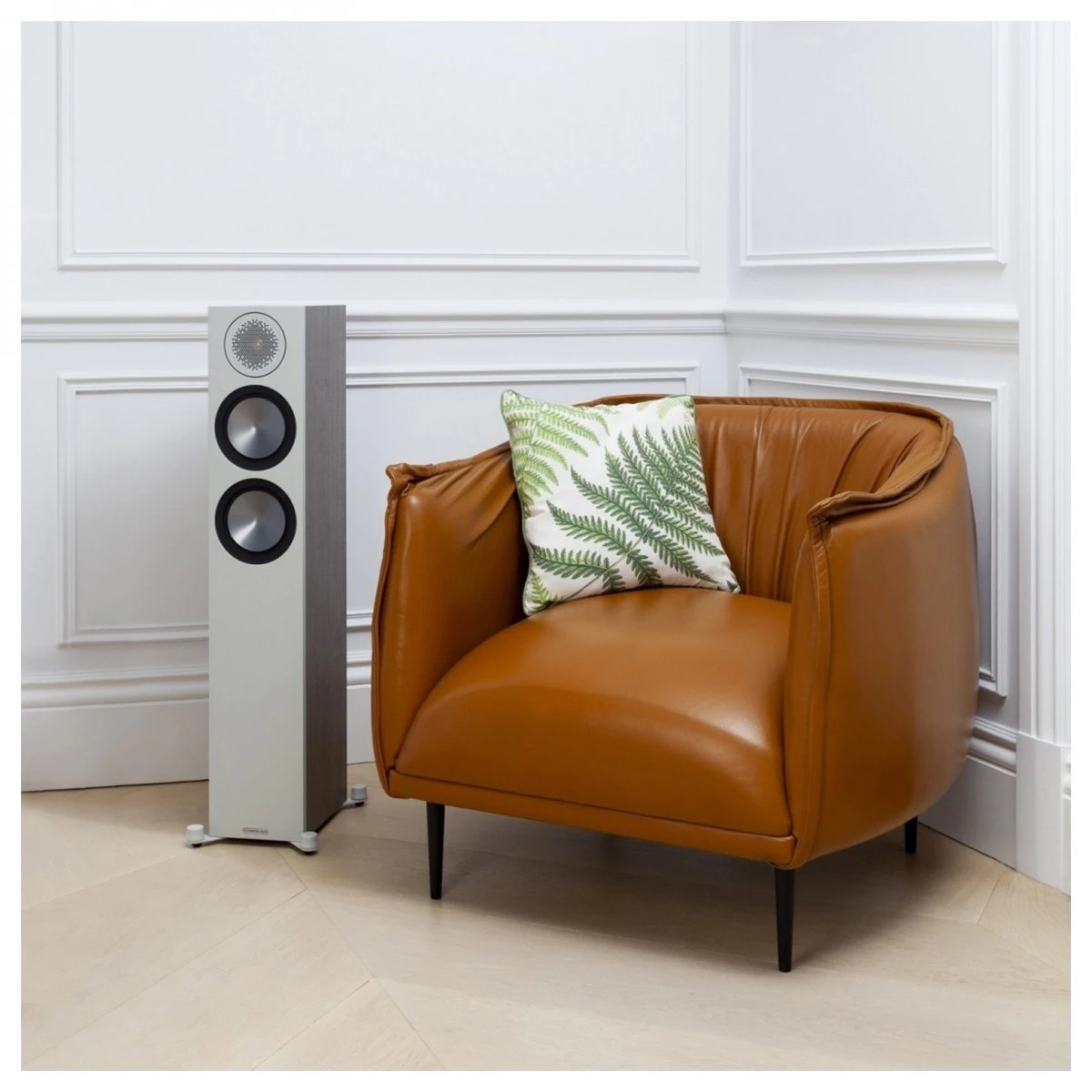

Monitor Audio Bronze 200 Floorstanding Speakers (Pair), Urban Grey
Fuller Audio
The Bronze 200 6G Floorstanding Speakers are equipped with a pair of versatile 5½” midbass drivers each. The lower frequencies are reliably defined thanks to the super-light C-CAM materials that have been used throughout these speakers. Keeping weight down and retaining rigidity improves efficiency, whilst the new HiVe II bass-reflex ports smoothly manage airflow from the cabinet, resulting in clean and clear bass. When paired with the 7000A amplifier, these speakers are sure to produce a deluxe sound that optimises your favourite songs.
Enhanced Accuracy
Are you looking for speakers that produce clear, nuanced audio without imposing on your room? The Bronze 200 speakers use refined technology to punch on a scale above its weight. Using UD waveguide technology, the listening sweet spot is much wider, making positioning easier. The 25mm C-CAM gold dome tweeter, used throughout the range, also improves time alignment and crossover with the larger drivers for a consistent voice.
A New Dimension
Whether you’re looking to expand your existing setup or build a full surround sound system from scratch, the Bronze series uses uniform technology throughout its speakers, including supporting modules such as the Bronze AMS Atmos Speaker. Designed in line with the width and depth of the Bronze 200 speakers, the AMS can be sat seamlessly on top of these floor-standing speakers to add a third dimension to your home cinema, immersing you in audio.
Key Features
- Developed by the aerospace industry, C-CAM uses ultra-lightweight materials that ease efficiency whilst keeping the conical drivers rigid
- The Bronze Series drivers have been redesigned with Dampened Concentric Mode (DCM) technology and refined geometry to improve accuracy and response
- The new grooved HiVe II reflex ports direct cabinet airflow, diminishing overall resonance and better controlling bass
- Bronze 200s use a Uniform Dispersion (UD) Waveguide with its 25mm gold dome tweeter. This widens the listening sweet spot and improves driver cohesion by lowering crossover frequency
- Shares hexagonal dispersion pattern with the premium Silver and Gold series
- Dimensionally aligns with the adding a flush third dimension to your surround system
- Monitor Audio’s brand recognition and heritage of quality products
- Bronze Series is covered by Monitor Audio’s standard 5 Year Warranty
Package Includes
- 1 x IEC power cord
- 1 x Remote handset
- Owner’s manual
- Monitor Audio Bronze 200 6G Floorstanding Speaker (Pair), Urban Grey Wood
- 2 x Magnetic grilles
- 8 x Outriggers (inc. assembly kit)
- 8 x Spike feet
- 8 x Rubber feet
- 4 x Port bungs
- Owner’s manual
Specifications: Audiolab 7000A Integrated Stereo Amplifier, Black
General
| Net Weight | 8.4kg |
|---|---|
| Gross Weight | 10.7kg |
| Dimensions (mm) (W x D x H) | 444 x 340 x 78 |
| Carton Size (mm) (W x D x H) | 500 x 455 x 140 |
| Standby Power Consumption | <0.5W |
| Finish | Black / Silver |
| Power Requirements | 220-240V 50/ 60Hz; |
| (depending on region) | 100-120V 50/ 60Hz |
| Inputs | 3 x Analogue
1 x Phono (MM)
1 x Power Amplifier
2 x SPDIF (Coax)
2 x SPDIF (Optical)
1 x HDMI ARC
1 x PC USB (USB B)
1 x Bluetooth (aptX/aptX LL)
1 x 12V Trigger |
| Sampling Frequency | Optical / Coaxial: 44.1kHz – 192kHz
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 |
Preamplifier Section
| Gain | +6dB (Line); +55dB (Phono MM) |
|---|---|
| Input Sensitivity | 820mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB) |
| Input Impedance | 10K (Line); 47K // 100pF (Phono MM) |
| Total Harmonic Distortion (THD) | < 0.0005% (1kHz @ 2V, Volume = 0dB) |
| Frequency Response | 20Hz-20kHz (+/-0.1dB) |
| Output Voltage | 2.3V max. (Volume = 0dB) |
| Output Impedance | 100 ohms |
| Signal-to-Noise Ratio | > 110dB (Line, A-weighted); > 76dB (Phono MM, A-weighted) |
DAC
| D to A Converter | ES9038Q2M |
|---|---|
| Total Harmonic Distortion (THD) | < 0.0005% (1KHz @ 0dBFS) |
| Output Level (0dBFS, 1kHz) | 2.1Vrms |
| Max. Sampling Frequency | Optical, Coaxial: 192kHz;
Ethernet, WiFi: 192kHz;
USB A: 48kHz;
PC USB: PCM768kHz, DSD512 |
Power Amplifier Section
| Gain | +29dB |
|---|---|
| Rated Power Output | 2 x 70W (8 ohms, THD<1%); 2 x 110W (4 ohms, THD<1%) |
| Frequency Response | 20Hz-20kHz (+/-0.3dB) |
| Total Harmonic Distortion (THD) | <0.003% (1kHz @ 40W / 8 ohms) |
| Input Sensitivity | 720mV |
| Signal-to-Noise Ratio (S/N) | > 110dB (A-weighted) |
| Max. Output Current | 9A |
Headphone Amplifier
| Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW) |
|---|---|
| Output Impedance | 4.7 ohms |
| Load Impedance | 20-600 ohms |
Specifications: Monitor Audio Bronze 200 Floorstanding Speakers (Pair), Urban Grey
General
| External dimensions, incl. outrigger feet and spikes (W x H x D) | 229 x 909 x 304 mm |
|---|---|
| External dimensions, incl. grille and terminals (W x H x D) | 166 x 886 x 265 mm |
| Weight (per speaker) | 12.8kg |
| Finishes | Black, White, Walnut, Urban Grey |
Audio Features
| System format | 2.5-way |
|---|---|
| Frequency response (-6 dB) | 45 – 25,000 Hz (free field)
35 – 30,000 Hz (in room) |
| Sensitivity (2.83v @ 1m) | 88 dB |
| Nominal impedance | 8 ohms |
| Minimum impedance | 4.4 ohms |
| Maximum SPL | 112 dBA (pair) |
| Power handling (RMS) | 120 W |
| Recommended amplifier requirements | 40 – 120 W |
| Bass alignment | Bass reflex Dual HiVe II port system |
| Crossover frequency | 700 Hz
2,400 Hz |
| Drive unit complement | 2 x 5 1/2″ C-CAM midbass driver
1 x 25 mm C-CAM Gold Dome tweeter with UD Waveguide |
