Full Description

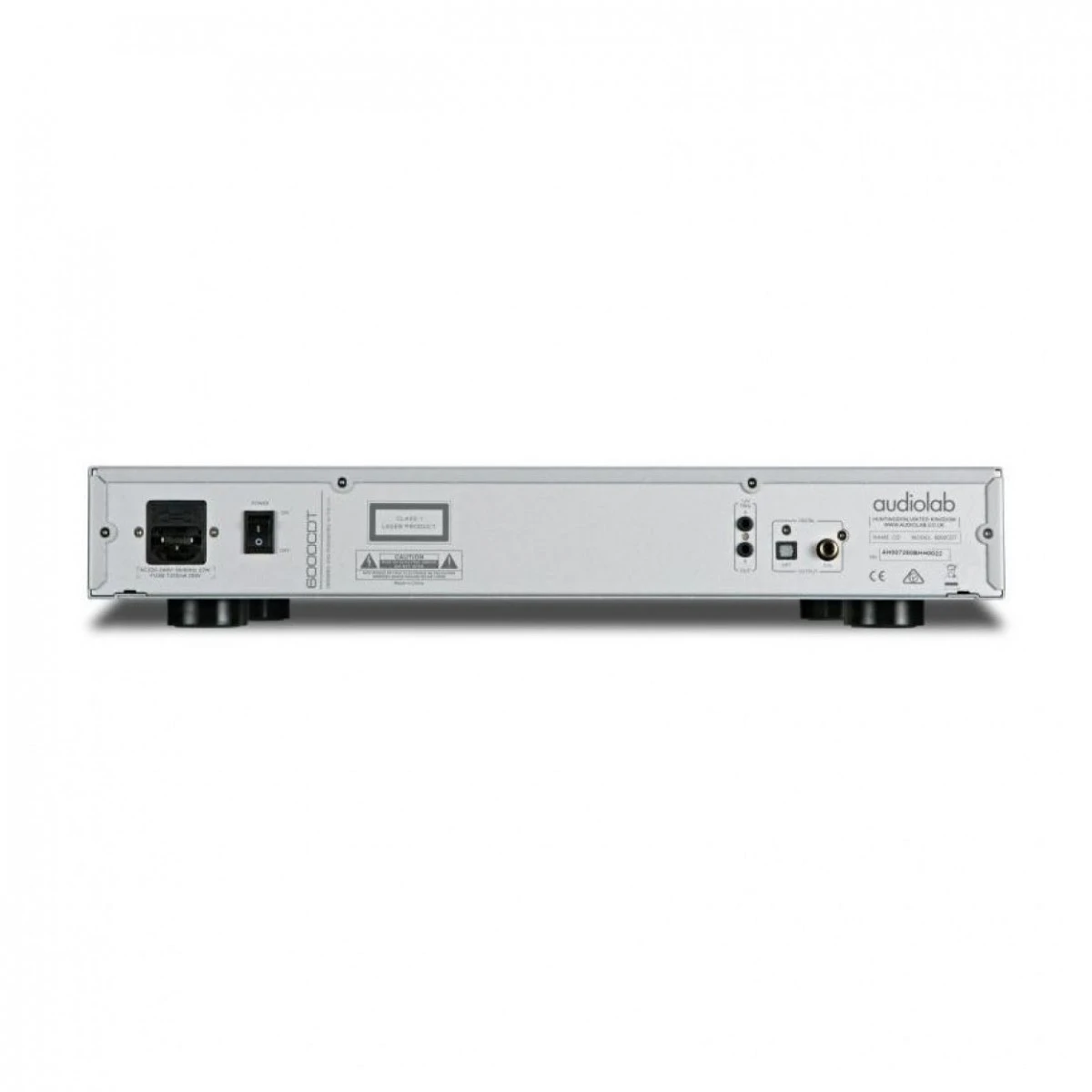

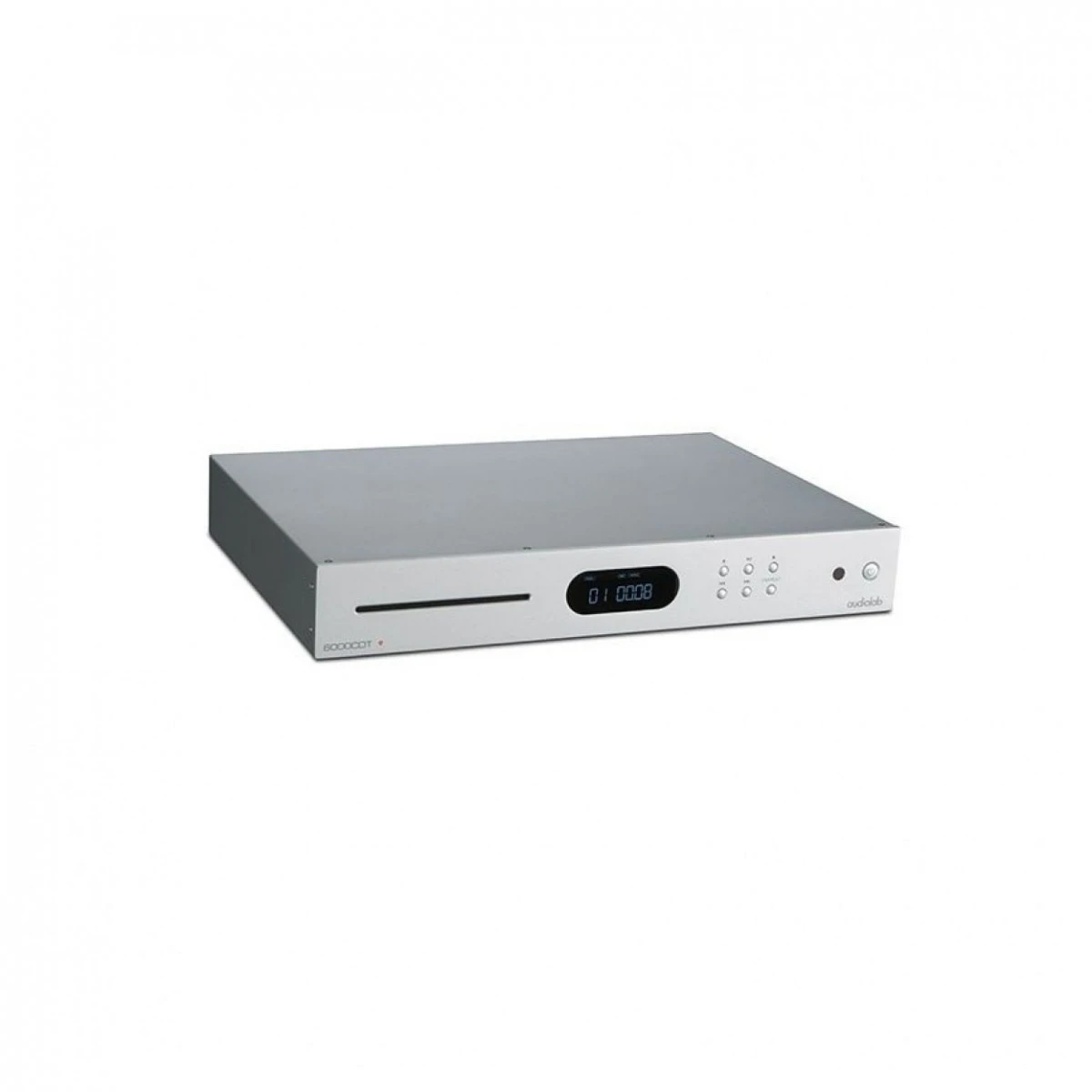

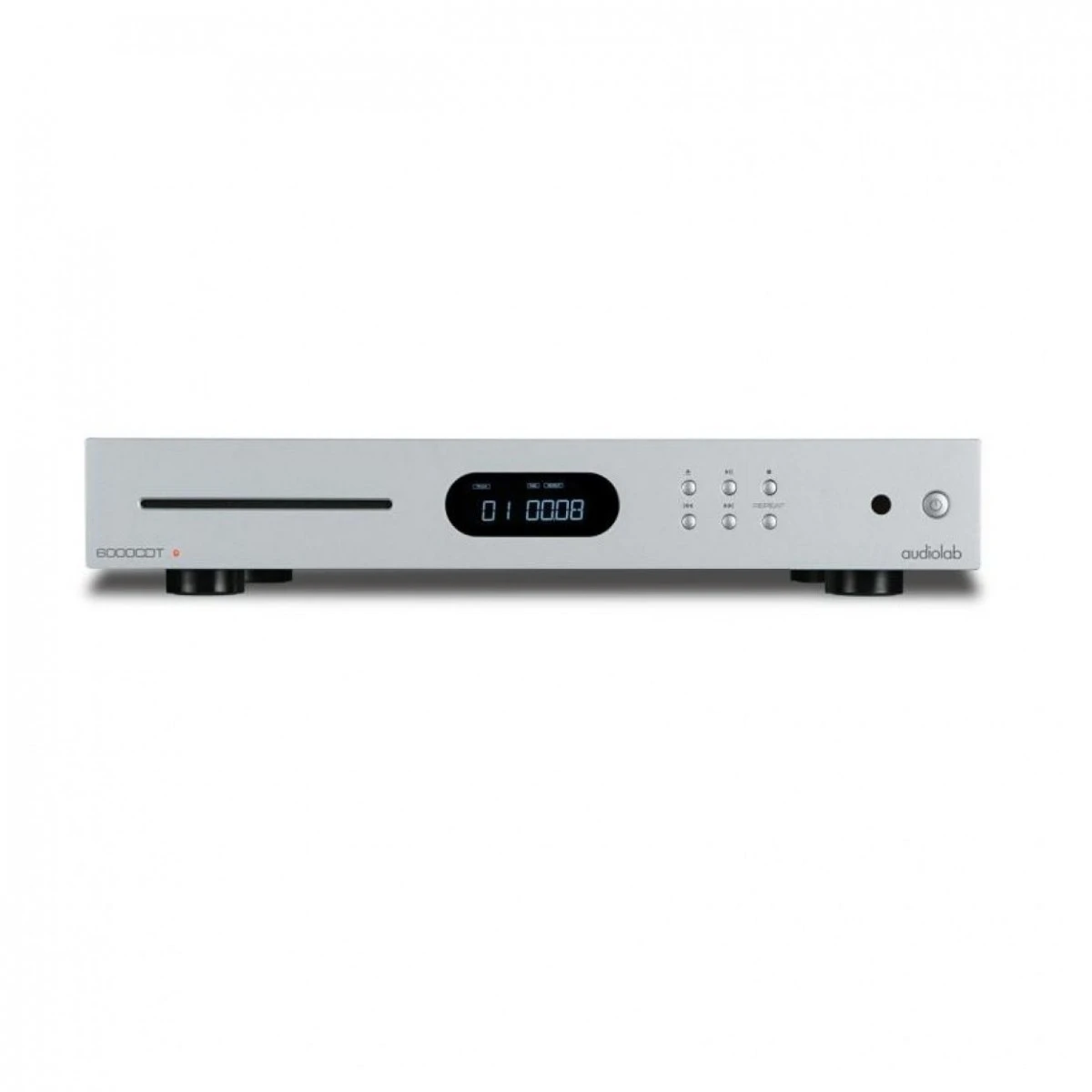

Audiolab 6000CDT CD Transport, Silver
With an output impedance of 75 ohms, the CD Transport device ensures a healthy power transmission system. The 6000CDT features a 12V trigger output and auto standby mode to avoid excess heating and power consumption. With a maximum power consumption of 20W and standby power consumption of less than 0.5W, it is an energy efficient device. The 6000CDT with dimensions 445(W) x 300(H) x 65.5(D) mm weighs only 7.2 kg. The CD transport comes with a remote control to help you operate the system even from a distance. Kick back on your comfy couch and play the 6000CDT with your favourite genre of music. The CD transport system is available in black or silver finishes to add a stylish look to your living room and interiors.

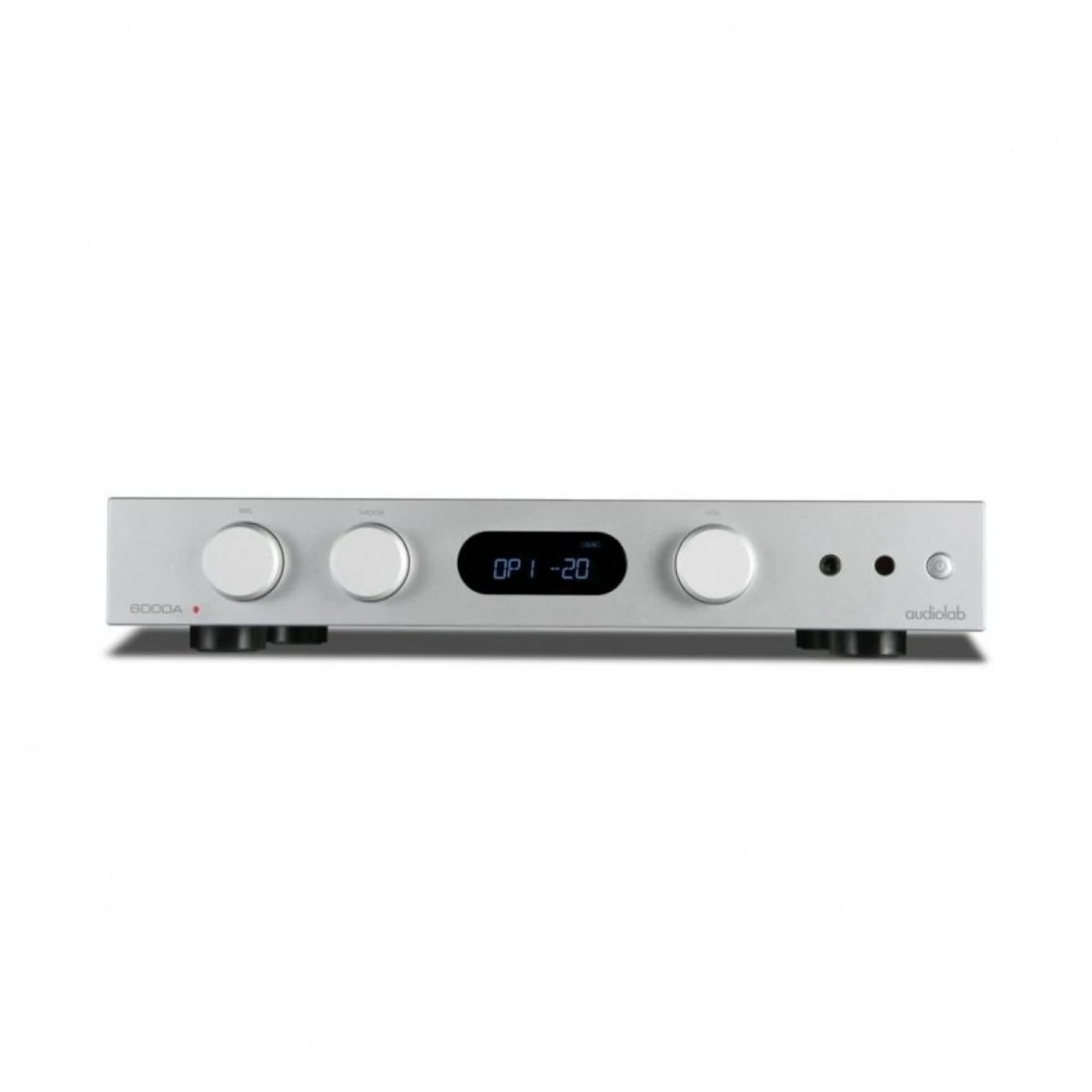

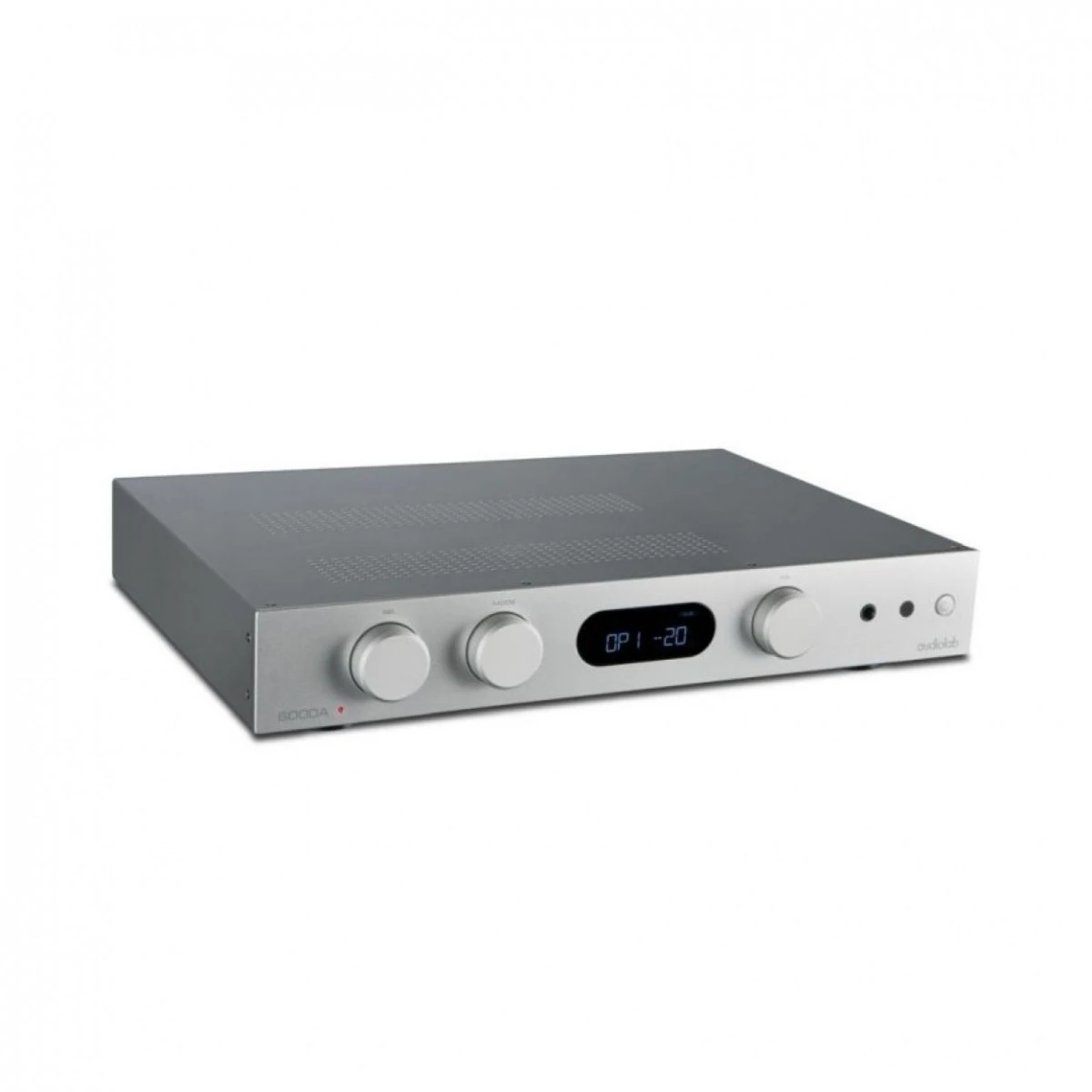

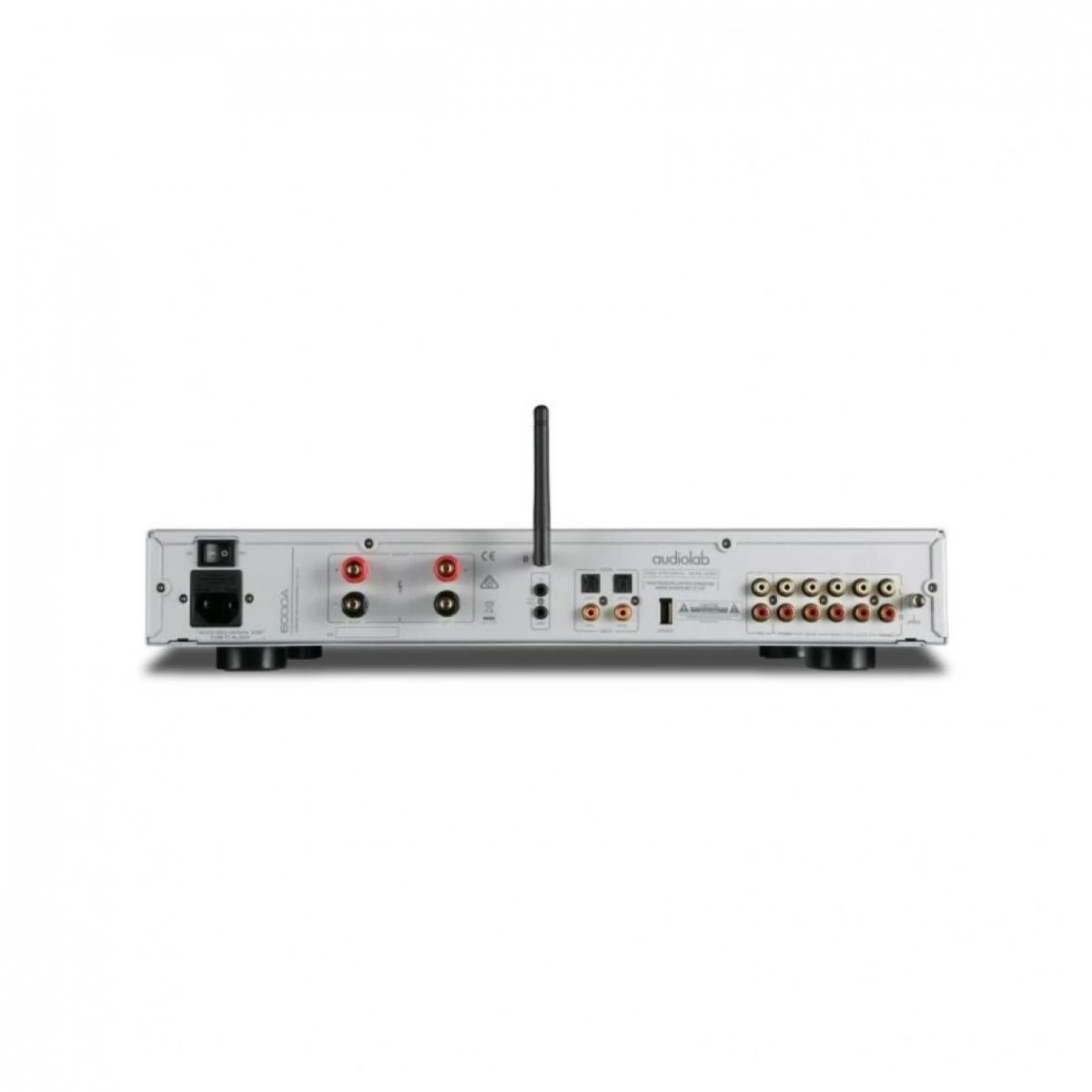

Audiolab 6000A Integrated Stereo Amplifier, Silver
The Sound of Science
Outwardly, the 6000A bears strong resemblance to the 8300A with its rotary controls and large, central OLED display. Unlike its costlier, analogue-only sibling, it incorporates high-quality D/A conversion, enabling digital sources to be connected directly without an external DAC. It supplies four digital inputs, three line-level analogue inputs, an input for a turntable, wireless connectivity via Bluetooth and a dedicated headphone amp, in addition to its ability when driving loudspeakers.
Digital Circuitry
Much effort has been made to ensure the 6000A’s digital circuitry delivers the level of quality one might expect of a high-performance standalone DAC. As ever, Audiolab has turned to the ES9018 Sabre32 Reference chip family to perform D/A conversion, utilising ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator to deliver ultra-low noise and high dynamic range.
Analogue Circuitry
The 6000A’s discrete Class AB power amp stage delivers 50W per channel into eight ohms, with a maximum current delivery of 9 Amps into difficult loads. The output stage of the discrete power amp circuits uses a CFB (Complementary Feedback) topology, ensuring superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors. A substantial 200VA toroidal transformer, followed by 4x15000uF reservoir capacity (60000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.
Turntables and Headphones
In recognition of the recent vinyl revival, Audiolab has included a phono stage for moving magnet phono cartridges – a high-quality, low-noise, JFET-based circuit with precise RIAA equalisation. Similarly, an increasing number of people are using headphones for music listening, so Audiolab has incorporated a dedicated headphone amp with current-feedback circuitry.
Package includes
Audiolab 6000CDT CD Transport, Silver
| Digital Output Voltage Level | 600±50mVpp |
|---|---|
| Frequency response | ≤0.01dB @ 20-20kHz [-] ≤0.01dB @ 20-20kHz |
| Output Impedance | 75±1 ohm |
| Max Sampling Rate | 44.1 KHz |
| Max. Power Consumption | 15W |
| Standby Power Consumption | |
| Power Requirements | 240V 50 – 60Hz
230V 50 – 60Hz
115V 50 – 60Hz
100V 50 – 60Hz |
| Dimensions (mm) | (W x H x D) 445 x 300 x 65.5 – including feet, terminals and controls |
| Carton Size (mm) | (W x H x D) 512 x 467 x 146 |
| Weight (kg) | 5.4 |
Audiolab 6000A Integrated Stereo Amplifier, Silver
| Gain (Max) | +8dB (Line)
+55dB (Phono MM) |
|---|---|
| Input Sensitivity | 720mV (Line, Volume = 0dB)
3.1mV (Phono MM, Volume=0dB) |
| Input Impedance | 10K (Line)
47K//100pF (Phono MM) |
| Total Harmonic Distortion (THD) | 110dB (Line, A-weighted) |
Digital to Analogue Conversion
| D to A converter | ES9018K2M |
|---|---|
| Total Harmonic Distortion (THD) | 112dB (A-weighted) |
| Digital Filters | Fast Roll-off , Slow Roll-off , Minimum Phase |
Power Amplifier Section
| Gain | +29dB |
|---|---|
| Rated Max. Power Output | 2 X 50W (8 ohm, THD<1 )
2 X 75W (4 ohm, THD |
| Frequency Response | 20Hz-20kHz (+/-0.3dB) |
| Input Sensitivity | 720mV |
| Total Harmonic Distortion (THD) | 110dB (A-weighted) |
| Max. Output Current | 9A |
Headphone Amplifier
| Total Harmonic Distortion (THD) | |
|---|---|
| Output Impedance | 2.35 ohm |
| Load impedance | 20-600 ohm |
General
| Standby Power Consumption | |
|---|---|
| Power Requirements | 240V 50 – 60Hz
230V 50 – 60Hz
115V 50 – 60Hz
100V 50 – 60Hz |
| Dimensions (mm) (W x H x D) | 445 x 65.5 x 300 |
| Carton Size (mm) (W x H x D) | 512 x 467 x 146 |
| Weight | 7.8kg (Net) |
