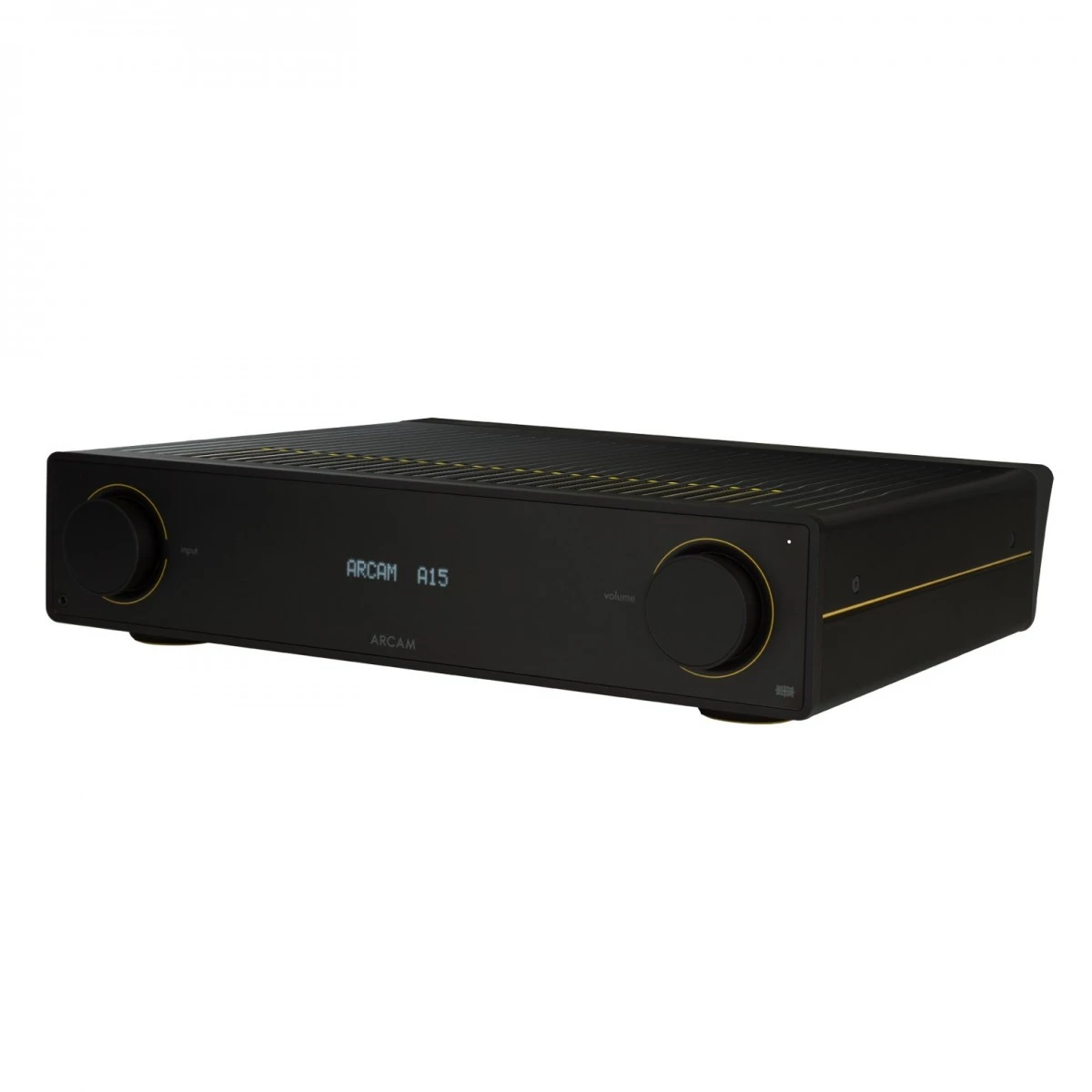

Arcam A15 Integrated Amplifier

What’s in the Box?

• Arcam A15 Integrated Amplifier
• Mains lead(s)
• Remote control (w/ 2 x AAA batteries)
• Quick start guide
• Important safety instructions

Specifications

Continuous Power Output (0.5 THD), per channel

2 channels driven, 20Hz – 20kHz, 8Ω	80W
2 channels driven, 1kHz, 4Ω	120W
Harmonic distortion, 80 power, 8Ω at 1kHz	0.002

Analogue Inputs

Number of inputs	3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input)	106dB
Frequency response	20Hz—20kHz ± 0.2dB

Phono (MM) Input

Input impedance	47k? + 100pF
Frequency response (ref. RIAA curve)	20Hz—20kHz ± 1dB

Digital Inputs

Bluetooth Version	Bluetooth 5.2 with AptX Adaptive technology and AAC
Supported Sample Rates (kHz)	Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1 Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1
Bit depths (bit)	24, 16
Frequency response (filter 1)	20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS)	109dB

Headphone Output

Maximum output level (RMS) into 32?/300?	2.5V/5Vrms
Load range	16Ω – 2kΩ

General

Mains voltage	100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum)	500W
Power consumption (standby)
Dimensions W x D (including speaker terminals) x H (including feet)	431 x 344 x 98mm
Weight (net)	10kg
Weight (packed)	13kg
